Layout Sample in MVC, Day 6

Introduction

In this article we will see how to create a layout for a view in MVC.

Step 1

Create a MVC project from the "Empty" template.

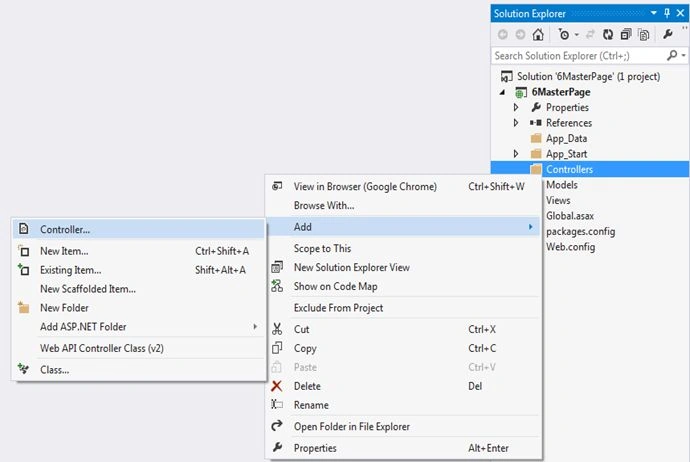

Right-click on "Controllers" and select "Add" >> "Controller...".

Empty template

Step 2

Select "MVC 5 Controller - Empty" to add an empty controller. Click on the "Add" button.

Step 3

Name the controller as in the following:

Step 4

Now we need to create a view.
Right-click on "Index" and select "Add View...".

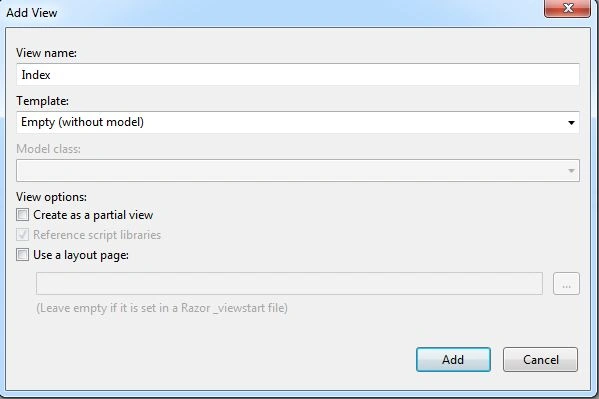

Step 5

Name the view and select "Empty (without model)" as the template.
Click on the "Add" button.

Step 6

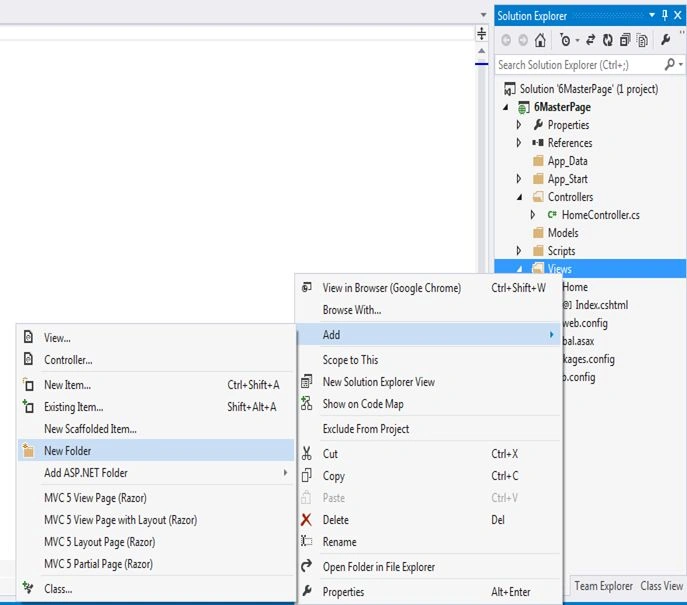

Right-click on "Views" and select "Add" >> "New Folder".

Step 7

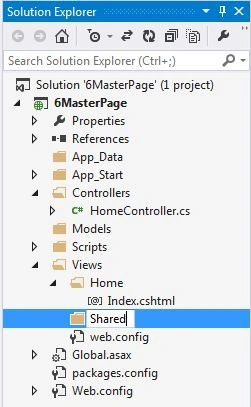

Name the folder as "Shared", this will create "Shared" folder under the view.

Step 8

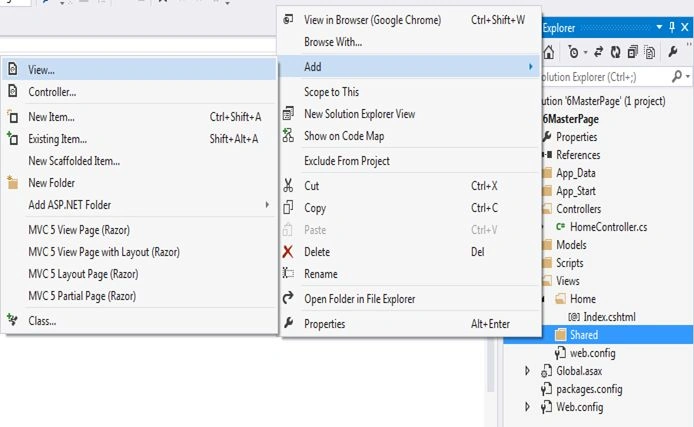

Right-click on the "Shared" folder and select "Add" >> "View…"

Step 9

Name the view as "_Layout" and select "Empty (without model)" as the template.

Step 10

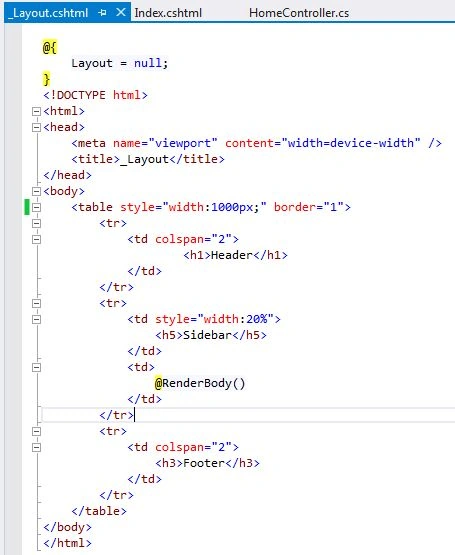

Design your desired layout in _Layout.cshtml.

Here we create a header, footer, side bar and content area. The header, footer and side bar should be shown in all pages, so we create them in _Layout.cshtml. The variable portion of the site is the content area, where content is changed dynamically. In ASP.NET we use a "ContentPlaceHolder", in the same way in MVC we use "RenderBody()".

Step 11
