Learn About Power BI Visuals

Introduction


When we are creating or altering a report, we utilize a wide range of sorts of Power BI visuals. The article ahead spotlights these visuals which assist you with making live and intuitive reports and dashboards on Power BI. Below are the points covered in this article,
  • Introduction
  • Custom BI Visual Files
  • Organizational Visuals
  • Marketplace Visuals
  • Pitfalls and Limitations

Introduction to Power BI Visuals

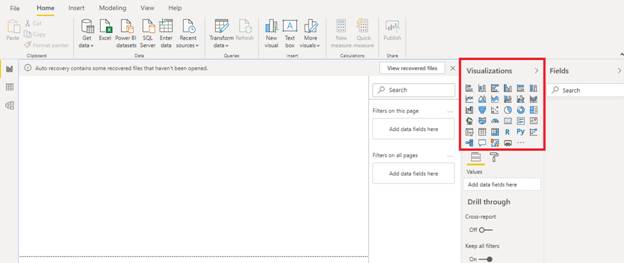

These visuals come pre-introduced as a bundle when you download the Power BI Software and the symbols for these visuals show up in the Visualization sheet as demonstrated.

Learn About Power BI Visuals

Be that as it may, these visuals are not what you are restricted to. Choosing the alternative of the circles(… )(Get More Visuals) at the base of the sheet empowers another wellspring of visuals to open up – Power BI visuals.

Power BI Developers make these visuals utilizing the Power BI SDK. These representations empower business clients to see their data from the view of their business.

Reports would then be able to be imported with custom visual documents which, at that point, can be separated, featured, altered, shared, and so on.

Visuals in Power BI are sent in the accompanying manners,
  1. Custom Visual files
  2. Organizational Visuals
  3. Marketplace Visuals

Custom Visual Files


Force BI visuals, fundamentally, are bundles that incorporate code for delivering the information served to them. Anyone can construct a Power BI custom visual and bundle it as .pbivizfile. At that point, that would then be able to be brought into a Power BI report.


How To Import a Custom Visual from a File

  1. Select the icon depicted by ellipses(…) from the bottom of the Visualizations pane.

    Learn About Power BI Visuals

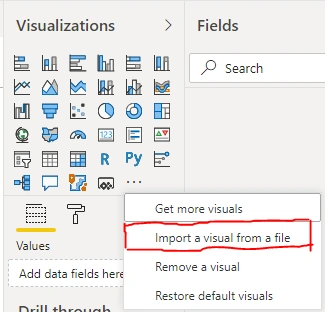

  1. A drop-down shall appear before you. Go ahead and select Import from file option.

    Learn About Power BI Visuals
  1. From the Open file menu, select the ‘.pbiviz’ file that you want to import. Select the Open option. The custom visual’s icon shall be added to the bottom of your visualizations pane and be available for use in your report.

Organizational Visuals


Power BI managers and other such experts affirm and send Power BI visuals into their association. The report creators can undoubtedly find, update, and utilize these representations and administrators can without much of a stretch deal with the equivalent.


How to Import organizational visuals

  1. Select the circles(… ) choice from the base of the sheet. A drop-down will show up before you.

    Learn About Power BI Visuals

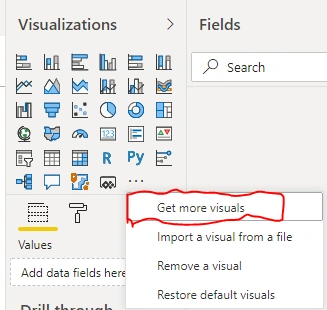

  1. Now click on ‘Get More Visuals’

    Learn About Power BI Visuals

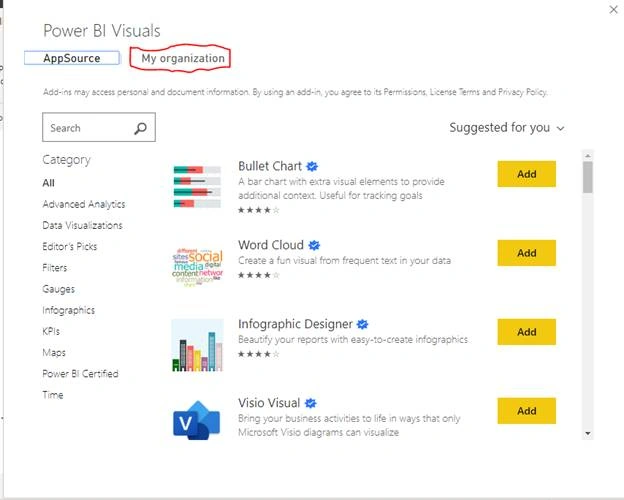

  2. A new power bi visual window will appear. Click on the ‘My Organization’ option. Choose any one of the visuals, if admin has created them. Click on ‘Add’ to import the visual.

    Learn About Power BI Visuals

Marketplace Visuals


Members of the community and Microsoft have both  contributed their Power BI visuals on the AppSource commercial center. This is a commercial center where you can discover applications, including ins and expansions for your Microsoft programming and add them to your Power BI reports. These visuals have been tried and affirmed for proficiency and quality.


Import Power BI visuals from Microsoft AppSource

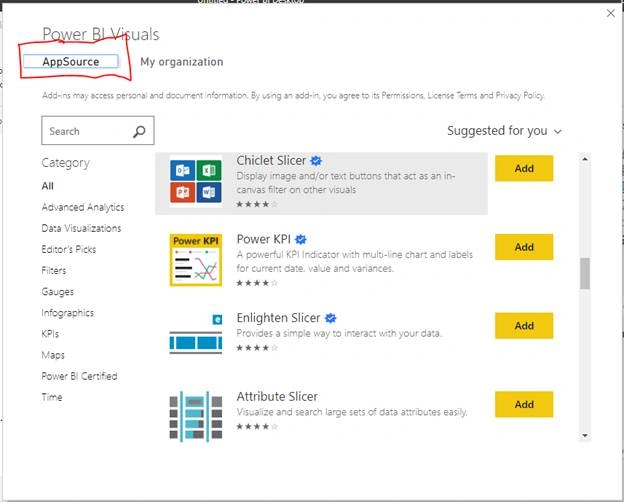

To do so, Click on ‘AppSource‘. Here you can get different types of categories, select any visual by clicking on ‘Add’.

Learn About Power BI Visuals


Traps and Limitations


Custom visuals are added to explicit reports when imported. On the off chance that you would wish to utilize the viz in another report, you have to import it there also at the point when a report which has a custom visual is spared utilizing the Save As alternative. A duplicate of the custom visual is spared with the new report.

On the off chance that you don't see a Visualization Pane in your report, it implies you don't have report alter authorization. You can just add BI visuals to those reports which you can alter and not the ones that have just been imparted to you.

With this, we arrive at the end of this article. I trust you got a god idea about visuals in Power BI.
