Using Windows 10 IoT Core Into Raspberry Pi

In this article, we will see how to use Windows 10 IoT Core into Raspberry Pi 3 device. We need to download certain software tools and applications. Let's see what they are and how to use them.

This is a very useful article for those who want to learn using Windows 10 IoT Core. We will see how to integrate Windows 10 IoT Core into a Raspberry Pi 3 device.

Prerequisites

  • Raspberry Pi
  • Internet Connection
  • SD Card
  • Ethernet (recommend)
  • Mouse
  • Keyboard

Installing Windows 10 IoT OS to SD Card

First, we need to download the Windows 10 IoT Core Dashboard software on our PC. You can download the IoT Core Dashboard from here.

Connect the SD card to your PC and open the IoT Core Dashboard software. It will look like the picture below.

Learn Window 10 IoT Core Into Raspberry PI

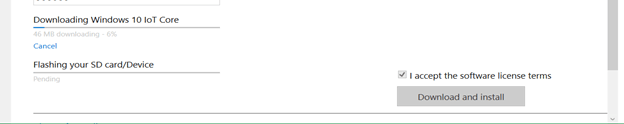

After verifying the device, click the "Download and Install" button. The following will be the download process.

Learn Window 10 IoT Core Into Raspberry PI

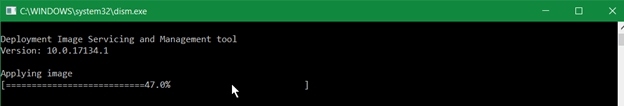

Once the download is completed, it will automatically open the Command Prompt to show the version and Apply image.

Learn Window 10 IoT Core Into Raspberry PI

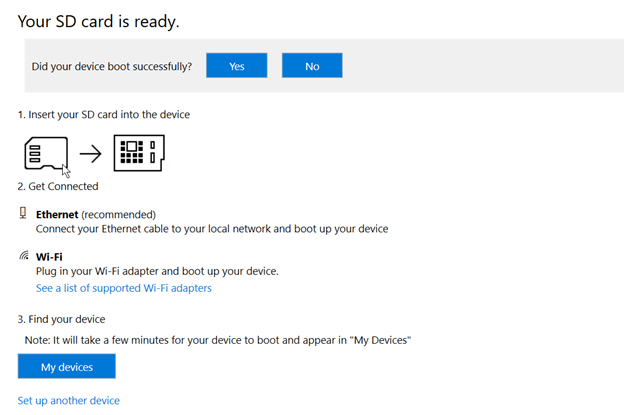

Once done, your SD card is ready to use in your Raspberry Pi device.

Learn Window 10 IoT Core Into Raspberry PI

Insert into Raspberry Pi and connect the power supply and Ethernet. Go to IoT Dashboard Software > My Devices. You can find your devices there.

Learn Window 10 IoT Core Into Raspberry PI

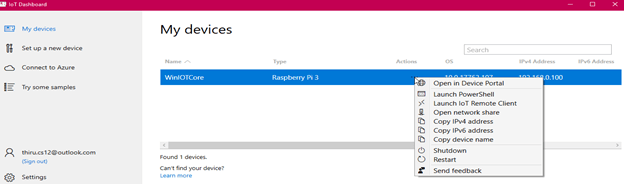

Click the "Actions" menu open the device portal. It will ask for your administrator password that you gave at the time of installation.

Learn Window 10 IoT Core Into Raspberry PI

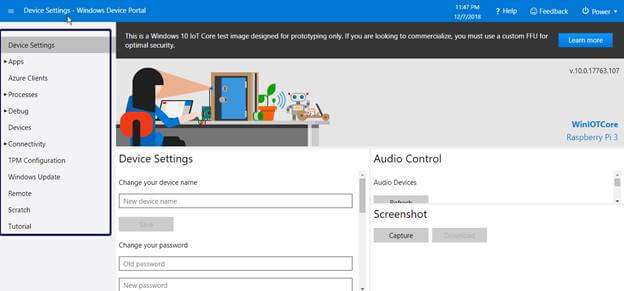

This portal helps you to go inside the Raspberry Pi device without logging in. Now, the device is ready to use.

Learn Window 10 IoT Core Into Raspberry PI

Build a simple "HelloWorld" application

  • Open the IoT Core Dashboard and select "Try some samples".

    Learn Window 10 IoT Core Into Raspberry PI

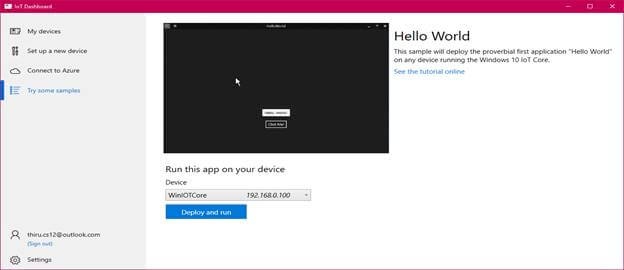

  • Select the hello-world program and select your device in the dropdown.

    Learn Window 10 IoT Core Into Raspberry PI

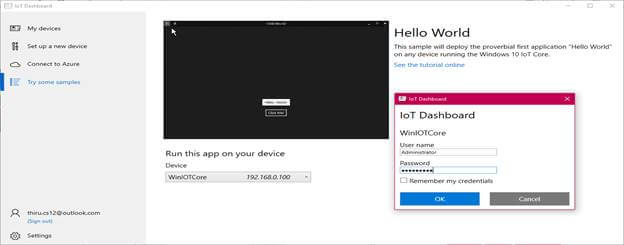

  • Enter your device credentials.
  • Click the "Deploy and run" button.

    Learn Window 10 IoT Core Into Raspberry PI

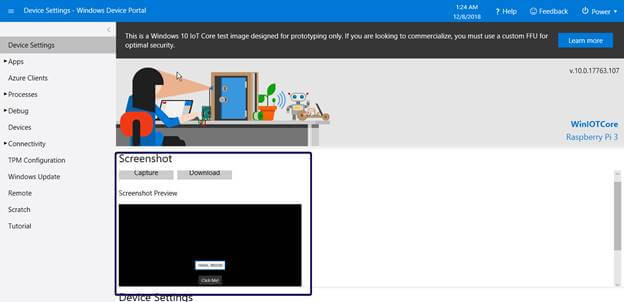

  • Once done, you can see all the running applications over the device and the portal.

    Learn Window 10 IoT Core Into Raspberry PI

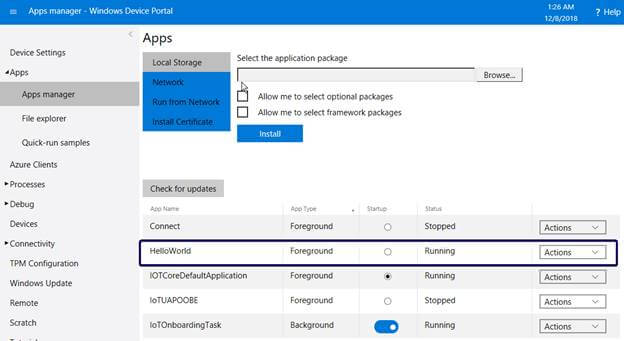

  • Select the Apps menu and click "Apps Manager". It will list the names of all the apps.

    Learn Window 10 IoT Core Into Raspberry PI

  • Currently, the HelloWorld application is running. You can see more options in the actions list.

    Learn Window 10 IoT Core Into Raspberry PI

  • If you select "Uninstall" and confirm the uninstallation in the pop-up, the application will be removed from the IoT device.

    Learn Window 10 IoT Core Into Raspberry PI

Conclusion

We have learned how to install Windows 10 IoT Core operating system into Raspberry Pi 3 and how to build an application.
