Let's start by building a simple app layout.

The structure is,

Header at the top
Left Sidebar for navigation
Right Sidebar for extra info
Content in the middle
The footer at the bottom

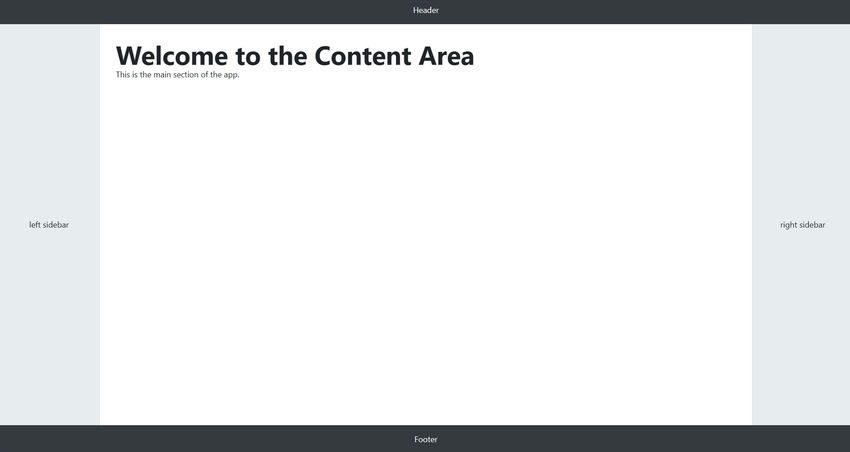

Content area

You’ll create each part as a React component using TypeScript, and along the way, you’ll learn.

What components are?
What .tsx files are?
How to write, export, and reuse components?
Best practices and naming conventions

Step 1. Set Up a React + TypeScript App.

We’ll use Vite to create a fast dev setup.

npm create vite@latest my-layout-app -- --template react-ts
cd my-layout-app
npm install
code .
npm run dev

What is a React Component?

A component is a reusable block of UI, like a button, header, card, or page section.

It’s just a JavaScript or TypeScript function that returns JSX (HTML-like syntax).

Here’s a simple example.

function Button() {
  return <button>Click Me</button>;
}

export default Button;

Key Points

The function name starts with a capital letter
It returns JSX
It is stored in a .tsx file
It's exported, so you can use it elsewhere

Why .tsx?

.ts = TypeScript (typed JavaScript)
.tsx = TypeScript + JSX (React syntax)

React components return JSX. So all your React components go into .tsx files, not .ts.

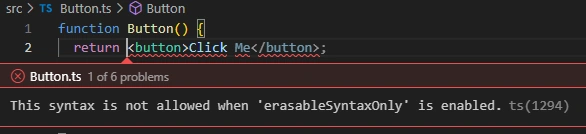

So, what happens if I save the above code with a .ts extension? I get a compile-time error saying: JSX expressions are not allowed in files with extension '.ts.

JSX

Folder and File Structure

Recommended structure in src/.

src/
└── components/
    ├── Header.tsx
    ├── Sidebar.tsx
    ├── Content.tsx
    └── Footer.tsx
App.tsx

Naming & File Norms

Rule	Example
Use PascalCase for file and component names	Header.tsx, MyComponent.tsx
Keep one component per file	Don't combine multiple components in one file
Use the default export for simple components	export default MyComponent

Step 2. Create the Components.

Now let's create the components one by one.

1. Header.tsx

function Footer() {
  return <footer>Footer</footer>;
}

export default Footer;

2. Sidebar.tsx (Reusable with Props)

type SidebarProps = {
  position: 'left' | 'right';
};

function Sidebar({ position }: SidebarProps) {
  return <aside className="sidebar">{position} sidebar</aside>;
}

export default Sidebar;

SidebarProps defines the type of props that this component expects.
The position prop is accessed using object destructuring: { position }
You pass this prop when you use it like <Sidebar position="left" />

3. Content.tsx

function Content() {
  return (
    <main className="content">
      <h1>Welcome to the Content Area</h1>
      <p>This is the main section of the app.</p>
    </main>
  );
}

export default Content;

4. Footer.tsx

function Footer() {
  return <footer>Footer</footer>;
}

export default Footer;

Step 3. How to Use Components in React? Bring It All Together in App.tsx.

1. Import the Component.

import Header from './components/Header';
import Sidebar from './components/Sidebar';
import Content from './components/Content';
import Footer from './components/Footer';

This means: Go to the components folder and bring in each component so I can use it in this file.

2. Use the Component as a Custom HTML Tag.

<Header />
<Sidebar position="left" />
<Content />
<Sidebar position="right" />
<Footer />

For reference, here is the full App.tsx.

import Header from './components/Header';
import Sidebar from './components/Sidebar';
import Content from './components/Content';
import Footer from './components/Footer';
import './App.css';

function App() {
  return (
    <div style={{ display: 'flex', flexDirection: 'column', height: '100vh' }}>
      <Header />

      <div style={{ display: 'flex', flex: 1 }}>
        <Sidebar position="left" />
        <Content />
        <Sidebar position="right" />
      </div>

      <Footer />
    </div>
  );
}

export default App;

Quick Recap

Concept	Explanation	Example
Component	A function that returns JSX	function Header() { return <h1>...</h1> }
Props	Inputs to components	Sidebar({ position: 'left' })
TypeScript Props	Define props with a type	type Props = { title: string }
Default Export	Common export style	export default Header
One Component per File	Clean and scalable	Header.tsx, Sidebar.tsx

Common Mistakes to Avoid

Mistake	Fix
Using .ts instead of .tsx	Use .tsx for components
Lowercase component name	Use PascalCase like MyComponent
Forgetting export	Always export your component
Using multiple components in one file	One per file is the best practice

Well, what is up with the 4th mistake?

When should you not use multiple components in a single file?

When each component serves a separate purpose
When components need to be reused in different files
When files become too large or hard to scan

But there can be exceptions

When is it okay to have multiple components in one file?

Only one of them is exported (usually the main one), and the others are small helpers.
The secondary components are not reused anywhere else.

In the following example,

CardTitle and CardBody are private helpers.
The card is the only exported component.

// Card.tsx

function CardTitle({ title }: { title: string }) {
  return <h2>{title}</h2>;
}

function CardBody({ children }: { children: React.ReactNode }) {
  return <div>{children}</div>;
}

function Card({ title, children }: { title: string; children: React.ReactNode }) {
  return (
    <div>
      <CardTitle title={title} />
      <CardBody>{children}</CardBody>
    </div>
  );
}

export default Card;

Lemme also summarize naming conventions in React for you.

React + TypeScript Naming Conventions Cheat Sheet

Item	Naming Convention	Example	Notes
Component Name	PascalCase	UserCard	Must start with uppercase
Component File	PascalCase.tsx	UserCard.tsx	One component per file
Folder Name	lowercase	components/	Flat or kebab-case preferred
Props Type/Interface	PascalCase + Props	UserCardProps	For typing props
Hook Name	camelCase with use	useAuth	All hooks must start with use
Helper Function	camelCase	formatDate	No JSX → use .ts file
Page Component	PascalCase.tsx	Dashboard.tsx	Treated like normal components
App/Project Folder	kebab-case	my-app/	For CLI tools, repos, npm
JSX Component Use	Capitalized Tag	<UserCard />	Lowercase = treated as an HTML tag
Export Style	default (usually)	export default Header	One component per file

Now you know

What a component is and where it lives
How .tsx works and why it’s used
How to create and type components
How to export and reuse them
Best practices for file structure and naming
