LLM Workflow Design and Architectrure

Since everone is taking about AI let's start with some basics LLM workflows used .

Large Language Models (LLMs) are rarely used in isolation. In real-world applications, they are combined into workflows — structured patterns that determine how models receive input, call tools, and produce output. Understanding these patterns helps you choose the right architecture for your use case.

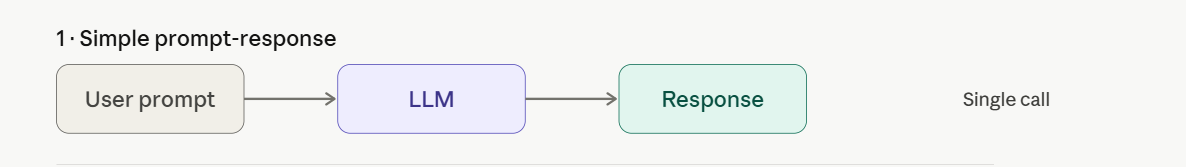

1 · Simple Prompt-Response

The most fundamental pattern. A user sends a prompt, the LLM generates a response, and the interaction ends.

User prompt → LLM → Response

When to use it: One-shot tasks with no dependency on previous steps — answering a question, summarising a paragraph, classifying a piece of text.

Strengths: Minimal latency, easy to debug, low cost.

Limitations: No memory, no tool use, output quality is bounded by a single inference pass.

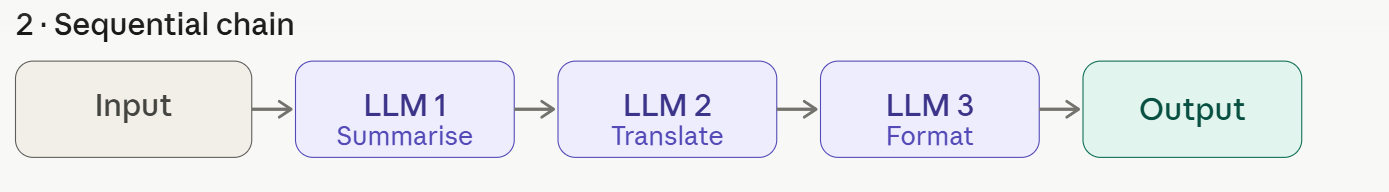

2 · Sequential Chain

The output of one LLM call becomes the input to the next. Each step transforms the content in some way.

Input → LLM 1 (Summarise) → LLM 2 (Translate) → LLM 3 (Format) → Output

When to use it: Tasks that have a natural order of operations — research pipelines, document processing, multi-stage content generation.

Strengths: Each model (or prompt) can specialise in one transformation; errors can be caught between steps.

Limitations: Latency compounds with each step; early errors propagate downstream.

3 · Parallel Fan-Out

The same input is dispatched to multiple LLM workers simultaneously. Results are collected and merged by an aggregation step.

Input → Worker A ↘
Input → Worker B → Aggregate → Output
Input → Worker C ↗

When to use it: Tasks that can be divided into independent subtasks — evaluating a document from multiple angles, generating several candidate outputs, processing large batches.

Strengths: Dramatically faster than sequential processing for parallelisable work; diverse perspectives can improve quality.

Limitations: Aggregation logic adds complexity; results may conflict and require a reconciliation step.

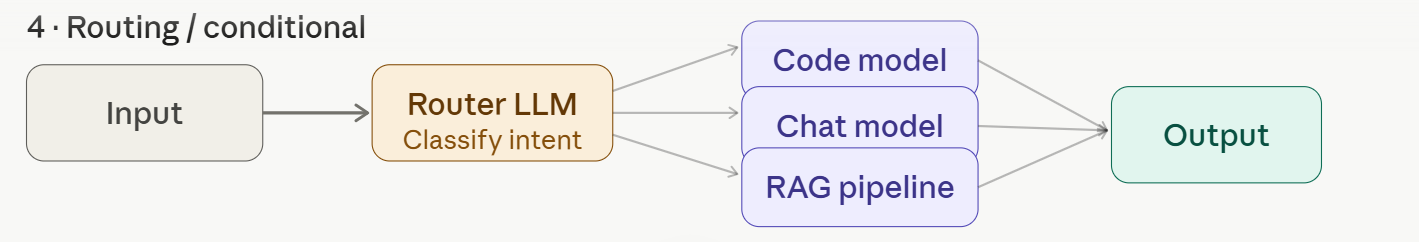

4 · Routing / Conditional

A "router" model classifies the input and directs it to the most appropriate specialist model or pipeline. Results are merged back into a single output stream.

Input → Router LLM → Code model  ↘
                   → Chat model  → Output
                   → RAG pipeline ↗

When to use it: Systems that handle diverse request types — a customer-support bot that routes billing questions, technical queries, and complaints to different handlers.

Strengths: Each specialist stays focused and can be optimised independently; cheaper models can handle simpler routes.

Limitations: Router accuracy is critical; misclassification sends requests to the wrong handler.

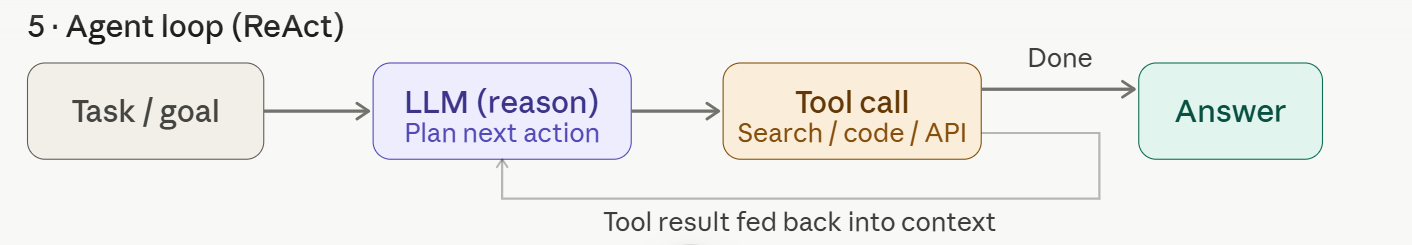

5 · Agent Loop (ReAct)

The LLM is placed in a feedback loop. It reasons about the task, decides on an action (e.g. a web search, a database query, a code execution), observes the result, and repeats until it has enough information to produce a final answer.

Task → LLM (reason) → Tool call → Observe result
           ↑_____________________|
                                 → Done → Answer

This pattern is named ReAct (Reason + Act), the paradigm underlying most modern AI agents.

When to use it: Open-ended tasks that require information gathering or multi-step problem solving — research assistants, coding agents, data analysis bots.

Strengths: Highly flexible; the model can adapt its plan as new information arrives.

Limitations: Can loop indefinitely without proper stopping conditions; each tool call adds latency and cost; harder to debug than static pipelines.

6 · Multi-Agent (Orchestrator + Workers)

A top-level orchestrator LLM breaks a complex goal into subtasks and delegates each one to a specialised worker agent. Workers run in parallel (or sequence), and their results are synthesised into a final output.

┌── Worker A (Research)
Orchestrator LLM ├── Worker B (Code generation) → Merge → Final output
                 └── Worker C (Quality check)

When to use it: Complex, long-horizon tasks that benefit from specialisation — writing a full software module, producing a research report, running an automated QA pipeline.

Strengths: Separates concerns cleanly; workers can be swapped or upgraded independently; parallelism keeps total latency manageable.

Limitations: Highest architectural complexity; orchestrator needs to manage state and handle worker failures; costs scale with the number of agents.

Choosing the Right Pattern

Pattern	Best for	Key trade-off
Simple prompt	One-shot tasks	No memory or tool use
Sequential chain	Ordered transformations	Error propagation
Parallel fan-out	Independent subtasks	Aggregation complexity
Routing	Diverse request types	Router accuracy
Agent loop	Open-ended, tool-heavy tasks	Latency and cost per loop
Multi-agent	Complex, specialised workflows	Orchestration overhead

In practice, real systems often combine several of these patterns — for example, a router that dispatches to either a simple chain or a full agent loop depending on the complexity of the incoming request.

Most modern AI frameworks (LangChain, LlamaIndex, AutoGen, CrewAI) are essentially implementations of the patterns above. Understanding the underlying architecture makes it much easier to evaluate, debug, and extend any of them.
