Making n8n AI Agents Reliable with Human-in-the-Loop

Rohit Gupta
Sep 17
4k
0
4

Article

Abstract / Overview

This article converts the YouTube demo “Making n8n AI Agents Reliable (Human-in-the-Loop Demo)” into a publication-ready build guide. You will create an n8n AI agent, insert a human approval step with gotoHuman, notify reviewers in Slack or an inbox, capture edits, and resume execution safely. The walkthrough adds engineering guardrails, error handling, metrics, and exportable JSON you can adapt for production. Title source: YouTube listing, “Making n8n AI Agents Reliable (Human-in-the-Loop Demo)” (YouTube)

Where relevant, concepts link to C# Corner articles for deeper study:

What is n8n and how it works. (C# Corner)
Deploying n8n on Docker for AI agent workflows. (C# Corner)
Webhooks in .NET and building callback endpoints. (C# Corner)
Azure OpenAI in .NET and agent foundations with Semantic Kernel. (C# Corner)

Conceptual Background

Human-in-the-loop (HITL) reduces model errors and increases trust by pausing automations for human decisions. The demo integrates gotoHuman with n8n, so long-running or high-risk actions are reviewed first. Product pages and docs confirm the official n8n–gotoHuman integration and inbox UX. (n8n)

Why it matters now:

AI agents in n8n are first-class components. (n8n)
The community actively requests approval patterns in production. (n8n Community)

Assumption: The video demonstrates a reviewable AI workflow using n8n + gotoHuman with an approval inbox and Slack notifications. This guide generalizes that pattern for engineering teams.

Step-by-Step Walkthrough (Detailed)

1) Prerequisites

n8n running locally or on Docker/Kubernetes. See deployment on C# Corner. (C# Corner)
An LLM provider (OpenAI or Azure OpenAI) for the AI Agent node. (C# Corner)
gotoHuman account and the verified n8n node enabled. (gotoHuman Developer Docs)
Optional: Slack workspace for notifications.

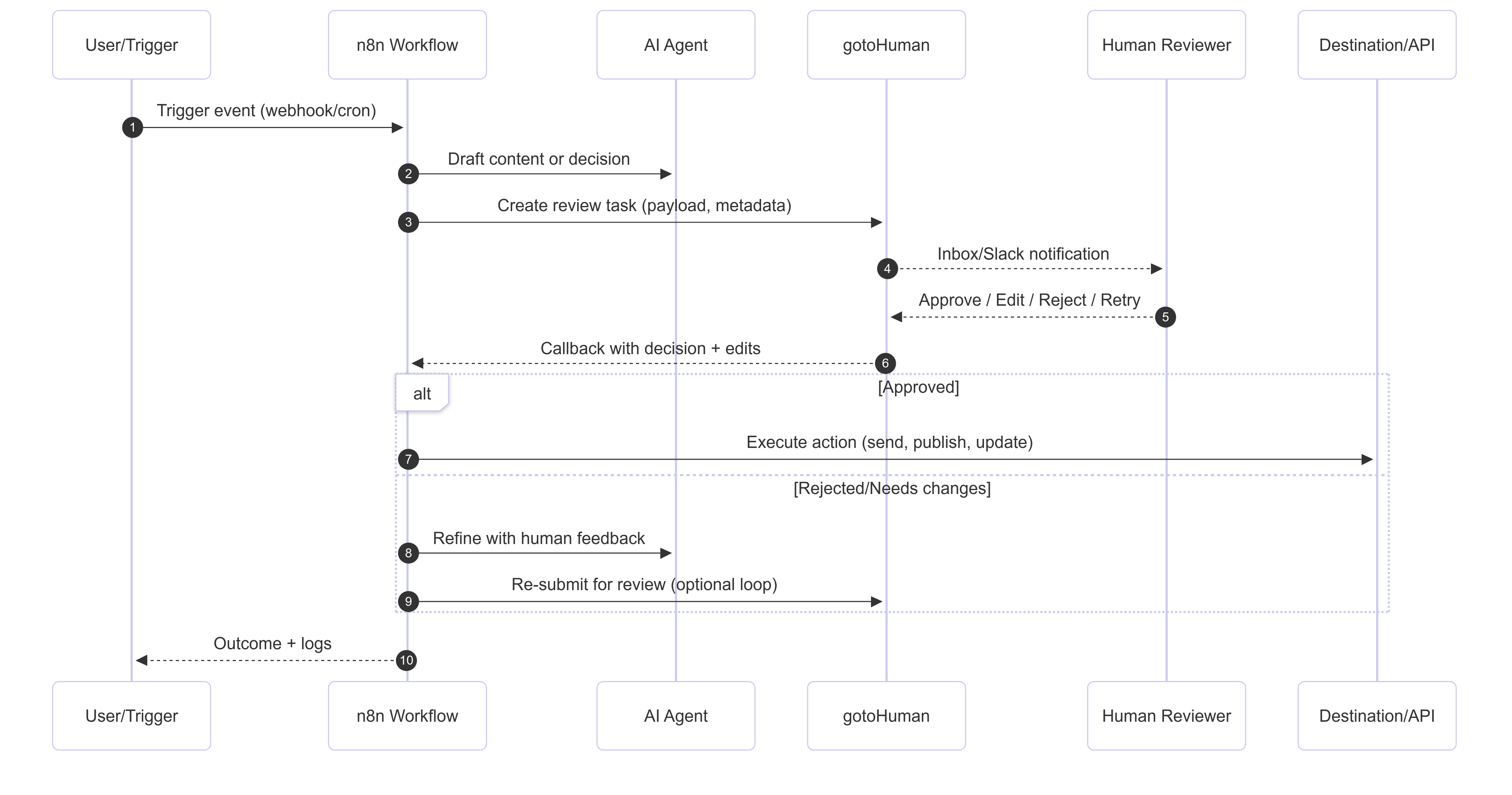

2) High-level architecture

Your agent does the heavy lifting, then asks a human to approve, edit, or reject. n8n waits for a decision, then continues.

3) Create the base n8n flow

Trigger: Start with Webhook for event-driven flows or Cron for scheduled jobs.
AI Agent node: Provide system prompt, tools, retrieval, and output format.
Guardrails: Add an IF node to enforce safety checks (regex, max length, policy flags).

Learn more: Webhooks and callbacks in .NET for upstream or downstream calls. (C# Corner)

4) Insert the review step with gotoHuman

Add gotoHuman node:
- Create a Review Task with title, description, and the LLM’s draft payload.
- Set reviewers (specific users or a shared queue).
- Include metadata: request ID, actor, cost, and links for context.
Configure Inbox and Slack notifications so approvers get timely prompts. (gotoHuman)
Provide allowed actions: Approve, Edit, Reject, Retry. (LinkedIn)

5) Wait for the decision and resume

Use the gotoHuman callback in n8n:
- Option A: gotoHuman’s n8n node “Wait for Review” pattern.
- Option B: A Webhook node that receives GH’s decision payload and resumes.
Parse decision and editor_comments. If edited content exists, prefer the edit. Docs confirm the official n8n integration path. (gotoHuman Developer Docs)

6) Execute the approved action

On Approve, call your destination:
- Email, CRM, CMS, GitHub, or a custom .NET Web API. (C# Corner)
On Reject or Needs changes, loop back to the AI Agent with explicit human feedback appended to the context.

7) Add reliability guardrails

Idempotency: Include a unique run_id to avoid duplicates.
Rate limits: Use n8n Wait node or jittered retries for API calls.
Red-team checks: Regex or policy checks before creating a review task.
Time-outs: Auto-expire tasks older than N hours and alert owners.

8) Notifications and status UI

Send concise Slack alerts with deep links to the review.
Or direct approvers to GH’s Agent Inbox as shown in product pages. (gotoHuman)

9) Telemetry and KPIs

Track:
- Approval rate, average turnaround time, and edit frequency.
- Defect escape rate after approval (items that still need rollback).
Log to a warehouse or observability stack; build a weekly email report.

10) Export, version, and promote

Export the workflow JSON from n8n.
Store in Git with environment-specific credentials.
Promote via n8n CLI or Docker tags. See the n8n topic hub on C# Corner. (C# Corner)

Code / JSON Snippets

Minimal n8n workflow excerpt (illustrative)

This snippet shows the key nodes: Webhook → AI Agent → gotoHuman Review → Decision Webhook → Branch.

{
  "name": "AI Agent with Human Review",
  "nodes": [
    {
      "parameters": { "path": "agent/start", "methods": ["POST"] },
      "id": "WebhookStart",
      "name": "Webhook",
      "type": "n8n-nodes-base.webhook"
    },
    {
      "parameters": {
        "model": "gpt-4o-mini",
        "systemPrompt": "You draft helpful, concise content. Never send sensitive data.",
        "outputFormat": "json",
        "tools": ["http", "function"]
      },
      "id": "AiAgent",
      "name": "AI Agent",
      "type": "n8n-nodes-base.aiAgent"
    },
    {
      "parameters": {
        "title": "Review AI Draft",
        "body": "Please approve or edit before sending.",
        "payload": "={{$json}}",
        "assignees": ["review-team"],
        "actions": ["APPROVE", "EDIT", "REJECT", "RETRY"]
      },
      "id": "GotoHumanCreate",
      "name": "gotoHuman - Create Review",
      "type": "n8n-nodes-gotohuman.createTask"
    },
    {
      "parameters": { "path": "agent/decision", "methods": ["POST"] },
      "id": "DecisionWebhook",
      "name": "Webhook - Decision",
      "type": "n8n-nodes-base.webhook"
    },
    {
      "parameters": {
        "conditions": { "string": [{ "value1": "={{$json.decision}}", "operation": "equal", "value2": "APPROVE" }] }
      },
      "id": "IfApproved",
      "name": "IF Approved?",
      "type": "n8n-nodes-base.if"
    },
    {
      "parameters": { "url": "https://api.example.com/publish", "method": "POST", "jsonParameters": true, "options": {} },
      "id": "Publish",
      "name": "HTTP Publish",
      "type": "n8n-nodes-base.httpRequest"
    }
  ],
  "connections": {
    "WebhookStart": { "main": [[{ "node": "AI Agent", "type": "main", "index": 0 }]] },
    "AI Agent": { "main": [[{ "node": "gotoHuman - Create Review", "type": "main", "index": 0 }]] },
    "DecisionWebhook": { "main": [[{ "node": "IF Approved?", "type": "main", "index": 0 }]] },
    "IF Approved?": {
      "main": [
        [{ "node": "HTTP Publish", "type": "main", "index": 0 }],
        [{ "node": "AI Agent", "type": "main", "index": 0 }]
      ]
    }
  }
}

Sample workflow configuration JSON (operational policy)

Use this for environment-wide guardrails and status reporting.

{
  "env": {
    "AI_MODEL": "gpt-4o-mini",
    "APPROVAL_TIMEOUT_HOURS": 24,
    "SLACK_CHANNEL": "ops-approvals"
  },
  "policy": {
    "maxTokens": 800,
    "blockedPatterns": ["ssn", "password", "credit card"],
    "maxBudgetUSD": 2.00
  },
  "notifications": {
    "onCreate": "Review needed in Agent Inbox",
    "onTimeout": "Escalate to #ops-approvals",
    "onReject": "Create Jira ticket for follow-up"
  },
  "metrics": {
    "track": ["approval_rate", "avg_ttr_minutes", "edit_ratio", "defect_escape_rate"]
  }
}

Tip: If your action target is a .NET backend, reuse the Webhook and API guidance on C# Corner to implement publish endpoints and callbacks. (C# Corner)

Use Cases / Scenarios

Customer replies: Agent drafts an email, human approves, system sends. Official n8n templates show this pattern. (n8n)
Marketing posts: Agent composes LinkedIn post; approver edits tone; workflow schedules.
Data operations: Agent prepares database changes; DBA must approve before applying.
Support triage: Agent proposes response; human confirms compliance; ticket updated.

Limitations / Considerations

Reviewer load: Too many tasks reduce throughput. Batch and prioritize.
Latency: Human approval adds minutes to hours. Use SLAs and escalation.
State management: Persist run IDs and context for resumability.
Security: Strip secrets from drafts. Validate URLs and attachments.
Change control: Version prompts, nodes, and policies in Git.

Fixes (Common Pitfalls and Remedies)

No callback wiring: Ensure gotoHuman → n8n Decision Webhook receives signed payloads; reject unknown origins. (gotoHuman Developer Docs)
Unclear reviewer context: Include the original request, user, and links to source data in the task body. (gotoHuman)
Infinite refine loop: Cap retries and require a different reviewer after N cycles.
Silent failures: Add on-failure branches to page on-call or open an incident.

FAQs

How do I install gotoHuman in n8n?
Use the verified community node and follow the integration guide. (gotoHuman Developer Docs)
Can I use Slack approvals?
Yes. Notify via Slack and direct reviewers to the Agent Inbox to approve or edit. (gotoHuman)
Does this work with Azure OpenAI?
Yes. Configure the AI Agent node with Azure credentials as shown in the C# Corner guides. (C# Corner)
What if my workflow must continue without a person?
Implement timeouts; on expiry, auto-reject or auto-approve depending on risk policy.
Is there a template to start from?
See the community “human-in-the-loop” email responder for structure ideas. (n8n)

References

“Making n8n AI Agents Reliable (Human-in-the-Loop Demo)” video title and listing. (YouTube)
gotoHuman for n8n: integration page and docs. (n8n)
Community discussions validating approval use cases. (n8n Community)

Conclusion

Human-in-the-loop transforms n8n AI agents from impressive demos into reliable systems. With a verified gotoHuman integration, a review inbox, Slack alerts, and strict callbacks, you can reduce risk while keeping automation fast. Use the JSON excerpts, guardrails, and KPIs here to launch a production-ready flow, then evolve it with metrics and versioned prompts.
