.NET Core: Custom Middleware Short Circuit

.NET Core

Note. For basic details, Please refer to the previous article, Unraveling Middleware Decoding

For Custom Middleware, Please refer to this article: Custom Middleware

What is Short-Circuiting?

Short-circuiting is a powerful technique that allows us to interrupt the usual flow of middleware execution, providing an early response under specific conditions. This can be instrumental in optimizing performance, implementing specialized handling, or even enforcing certain policies.

 public class ShortCircuitValidateRequestPathMiddleware
 {
     private readonly RequestDelegate _next;
     private readonly IActionDescriptorCollectionProvider _actionDescriptorCollectionProvider;
     private readonly List<string?> path ;

     public ShortCircuitValidateRequestPathMiddleware(RequestDelegate next, IActionDescriptorCollectionProvider actionDescriptorCollectionProvider)
     {
         _next= next;
         _actionDescriptorCollectionProvider= actionDescriptorCollectionProvider;

         ///
         /// !!! For Example only, We need to lookup for better way.
         ///
         path = [];
         path = _actionDescriptorCollectionProvider.ActionDescriptors.Items.Where(
           ad => ad.AttributeRouteInfo != null).Select(
               ad => ad.AttributeRouteInfo?.Template).ToList();

         Debug.WriteLine("ShortCircuitValidateRequestPathMiddleware CTOR Called .....");
     }

     public async Task Invoke(HttpContext context)
     {
         Debug.WriteLine("ShorCircuit ");

         if (context.Request.Path.HasValue && path.Any(x => !string.IsNullOrWhiteSpace(x) &&
                         x.ToLower().Equals(context.Request.Path.Value.ToLower().Replace("/", ""))))
         {
             // Call the next middleware in the pipeline
             await _next(context);

             Debug.WriteLine($"\t Next Middleware Executed");
         }
         else {
             Debug.WriteLine($"\t Bye pass for unknow call.");
         }

     }
 }

In the provided code snippet, during the initialization of the application, we gather and compile a comprehensive list of all potential routes. These route paths are then stored in an array. Upon receiving each incoming request, the service undergoes a check to verify whether the requested path exists within the locally stored array of routes. If the path is present, the request is permitted to proceed; otherwise, the service rejects the request, terminating its processing.

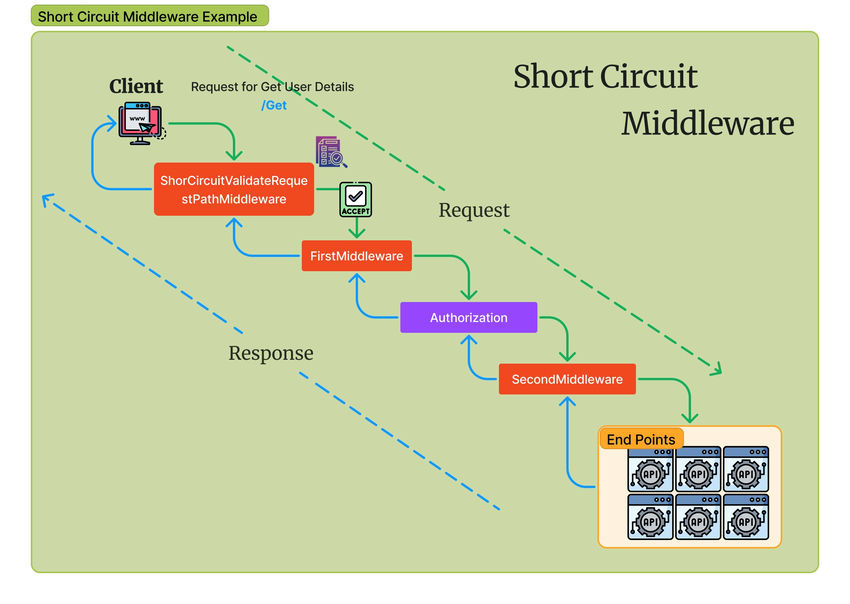

Short Circuit Middleware

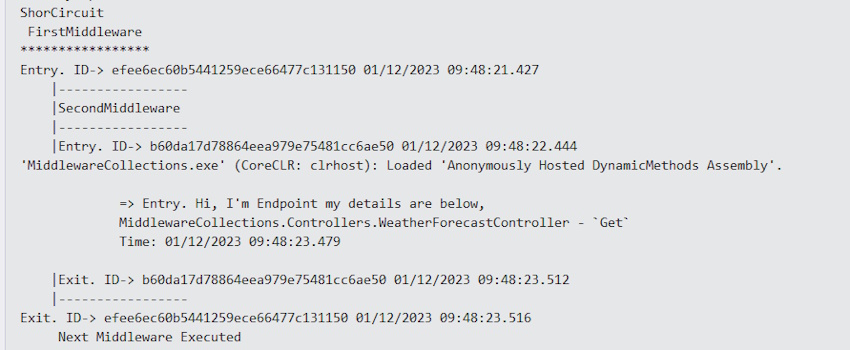

First circuit

Note

Request - /Get
Short-Circuit Middleware verifies the request path, /Get is a Known one.
So, It will process the request further and give the response. Check the Output Image above.

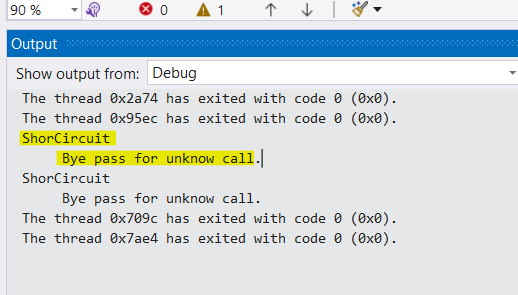

Short circuit middleware

Note

Request - /.robot123
Short-Circuit Middleware verifies the request path, /.robot123 is an unknown path.
So It will reject the request and teriminate the pipeline. Check the Output Image above.

Short-circuiting in ASP.NET Core middleware, while powerful, comes with its own set of pros and cons. Let's explore both sides.

Pros

Performance Optimization: Short-circuiting allows you to skip unnecessary middleware and immediately respond to a request based on certain conditions. This can significantly improve the performance of your application by avoiding the overhead of processing unnecessary middleware components.
Early Response: It enables you to send a response early in the request pipeline, which can be beneficial for scenarios where you want to handle requests without going through the entire pipeline.
Conditional Execution: Short-circuiting can be conditionally applied based on specific requirements, allowing for fine-grained control over when to interrupt the middleware pipeline.
Efficient Error Handling: It can be used for efficient error handling, enabling you to intercept and handle errors early in the pipeline before they propagate further.

Cons

Loss of Middleware Functionality: Short-circuiting might result in skipping important middleware components that provide essential functionality. This could lead to unintended consequences if not carefully managed.
Debugging Complexity: Understanding the flow of execution becomes more complex when short-circuiting is employed. Debugging may become challenging, especially when different conditions trigger short-circuiting in various parts of the application.
Maintenance Challenges: As the number of conditions and short-circuiting scenarios increases, maintaining and updating the code may become challenging, potentially leading to code that is harder to understand and modify.
Ordering Dependency: The order of middleware registration becomes crucial when short-circuiting is employed. Dependencies and execution orders need careful consideration to avoid unexpected behavior.

Summary

Short-circuiting can be a valuable tool for optimizing performance and handling specific scenarios efficiently. However, it should be used thoughtfully, considering the potential trade-offs and impact on code maintainability. Striking the right balance ensures that short-circuiting enhances rather than hinders the overall functionality and maintainability of your ASP.NET Core application.

Source Code: Middleware Collection
