OData Using ASP.NET Web API 2

Introduction


In this post, we will learn about OData by using ASP.Net Web API 2 in MVC application.

What’s OData protocol?


The Open Data Protocol (OData) is a data access protocol for the web. OData provides a uniform way to query and manipulate data sets through CRUD operations (create, read, update, and delete).

Prerequisites

As I said earlier, we are going to use OData protocol in our MVC application. For this, you must have Visual Studio 2015 (.NET Framework 4.5.2) and SQL Server.

SQL Database part

Here, find the script to create database.

Create Database

  1. USE [master]
  2. GO
  3.
  4. /****** Object: Database [EmployeeDB] Script Date: 9/27/2016 2:58:52 AM ******/
  5. CREATE DATABASE [EmployeeDB]
  6. CONTAINMENT = NONE
  7. ON PRIMARY
  8. NAME = N'EmployeeDB', FILENAME = N'c:\Program Files (x86)\Microsoft SQL Server\MSSQL11.MSSQLSERVER\MSSQL\DATA\EmployeeDB.mdf' , SIZE = 3072KB , MAXSIZE = UNLIMITED, FILEGROWTH = 1024KB )
  9. LOG ON
  10. NAME = N'EmployeeDB_log', FILENAME = N'c:\Program Files (x86)\Microsoft SQL Server\MSSQL11.MSSQLSERVER\MSSQL\DATA\EmployeeDB_log.ldf' , SIZE = 1024KB , MAXSIZE = 2048GB , FILEGROWTH = 10%)
  11. GO
  12.
  13. ALTER DATABASE [EmployeeDB] SET COMPATIBILITY_LEVEL = 110
  14. GO
  15.
  16. IF (1 = FULLTEXTSERVICEPROPERTY('IsFullTextInstalled'))
  17. begin
  18. EXEC [EmployeeDB].[dbo].[sp_fulltext_database] @action = 'enable'
  19. end
  20. GO
  21.
  22. ALTER DATABASE [EmployeeDB] SET ANSI_NULL_DEFAULT OFF
  23. GO
  24.
  25. ALTER DATABASE [EmployeeDB] SET ANSI_NULLS OFF
  26. GO
  27.
  28. ALTER DATABASE [EmployeeDB] SET ANSI_PADDING OFF
  29. GO
  30.
  31. ALTER DATABASE [EmployeeDB] SET ANSI_WARNINGS OFF
  32. GO
  33.
  34. ALTER DATABASE [EmployeeDB] SET ARITHABORT OFF
  35. GO
  36.
  37. ALTER DATABASE [EmployeeDB] SET AUTO_CLOSE OFF
  38. GO
  39.
  40. ALTER DATABASE [EmployeeDB] SET AUTO_CREATE_STATISTICS ON
  41. GO
  42.
  43. ALTER DATABASE [EmployeeDB] SET AUTO_SHRINK OFF
  44. GO
  45.
  46. ALTER DATABASE [EmployeeDB] SET AUTO_UPDATE_STATISTICS ON
  47. GO
  48.
  49. ALTER DATABASE [EmployeeDB] SET CURSOR_CLOSE_ON_COMMIT OFF
  50. GO
  51.
  52. ALTER DATABASE [EmployeeDB] SET CURSOR_DEFAULT GLOBAL
  53. GO
  54.
  55. ALTER DATABASE [EmployeeDB] SET CONCAT_NULL_YIELDS_NULL OFF
  56. GO
  57.
  58. ALTER DATABASE [EmployeeDB] SET NUMERIC_ROUNDABORT OFF
  59. GO
  60.
  61. ALTER DATABASE [EmployeeDB] SET QUOTED_IDENTIFIER OFF
  62. GO
  63.
  64. ALTER DATABASE [EmployeeDB] SET RECURSIVE_TRIGGERS OFF
  65. GO
  66.
  67. ALTER DATABASE [EmployeeDB] SET DISABLE_BROKER
  68. GO
  69.
  70. ALTER DATABASE [EmployeeDB] SET AUTO_UPDATE_STATISTICS_ASYNC OFF
  71. GO
  72.
  73. ALTER DATABASE [EmployeeDB] SET DATE_CORRELATION_OPTIMIZATION OFF
  74. GO
  75.
  76. ALTER DATABASE [EmployeeDB] SET TRUSTWORTHY OFF
  77. GO
  78.
  79. ALTER DATABASE [EmployeeDB] SET ALLOW_SNAPSHOT_ISOLATION OFF
  80. GO
  81.
  82. ALTER DATABASE [EmployeeDB] SET PARAMETERIZATION SIMPLE
  83. GO
  84.
  85. ALTER DATABASE [EmployeeDB] SET READ_COMMITTED_SNAPSHOT OFF
  86. GO
  87.
  88. ALTER DATABASE [EmployeeDB] SET HONOR_BROKER_PRIORITY OFF
  89. GO
  90.
  91. ALTER DATABASE [EmployeeDB] SET RECOVERY SIMPLE
  92. GO
  93.
  94. ALTER DATABASE [EmployeeDB] SET MULTI_USER
  95. GO
  96.
  97. ALTER DATABASE [EmployeeDB] SET PAGE_VERIFY CHECKSUM
  98. GO
  99.
  100. ALTER DATABASE [EmployeeDB] SET DB_CHAINING OFF
  101. GO
  102.
  103. ALTER DATABASE [EmployeeDB] SET FILESTREAM( NON_TRANSACTED_ACCESS = OFF )
  104. GO
  105.
  106. ALTER DATABASE [EmployeeDB] SET TARGET_RECOVERY_TIME = 0 SECONDS
  107. GO
  108.
  109. ALTER DATABASE [EmployeeDB] SET READ_WRITE
  110. GO

Create your MVC application

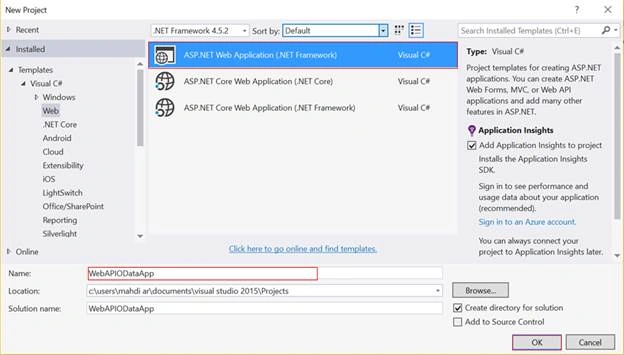

Open Visual Studio and select File >> New Project.

The "New Project" window will pop up. Select ASP.NET Web Application (.NET Framework), name your project, and click OK.

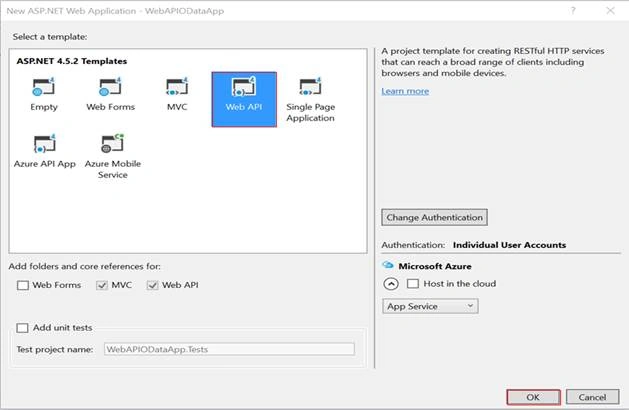

Now, new dialog will pop up for selecting the template. We are going to choose Web API template and click OK.



Add a Model class

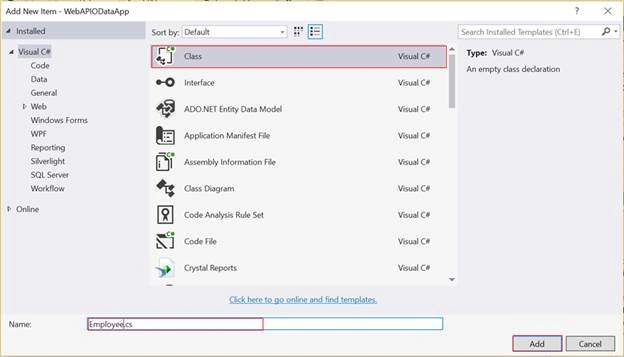

In Solution Explorer, right click on Models folder > Add > Class > Name your class.



Employee.cs
  1. using System;
  2. using System.Collections.Generic;
  3. using System.ComponentModel.DataAnnotations.Schema;
  4. using System.Linq;
  5. using System.Web;
  6.
  7. namespace WebAPIODataApp.Models
  8. {
  9.     [Table("Employee")]
  10.     public class Employee
  11.     {
  12.         public int EmployeeID { getset; }
  13.         public string FirstName { getset; }
  14.         public string LastName { getset; }
  15.         public string Gender { getset; }
  16.         public string Designation { getset; }
  17.         public int Salary { getset; }
  18.         public string City { getset; }
  19.         public string Country { getset; }
  20.     }
  21. }
Create a Controller

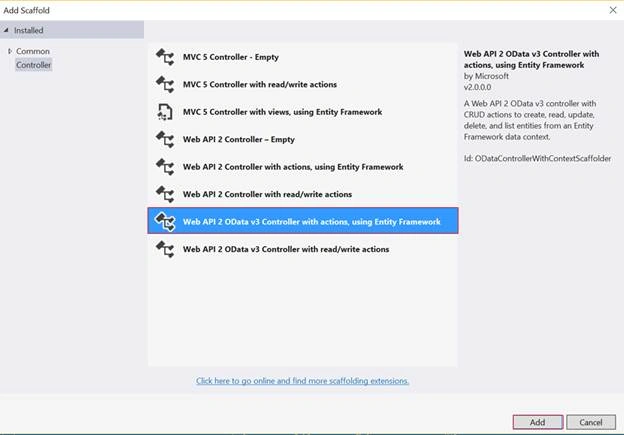

Now, we are going to create a Controller. Right click on the Controllers folder > Add > Controller> selecting Web API 2 OData v3 Controller with actions, using Entity Framework > click Add.



After clicking on Add button, window will pop up, as shown below.

We need to specify our Model class (in this case Employee.cs) and name for our Controller.



Finally, in order to add data context class, click on new data context > given a name for our new data context > Click Add.



The scaffolding adds two code files to the project.
  • EmployeesController.cs - defines the Controller which implements the OData endpoint.
  • EmployeeServContext.cs - ensures that our application is connected to the database.

EmployeesController.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Data;
  4. using System.Data.Entity;
  5. using System.Data.Entity.Infrastructure;
  6. using System.Linq;
  7. using System.Net;
  8. using System.Net.Http;
  9. using System.Threading.Tasks;
  10. using System.Web.Http;
  11. using System.Web.Http.ModelBinding;
  12. using System.Web.Http.OData;
  13. using System.Web.Http.OData.Routing;
  14. using WebAPIODataApp.Models;
  15.
  16. namespace WebAPIODataApp.Controllers
  17. {
  18.     public class EmployeesController : ODataController
  19.     {
  20.         private EmployeeServContext db = new EmployeeServContext();
  21.
  22.         // GET: odata/Employees
  23.         [EnableQuery]
  24.         public IQueryable<Employee> GetEmployees()
  25.         {
  26.             return db.Employees;
  27.         }
  28.     }
  29. }
EmployeeServContext.cs
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Data.Entity;
  4. using System.Linq;
  5. using System.Web;
  6.
  7. namespace WebAPIODataApp.Models
  8. {
  9.     public class EmployeeServContext : DbContext
  10.     {
  11.         // You can add custom code to this file. Changes will not be overwritten.
  12.         //
  13.         // If you want Entity Framework to drop and regenerate your database
  14.         // automatically whenever you change your model schema, please use data migrations.
  15.         // For more information refer to the documentation:
  16.         // http://msdn.microsoft.com/en-us/data/jj591621.aspx
  17.         public EmployeeServContext() : base("name=EmployeeServContext")
  18.         {
  19.         }
  20.         public System.Data.Entity.DbSet<WebAPIODataApp.Models.Employee> Employees { getset; }
  21.     }
  22. }
Add EDM and route

First of all, we need to add connection string.

In Solution Explorer, open web.config file and add inside configuration element in the following section.
  1. <connectionStrings>
  2.    <add name="EmployeeServContext" connectionString="Data Source=.;Initial Catalog=EmployeeDB;Integrated Security=True" providerName="System.Data.SqlClient" />
  3. </connectionStrings>
Note - You must specify the connection string from EmployeeDB database which has been created above.

Next step is - In Solution Explorer, select App_Start > double click on WebApiConfig.cs, then we should add the following code to the register method:
  1. public static void Register(HttpConfiguration config)
  2. {
  3.     ODataConventionModelBuilder builder = new ODataConventionModelBuilder();
  4.     builder.EntitySet<Employee>("Employees");
  5.     config.Routes.MapODataRoute("odata""odata", builder.GetEdmModel());
  6.
  7. }
Explanation - Register method ensures two things,
  • Creates an EDM (Entity Data Model).
  • Adds a route for OData service.

The EDM is used to create the service metadata document. At this level, we have two possibilities by using,

  • The ODataConventionModelBuilder class which creates an EDM by using default naming conventions.
  • The ODataModelBuilder class to create the EDM by adding properties, keys, and navigation properties.

In the last, we need to call the MapOdataRoute extension method for routing. We can conclude that our URI for Employees EntitySet is http://localhost:56262/odata/Employees.

Note - When you run our URI first time, the database table will be created as follow. Don’t forget add some records into Employee table for demo.



Consuming OData Service


In order to consume OData service, we will work to display data by using jqxGrid plugin.

Let’s GO.

Create controller

Now, we are going to create a controller. Right click on the controllers folder > Add > Controller> selecting MVC 5 Controller – Empty > click Add.

HomeController.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6.
  7. namespace WebAPIODataApp.Controllers
  8. {
  9.     public class HomeController : Controller
  10.     {
  11.         public ActionResult Index()
  12.         {
  13.
  14.             return View();
  15.         }
  16.     }
  17. }
Adding View

In HomeController, just right click on Index() action, select Add View and window will pop up. Write a name for your View. Finally, click Add.

Index cshtml
  1. @{
  2.     ViewBag.Title = "Data Employees";
  3. }
  4.
  5. <h2> Data Employees </h2>
  6.
  7. <div id="gridEmployee" style="margin:20px auto;"></div>
  8.
  9. @section scripts {
  10.
  11.
  12.     <script type="text/javascript" src="http://jqwidgets.com/jquery-widgets-demo/scripts/jquery-1.11.1.min.js"></script>
  13.
  14.     <script type="text/javascript" src="http://jqwidgets.com/jquery-widgets-demo/jqwidgets/jqx-all.js"></script>
  15.
  16.     <link rel="stylesheet" type="text/css" href="http://jqwidgets.com/jquery-widgets-demo/jqwidgets/styles/jqx.base.css" />
  17.
  18.     <script type="text/javascript">
  19.
  20.     $(document).ready(function () {
  21.
  22.         // In this part, you need to prepare your data
  23.         var source =
  24.             {
  25.                 datatype: "json",
  26.
  27.                 // Here you will declare all fields that must be used in the grid
  28.                 datafields: [
  29.
  30.                { name: 'EmployeeID', type: 'number' },
  31.                { name: 'FirstName', type: 'string' },
  32.                { name: 'LastName', type: 'string' },
  33.                { name: 'Gender', type: 'string' },
  34.                { name: 'Designation', type: 'string' },
  35.                { name: 'Salary', type: 'number' },
  36.                { name: 'City', type: 'string' },
  37.                { name: 'Country', type: 'string' }
  38.
  39.                 ],
  40.                 // call the action which retrieve data employees in json format
  41.                 url: '/odata/Employees'
  42.             };
  43.
  44.         var dataAdapter = new $.jqx.dataAdapter(source);
  45.
  46.         // displaying data in the grid with jqxGrid
  47.         $("#gridEmployee").jqxGrid(
  48.             {
  49.                 width: 800,
  50.                 source: dataAdapter,
  51.                 pageable: true,
  52.                 sortable: true,
  53.
  54.                 columns: [
  55.
  56.                     { text: "Employee ID", datafield: "EmployeeID" },
  57.                     { text: "FirstName", datafield: "FirstName" },
  58.                     { text: "LastName", datafield: "LastName" },
  59.                     { text: "Gender", datafield: "Gender" },
  60.                     { text: "Designation", datafield: "Designation" },
  61.                     { text: "Salary", datafield: "Salary" },
  62.                     { text: "City", datafield: "City" },
  63.                     { text: "Country", datafield: "Country" }
  64.
  65.                 ]
  66.             });
  67.     });
  68.     </script>
  69. }

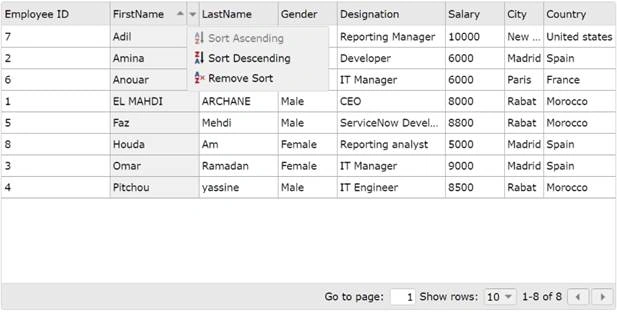

Output - That’s all. Please send your feedback and queries in comments box.
