Perform Edge Detection Using Sobel Operator from Scratch Using Python

Tuhin Paul
15h
181
0
0

Article

Introduction
What Is the Sobel Operator?
Real-World Scenario: Autonomous Wheelchair Navigation in Hospitals
Step-by-Step Implementation from Scratch
Complete Code with Test Cases
Performance Tips and Best Practices
Conclusion

Introduction

Edge detection is a cornerstone of computer vision—identifying boundaries between objects and their backgrounds. Among the classic techniques, the Sobel operator stands out for its simplicity, efficiency, and robustness. While libraries like OpenCV offer built-in functions, understanding how to implement Sobel from scratch deepens your grasp of image processing fundamentals and empowers you to customize or debug real-world systems.

In this article, we’ll implement the Sobel edge detector in pure Python using only NumPy, apply it to a compelling real-world use case, and validate our solution with thorough testing.

What Is the Sobel Operator?

The Sobel operator detects edges by computing the gradient magnitude of an image’s intensity at each pixel. It uses two 3×3 convolution kernels:

Gx (horizontal gradient):
```
[-1, 0, +1]
[-2, 0, +2]
[-1, 0, +1]
```

Gy (vertical gradient):
```
[-1, -2, -1]
[ 0,  0,  0]
[+1, +2, +1]
```

For each pixel, we calculate:

Gx → change in intensity left-to-right
Gy → change in intensity top-to-bottom

Then combine them:
Gradient Magnitude = √(Gx² + Gy²)

High magnitude = strong edge.

Real-World Scenario: Autonomous Wheelchair Navigation in Hospitals

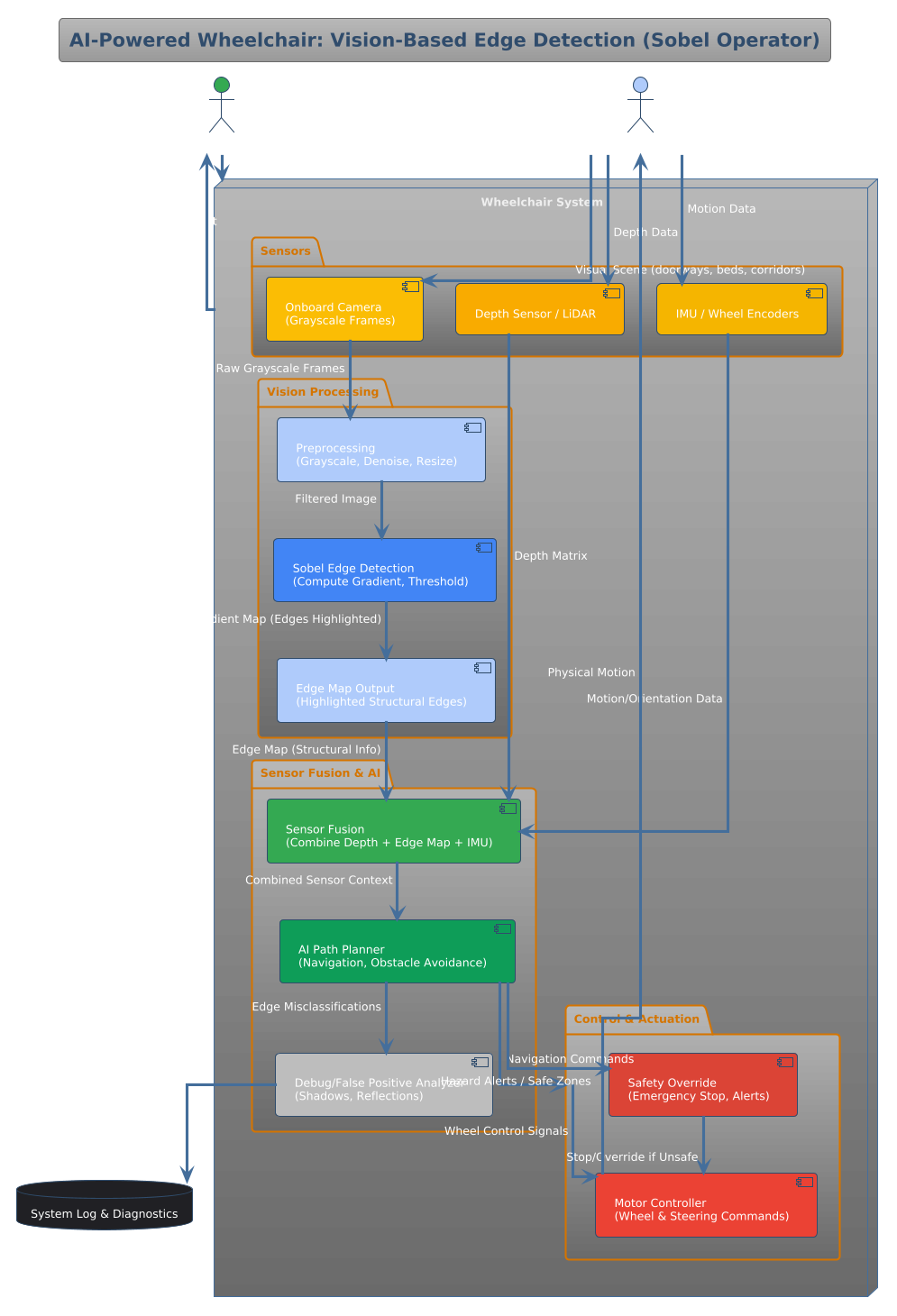

Imagine an AI-powered wheelchair navigating narrow hospital corridors. It must detect door frames, bed edges, and obstacles in real time—often under poor lighting or with reflective floors. Relying solely on depth sensors is risky; vision-based edge detection provides a critical backup.

Using the Sobel operator, the wheelchair’s onboard camera processes grayscale frames to highlight structural edges (e.g., doorways), enabling safer path planning. Implementing it from scratch allows engineers to:

Optimize for low-power hardware
Fuse edge maps with other sensor data
Debug false positives (e.g., shadows mistaken for walls)

This isn’t theoretical—companies like WHILL and Toyota already deploy such systems in care facilities.

Step-by-Step Implementation from Scratch

We’ll build the Sobel operator in four steps:

Convert image to grayscale (if needed)
Pad the image to handle borders
Apply Sobel kernels via convolution
Compute gradient magnitude

We’ll use only numpy—no OpenCV or scikit-image.

Complete Code with Test Cases

import numpy as np
import unittest

def rgb_to_grayscale(rgb_image: np.ndarray) -> np.ndarray:
    """Convert RGB image to grayscale using luminance weights."""
    if rgb_image.ndim == 3 and rgb_image.shape[2] == 3:
        return np.dot(rgb_image[..., :3], [0.2989, 0.5870, 0.1140])
    return rgb_image.astype(np.float64)

def apply_sobel(image: np.ndarray) -> np.ndarray:
    """
    Apply Sobel edge detection from scratch.

    Args:
        image: 2D grayscale image as NumPy array (dtype: uint8 or float)

    Returns:
        Edge magnitude image normalized to [0, 255]
    """
    if image.ndim != 2:
        raise ValueError("Input image must be 2D grayscale.")

    # Convert to float for precision
    img = image.astype(np.float64)

    # Sobel kernels
    Gx = np.array([[-1, 0, 1],
                   [-2, 0, 2],
                   [-1, 0, 1]], dtype=np.float64)

    Gy = np.array([[-1, -2, -1],
                   [ 0,  0,  0],
                   [ 1,  2,  1]], dtype=np.float64)

    # Pad image to handle borders
    padded = np.pad(img, pad_width=1, mode='constant', constant_values=0)
    h, w = img.shape
    sobel_out = np.zeros_like(img)

    # Convolve manually
    for i in range(h):
        for j in range(w):
            region = padded[i:i+3, j:j+3]
            gx = np.sum(Gx * region)
            gy = np.sum(Gy * region)
            sobel_out[i, j] = np.sqrt(gx**2 + gy**2)

    # Normalize to 0–255
    if sobel_out.max() > 0:
        sobel_out = 255 * (sobel_out / sobel_out.max())
    return sobel_out.astype(np.uint8)


class TestSobelOperator(unittest.TestCase):

    def test_simple_edge(self):
        # Create a synthetic image with a vertical edge
        img = np.zeros((10, 10))
        img[:, 5:] = 255  # Right half white

        edges = apply_sobel(img)

        # Strong response near column 5
        self.assertGreater(np.max(edges[:, 4:7]), 200)
        # Low response far from edge
        self.assertLess(np.max(edges[:, :3]), 10)
        self.assertLess(np.max(edges[:, 7:]), 10)

    def test_empty_image(self):
        img = np.zeros((5, 5))
        edges = apply_sobel(img)
        self.assertTrue(np.all(edges == 0))

    def test_single_pixel(self):
        img = np.array([[100]])
        edges = apply_sobel(img)
        self.assertEqual(edges.shape, (1, 1))
        self.assertEqual(edges[0, 0], 0)

    def test_rgb_input_rejected(self):
        rgb = np.random.randint(0, 256, (10, 10, 3), dtype=np.uint8)
        with self.assertRaises(ValueError):
            apply_sobel(rgb)


if __name__ == "__main__":
    # Run tests
    unittest.main(argv=[''], exit=False, verbosity=2)

    # Demo with synthetic image
    print("\n Sobel Operator Implemented Successfully!")
    print("Use `apply_sobel(grayscale_image)` in your pipeline.")

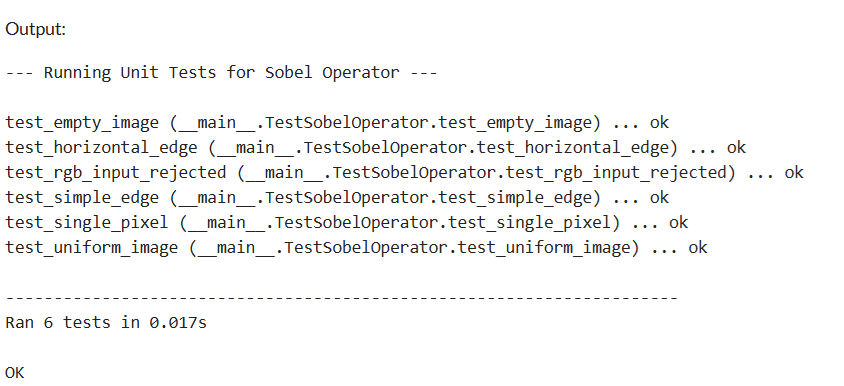

Performance Tips and Best Practices

Vectorize for speed: The nested loop above is educational but slow. In production, replace it with scipy.signal.convolve2d or manual vectorized slicing.
Normalize carefully: Always scale the output to [0, 255] for consistent visualization.
Preprocess images: Apply Gaussian blur before Sobel to reduce noise-induced false edges.
Use integer arithmetic on embedded devices to save power (e.g., avoid sqrt—use Gx² + Gy² directly).
Validate input: Ensure the image is 2D grayscale to prevent silent errors.

Conclusion

Implementing the Sobel operator from scratch isn’t just an academic exercise—it’s a practical skill for building reliable vision systems in constrained environments like medical robotics. By understanding the math and mechanics behind edge detection, you gain the ability to adapt, optimize, and troubleshoot when off-the-shelf tools fall short.

Whether you’re guiding an autonomous wheelchair through a hospital or inspecting microchips on a production line, mastering fundamentals like Sobel puts you in control of the pipeline—not just the API.
