Precision Control in Robotic Surgery in Real-Time Kinematics Using Python

Table of Contents

  • Introduction

  • What Is a Strict Upper Triangular Matrix?

  • Real-World Use Case: Robotic Arm Motion Planning in Surgery

  • How to Extract the Strict Upper Triangular Part in Python

  • Complete, Error-Free Implementation

  • Best Practices & Performance Tips

  • Conclusion

Introduction

In high-precision robotics, every millisecond and every matrix element matters. When controlling a surgical robot with multiple joints, engineers rely on strict upper triangular matrices—where only elements above the main diagonal are retained—to model asymmetric dependencies between joints.

This subtle but powerful structure enables real-time motion planning that’s both computationally efficient and physically accurate. In this article, we’ll explore how it powers life-saving robotic surgery systems—with clean, production-ready Python code.

What Is a Strict Upper Triangular Matrix?

A strict upper triangular matrix is a square matrix where all elements on and below the main diagonal are zero:

Original Matrix A:
[[a, b, c],
 [d, e, f],
 [g, h, i]]

Strict Upper Triangular Part:
[[0, b, c],
 [0, 0, f],
 [0, 0, 0]]

Unlike the standard upper triangular form, the diagonal is excluded—making it ideal for modeling forward-only influence, such as how joint 1 affects joint 2, but not vice versa.

Real-World Use Case: Robotic Arm Motion Planning in Surgery

In a da Vinci-style surgical robot, each joint’s movement can influence downstream joints—but not upstream ones. This creates a causal chain perfectly modeled by a strict upper triangular matrix.

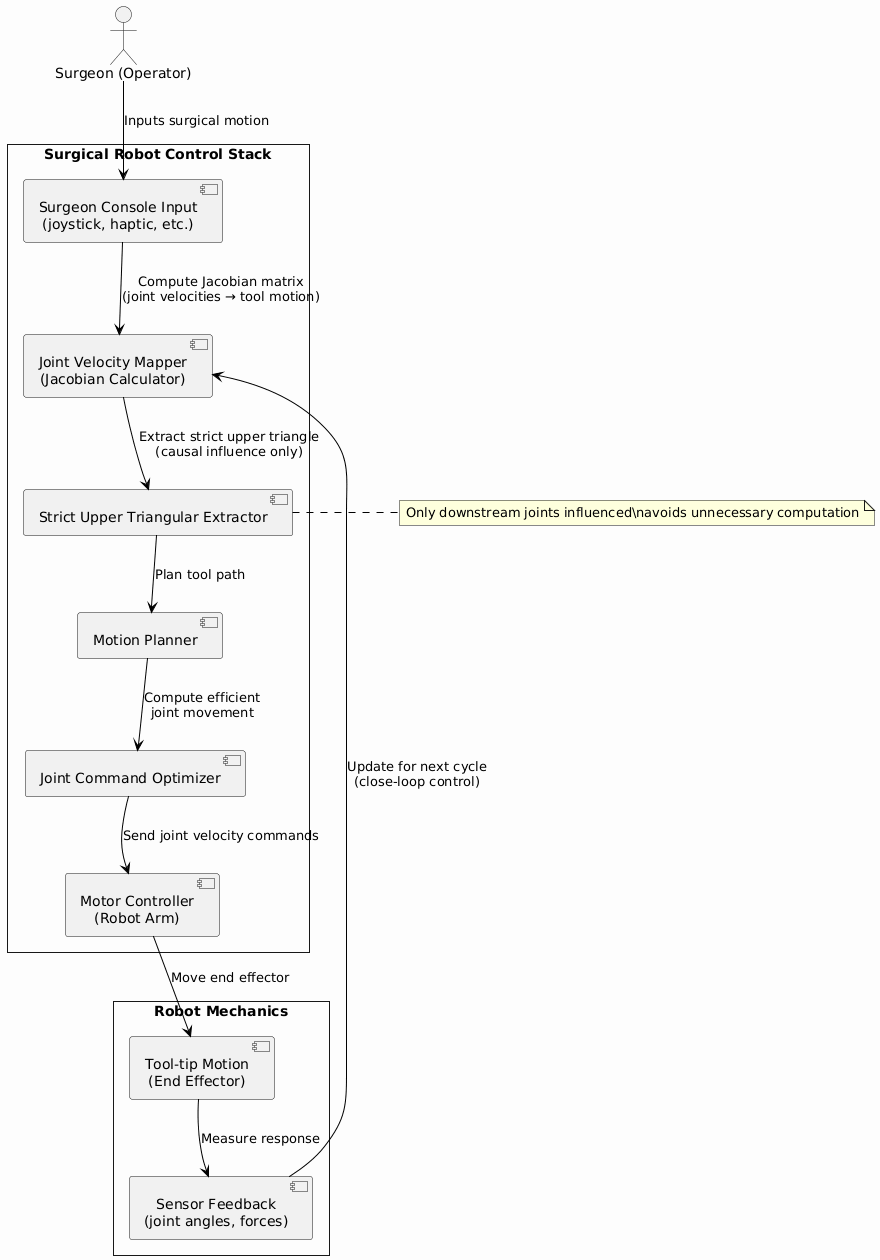

PlantUML Diagram

During real-time operation:

  • The system computes a Jacobian matrix to map joint velocities to tool-tip motion

  • The strict upper part captures how adjusting Joint 1 affects Joints 2–6, but not itself

  • By isolating this structure, the controller avoids redundant calculations, reducing latency

This optimization allows the robot to respond in under 5ms to surgeon inputs—critical when operating near vital organs. Without it, delays could cause tremors or overshoot, risking patient safety.

How to Extract the Strict Upper Triangular Part in Python

Python provides two reliable methods:

  • NumPy: np.triu(A, k=1) — k=1 excludes the diagonal

  • Pure Python: Iterate only where column index > row index

Both are O(n²), but NumPy is significantly faster for real-time systems.

Complete, Error-Free Implementation

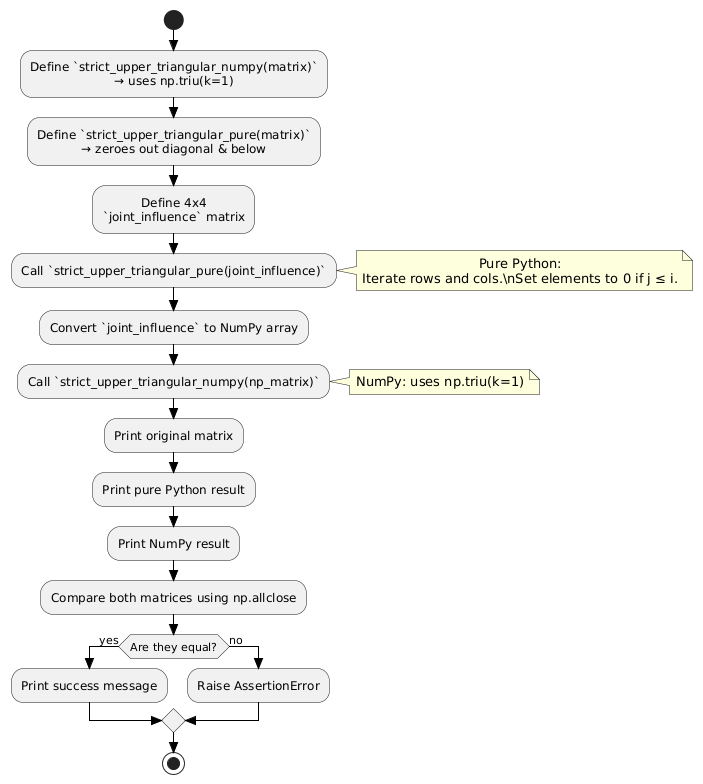

PlantUML Diagram
import numpy as np
from typing import List

def strict_upper_triangular_numpy(matrix: np.ndarray) -> np.ndarray:
    """
    Extract strict upper triangular part using NumPy.
    Excludes main diagonal (k=1).
    """
    if matrix.ndim != 2:
        raise ValueError("Input must be a 2D matrix")
    return np.triu(matrix, k=1)

def strict_upper_triangular_pure(matrix: List[List[float]]) -> List[List[float]]:
    """
    Extract strict upper triangular part using pure Python.
    Sets all elements on/below diagonal to zero.
    """
    if not matrix:
        return []
    n = len(matrix)
    if any(len(row) != n for row in matrix):
        raise ValueError("Matrix must be square")

    result = []
    for i in range(n):
        new_row = []
        for j in range(n):
            if j > i:  # strictly above diagonal
                new_row.append(matrix[i][j])
            else:
                new_row.append(0.0)
        result.append(new_row)
    return result

# Example: Robotic Joint Influence Matrix
if __name__ == "__main__":
    # 4x4 matrix: Joint i influences Joint j (i < j)
    joint_influence = [
        [0.0, 0.8, 0.3, 0.1],
        [0.0, 0.0, 0.6, 0.2],
        [0.0, 0.0, 0.0, 0.9],
        [0.0, 0.0, 0.0, 0.0]
    ]

    # Pure Python
    strict_pure = strict_upper_triangular_pure(joint_influence)

    # NumPy
    np_matrix = np.array(joint_influence)
    strict_numpy = strict_upper_triangular_numpy(np_matrix)

    print("Original Joint Influence Matrix:")
    for row in joint_influence:
        print([f"{x:4.1f}" for x in row])

    print("\nStrict Upper Triangular (Pure Python):")
    for row in strict_pure:
        print([f"{x:4.1f}" for x in row])

    print("\nStrict Upper Triangular (NumPy):")
    print(strict_numpy)

    # Verify correctness
    assert np.allclose(
        np.array(strict_pure),
        strict_numpy
    ), "Results must match"

    print("\n Strict upper triangular extraction successful!")
1

Best Practices & Performance Tips

  • Always use np.triu(A, k=1) — it’s optimized and concise

  • Validate matrix shape — robotics systems assume square inputs

  • In control loops, pre-allocate output arrays to avoid memory allocation delays

  • Never include diagonal — in kinematics, self-influence is handled separately

  • For large systems, consider sparse matrices if the influence graph is sparse

In surgical robots, this operation runs at 200+ Hz with deterministic timing—ensuring smooth, safe motion.

Conclusion

The strict upper triangular matrix is a quiet hero in real-time control systems. By encoding directional dependencies and eliminating redundant computation, it enables robotic systems to operate with human-like responsiveness—but machine-like precision. Whether you’re building surgical robots, drone swarms, or industrial arms, mastering this structure helps you build faster, safer, and more intelligent systems. In robotics, the difference between success and failure often lies strictly above the diagonal.
