Introduction

If you’ve ever searched for something online and instantly found exactly what you were looking for, you’ve experienced the magic of embeddings and reranking in action. These techniques quietly power the search engines, recommendation systems, and even AI assistants we use daily. Yet, most people don’t really know how they work—or why new models like Qwen3 Embedding are such a big deal.

When I first started experimenting with embeddings a few years ago, I used them mostly for small projects like semantic search in my notes. They worked, but they weren’t always accurate across languages or specialized domains. That’s where Qwen3 Embedding comes in. Built on top of the Qwen3 foundation model, it brings state-of-the-art performance to embeddings and reranking while being multilingual, scalable, and open-source.

In this article, I’ll walk you through what Qwen3 Embedding is, why it matters, and how it’s pushing the boundaries of text understanding. We’ll cover embeddings, reranking, model architecture, training pipeline, benchmarks, and practical applications—all explained in a way that’s easy to follow even if you’re just starting out.

What Are Text Embeddings and Why Do They Matter?

Think of embeddings as compressed meaning.

For example, the words “dog” and “puppy” are different, but they’re closely related in meaning. In embedding space, they’d be placed near each other as vectors (mathematical representations). Meanwhile, something like “car” would be farther away.

These embeddings let machines understand text beyond just exact word matches. This is how Google can recognize that your search for “cheap flights” is related to “budget airlines.”

Now, embeddings alone aren’t always enough. Imagine you searched “best programming books for beginners.” The system may retrieve hundreds of results, but not all of them will be equally useful. That’s where reranking comes in—it reorders the results so that the most relevant ones appear at the top.

Introducing Qwen3 Embedding

The Qwen team has released Qwen3 Embedding, a family of models specifically designed for text embedding, retrieval, and reranking. What makes it exciting is that it’s not just a bolt-on tool but is built directly on the Qwen3 foundation model, which already excels at multilingual understanding.

Here are a few standout features:

• Versatility: Works across a huge variety of tasks, from semantic search to recommendation systems.

• Flexibility: Available in multiple sizes (0.6B, 4B, and 8B parameters) to balance efficiency and accuracy.

• Multilingual power: Supports over 100 languages (including programming languages!), making it ideal for global applications.

• Instruction awareness: Both embedding and reranking models allow customized input instructions, so you can fine-tune them for different scenarios.

Embedding vs Reranking: Two Sides of the Same Coin

Qwen3 Embedding comes in two flavors:

1. Embedding Models

These models take a single piece of text (say, a document or a query) and convert it into a vector. That vector represents the meaning of the text. In practice, this helps with:

• Document retrieval (finding relevant papers for a query).

• Semantic search (like searching your own notes).

• Code retrieval (finding relevant snippets based on natural language).

The embedding is generated by processing the text and extracting the hidden state of the final [EOS] token (end-of-sequence).

2. Reranking Models

Instead of just embedding text separately, reranking models look at pairs of text—for example, a query and a candidate document. Using a cross-encoder architecture, they calculate how relevant one is to the other.

This is particularly useful in:

• Search engines (deciding which results to show first).

• Recommendation systems (choosing which movie or product to suggest).

• Q&A systems (ranking possible answers).

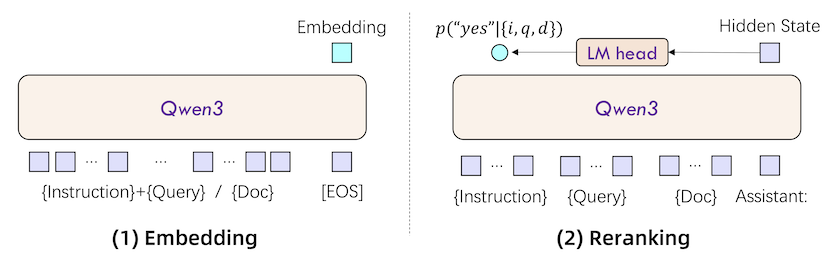

The figure below (from the Qwen3 documentation) shows this difference clearly:

• Embedding: {Instruction + Query} / {Doc} [EOS] → Vector

• Reranking: {Instruction} {Query} {Doc} → Relevance score ( p("yes") )

Model Type	Models	Size	Layers	Sequence Length	Embedding Dimension	MRL Support	Instruction Aware
Text Embedding	Qwen3-Embedding-0.6B	0.6B	28	32K	1024	Yes	Yes
	Qwen3-Embedding-4B	4B	36	32K	2560	Yes	Yes
	Qwen3-Embedding-8B	8B	36	32K	4096	Yes	Yes
Text Reranking	Qwen3-Reranker-0.6B	0.6B	28	32K	-	-	Yes
	Qwen3-Reranker-4B	4B	36	32K	-	-	Yes
	Qwen3-Reranker-8B	8B	36	32K	-	-	Yes

Model Architecture (How It Works Under the Hood)

At the heart of Qwen3 Embedding is the Qwen3 foundation model, which is designed for deep text understanding.

Related Image: © Qwen Ai

• Related Image: © Embedding models use a dual-encoder architecture : queries and documents are encoded separately into vectors.

• Reranking models use a cross-encoder architecture : the query and document are fed together, and the model outputs a direct relevance score.

To preserve Qwen3’s strengths while adapting it for embeddings, the team used LoRA fine-tuning (a lightweight way to train large models without needing huge compute).

In simpler terms:

• Embedding = fast, scalable, approximate.

• Reranking = slower, but more precise.

Together, they make a powerful combo for real-world search and retrieval tasks.

Training Pipeline: From Weak Data to Precision

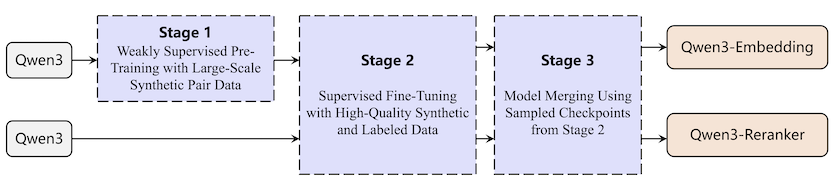

Training these models wasn’t as simple as throwing data at them. The team used a three-stage training process (shown in the diagram you shared):

Related Image: © Qwen Ai

1. Stage 1 – Weakly Supervised Pre-Training
   Using large-scale synthetic pairs (automatically generated query-doc pairs). This builds general knowledge.

2. Stage 2 – Supervised Fine-Tuning
   With high-quality labeled and synthetic data. This step sharpens accuracy.

3. Stage 3 – Model Merging
   Multiple checkpoints from stage 2 are merged, combining their strengths for better generalization.

For reranking models, they skipped stage 1 and focused on high-quality labeled data directly. This saved time and improved efficiency.

One innovation worth noting: during Stage 1, they used Qwen3 itself to generate synthetic text pairs across multiple languages and tasks. Instead of relying only on public datasets (which can be limited), they scaled up weakly supervised data generation in a clever way.

Performance Benchmarks

Numbers don’t tell the whole story, but they help.

On MTEB (Massive Text Embedding Benchmark) and related tasks, Qwen3 models consistently outperformed other popular embedding/reranking systems.

Model	Param	MTEB-R	CMTEB-R	MMTEB-R	MLDR	MTEB-Code	FollowIR
Qwen3-Embedding-0.6B	0.6B	61.82	71.02	64.64	50.26	75.41	5.09
Jina-multilingual-reranker-v2-base	0.3B	58.22	63.37	63.73	39.66	58.98	-0.68
gte-multilingual-reranker-base	0.3B	59.51	74.08	59.44	66.33	54.18	-1.64
BGE-reranker-v2-m3	0.6B	57.03	72.16	58.36	59.51	41.38	-0.01
Qwen3-Reranker-0.6B	0.6B	65.80	71.31	66.36	67.28	73.42	5.41
Qwen3-Reranker-4B	4B	69.76	75.94	72.74	69.97	81.20	14.84
Qwen3-Reranker-8B	8B	69.02	77.45	72.94	70.19	81.22	8.05

For example

• Qwen3-Reranker-8B scored 77.45 on CMTEB-R (Chinese) and 81.22 on MTEB-Code, beating out strong baselines.

• Qwen3-Embedding-0.6B already surpassed many models in multilingual scenarios, despite being much smaller.

This means better search relevance, stronger multilingual support, and more consistent performance across diverse domains.

Why This Matters for Developers

Let’s bring this closer to home.

If you’re a developer building:

• A chatbot that can search documents in English, Chinese, and Hindi,

• A recommendation system for multilingual content,

• Or even a code search tool that retrieves snippets based on natural language queries…

…Qwen3 Embedding can help you do it more effectively.

For me, one of the biggest frustrations with older embeddings was their inconsistency across languages. I remember building a retrieval system for bilingual content (English and Hindi), and results often skewed heavily toward English. With Qwen3’s 100+ language support, that kind of imbalance is reduced significantly.

And since the models are open-sourced under Apache 2.0, you can actually use them without restrictive licenses.

The Future of Qwen3 Embedding

The team behind Qwen3 isn’t stopping here. Future plans include:

• Expanding into multimodal embeddings (imagine connecting text with images or audio).

• Improving deployment efficiency, so even larger models can run smoothly in production.

• Building stronger cross-modal semantic understanding —essentially teaching models to understand meaning across different types of data.

In short, this is just the beginning.

Conclusion

Qwen3 Embedding represents a major step forward in how we handle text embedding and reranking. By combining the power of the Qwen3 foundation model with carefully designed training stages, it offers:

• Stronger multilingual support,

• Flexible model sizes for different needs,

• And state-of-the-art performance across benchmarks.

Whether you’re a student exploring semantic search for the first time, a developer building a multilingual app, or a researcher pushing the boundaries of retrieval systems, Qwen3 Embedding is worth your attention.

As for me, I’m already imagining how I could plug Qwen3 Embedding into some of my projects—like improving document search in my personal knowledge base. It feels like we’re moving closer to a world where machines don’t just match words but genuinely understand meaning across languages, domains, and even modalities.

And that’s an exciting future to build toward.
