React Rating Component In Spfx

Introduction



The react-rating is a plugin written in React.js to initialize the React rating component in React forms.



Open a command prompt. Create a directory for the SPFx solution.



md spfx-ReactRating



Navigate to the above-created directory.



cd spfx-ReactRating



Run the Yeoman SharePoint Generator to create the solution.



yo @microsoft/sharepoint



Solution Name



Hit Enter to have the default name (spfx-Otpinput in this case) or type in any other name for your solution.

Selected choice - Hit Enter



Target for the component



Here, we can select the target environment where we are planning to deploy the client web part; i.e., SharePoint Online or SharePoint OnPremise (SharePoint 2016 onwards).

Selected choice - SharePoint Online only (latest).



Place of files



We may choose to use the same folder or create a subfolder for our solution.

Selected choice - same folder.



Deployment option



Selecting Y will allow the app to be deployed instantly to all sites and be accessible everywhere.

Selected choice - N (install on each site explicitly).



Permissions to access web APIs



Choose if the components in the solution require permission to access web APIs that are unique and not shared with other components in the tenant.

Selected choice - N (solution contains unique permissions)



Type of client-side component to create



We can choose to create a client-side web part or an extension. Choose the web part option.

Selected choice - WebPart



Web part name



Hit Enter to select the default name or type in any other name.

Selected choice - ReactRating



Web part description



Hit Enter to select the default description or type in any other value.



Framework to use



Select any JavaScript framework to develop the component. Available choices are - No JavaScript Framework, React, and Knockout.

Selected choice - React



The Yeoman generator will perform a scaffolding process to generate the solution. The scaffolding process will take a significant amount of time.



Once the scaffolding process is completed, lock down the version of project dependencies by running the below command,



npm shrinkwrap



In the command prompt, type the below command to open the solution in the code editor of your choice.



NPM Packages used,

npm i react-rating

 Necessary imports,

import Rating from 'react-rating';

 To initialize Raing component, insert the below tag in render method,

<Rating />

 Since we are using font awesome icons for rating we need to import font awesome css from the cdn path of fontawesome n/w.

SPComponentLoader.loadCss('https://stackpath.bootstrapcdn.com/font-awesome/4.7.0/css/font-awesome.min.css');

Full Code



in ReactRating.tsx

import * as React from 'react';
import { IReactRatingProps } from './IReactRatingProps';
import './mystyle.css';
import { SPComponentLoader } from '@microsoft/sp-loader';
SPComponentLoader.loadCss('https://stackpath.bootstrapcdn.com/font-awesome/4.7.0/css/font-awesome.min.css');
import Rating from 'react-rating';
export default class ReactRating extends React.Component<IReactRatingProps, {}> {
  public render(): React.ReactElement<IReactRatingProps> {
    return (
      <div >
        <Rating />

<br></br>
<Rating
  emptySymbol={<span className="icon-text">-</span>}
  fullSymbol={[1,2,3,4,5].map(n => <span className="icon-text">{n}</span>)}
/>
<br></br>
<Rating
  emptySymbol="fa fa-star-o fa-2x"
  fullSymbol="fa fa-star fa-2x"
/>
<br></br>
<Rating
  emptySymbol="fa fa-thumbs-down fa-2x"
  fullSymbol="fa fa-thumbs-up fa-2x"
/>
<Rating
  emptySymbol="glyphicon glyphicon-heart-empty"
  fullSymbol="glyphicon glyphicon-heart"
/>
<br></br>
<Rating
  emptySymbol="fa fa-star-o fa-2x"
  fullSymbol="fa fa-star fa-2x"
  fractions={2}
/>
<br></br>
<Rating
  stop={6}
  emptySymbol={['fa fa-star-o fa-2x low', 'fa fa-star-o fa-2x low',
    'fa fa-star-o fa-2x medium', 'fa fa-star-o fa-2x medium',
    'fa fa-star-o fa-2x high', 'fa fa-star-o fa-2x high']}
  fullSymbol={['fa fa-star fa-2x low', 'fa fa-star fa-2x low',
    'fa fa-star fa-2x medium', 'fa fa-star fa-2x medium',
    'fa fa-star fa-2x high', 'fa fa-star fa-2x high']}
/>
<br></br>
<Rating
  stop={4}
  emptySymbol="fa fa-battery-empty fa-2x"
  fullSymbol={['fa fa-battery-1 fa-2x', 'fa fa-battery-2 fa-2x',
    'fa fa-battery-3 fa-2x', 'fa fa-battery-4 fa-2x']}
/>
      </div>
    );
  }
}

 in mystyle.css

.icon-text {
    display: inline-block;
    width: 26px;
    font-size: 2em;
    background-color: white;
  }
  .low {
    color: red;
  }
  .medium {
    color: orange;
  }
  .high {
    color: green;
  }
  .icon {
    width: 26px;
    height: 26px;
  }

mystyle.css is a custom based styling css. Here I am using it for coloring the icons.



Properties



start - Range start value

stop - Range stop value

fractions -split the single rating point into more pieces

initialrating - the default rating value

placeholderrating- just a placeholder

 readonly- not able to edit

direction- whether rtl or ltr

quiet- whether to animate or not

emptySymbol- React element, inline style object, or classes applied to the rating symbols when empty

fullSymbol- React element, inline style object, or classes applied to the rating symbols when full



Event Types



onChange - sets the value to the state when the rating is changed

onChange={(rate) => alert(rate)}

onClick- sets the value to the state when the rating is clicked

onClick={(rate) => alert(rate)}

onHover - sets the value to the state when the rating is clicked

onHover={(rate) => alert(rate)}

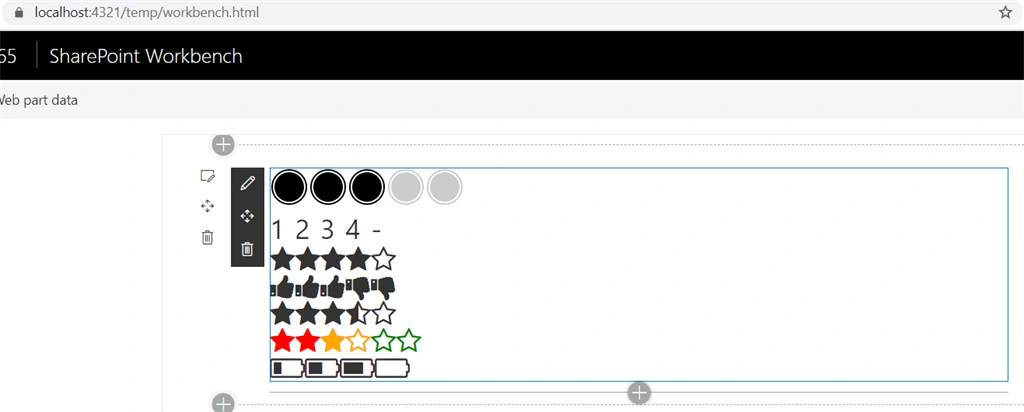

 Some sample rating outputs:







For more details visit Here.



Conclusion



Hence we learned about initializing React Raing component in Spfx forms using react-Rating plugin. I hope this helps someone. Happy coding :)
