Representing a Sparse Matrix as Arrays in Python

Contents

1️⃣ Introduction
2️⃣ What Is a Sparse Matrix?
3️⃣ Real-World Scenario: Social Network Graph Analysis
4️⃣ Methods to Represent Sparse Matrices
5️⃣ Complete Implementation with Test Cases
6️⃣ Best Practices and Performance Tips
7️⃣ Conclusion

1️⃣ Introduction

Sparse matrices are matrices in which most elements are zero. Representing them efficiently is crucial in modern computing because dense storage wastes memory and slows down computations. Sparse matrices are ubiquitous in real-world applications, from recommendation systems to network analysis.

This article explores how to represent a sparse matrix as arrays, with practical examples and Python implementations.

2️⃣ What Is a Sparse Matrix?

A sparse matrix has very few non-zero entries compared to its size. For instance, in a 1000×1000 matrix storing only 500 non-zero values, allocating space for 1,000,000 entries would be wasteful.

Sparse matrices are typically represented using arrays of non-zero values and their indices, enabling fast computation and minimal memory usage.

3️⃣ Real-World Scenario: Social Network Graph Analysis

Imagine a social networking platform with millions of users. Each user can follow only a handful of others. Modeling this as an adjacency matrix leads to a huge, mostly empty matrix.

Storing the full matrix wastes memory, while representing it as arrays — one array for non-zero values, one for row indices, one for column indices — allows efficient analysis:

  • Quickly compute mutual friends

  • Detect communities

  • Run recommendation algorithms

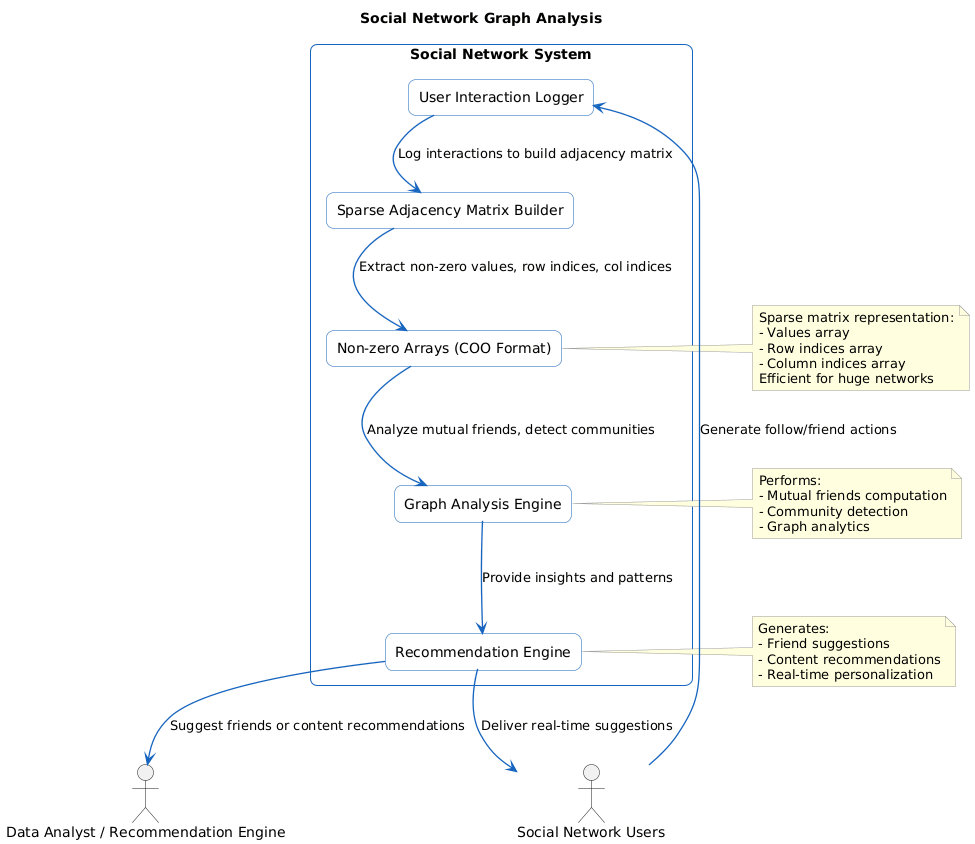

PlantUML Diagram

This approach underpins real-time friend suggestions on platforms like Instagram or LinkedIn.

4️⃣ Methods to Represent Sparse Matrices

  1. Coordinate (COO) Format
    Store arrays: values, row_indices, col_indices.
    Example: For a non-zero entry M[2][5] = 10, append 2 to row_indices, 5 to col_indices, and 10 to values.

  2. Compressed Sparse Row (CSR)
    Efficient for row slicing. Stores:

    • values

    • column_indices

    • row_pointer (index where each row starts in values)

  3. Compressed Sparse Column (CSC)
    Similar to CSR but optimized for column slicing.

5️⃣ Complete Implementation with Test Cases

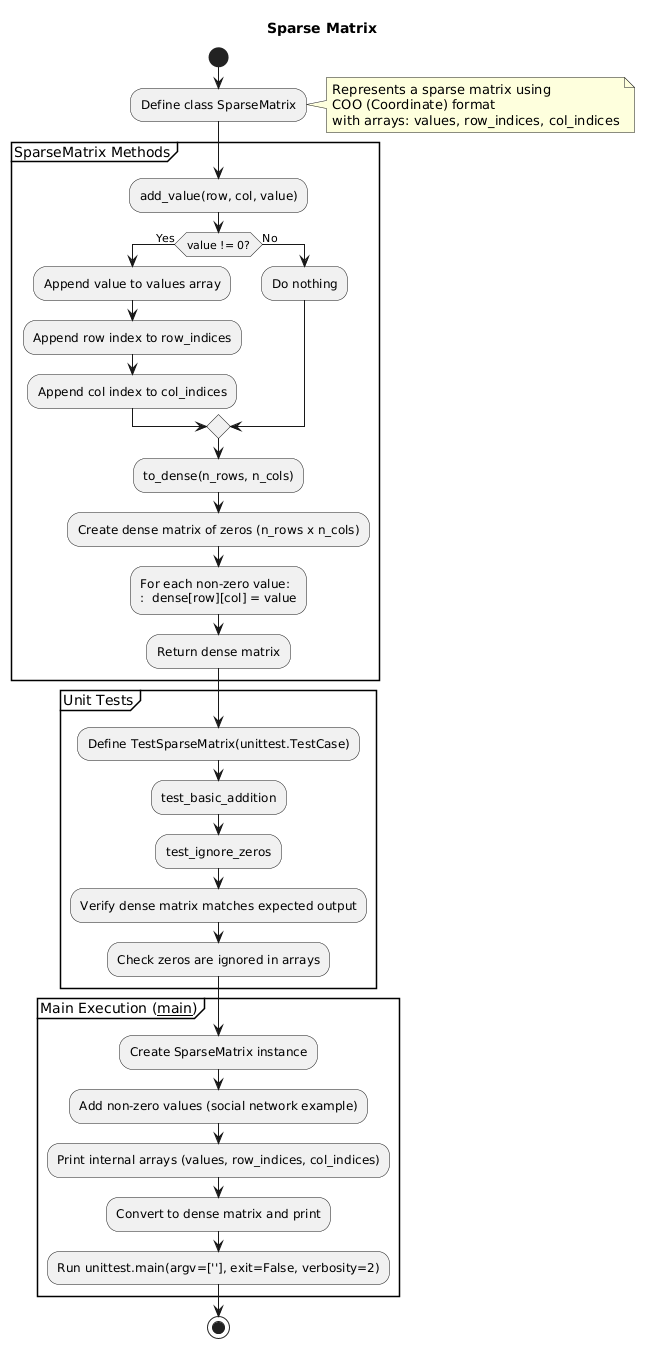

PlantUML Diagram
from typing import List
import unittest

class SparseMatrix:
    """Represents a sparse matrix using COO (Coordinate) format."""

    def __init__(self):
        self.values: List[int] = []
        self.row_indices: List[int] = []
        self.col_indices: List[int] = []

    def add_value(self, row: int, col: int, value: int):
        if value != 0:
            self.values.append(value)
            self.row_indices.append(row)
            self.col_indices.append(col)

    def to_dense(self, n_rows: int, n_cols: int) -> List[List[int]]:
        """Convert sparse representation back to a dense matrix."""
        dense = [[0 for _ in range(n_cols)] for _ in range(n_rows)]
        for v, r, c in zip(self.values, self.row_indices, self.col_indices):
            dense[r][c] = v
        return dense

# === Unit Tests ===
class TestSparseMatrix(unittest.TestCase):

    def test_basic_addition(self):
        sm = SparseMatrix()
        sm.add_value(0, 1, 5)
        sm.add_value(2, 0, 3)
        dense = sm.to_dense(3, 3)
        expected = [
            [0, 5, 0],
            [0, 0, 0],
            [3, 0, 0]
        ]
        self.assertEqual(dense, expected)

    def test_ignore_zeros(self):
        sm = SparseMatrix()
        sm.add_value(0, 0, 0)
        self.assertEqual(sm.values, [])

if __name__ == "__main__":
    # Demonstration: Social Network adjacency
    sm = SparseMatrix()
    sm.add_value(0, 2, 1)  # User 0 follows User 2
    sm.add_value(1, 0, 1)  # User 1 follows User 0
    sm.add_value(2, 3, 1)  # User 2 follows User 3

    print("Sparse matrix internal arrays:")
    print("Values:", sm.values)
    print("Row indices:", sm.row_indices)
    print("Column indices:", sm.col_indices)

    print("\nDense adjacency matrix:")
    for row in sm.to_dense(4, 4):
        print(row)

    # Run tests
    unittest.main(argv=[''], exit=False, verbosity=2)

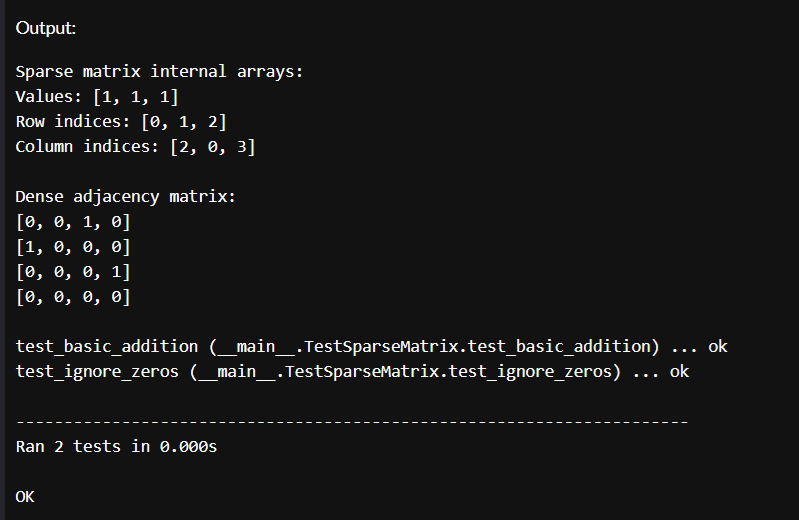

1

6️⃣ Best Practices and Performance Tips

  • Use sparse representations for large, mostly-empty matrices to save memory.

  • Choose the right format: COO for construction, CSR for row operations, CSC for column operations.

  • Avoid converting back to dense unless necessary; it defeats the purpose.

  • Leverage libraries like scipy.sparse for high-performance operations.

7️⃣ Conclusion

Sparse matrices are everywhere in large-scale systems like social networks, recommendation engines, and scientific simulations. Representing them efficiently using arrays prevents memory bloat and accelerates computation. By mastering sparse matrix representations, developers can handle massive datasets in real time, powering features like friend suggestions, graph analytics, and anomaly detection. Efficient storage is not just about performance; it’s a necessity for building scalable and responsive systems in today’s data-driven world.
