Introduction
In modern distributed and microservices-based architectures, reverse proxies play a critical role in improving security, scalability, performance, and operational efficiency. This article provides a comprehensive introduction to reverse proxies, explains their benefits, and demonstrates how they work in real-world enterprise environments.
This article is intended for beginners, intermediate developers, software architects, and IT professionals who want to understand reverse proxy concepts and their practical application in enterprise systems.
This article is divided into two parts to make the concepts easier to understand. In this first part, we will focus on the fundamentals of Reverse Proxy, including what it is, its benefits, architecture, how it works, and its role in a real-world microservices environment. In the second part, we will take a hands-on approach and build a practical YARP (Yet Another Reverse Proxy) implementation using .NET Core and Microservices, covering real-world scenarios, configuration, and request routing in detail.
Let’s start with what a reverse Proxy,
What is a Reverse Proxy?
A reverse proxy is a server that sits between clients and backend services. All incoming requests are received by the reverse proxy, which applies security and routing rules before forwarding requests to the correct backend service.
Benefits of a Reverse Proxy
A reverse proxy has many benefits; below are a few of the important benefits,
Enhanced Security – Protects backend services by hiding infrastructure and filtering malicious traffic.
Improved Performance – Uses caching, compression, and optimized request handling.
Load Balancing – Distributes traffic across multiple instances.
High Availability – Routes traffic to healthy instances during failures.
Centralized Management – Provides a single location for routing, security, certificates, and monitoring.
Now we will try to understand, Reverse Proxy Architecture,

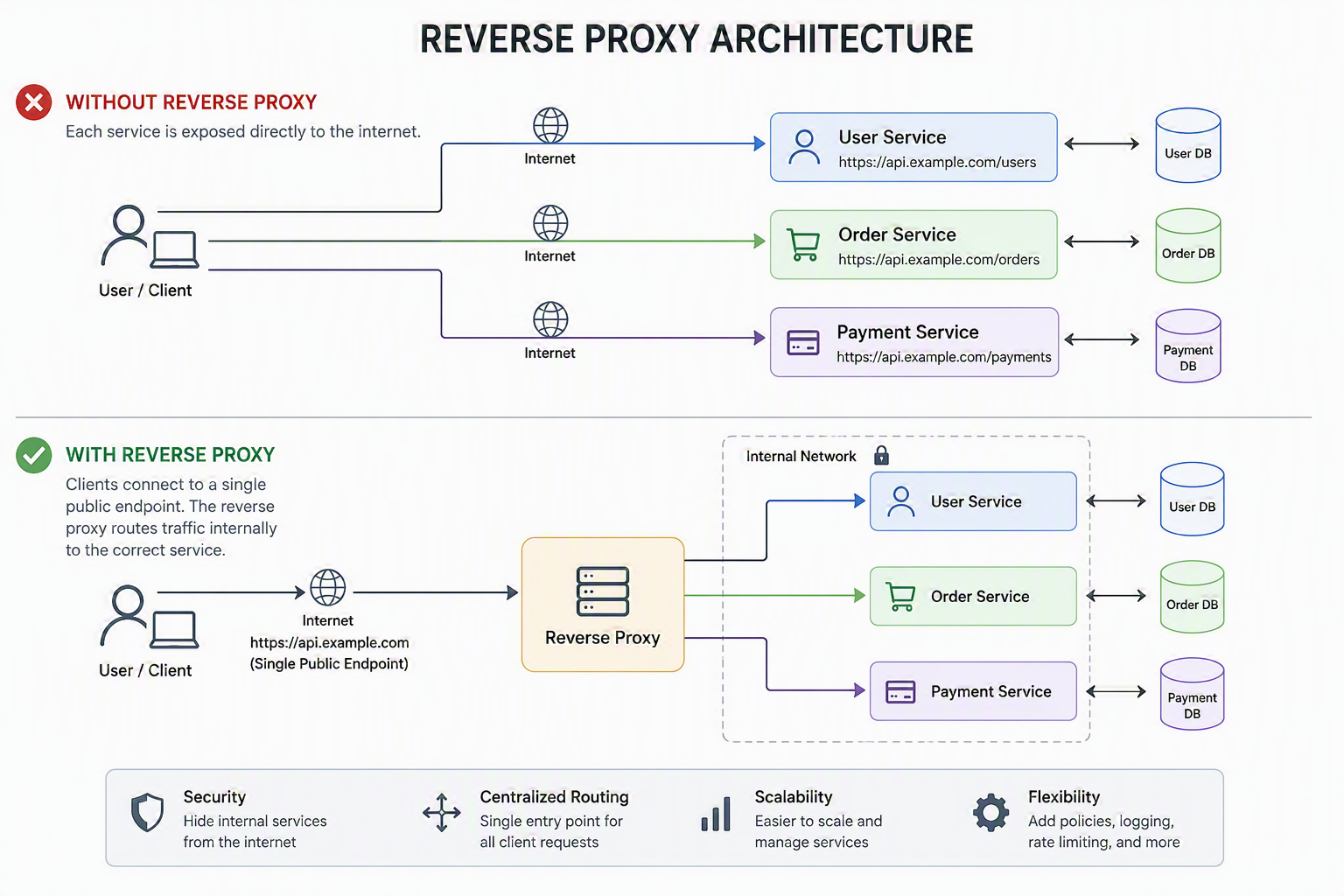

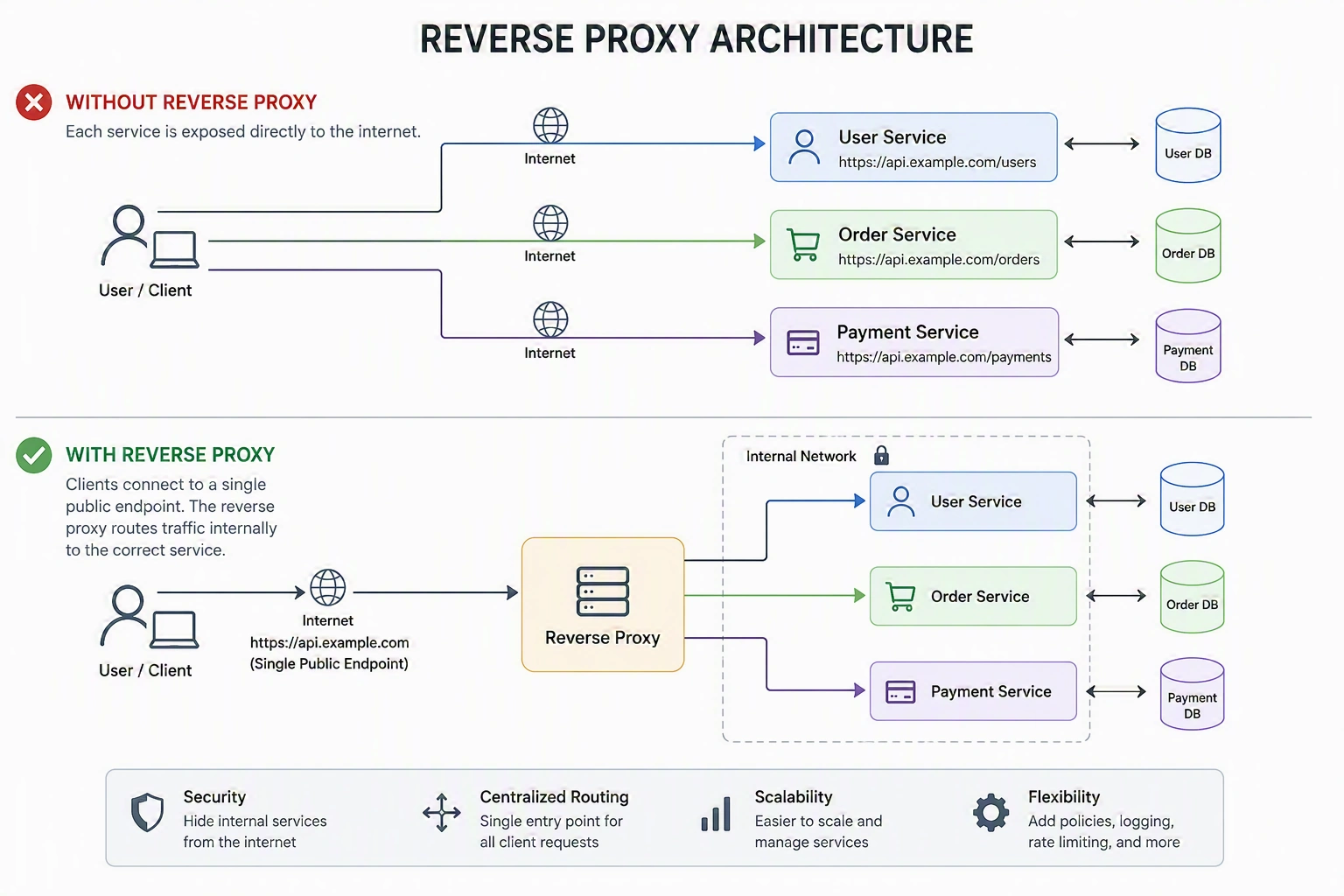

Reverse Proxy Architecture
The reverse proxy acts as a single-entry point for all client requests.
It can handle
SSL/TLS termination
Authentication
Authorization
Rate limiting
Logging
Monitoring
Caching
Load balancing.
Let's try to understand Reverse proxy Architecture with Real world Microservice example,
Real-World Microservices Example
Consider User, Order, and Payment services. Without a reverse proxy, each service is exposed directly to the internet. With a reverse proxy, clients connect to a single public endpoint, and traffic is routed internally to the correct service.
How a Reverse Proxy Works
Client sends request
Reverse proxy receives request
Security and traffic policies are applied
Routing decision is made
Request is forwarded to backend service
Response returns through reverse proxy
Response sent back to client
Why Reverse Proxy required
Lets assume that suppose we don’t have reverse proxy in our application then what will happened,
Each microservice is independently accessible from the internet and responsible for its own security and operational requirements. This increases complexity, cost, and security risks.
![Designer (1)]()
Hope it will give you better idea why reverse proxy is required.
Popular Reverse Proxy Technologies
There are many reverse proxy available in the market, below are popular reverse proxies available in the market.
Common solutions include
Conclusion
Reverse proxies are a foundational component of modern application architectures. By acting as a centralized gateway between clients and backend services, they provide enhanced security, improved performance, load balancing, high availability, and simplified operational management.
