Java

Semantic and Mouse Events in Handling an Event

Introduction

Event handling is one of the most essential features in Java GUI programming. Whether you are building an application with AWT or Swing, events allow the program to respond to user actions such as clicking a button, typing on the keyboard, or moving the mouse.

Events are broadly classified into two categories.

  • Semantic Events
  • Low-Level (Mouse/Key) Events

Semantic events are defined at a higher level to encapsulate the semantics of a user interface component’s model, and a Mouse Event is generated whenever a mouse is moved, clicked, pressed, or released. The MouseEvent class represents these events.

Semantic Events

Semantic events represent the meaningful actions performed by the user, rather than the raw low-level inputs. They are generated when the user interacts with high-level GUI components such as buttons, checkboxes, menus, or text fields.

The semantic event classes defined by the AWT are as follows.

  • ActionEvent(“do a command”)
  • AdjustmentEvent(“Value was adjusted”)
  • ItemEvent(“Item State has changed”)
  • TextEvent(“The value of the text object changed”)

The semantic listener interface defined by the AWT is as follows.

  • ActionListener
  • AdjustementListener
  • ItemListener
  • TextListener

For Example

import java.awt.*;
import java.awt.event.*;

public class SemanticEventDemo extends Frame implements ActionListener {
    Button btn;

    SemanticEventDemo() {
        btn = new Button("Click Me");
        btn.addActionListener(this);
        add(btn);

        setSize(300, 200);
        setLayout(new FlowLayout());
        setVisible(true);
    }

    @Override
    public void actionPerformed(ActionEvent e) {
        System.out.println("Button Clicked! This is a Semantic Event.");
    }

    public static void main(String[] args) {
        new SemanticEventDemo();
    }
}

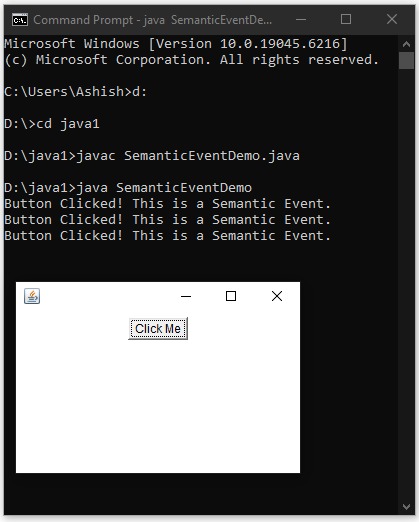

Output

Output

Clicking the button generates an ActionEvent, which is a semantic event.

Mouse Events

Mouse events are considered low-level events because they represent the physical actions of the mouse, rather than their meaning. These events are helpful in tracking exact user interactions with the mouse.
There are two types of Mouse Event Listeners.

  • MouseListener
  • MouseMotionListener

The MouseListener interface has the following definition.

public interface MouseListener {
    public void mouseClicked(MouseEvent e);
    public void mousePressed(MouseEvent e);
    public void mouseEntered(MouseEvent e);
    public void mouseExited(MouseEvent e);
    public void mouseReleased(MouseEvent e);
}

The mouseMotionListener interface has the following definition.

public interface MouseMotionListener {

    public void mouseDragged(MouseEvent e);
    public void mouseMoved(MouseEvent e);
}

An alternate way of handling mouse events is by lifting components to process their own ordinary mouse events using enableEvents (AWTEvent.MOUSE_EVENT_MASK) and processMouseEvent() methods.

The following example illustrates the usage of mouse event listeners.

import java.awt.*;
import java.awt.event.*;

public class MouseEventDemo extends Frame implements MouseListener {
    Label label;

    MouseEventDemo() {
        label = new Label("Interact with the Mouse");
        add(label);
        addMouseListener(this); // registering MouseListener
        setSize(400, 300);
        setLayout(new FlowLayout());
        setVisible(true);
    }

    @Override
    public void mouseClicked(MouseEvent e) {
        label.setText("Mouse Clicked at (" + e.getX() + ", " + e.getY() + ")");
    }

    @Override
    public void mousePressed(MouseEvent e) {
        label.setText("Mouse Pressed");
    }

    @Override
    public void mouseReleased(MouseEvent e) {
        label.setText("Mouse Released");
    }

    @Override
    public void mouseEntered(MouseEvent e) {
        label.setText("Mouse Entered Window");
    }

    @Override
    public void mouseExited(MouseEvent e) {
        label.setText("Mouse Exited Window");
    }

    public static void main(String[] args) {
        new MouseEventDemo();
    }
}

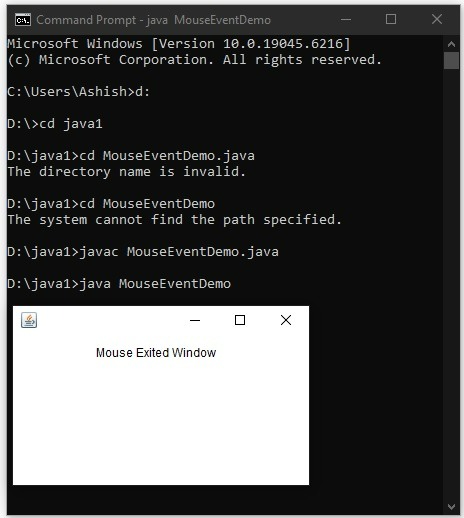

Output

Window

Mouse movements and clicks are captured, giving us precise control over mouse actions.

Key Difference between Semantic and Mouse Events

Feature Semantic Events Mouse (Low-Level) Events
Definition Represent meaningful user actions Represent raw input actions
Examples ActionEvent, ItemEvent, TextEvent mouseClicked, mousePressed
Level of Abstraction High-level Low-level
Component Involved Buttons, Checkboxes, Menus Any component (based on the mouse)
Usage Easy interaction (like button click) Precise tracking of mouse actions

Summary

In Java Event Handling, events are categorized into Semantic Events and Mouse Events, each serving different purposes in GUI programming. Semantic Events represent the meaningful actions of the user, such as clicking a Button, selecting a Checkbox, or pressing Enter in a TextField, and are handled through classes like ActionEvent, ItemEvent, or TextEvent. On the other hand, Mouse Events are considered low-level events, capturing the physical interactions of the user with the mouse, such as mouseClicked, mousePressed, mouseReleased, mouseEntered, and mouseExited. By combining semantic events for high-level component actions and mouse events for precise low-level control, developers can create interactive, responsive, and user-friendly Java GUI applications that efficiently handle both the intent and the physical interaction of the user.
