SharePoint 2013 Online - Implement Client Caching For SharePoint Objects

In this demo, we will discuss the caching mechanism for SharePoint Objects which are more complex in nature than the primitive data types.

Before you start reading this article, I would recommend you read my previous article SharePoint 2013/Online: Implement Client Caching for SharePoint Properties on Client Caching to get better understanding on topics like Caching Concepts, HTML5 Local Storage API, and Modernizr.js.

In this demo, we will discuss the caching mechanism for SharePoint Objects which are more complex in nature than the primitive data types.

I have selected “SharePoint List Items Collection” object for this demo since while working with SharePoint, we often need to query the SharePoint Lists using CSOM or REST API, which, either way, returns a SharePoint List Items Collection Object that we can hold in the local cache and can boost Read/Write Operations in a more efficient manner.

So, let’s starts with a new SharePoint app Project,

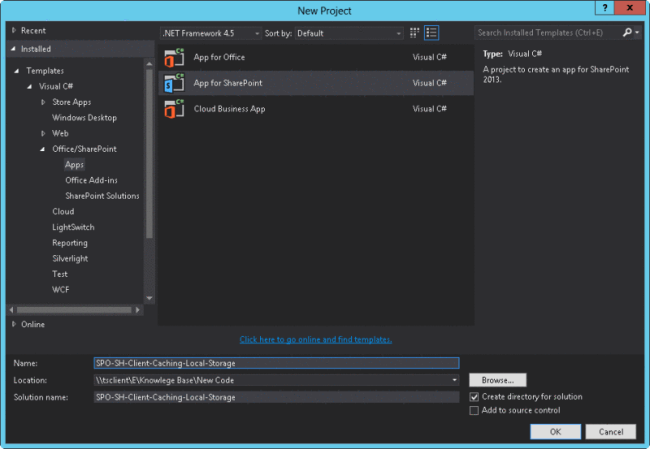

  • Choose “App for SharePoint” Project template.

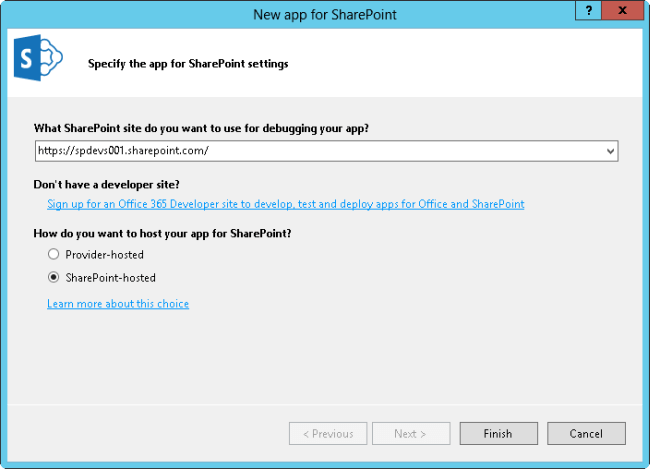

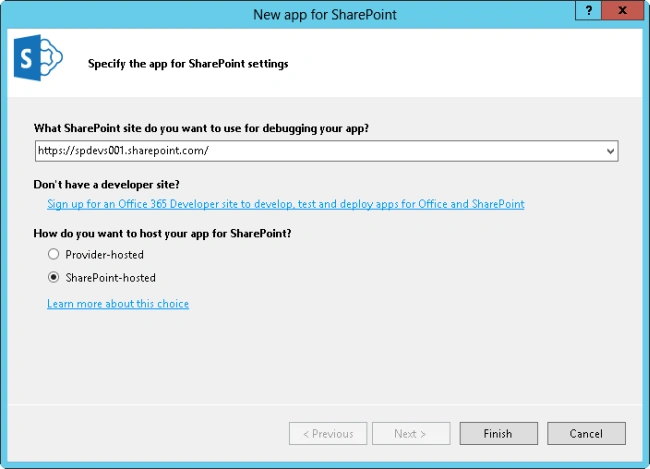

  • Specify SharePoint Site URL (On-Premise or Online).
  • Select hosting model as “SharePoint-Hosted”.

Here, I am using SharePoint Online Site to go with this demonstration.

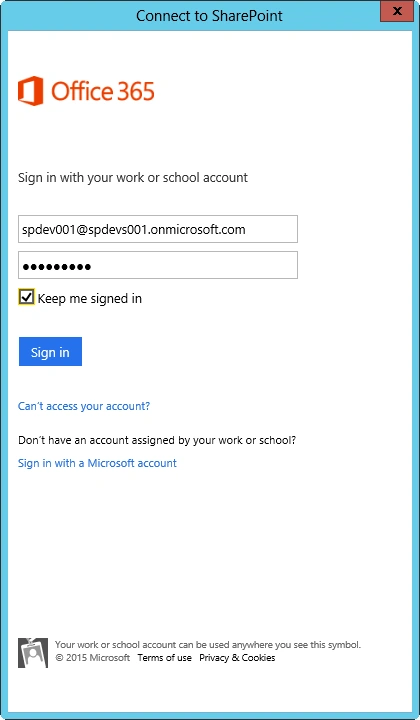

  • Enter SharePoint Online account credentials.

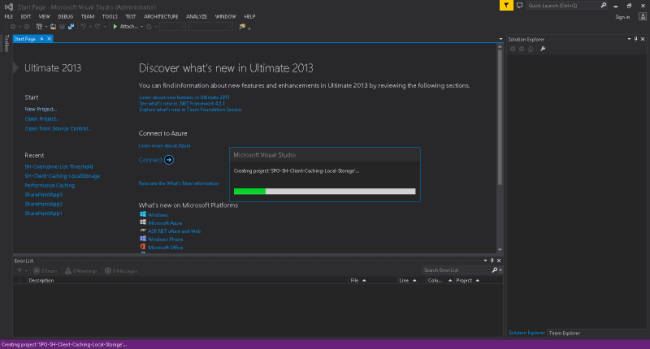

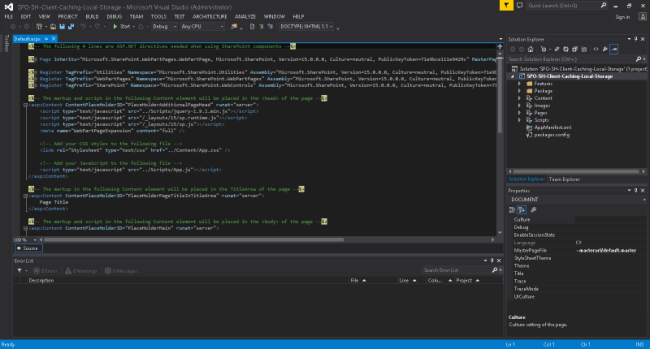

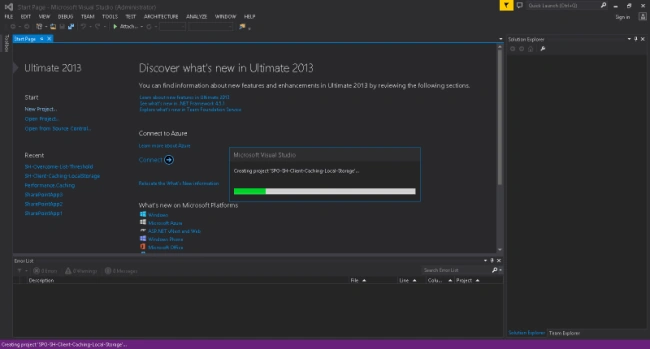

  • Let Visual Studio configure the project for you.

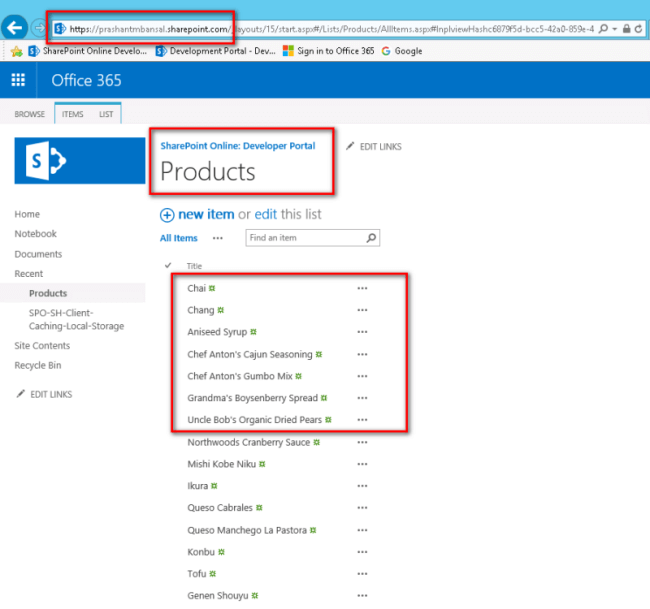

For this demo, I have created a list called Products which has got few items added, as shown below.

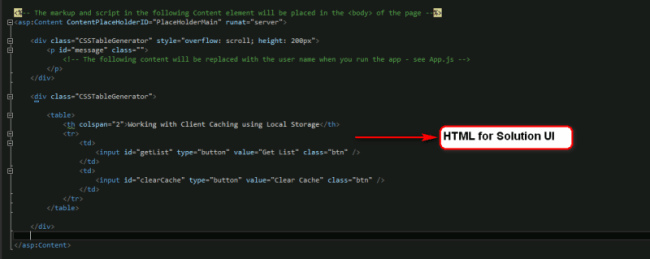

I have added HTML code to default.aspx page that will display the following elements to the UI.

  • Result Panel
    This is a div that will display the output of the operations performed.

  • Get List Button
    This will retrieve the data from SharePoint and add it to the cache.

  • Clear Cache
    This will clear the local cache whenever needed.

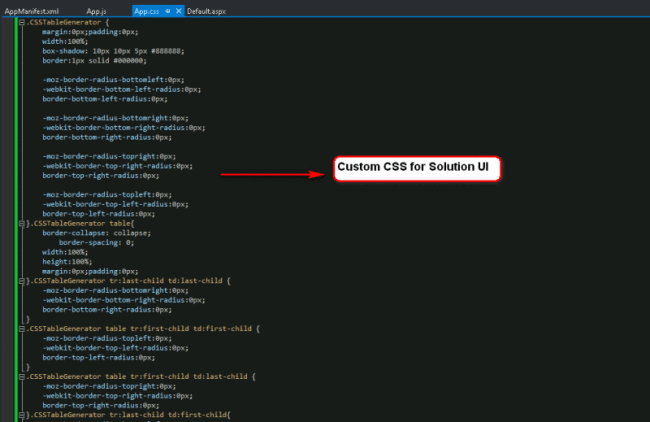

  • Added little CSS to App.css to make UI elements more intuitive.


With this, our UI is ready to go.

Now, let’s explore the code that we have added to App.js.

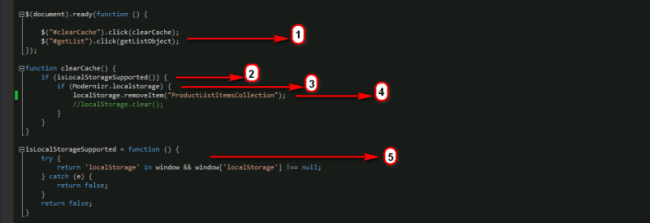

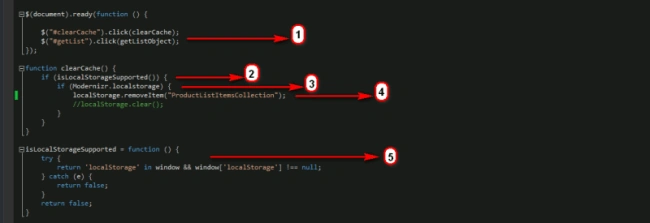

Step 1

Hooking up the event handlers to the click event for “Get List” & “Clear Cache” button.

Step 2

Verifying if the current browser supports the HTML5 Local Storage API.

Step 3

Verifying if the current browser supports the HTML5 Local Storage API by utilizing Feature Detection capabilities of Modernizr.js Framework. For more details on Modernizr.js, you can visit here.

Step 4

This function first checks if Local Storage API is supported in the current browser and if it is supported, then clears the specific key by specifying the key name or all the keys from local cache by calling Clear() methods that you can see as commented in this function.

Step 5

This is the helper method that checks if current browser supports the HTML5 Local Storage API traditionally by querying JavaScript “window” object

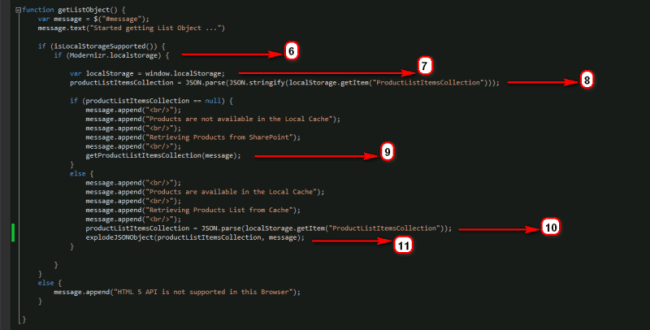

Step 6

Same as Step 2 & 3.

Step 7

Instantiate the local storage object.

Step 8

Try reading SharePoint Items Collection from Local Cache by specifying Cache Key after converting it into string array.

Step 9

If Items Collection is not present in Local Cache, then we are calling getProductListItemsCollection(). This function will fetch the items from Products List and save it to the local cache for further use. We will see the implementation details of this function in Steps 12,13,14 & 15 down the line.

Step 10

If the items collection is available in the local cache, then it will be fetched from local cache based on the cache key.

Step 11

Calling explodeJSONObject() which is a helper function that reads the item values out of the JSON Object that is passed as input parameter. We will see the implementation details of this function in Step 16.

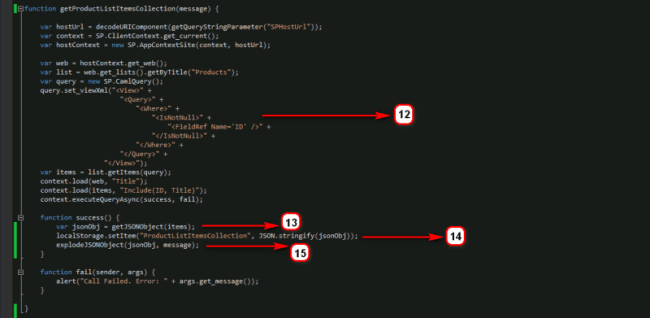

Step 12

Getting Products List and query items using CAML Query.

Step 13

Converting Lists Items Collection into a valid JSON Object by calling getJSONObject() method. We will see the implementation details of getJSONObject() method in Step 17 down below.

Step 14

Once we have received the valid JSON Object, we can save it to Local Storage Cache by converting it back to string array.

Step 15

Calling explodeJSONObject() which is a helper function that reads the item values out of the JSON Object that is passed as input parameter. We will see the implementation details in Step 16.

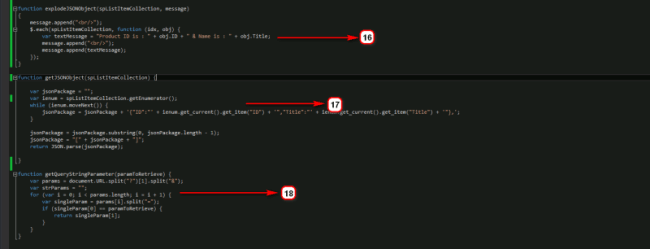

Step 16

explodeJSONObject() method takes JSON form of SharePoint List Items Collection and displays it to the Result Panel by treating each row in the List Item Collection as Object with each column as its properties. Since we are fetching Item ID and Product Title Columns in the SharePoint List Items Collection,  we can use it as [“RowObject”.ID] and [“RowObject”.Title] to display it in the result panel.

Step 17

getJSONObject() method takes SharePoint List Items Collection as input and transforms it into JSON Object by reading values from List Items Collection.

Step 18

getQueryStringParameter () is a helper method that helps you extract Query String values based on the parameter name.


With this, we are done with the code.

Before we start execution, we need to allow Read Permission to the app on Site Collection.

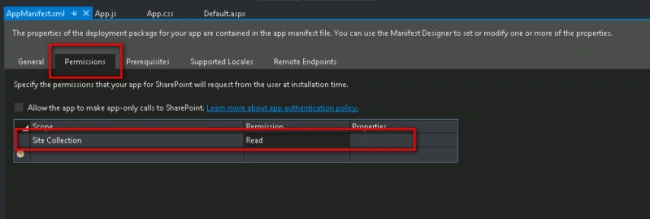

  • Launch AppManifest.xml.
  • Go to “Permissions” Tab.
  • Select “Site Collection” from Scope Dropdown.
  • Select “Read” from Permission Dropdown.


Run the App

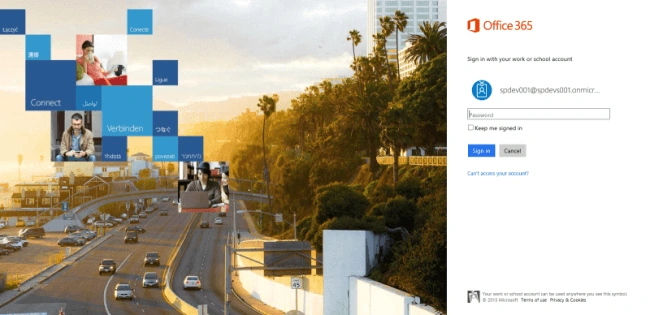

Enter the SharePoint Online credential when prompted.

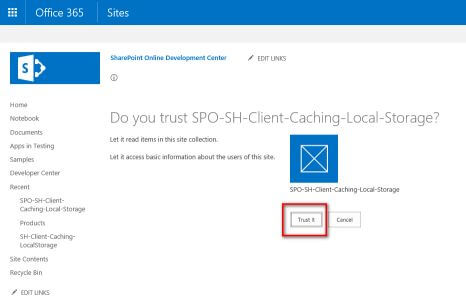

Trust the App when prompted.

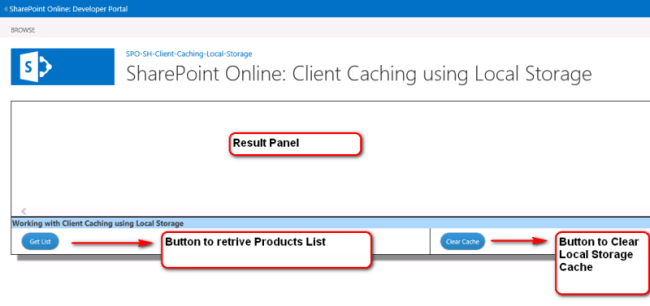

When the app lunches, we can see the UI based on the HTML that we have added earlier to the default.aspx page.

We can see Result Panel where we will see the results of the operations and “Get List”, “Clear Cache” buttons as well.

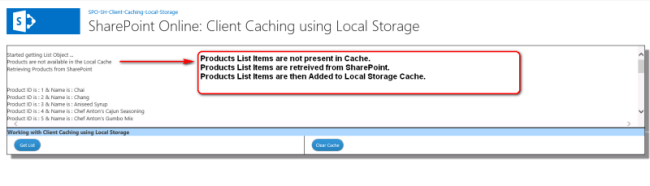

First time, when the “Get List” button is clicked, the following tasks are being performed in a row.

  • Verify Products Items are not present in local cache.
  • Products Items are then queried from SharePoint.
  • List Items Collection is then saved to the local cache to serve any upcoming request for the same data.
  • Display List Items in the Result Panel.

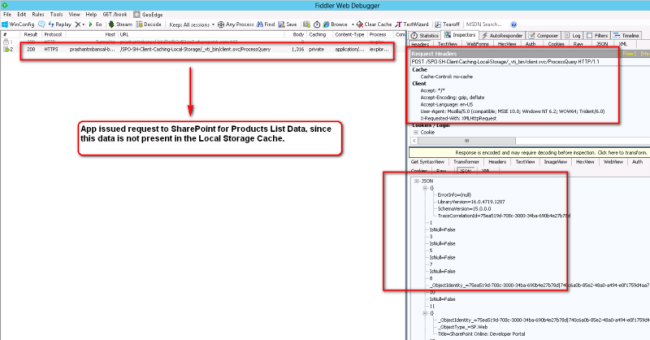

Using Fiddler, we can verify the request that is issued by the app, to SharePoint for getting Products List Items, as shown below.

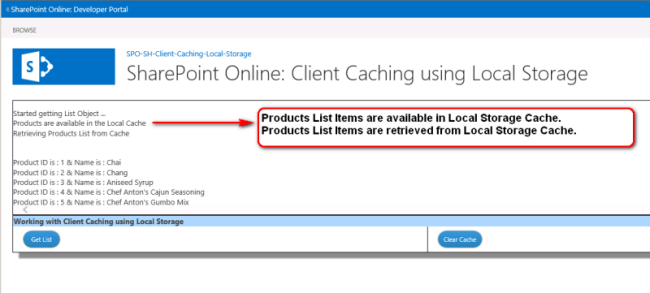

Whenever “Get List” button is clicked for the second time, the following tasks are performed in a row.

  • Verify Products Items are present in local cache.
  • Products Items are then fetched from local cache directly instead of sending request to SharePoint.
  • Display List Items in the Result Panel.

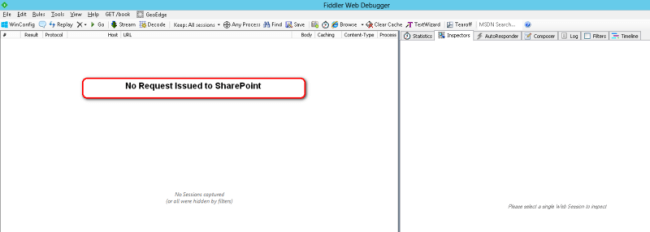

Using Fiddler, we can verify that there is no request issued by App to SharePoint for getting Products List Items, as shown below.


This is it for this demo. Hope, you find it helpful.
