SharePoint Developer Tools - How To Test And Debug SharePoint Rest API Endpoints (Post Requests)

This is the second article in the series of using Fiddler as a debugging and testing tool for SharePoint REST API EndPoints.

You can read the article on GET Requests here,

POST requests are different in nature than GET requests. They require more authentication layers to get through in order to push the data to SharePoint Lists and Libraries.

In order to run the POST request successfully, we need an additional request header “X-RequestDigest” which is nothing but the User Authentication Token.

In order to request this token from SharePoint, we need to make use of the “contextInfo” endpoint that will return the “FormDigestValue” containing the required user authentication token.

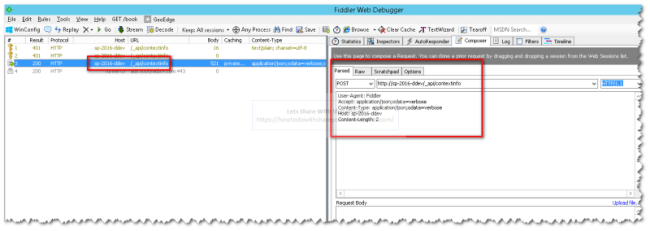

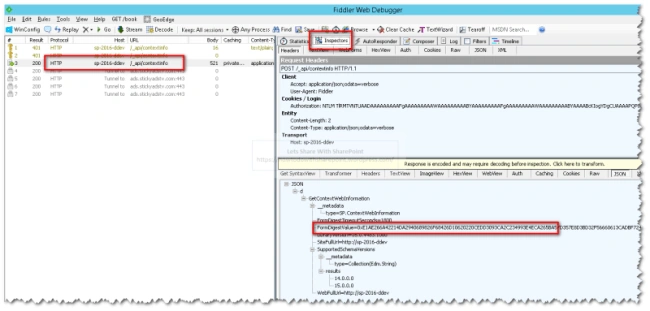

Now, let us see how we can request Authentication Token from SharePoint.

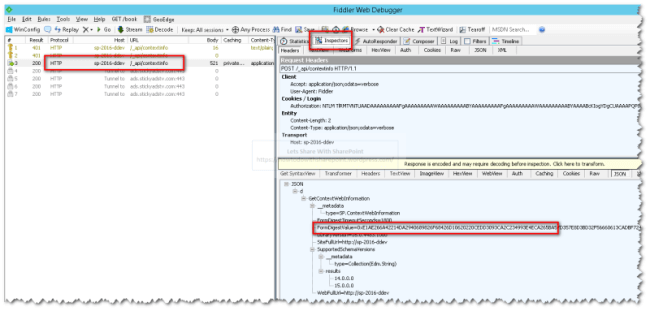

Get Authorization Token

http://<Host Name>_api/contextinfo

SharePoint

SharePoint

Once we get the Authentication Token from SharePoint, we can add this token information in the Request Header of each of the POST requests.

Request Headers

Accept: application/json;odata=verbose Content-Type: application/json;odata=verbose X-RequestDigest: 0xE1AE266A42214DA2940689826F68426D10620220CEDD3093CA2C234993E4ECA265BA57D357E8D3BD32F56660613CADBF72495F2C858B38F7C9B9C3CAD797F6D5,06 Feb 2017 01:22:08 -0000

Once we are ready with Request Headers, we can start issuing POST Requests, as shown below.

Add Data to List

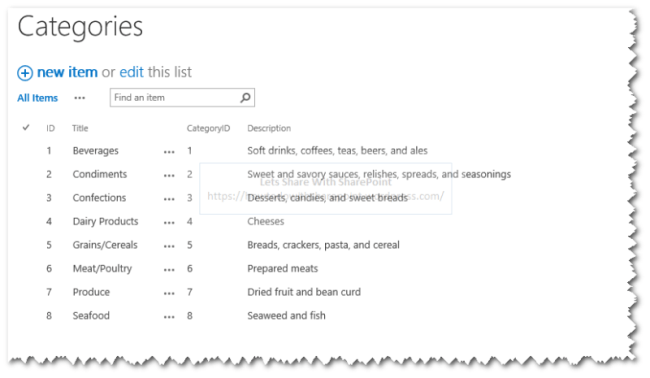

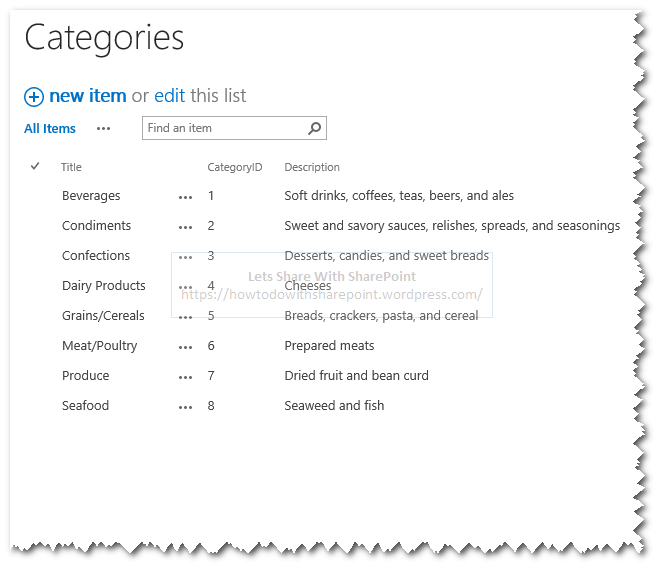

Let’s consider we have a list called Categories, as shown below.

SharePoint

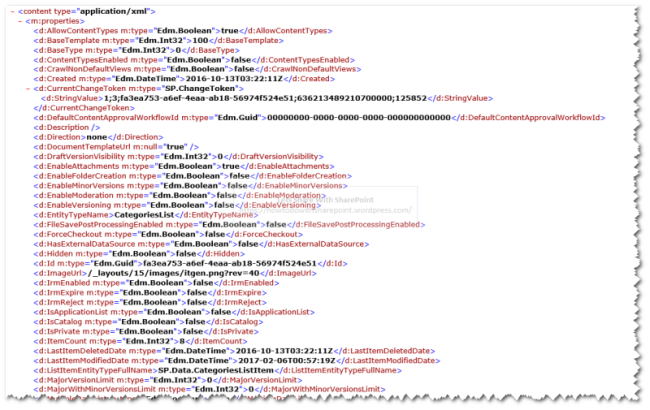

First, see the XML return based on querying schema for Categories List using the following URL.

http://<Host Name>/_api/Web/Lists/getByTitle('Categories')

SharePoint

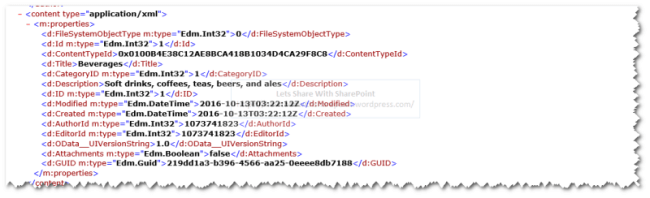

Then, we will see the XML return based on querying for Categories List Items, using the following URL.

http://<Host Name>/_api/Web/Lists/getByTitle('Categories')/Items

SharePoint

The next step is to prepare the Request Body and we have to include the following properties to add the items.

Please note that I am taking properties that are required for this list to add the category and add any desired number of properties to the Request Body as per the schema of the target list.

Request Body

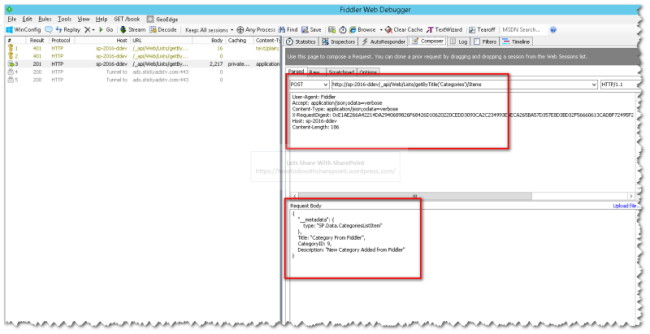

"__metadata": { type: " SP.Data.CategoriesListItem" }, Title: "Category From Fiddler", CategoryID: 9, Description: “New Category Added from Fiddler”

SharePoint

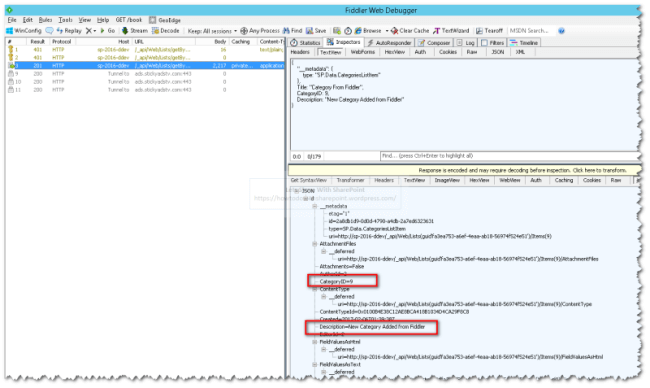

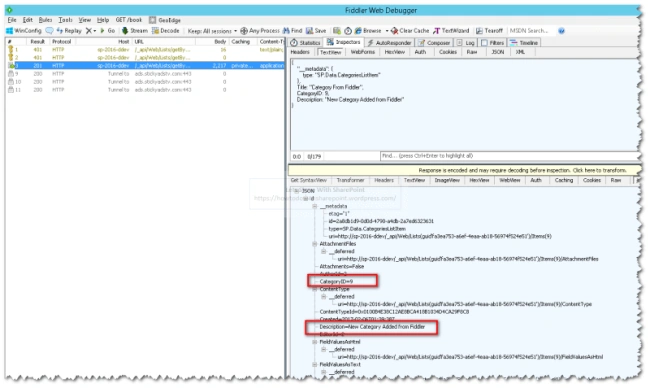

Once we execute this request, we can inspect the response to ensure that the requested item has been added successfully to the Categories List.

SharePoint

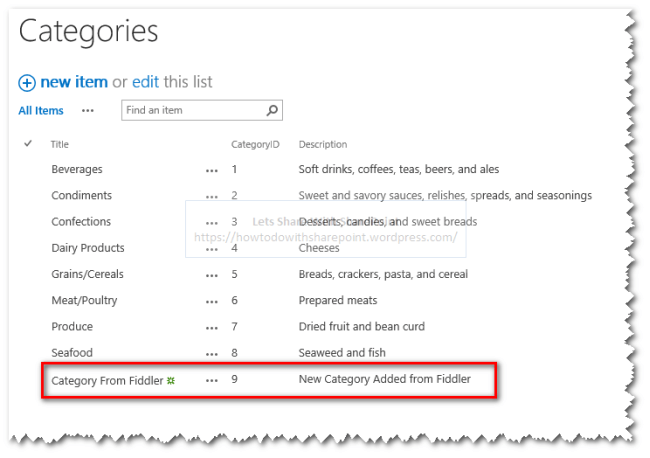

Also, we can validate this new item added by browsing the Categories List.

SharePoint

Update List Item

http://<Host Name>/_api/Web/Lists/getByTitle('Categories')/Items(9)

For update request, you have to include “eTag” value that was returned with the item during initial query to the Request Body. SharePoint uses this value to determine if there are any updates made to the item since it was last queried.

“If-Match: *” can be used to match any “eTag” value resulting in the operation being performed regardless of the actual value.

“X-Http-Method: PATCH” is to override the existing values

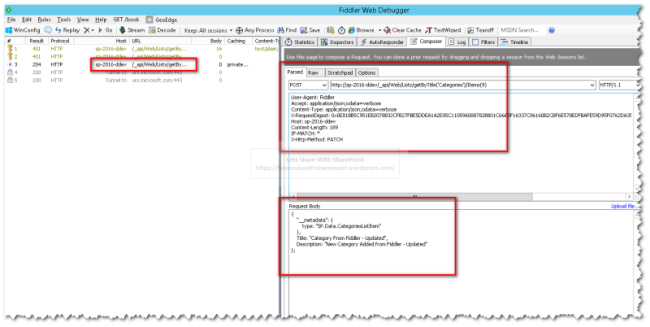

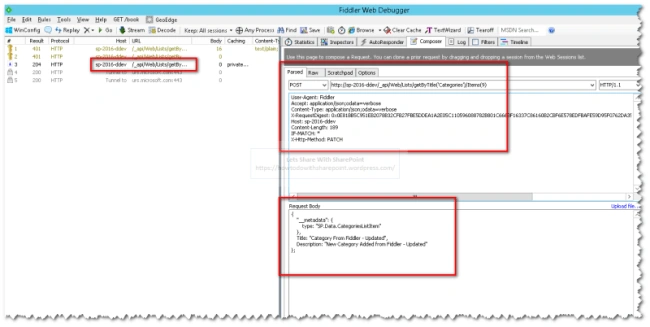

So, the request body would be like this,

IF-MATCH: * X-Http-Method: PATCH { "__metadata": { type: "SP.Data.CategoriesListItem" }, Title: "Category From Fiddler - Updated", Description: "New Category Added from Fiddler - Updated" };

SharePoint

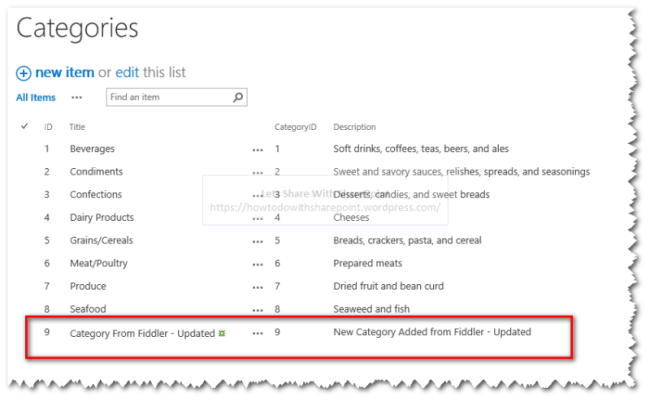

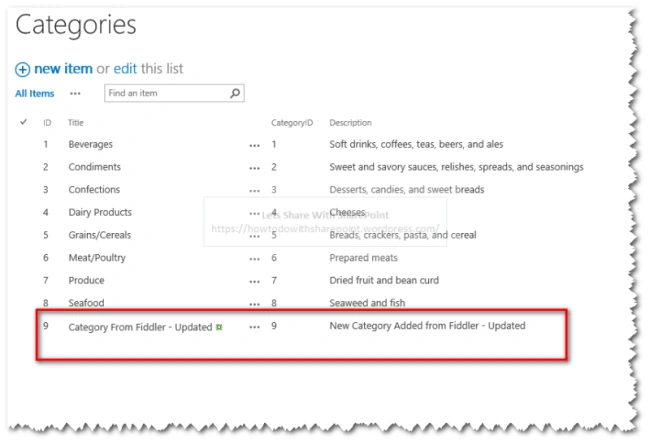

Once the request executes successfully, we can see that the item is updated in the Categories List.

SharePoint

Delete List Item

http://<Host Name>/_api/Web/Lists/getByTitle('Categories')/Items(9)

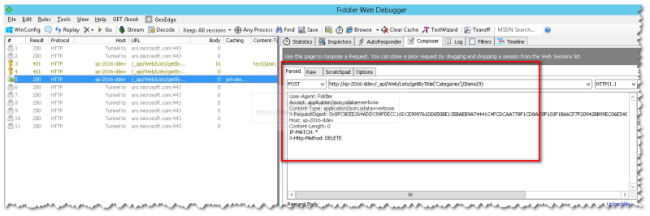

The Delete operation is more or less similar to Update operations.

SharePoint

In case of delete, we will use “X-Http-Method: DELETE” in the Request Body.

Request Body

IF-MATCH: * X-Http-Method: DELETE

SharePoint

Once the request executes successfully, we can validate if the item is deleted from the list.

SharePoint

Add New List

http://<Host Name>/_api/Web/Lists

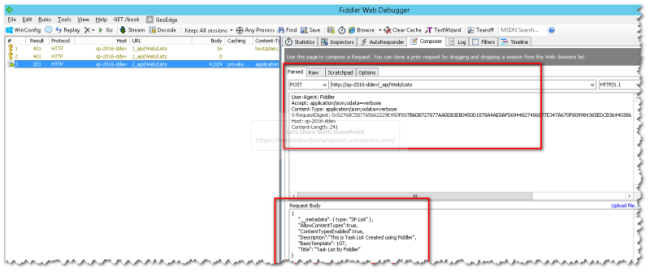

Adding a new SharePoint List involves a little bit more of configuration information in Request body apart from request headers.

Request Headers

Accept: application/json;odata=verbose Content-Type: application/json;odata=verbose

Request Body

  1. Content - Length: 0 {
  2.     "__metadata": {
  3.         type: "SP.List"
  4.     },
  5.     "AllowContentTypes"true,
  6.     "ContentTypesEnabled"true,
  7.     "Description""This is Task List Created using Fiddler",
  8.     "BaseTemplate": 107,
  9.     "Title""Task List By Fiddler"
  10. }

SharePoint

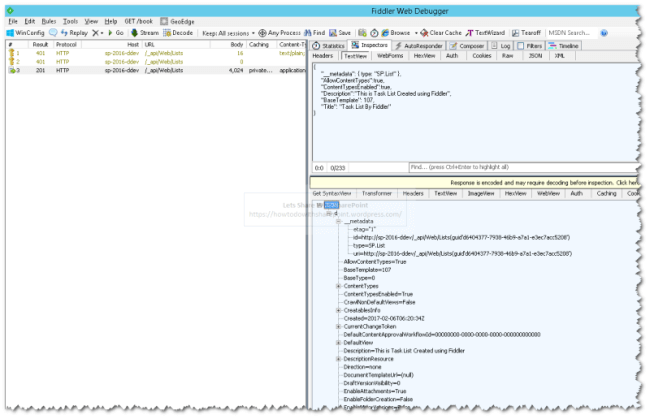

Once this request has been executed successfully, we can see the Response Body holding information about the newly added SharePoint List.

SharePoint

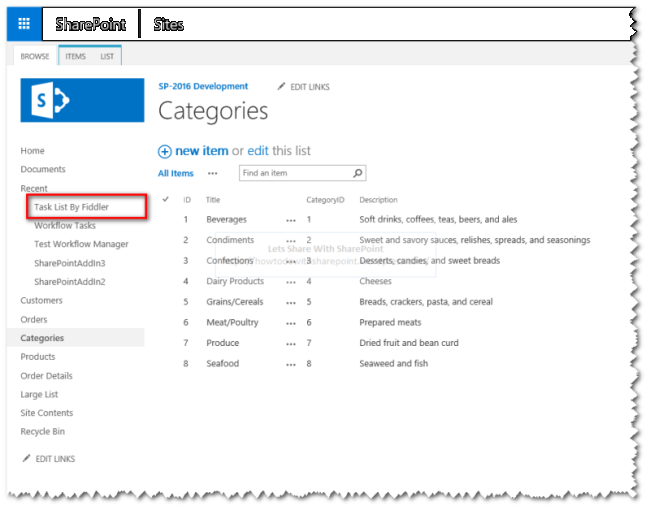

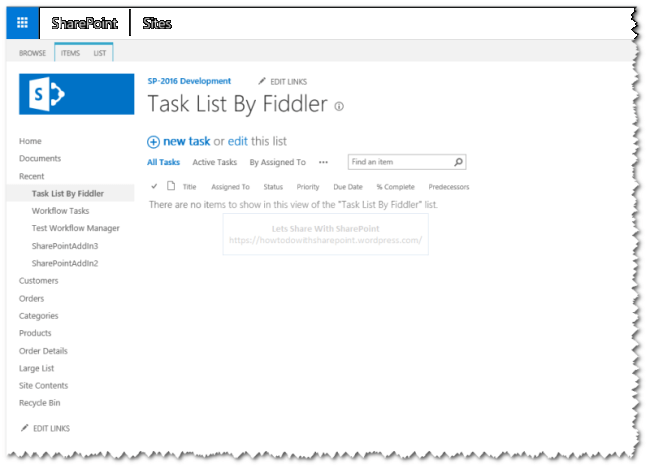

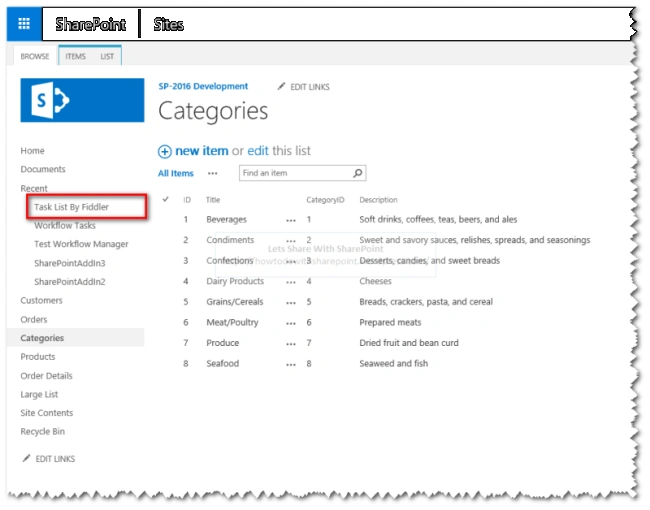

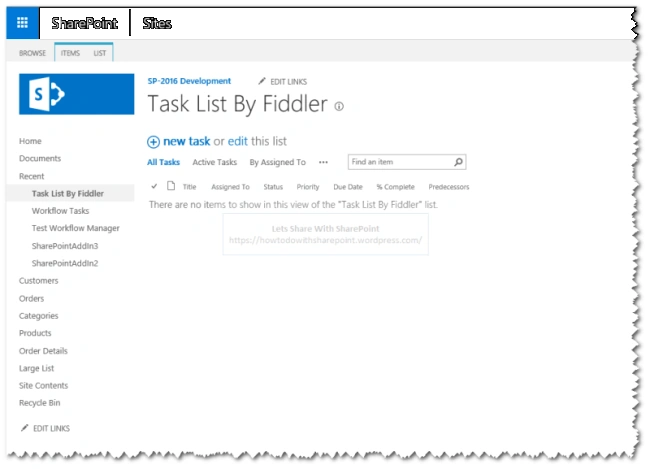

Also, we can see this new list added to SharePoint by browsing the respective site.

SharePoint

SharePoint

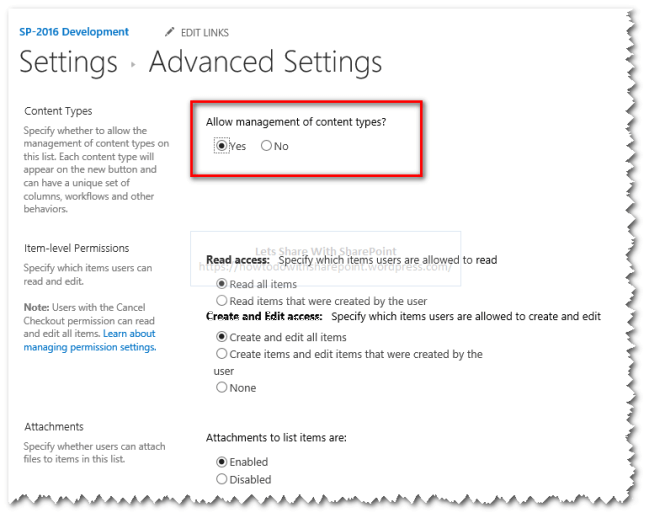

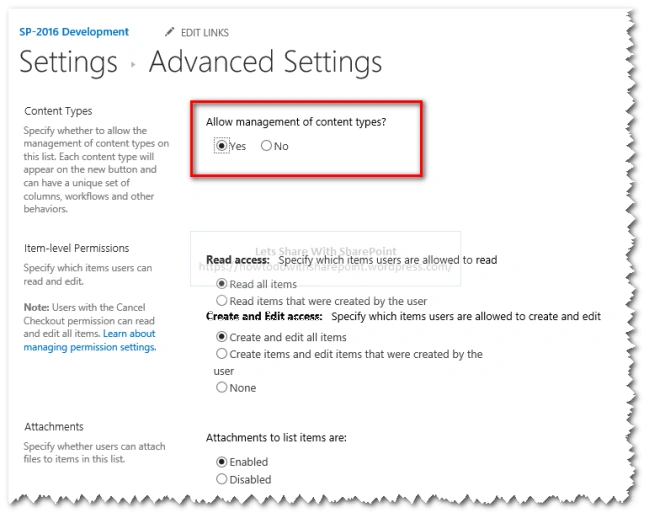

Also, we can verify if the “AllowContentTypes” & “ContentTypesEnabled” properties are configured as expected or not, by browsing the Advanced Properties of the new List as shown below.

SharePoint

Delete List

http://<Host Name>/_api/Web/Lists/getByTitle('Task%20List%20By%20Fiddler')

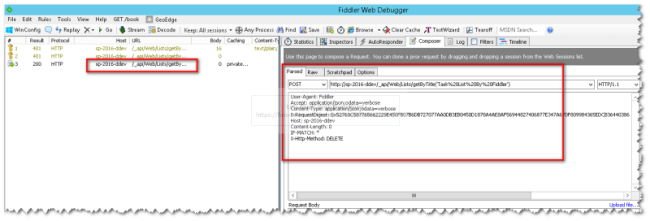

Deleting a list is rather simpler than adding it. It takes “X-Http-Method: DELETE” to be added to the request header and the rest will be done for you.

Request Headers

Accept: application/json;odata=verbose Content-Type: application/json;odata=verbose Content-Length: 0 IF-MATCH: * X-Http-Method: DELETE

SharePoint

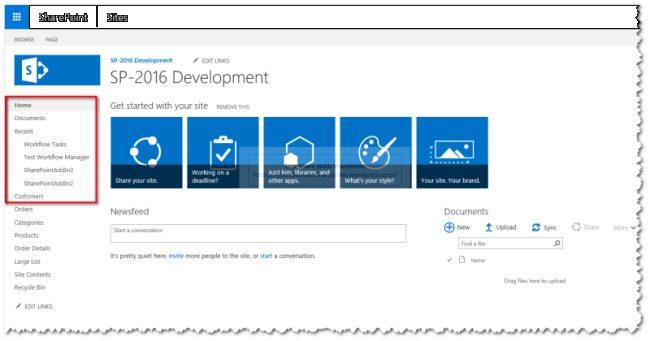

Once the request has been completed, it will delete the required list from SharePoint Lists Collection.

SharePoint

Hope you find it helpful.
