SharePoint Framework - Introduction To Web Part Property Pane

Overview

In classic SharePoint, web parts can be configured using the properties, generally referred to as WebPart properties. In the SPFx world, they are referred to as property panes. The property panes allow controlling the behavior and appearance of a web part.

In the previous article, we developed our first SPFx client-side web part. In this article, we will deep dive into configuring the property panes.

Property Pane Metadata

Property pane has the below metadata,

Pages

• Allows you to separate complex interactions and divide them across one or multiple pages. Pages has sub-metadata as Header and Groups.

Header

• Defines the title of the property pane.

Groups

• Groups together various property fields. Below is the list of out of box supported property fields.

#	Property field	SPFx Typed Object
1	Label	PropertyPaneLabel
2	Textbox	PropertyPaneTextField
3	Multiple lines of text	PropertyPaneTextField
4	Link	PropertyPaneLink
5	Dropdown	PropertyPaneDropdown
6	Checkbox	PropertyPaneCheckbox
7	Choice	PropertyPaneChoiceGroup
8	Toggle	PropertyPaneToggle
9	Slider	PropertyPaneSlider
10	Button	PropertyPaneButton
11	Horizontal Rule	PropertyPaneHorizontalRule
12	Custom	Our own implementation using combination of above

Create SPFx Solution

Create a directory for SPFx solution.
md spfx-ooopropertypanes

Navigate to the above-created directory.
cd spfx-ooopropertypanes

Run Yeoman SharePoint Generator to create the solution.
yo @microsoft/sharepoint

Provide below values in the Yeoman generator wizard,

Solution Name

Hit enter to have the default name (spfx-ooopropertypanes in this case) or type in any other name for your solution.

Selected choice - Hit enter

Target for component

Here we can select the target environment where we are planning to deploy the client webpart i.e. SharePoint Online or SharePoint OnPremise (SharePoint 2016 onwards).

Selected choice - SharePoint Online only (latest)

Place of files

We may choose to use the same folder or create a subfolder for our solution.

Selected choice - Same folder

Deployment option

Selecting Y will allow the app to deployed instantly to all sites and will be accessible everywhere.

Selected choice - N (install on each site explicitly)

Type of client-side component to create

We can choose to create client side webpart or an extension. Choose the webpart option.

Selected choice - WebPart

Web part name

Hit enter to select the default name or type in any other name.

Selected choice - SPFXPropertyPane

Web part description

Hit enter to select the default description or type in any other value.

Selected choice - Hit enter (default description)

Framework to use

Select any JavaScript framework to develop the component. Available choices are (No JavaScript Framework, React, and Knockout)

Selected choice - No JavaScript Framework

Once Yeoman finishes generating the solution, on command prompt type “code .” to open the solution in code editor.

Property Pane Code

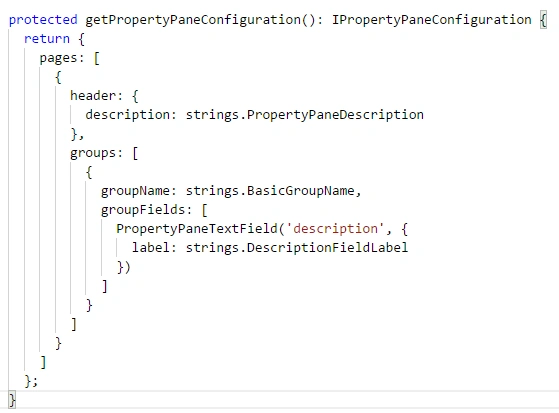

Open the file SpfxPropertyPaneWebPart.ts located at \src\webparts\spfxPropertyPane. The method getPropertyPaneConfiguration() contains the configuration to build the property pane.

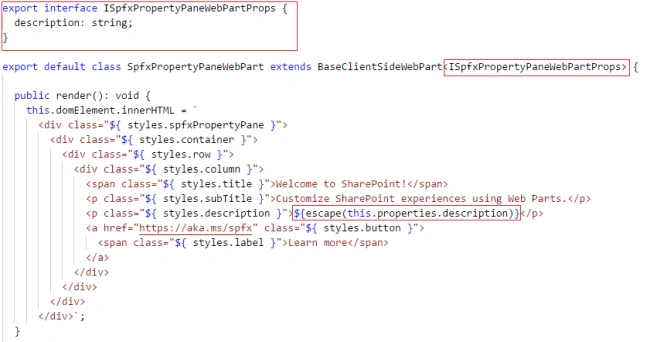

The default class “SpfxPropertyPaneWebPart” accepts property type of interface “ISpfxPropertyPaneWebPartProps”, which by default has description property of type string. The property can be used in render() method as below

${escape(this.properties.description)}



The import section has the property types defined.



Add Our Properties

To add new properties

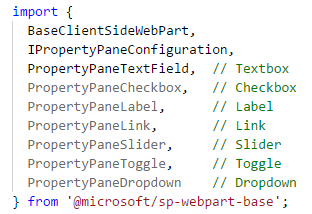

Import corresponding typed objects first

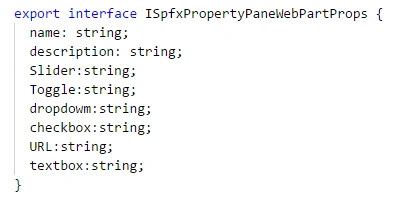

Add new properties. Map fields to typed objects.

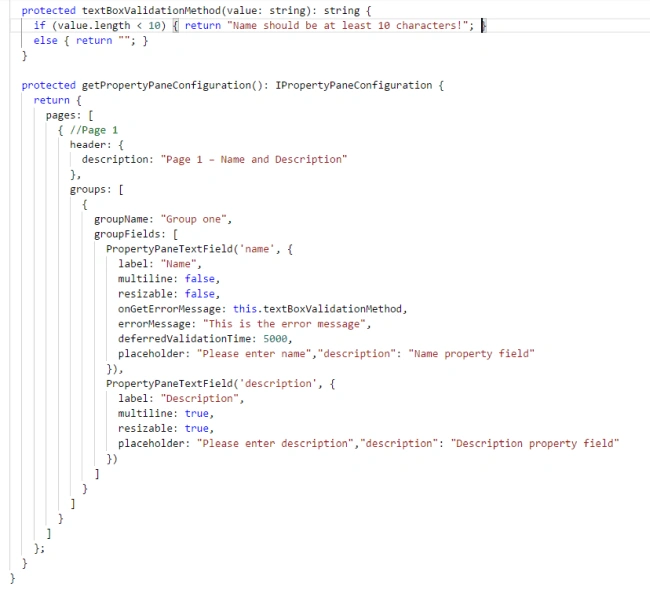

Add new property pane fields and map to respective typed objects in getPropertyPaneConfiguration method.

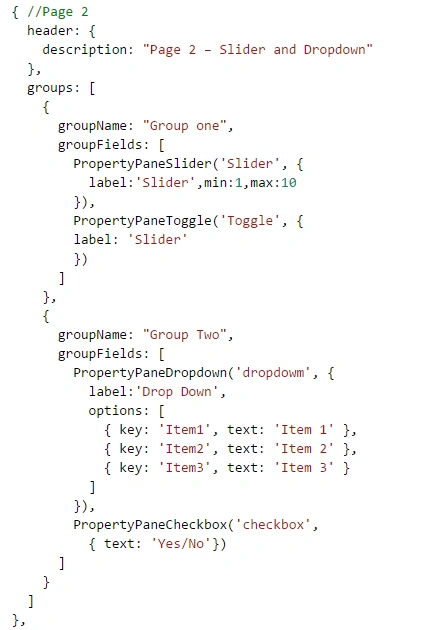

We can add multiple pages as below

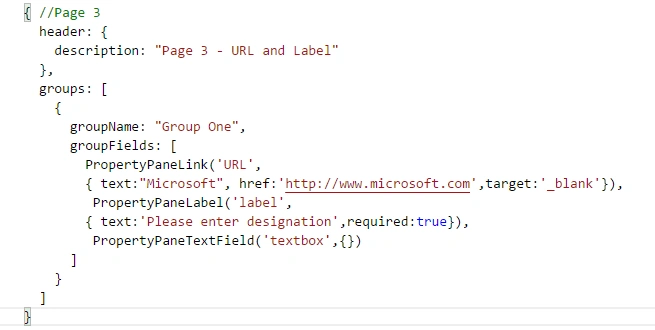

Set up one more page for remaining fields

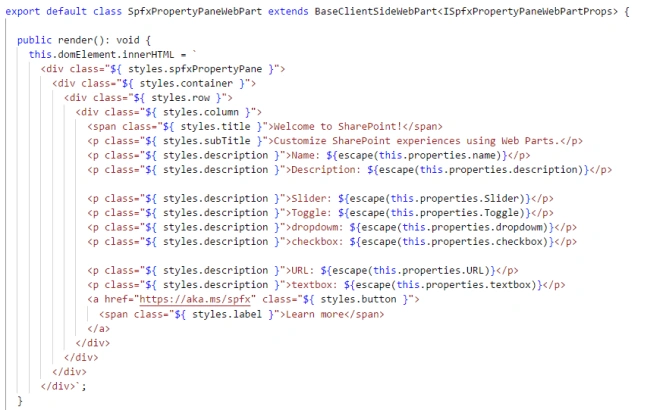

Modify render method to show selected field values,



Test the Property Pane

1. On the command prompt type “gulp serve”
2. In SharePoint workbench, add our webpart


3. Edit web part to modify property fields

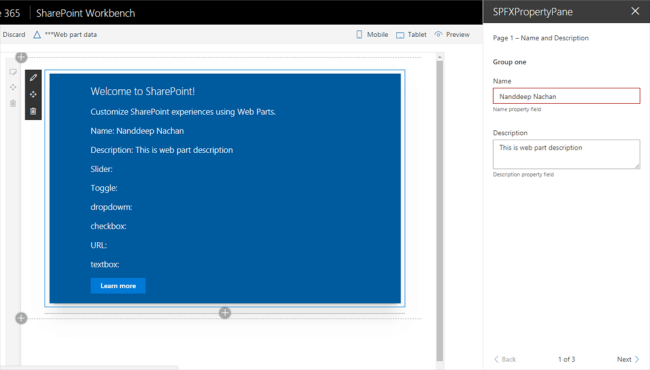

4. Click Next to see next page of fields

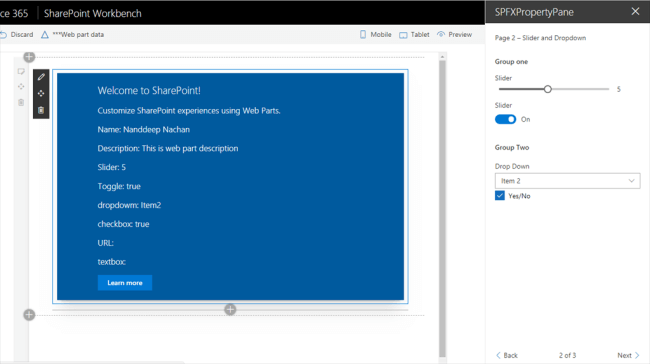

5. Click Next to see next page of fields




Summary

Property panes allow easy configuration of SPFx client-side web part. We can use predefined typed objects to create properties for the web part. Properties can be grouped by pages.
