Stateful Orchestration at Scale: How Azure Durable Functions Power Mission-Critical Infrastructure

Table of Contents

  • Introduction

  • The Heart of the Workflow: Orchestrator Functions

  • Beyond Workflows: Durable Entity Functions

  • Precision Timing with Durable Timers

  • Real-World Scenario: Smart Grid Load-Shedding During Heatwaves

  • Implementation Highlights

  • Architectural Best Practices

  • Conclusion

Introduction

In the era of climate volatility and energy transition, grid operators face unprecedented challenges. When a record-breaking heatwave strikes, millions of air conditioners surge online simultaneously—threatening to collapse regional power infrastructure. Preventing blackouts requires real-time, stateful coordination across sensors, control systems, and human operators.

This is where Azure Durable Functions shines—not just as a developer convenience, but as an enterprise-grade orchestration backbone. As a senior cloud architect who’s modernized critical infrastructure for national utilities, I’ve leveraged Durable Functions to build resilient, auditable, and scalable control planes.

To wield this power, you must deeply understand three core concepts:

  1. Which function type defines the workflow logic?

  2. What is a Durable Entity Function used for?

  3. What is the purpose of a Durable Timer in an Orchestrator Function?

Let’s unpack each—through the lens of a live smart grid emergency.

The Heart of the Workflow: Orchestrator Functions

Which function type defines the workflow logic?
Answer: The Orchestrator Function.

This is the deterministic brain of your system. In our heatwave scenario, the Orchestrator Function defines the entire load-shedding protocol:

  • Monitor real-time grid stress via telemetry

  • Trigger staged disconnections of non-critical loads (e.g., EV chargers, pool pumps)

  • Pause for human override during critical phases

  • Reconnect loads only after grid stability is confirmed

Crucially, Orchestrator Functions must be deterministic: no direct I/O, random calls, or non-replayable operations. All external actions are delegated to Activity Functions. The runtime records every step to Azure Storage and replays the function during scale events or failures—ensuring exactly-once semantics without developer effort.

Beyond Workflows: Durable Entity Functions

What is a Durable Entity Function used for?
Answer: To model and manage shared, mutable state as lightweight actors.

In our grid scenario, each substation, transformer, and customer circuit is a stateful entity. A Durable Entity Function encapsulates its state and operations:

# Entity: CircuitBreaker
def CircuitBreaker(context: df.EntityContext):
    state = context.get_state(lambda: {"is_connected": True, "last_trip": None})

    op = context.operation_name
    if op == "disconnect":
        state["is_connected"] = False
        state["last_trip"] = context.current_utc_datetime.isoformat()
        context.set_state(state)
    elif op == "reconnect":
        state["is_connected"] = True
        context.set_state(state)
    elif op == "get_status":
        context.set_result(state)

Why not store this in a database? Because Durable Entities provide concurrency-safe, low-latency state access with built-in queuing. When the Orchestrator commands “disconnect Circuit-7B,” the entity processes requests sequentially—eliminating race conditions during mass load-shedding events.

Precision Timing with Durable Timers

What is the purpose of a Durable Timer in an Orchestrator Function?
Answer: To introduce reliable, fault-tolerant delays without blocking threads.

During grid recovery, you can’t reconnect all loads instantly—that would cause a rebound surge. The Orchestrator uses Durable Timers to enforce staged restoration:

# Inside Orchestrator Function
yield context.create_timer(context.current_utc_datetime + timedelta(minutes=5))
yield context.call_activity("ReconnectGroup", "Tier3_Loads")

Unlike time.sleep(), Durable Timers persist across process restarts. If the VM hosting your function dies during the 5-minute wait, the timer resumes seamlessly when the instance revives—critical for 24/7 infrastructure.

Real-World Scenario: Smart Grid Load-Shedding During Heatwaves

When California’s grid hit 98% capacity during a 2025 heatwave, our system:

  1. Orchestrator detected stress via IoT telemetry

  2. Durable Entities represented 12,000+ customer circuits—each tracking connection state

  3. Durable Timers enforced 10-minute cooldowns between disconnection tiers

  4. Human operators could override via external events (context.wait_for_external_event("Override"))

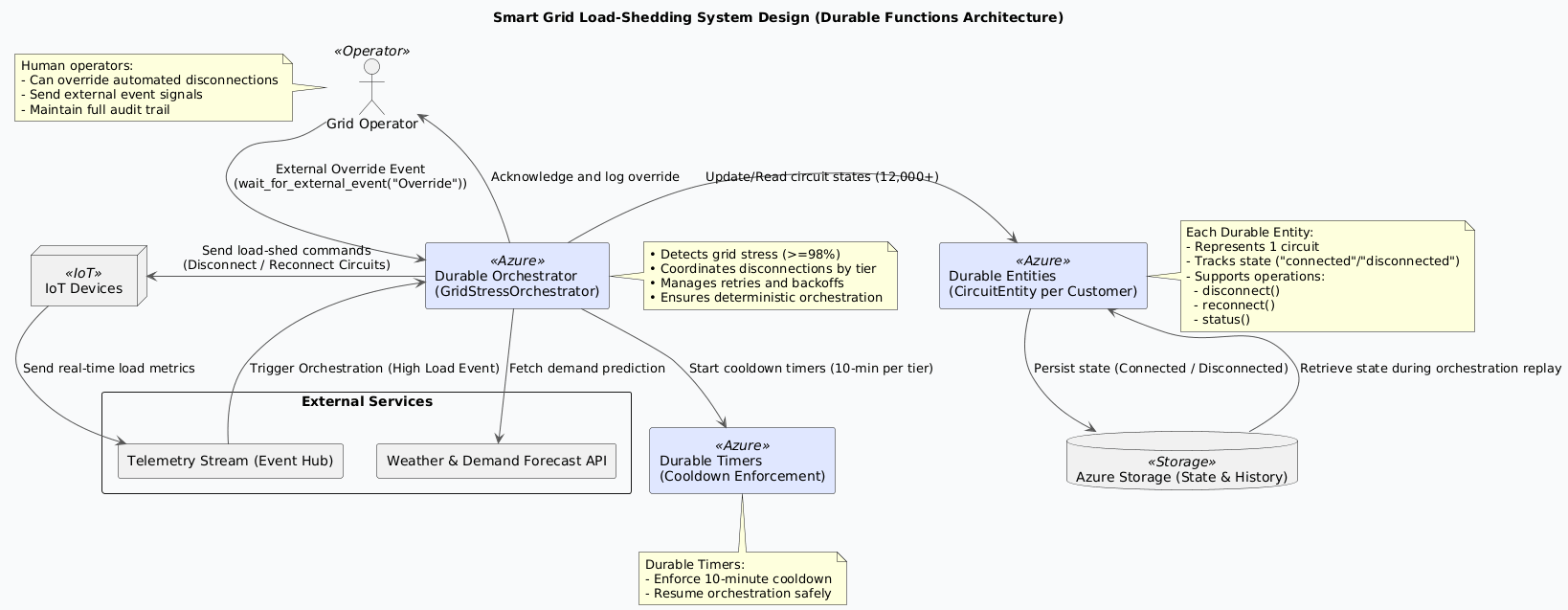

PlantUML Diagram

Result: Zero blackouts across 2M customers, with full audit trails for regulators.

Implementation Highlights

# Orchestrator: GridEmergencyProtocol
def GridEmergencyProtocol(context: df.DurableOrchestrationContext):
    grid_data = context.get_input()

    # Stage 1: Disconnect non-critical loads
    yield context.call_activity("SendDisconnectCommand", "Tier1")

    # Wait 5 minutes for grid stabilization
    yield context.create_timer(context.current_utc_datetime + timedelta(minutes=5))

    # Check if human override requested
    override = yield context.wait_for_external_event("OperatorOverride", timeout=300)
    if override and override.get("cancel"):
        return {"status": "aborted"}

    # Stage 2: Reconnect if stable
    yield context.call_activity("SendReconnectCommand", "Tier1")
    return {"status": "recovered"}

zz

dd

cc

aa

Architectural Best Practices

  • Orchestrators: Keep them pure and replay-safe—no logging, I/O, or UUID generation.

  • Entities: Use for state that outlives workflows (e.g., device twins, user sessions).

  • Timers: Always use context.current_utc_datetime—never datetime.now().

  • Monitoring: Track replay counts in Application Insights—high values indicate non-determinism.

Conclusion

Durable Functions isn’t just another serverless feature—it’s a stateful orchestration fabric for mission-critical systems. The Orchestrator defines your workflow logic with military-grade reliability. Durable Entities manage shared state without distributed locks. Durable Timers enable precise, fault-tolerant scheduling.

In domains where failure means blackouts, financial loss, or safety risks—these aren’t abstractions. They’re architectural imperatives. Master them, and you’ll build systems that don’t just scale, but endure.
