Step By Step SSRS in 11 Hours: Hour 1

Introduction

In this article, we will see what SQL Server Reporting Services (SSRS) is and understand its client and server components.

Contents

Hour 1: What is SSRS and determine whether it is installed
Hour 2: Report using wizard
Hour 3: First SSRS report
Hour 4: Report with parameter
Hour 5: Custom template
Hour 6: Drill down report
Hour 7: Sub report
Hour 8: Report with style
Hour 9: Report with chart
Hour 10: Report deployment
Hour 11: RDL file to ASP.Net

SSRS

SQL Server Reporting Services (SSRS) is a server-based reporting platform. It provides tools and services to create, manage and deploy reports.

To use reporting services you first need to use Visual Studio to design reports. In the report designer, you specify the information you want to retrieve from the data source. Commonly a data source is a relational database like Microsoft SQL Server. Once you identify the information you want to retrieve you can use the report designer to display how you want to present that information. There is a variety of presentation styles available. For example, you can take data and display it in a table in a tabular style. You can also have a chart to display information graphically.

When you are happy with the report and it looks good and it functions correctly then you can take that report and deploy it to a server. And the report server is available to all of your customers or users inside of the company. Reporting services has security features like authenticating users and then authorizing them and making sure they are allowed to view the reports.

We can use SSRS for:

Business Reporting
Embedded Reporting

In Business Reporting you want to take information from your data sources and provide it to the users in a format that they can understand. For example, you may have a sales department that wants to see the monthly sales totals for all of the sales people in your organization. It is very easy once you build a report for them to launch the web browser and view the information any time.

It is also possible to take these reports and embed them inside the application. You can embed reports inside a web application or desktop application. There is a web service API exposed by the report server that allows programmatically interacting with the reporting services features.

Client Components
Server Components

Client Components

Visual Studio Reporting Projects

Design Reports
Deploy Reports

SQL Server Management Studio

Test Queries
Performance Analysis

If you want to consume and view reports the only component you need to install in your machine is a web browser. But if you want to author and design reports then you need some client components installed by reporting services. The primary component will be a report authoring tool and the authoring tool based on Visual Studio. If you already have some version of Visual Studio installed on your machine to do C# or Visual Basic development then you can something. When you install reporting services it can install the authoring tools and project templates in the existing version of Visual Studio.

SQL Server Management Studio makes it very easy to create queries, to test those queries and how to do performance analysis on how those queries performed.

Server Components

Report Manager
Manage permissions
Manage data sources
Authorization settings

Report Server

Report Processor
Scheduling and Delivery
URL access reports
Web Service API

SSRS Database

Determine whether SSRS is installed

To determine whether SSRS is installed or not, you need to check two tools:

SQL Server Data Tools
SQL Server Reporting Services

The following procedure can be used to determine whether SQL Server Data Tools installed.

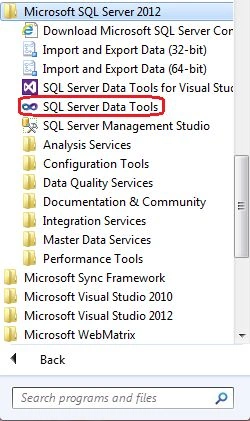

Step 1

Click on the "Start" button
Go to "All Programs"
Expand "Microsoft SQL Server 2012"
Look for "SQL Server Data Tools"

Now let's check whether SQL Server Reporting Services is installed.

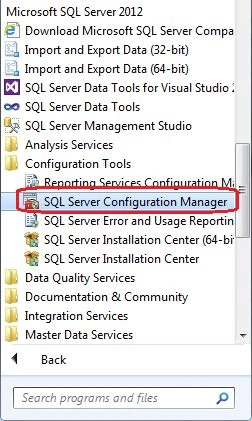

Step 2

Click on the "Start" button.
Go to "All Programs".
Expand "Microsoft SQL Server 2012".
Expand "Configuration Tools".
Click on "SQL Server Configuration Manager".
Click for "SQL Server Services" in the left panel.
Look for "SQL Server Reporting Services (SQL 2012)" in the right panel.
Be sure the state of "SQL Server Reporting Services (SQL 2012)" is running.

If you find both of the tools installed in your working environment, then there is no need to install it again.

Next >> Step By Step SSRS in 11 Hours: Hour 2
