Stepwise Display Multiple Partial View Using JSON in MVC 5

Here are the steps:

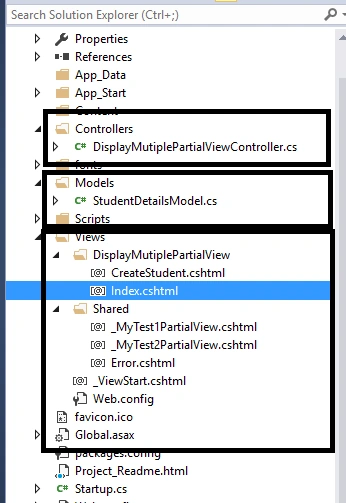

Step 1: Create the basic structure of your project, View, multiple partial views View Model,

Step 2: Create your base Controller as in the following,

public class BaseController: Controller
{
protected internal virtual CustomJsonResult CustomJson(object json = null, bool allowGet = true)
{
return new CustomJsonResult(json)
{
JsonRequestBehavior = allowGet ? JsonRequestBehavior.AllowGet : JsonRequestBehavior.DenyGet
};
}
}

It is just small modifications if JSON is not provided handle it. And use this Controller as base controller.

Step 3: Add Class Controller helper which helps you to convert partial view into the string format as in the following,

public static class ControllerHelper
{
public static string RenderPartialViewToString(ControllerContext context, string viewName, object model)
{
var controller = context.Controller;
var partialView = ViewEngines.Engines.FindPartialView(controller.ControllerContext, viewName);
var stringBuilder = new StringBuilder();
using(var stringWriter = new StringWriter(stringBuilder))
{
using(var htmlWriter = new HtmlTextWriter(stringWriter))
{
controller.ViewData.Model = model;
partialView.View.Render(new ViewContext(controller.ControllerContext, partialView.View, controller.ViewData, new TempDataDictionary(), htmlWriter), htmlWriter);
}
}
return stringBuilder.ToString();
}
}

Step 4: Your action code is below. I have added the 2 partial views. Basically we are converting the partial view with objects into the string format.

public JsonResult CreatePartialView()
{
MyMultipleUpdateViewModel obj = new MyMultipleUpdateViewModel();
obj.myTest1ViewModel = new MyTest1ViewModel();
obj.myTest1ViewModel.MyTestUpdate = "Test1" + DateTime.Now.ToString();
obj.myTest2ViewModel = new MyTest2ViewModel();
obj.myTest2ViewModel.MyTestUpdate = "Test2" + DateTime.Now.ToString();
var json = new
{
Header = "Header", Footer = "Footer"
};
return CustomJson(json).AddPartialView("_MyTest1PartialView", obj).AddPartialView("_MyTest2PartialView", obj);
}

Step 5: In View display this JSON data ajax in below way . In below code PartialViewDiv1 and PartialViewDiv2 are two divs in which two partial views will be displayed. I have two partial views you may load more partial views.

<h2>Index</h2>
<script type="text/javascript" src="@Url.Content(" ~/Scripts/jquery-1.10.2.js ")"></script>
<script type="text/javascript" src="@Url.Content(" ~/Scripts/jquery.unobtrusive-ajax.min.js ")"></script>
<script>
function GetData(url, onSuccess)
{
$.ajax(
{
type: "GET",
cache: false,
url: url,
dataType: "json",
success: function(data, textStatus, jqxhr)
{
onSuccess(data.Json, data.Html);
},
error: function(data, text, error)
{
alert("Error: " + error);
}
});
return false;
}
function UpdateDiv(json, html)
{
$("#PartialViewDiv1").html(html[0]);
$("#PartialViewDiv2").html(html[1]);
}
</script>
<input type="button" onclick="GetData('/DisplayMutiplePartialView/CreatePartialView', UpdateDiv);" value="Display Multiple Partial View" />
<br>
<br>
<div id="PartialViewDiv1"></div>
<br>
<br>
<div id="PartialViewDiv2"></div>
<br>
<br>

Step 6: Run application and use URL,

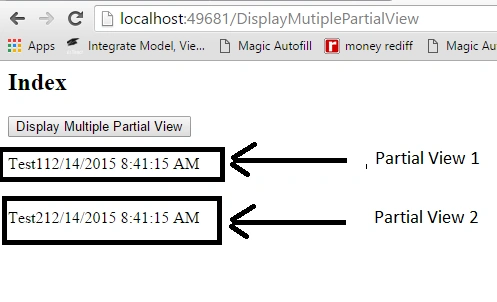

It will appear as below.

index

I hope this article will help you to load multiple partial views in single action.
