Swagger UI: Architecture, Configuration, and Enterprise Implementation Guide

Introduction

In modern API-driven architectures—especially microservices and distributed systems—clear, interactive, and standardized API documentation is critical. This is where Swagger UI becomes essential.

Swagger UI is an open-source tool that provides a web-based, interactive interface for exploring and testing RESTful APIs defined using the OpenAPI Specification (OAS).

It allows developers to:

• Visualize API endpoints

• Test API calls directly from the browser

• Understand request/response schemas

• Share API documentation with stakeholders

Swagger UI is part of the broader Swagger/OpenAPI ecosystem.

OpenAPI and Swagger Ecosystem

Before understanding Swagger UI, we must understand its foundation.

OpenAPI Specification (OAS)

The OpenAPI Initiative maintains the OpenAPI Specification, which defines a standard, language-agnostic interface for REST APIs.

OpenAPI documents are typically written in:

• JSON

• YAML

Example snippet:

openapi: 3.0.0
info:
  title: Employee API
  version: 1.0.0
paths:
  /employees:
    get:
      summary: Get all employees
      responses:
        '200':
          description: Successful response

Swagger UI consumes this OpenAPI file and renders it into an interactive web interface.

What is Swagger UI?

Swagger UI is a JavaScript-based tool that dynamically generates interactive API documentation from an OpenAPI definition.

Key Capabilities

• Interactive "Try it out" feature

• Schema visualization

• Request/response examples

• Authentication support

• Model inspection

• Automatic generation from OpenAPI spec

Architecture of Swagger UI

High-Level Flow

1. API developer writes OpenAPI specification.

2. Swagger UI loads the OpenAPI document.

3. Swagger UI renders HTML interface dynamically.

4. User interacts with endpoints.

5. Requests are sent to backend API.

OpenAPI Spec (YAML/JSON)- Swagger UI - Browser UI - REST API

Installing and Using Swagger UI

Standalone Installation

You can download Swagger UI from GitHub or from https://swagger.io/

Using Swagger UI with FastAPI

If you're working with APIs and Python, this is highly relevant. FastAPI automatically integrates Swagger UI.

Example:

from fastapi import FastAPI

app = FastAPI()

@app.get("/employees")
def get_employees():
    return [{"id": 1, "name": "Jayant"}]

Run:

uvicorn main:app --reload (main is the filename like main.py)

Visit:

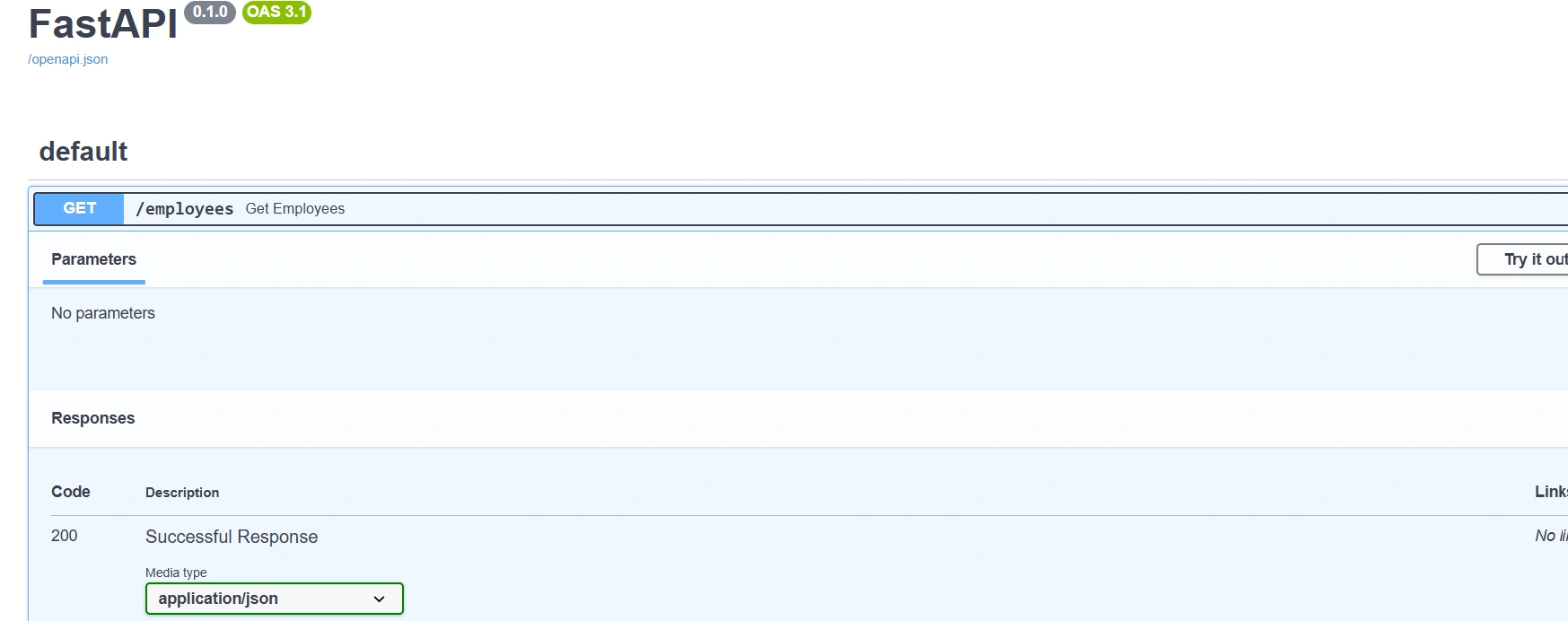

http://localhost:8000/docs

FastAPI auto-generates:

• /docs → Swagger UI

• /redoc → ReDoc UI

• /openapi.json → OpenAPI spec

Swagger UI Features in Depth

Endpoint Grouping (Tags)

tags:
  - name: Employee

Swagger UI groups endpoints by tags for better organization.

Request Body & Schema Visualization

Swagger UI automatically:

• Renders input forms

• Shows JSON schema

• Displays required vs optional fields

Example:

requestBody:
  content:
    application/json:
      schema:
        $ref: '#/components/schemas/Employee'

Authentication Support

Supports:

• API Key

• Bearer Token (JWT)

• OAuth2

Example:

components:
  securitySchemes:
    bearerAuth:
      type: http
      scheme: bearer

Swagger UI adds an Authorize button automatically.

Try It Out Feature

This feature allows:

• Entering parameters

• Executing API calls

• Viewing live response

• Checking status codes

This is extremely helpful for frontend-backend integration testing.

Customization of Swagger UI

Theming

You can override:

• CSS

• Layout

• Fonts

• Logo

Custom Config Options

SwaggerUIBundle({
  url: "openapi.yaml",
  deepLinking: true,
  displayOperationId: true,
  defaultModelsExpandDepth: 1,
})

Important configurations:

Swagger UI vs ReDoc

ReDoc is another OpenAPI renderer.

Swagger UI in Production

Security Considerations

• Avoid exposing Swagger UI publicly in production

• Disable /docs in sensitive environments

• Protect with authentication

In FastAPI:

app = FastAPI(docs_url=None)

Reverse Proxy Setup

Often deployed behind:

• Nginx

• API Gateway

• Kubernetes Ingress

CI/CD Integration

Swagger UI works well in:

• GitHub Actions

• Azure DevOps

• Jenkins pipelines

Common practice:

1. Validate OpenAPI spec

2. Generate documentation

3. Deploy static Swagger UI

Swagger UI and API-First Development

In API-first architecture:

1. Define OpenAPI spec first.

2. Generate server stubs.

3. Implement logic.

4. Use Swagger UI for validation.

This improves:

• Contract clarity

• Cross-team collaboration

• Reduced integration errors

Advantages of Swagger UI

• Open standard

• Language agnostic

• Interactive documentation

• Easy integration

• Auto-generation from frameworks

• Improves developer experience

Limitations

• Large APIs may become cluttered

• Not ideal for business users

• UI customization requires effort

• Does not replace API versioning strategy

Best Practices

• Keep OpenAPI spec version controlled

• Add examples for request/response

• Use schema components for reusability

• Enable authentication documentation

• Validate spec using CI pipeline

• Use tags effectively

Real-World Use Cases

• Microservices documentation

• Public API portals

• Internal enterprise APIs

• SDK generation

• API testing during development

Swagger UI in Modern AI Systems

In AI-powered APIs (LLM endpoints, embedding services, MCP servers):

Swagger UI helps:

• Validate input schema

• Test inference endpoints

• Document model metadata

• Share API contracts with frontend

For example, if you expose an LLM service using FastAPI, Swagger UI automatically documents:

• Prompt input schema

• Response format

• Error responses

Conclusion

Swagger UI is more than just documentation—it is an interactive API exploration tool that bridges backend and frontend teams.

Built on the OpenAPI Specification and supported by modern frameworks like FastAPI, it enables:

• Rapid API development

• Clear contract definition

• Seamless collaboration

• Interactive testing

In today’s API-first world, Swagger UI is an essential component of any production-grade REST architecture.
