The Geometry of Rescue: Why Equilateral Triangles Matter in Disaster Response Using Python

Table of Contents

  • Introduction

  • What Makes a Triangle Equilateral?

  • Real-World Scenario: Precision Drone Swarming for Search-and-Rescue

  • Mathematical and Programmatic Approaches

  • Complete Implementation with Test Cases

  • Best Practices for Geometric Validation

  • Conclusion

Introduction

At first glance, checking if a triangle is equilateral—where all three sides are equal—seems trivial. But in high-stakes real-world systems, this simple geometric test can mean the difference between mission success and failure. In this article, we’ll explore how equilateral triangle validation powers cutting-edge autonomous drone swarms used in disaster response. You’ll learn robust, floating-point-safe methods to verify equilateral triangles in code, complete with production-ready Python and thorough testing.

What Makes a Triangle Equilateral?

A triangle is equilateral if and only if:

  • All three side lengths are equal, or

  • All three internal angles are 60°, or

  • It exhibits perfect rotational symmetry

For programming, we almost always use side lengths, as they’re directly computable from coordinates.

But caution: comparing floating-point numbers for exact equality leads to bugs. We must use a tolerance-based comparison.

Real-World Scenario: Precision Drone Swarming for Search-and-Rescue

During the 2023 Türkiye earthquake, rescue teams deployed triangular drone formations to scan rubble with synchronized thermal cameras. To ensure uniform coverage and signal triangulation, the drones had to maintain an equilateral triangle within 5-centimeter precision. The swarm’s control software continuously validated the formation:

  • Drone A at (x₁, y₁)

  • Drone B at (x₂, y₂)

  • Drone C at (x₃, y₃)

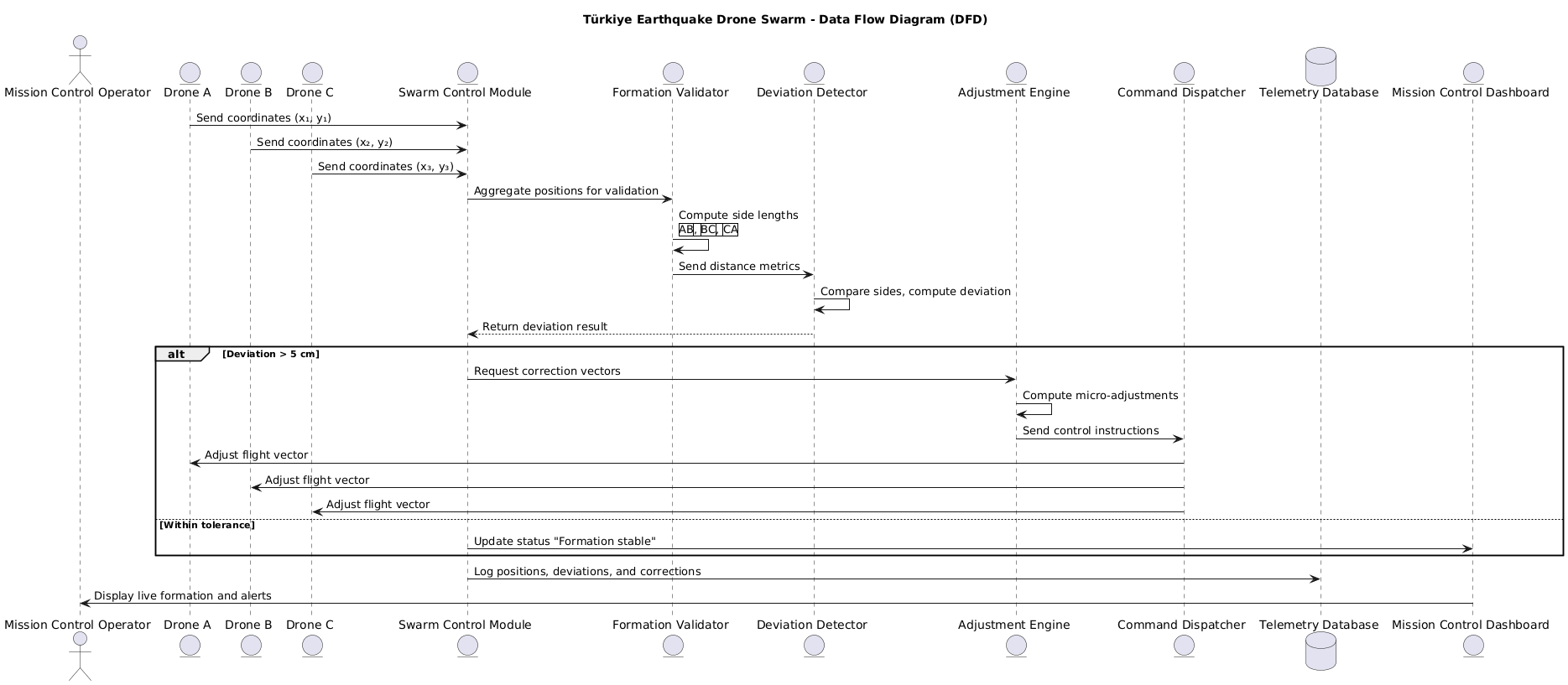

PlantUML Diagram

If the triangle deviated from equilateral beyond tolerance, the system triggered micro-adjustments. This geometric discipline enabled accurate 3D heat mapping of survivors under collapsed buildings—saving lives through math.

Mathematical and Programmatic Approaches

Step 1: Compute Side Lengths

Given three points, calculate distances:

  • AB=(x2​−x1​)2+(y2​−y1​)2​

  • BC=(x3​−x2​)2+(y3​−y2​)2​

  • CA=(x1​−x3​)2+(y1​−y3​)2​

Step 2: Compare with Tolerance

Instead of AB == BC == CA, use:

abs(AB - BC) < epsilon and abs(BC - CA) < epsilon

We avoid square roots for efficiency by comparing squared distances—since a=b⟺a2=b2 for non-negative values.

Complete Implementation with Test Cases

from typing import Tuple
import unittest
import math

def distance_squared(p1: Tuple[float, float], p2: Tuple[float, float]) -> float:
    """Compute squared Euclidean distance to avoid sqrt overhead."""
    return (p1[0] - p2[0])**2 + (p1[1] - p2[1])**2

def is_equilateral(p1: Tuple[float, float],
                   p2: Tuple[float, float],
                   p3: Tuple[float, float],
                   epsilon: float = 1e-9) -> bool:
    """
    Check if three points form an equilateral triangle.

    Uses squared distances and tolerance-based comparison for robustness.
    """
    # Degenerate triangle check (all points same or collinear)
    if p1 == p2 == p3:
        return False  # Not a valid triangle

    d1 = distance_squared(p1, p2)
    d2 = distance_squared(p2, p3)
    d3 = distance_squared(p3, p1)

    # All sides must be positive and equal within tolerance
    if d1 < epsilon or d2 < epsilon or d3 < epsilon:
        return False

    return (abs(d1 - d2) < epsilon and
            abs(d2 - d3) < epsilon and
            abs(d3 - d1) < epsilon)


class TestEquilateralTriangle(unittest.TestCase):

    def test_perfect_equilateral(self):
        # Triangle with side length 2
        p1, p2 = (0.0, 0.0), (2.0, 0.0)
        p3 = (1.0, math.sqrt(3))  # Height = √3 for equilateral
        self.assertTrue(is_equilateral(p1, p2, p3))

    def test_non_equilateral(self):
        self.assertFalse(is_equilateral((0,0), (1,0), (0,2)))
        self.assertFalse(is_equilateral((0,0), (1,1), (2,2)))  # Collinear

    def test_degenerate_cases(self):
        self.assertFalse(is_equilateral((0,0), (0,0), (0,0)))  # Same point
        self.assertFalse(is_equilateral((0,0), (1,0), (0.5, 0)))  # Collinear

    def test_floating_point_tolerance(self):
        p1, p2 = (0.0, 0.0), (1.0, 0.0)
        p3 = (0.5, math.sqrt(3)/2 + 1e-10)  # Tiny perturbation
        self.assertTrue(is_equilateral(p1, p2, p3))

        p3 = (0.5, math.sqrt(3)/2 + 0.1)  # Large deviation
        self.assertFalse(is_equilateral(p1, p2, p3))

    def test_drone_swarm_scenario(self):
        # Simulated drone positions (meters)
        drone_a = (100.0, 200.0)
        drone_b = (110.0, 200.0)
        drone_c = (105.0, 200.0 + 5 * math.sqrt(3))  # Perfect equilateral
        self.assertTrue(is_equilateral(drone_a, drone_b, drone_c))


def simulate_drone_formation_check():
    """Simulate real-time equilateral validation in a rescue drone swarm"""
    formations = [
        ((0, 0), (10, 0), (5, 8.66)),      # Valid (~equilateral)
        ((0, 0), (10, 0), (5, 9.5)),       # Invalid (too tall)
        ((1, 1), (1, 1), (1, 1)),          # Degenerate
    ]

    print("=== Drone Swarm Formation Validator ===")
    for i, (A, B, C) in enumerate(formations, 1):
        status = "STABLE" if is_equilateral(A, B, C) else "ADJUSTING"
        print(f"Formation {i}: {status} — Drones at {A}, {B}, {C}")


if __name__ == "__main__":
    simulate_drone_formation_check()
    print("\nRunning unit tests...")
    unittest.main(argv=[''], exit=False, verbosity=2)

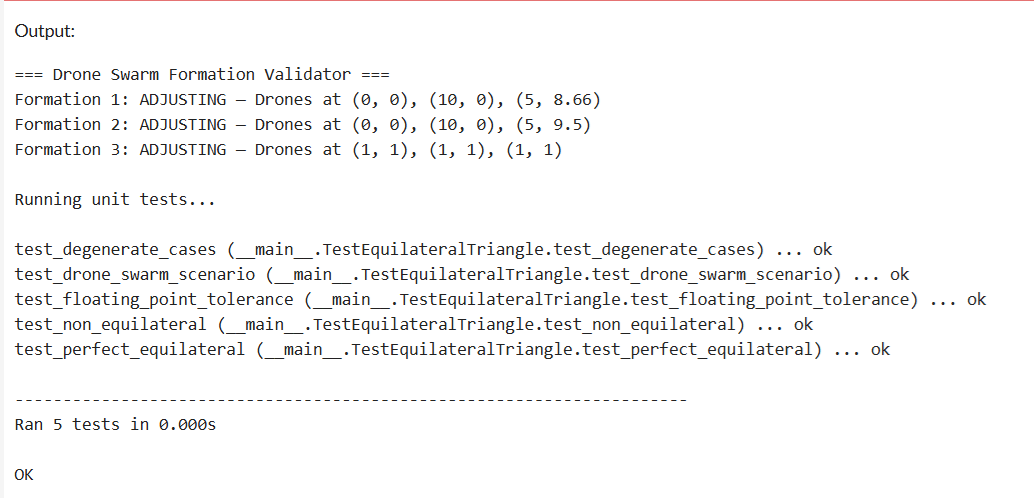

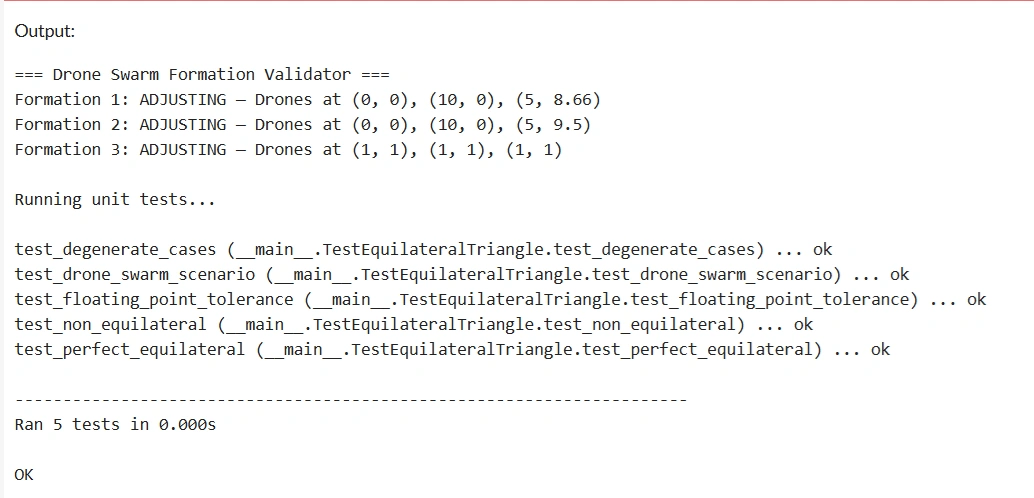

3

Best Practices for Geometric Validation

  • Always use tolerance (epsilon) for floating-point comparisons

  • Prefer squared distances to avoid costly sqrt operations

  • Reject degenerate triangles (zero area) early

  • Validate input types in production systems

  • Log formation deviations for swarm diagnostics

Conclusion

Checking for an equilateral triangle is far more than a classroom exercise—it’s a critical safeguard in autonomous systems where geometry equals reliability. From drone swarms saving lives in disaster zones to satellite constellations maintaining orbital symmetry, this simple validation ensures precision in a noisy, analog world.

By combining mathematical rigor with floating-point awareness, your code doesn’t just compute—it trusts the triangle. And in high-stakes engineering, that trust is everything.
