The Kronecker Product: Powering Quantum Simulations in Real Time in Python

Table of Contents

  • Introduction

  • What Is the Kronecker Product?

  • Real-World Use Case: Quantum Computing Simulations

  • How to Compute It in Python

  • Complete, Error-Free Implementation

  • Best Practices & Performance Tips

  • Conclusion

Introduction

While most developers know standard matrix multiplication, few are familiar with the Kronecker product—a powerful operation that builds large structured matrices from smaller ones. Unlike element-wise or dot products, the Kronecker product scales and replicates entire matrices, making it indispensable in advanced fields like quantum computing, signal processing, and system theory.

In this article, we’ll explore the Kronecker product through a cutting-edge real-time application: simulating multi-qubit quantum states. You’ll get clean, tested Python code and practical insights to apply this tool in your own projects.

What Is the Kronecker Product?

Given two matrices A (size m×n) and B (size p×q), their Kronecker product A ⊗ B is a larger matrix of size (m·p) × (n·q), formed by multiplying every element of A by the entire matrix B.

Example

A = [[a, b],    B = [[1, 2],
     [c, d]]         [3, 4]]

A ⊗ B = [[a·1, a·2, b·1, b·2],
         [a·3, a·4, b·3, b·4],
         [c·1, c·2, d·1, d·2],
         [c·3, c·4, d·3, d·4]]

The result is a block matrix that preserves the structure of both inputs—perfect for modeling composite systems.

Real-World Use Case: Quantum Computing Simulations

In quantum computing, a single qubit is represented by a 2D state vector. But a system of n qubits lives in a 2ⁿ-dimensional space. To simulate the combined state of multiple qubits, we use the Kronecker product of individual qubit states.

For example

  • Qubit 1: |ψ₁⟩ = [α, ÎČ]

  • Qubit 2: |ψ₂⟩ = [Îł, ÎŽ]

  • Combined state: |ψ⟩ = |ψ₁⟩ ⊗ |ψ₂⟩ = [αγ, αΎ, ÎČÎł, ÎČÎŽ]

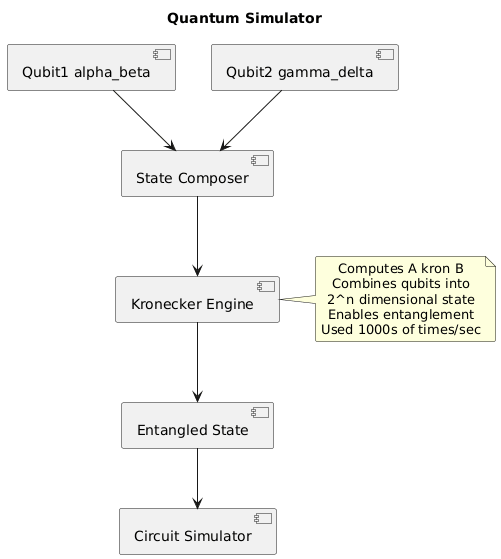

    PlantUML Diagram

Real-time quantum simulators (like those used in algorithm development or education platforms) compute Kronecker products thousands of times per second to evolve quantum circuits. Without this operation, we couldn’t model entanglement or multi-qubit gates—making it foundational to the entire field.

How to Compute It in Python

Python offers two reliable approaches:

  • NumPy: Use np.kron(A, B) — fast, battle-tested, and concise.

  • Pure Python: Build it manually with nested loops or comprehensions (useful for learning or constrained environments).

We’ll provide both, but NumPy is strongly recommended for performance.

Complete, Error-Free Implementation

PlantUML Diagram
import numpy as np
from typing import List

def kronecker_product_numpy(A: np.ndarray, B: np.ndarray) -> np.ndarray:
    """
    Compute Kronecker product using NumPy (recommended).
    """
    return np.kron(A, B)


def kronecker_product_pure(A: List[List[float]], B: List[List[float]]) -> List[List[float]]:
    """
    Compute Kronecker product using pure Python.
    """
    if not A or not B:
        raise ValueError("Input matrices cannot be empty")

    m, n = len(A), len(A[0])
    p, q = len(B), len(B[0])

    # Result size: (m*p) x (n*q)
    result = [[0.0 for _ in range(n * q)] for _ in range(m * p)]

    for i in range(m):
        for j in range(n):
            a_ij = A[i][j]
            for k in range(p):
                for l in range(q):
                    result[i * p + k][j * q + l] = a_ij * B[k][l]

    return result


# Example: Simulating a 2-qubit quantum state
if __name__ == "__main__":
    # Single-qubit states
    qubit0 = [[1], [0]]          # |0⟩
    qubit1 = [[0], [1]]          # |1⟩

    # Combined 2-qubit state: |0⟩ ⊗ |1⟩ = |01⟩
    combined_numpy = kronecker_product_numpy(np.array(qubit0), np.array(qubit1))
    combined_pure = kronecker_product_pure(qubit0, qubit1)

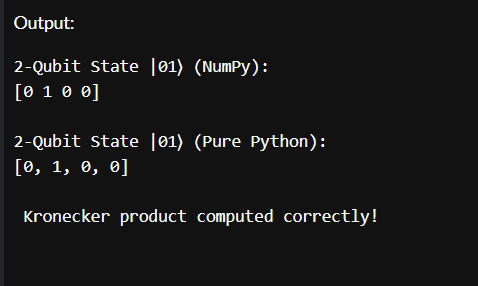

    print("2-Qubit State |01⟩ (NumPy):")
    print(combined_numpy.flatten())

    print("\n2-Qubit State |01⟩ (Pure Python):")
    print([val for row in combined_pure for val in row])

    # Verify both methods agree
    assert np.allclose(
        combined_numpy,
        np.array(combined_pure)
    ), "NumPy and pure Python results must match"

    print("\n Kronecker product computed correctly!")
1

Best Practices & Performance Tips

  • Always prefer np.kron — it’s implemented in C and handles edge cases gracefully.

  • Avoid pure Python for large matrices — time complexity is O(m·n·p·q), which grows fast.

  • Use Kronecker for structured problems: quantum states, image upsampling, covariance modeling.

  • Memory warning: The output size is multiplicative—two 10×10 matrices yield a 100×100 result!

In quantum simulators, developers often cache common Kronecker patterns (like identity ⊗ gate) to avoid recomputation.

Conclusion

The Kronecker product may seem abstract, but it’s the engine behind multi-dimensional system modeling—especially in quantum computing, where it enables the simulation of entangled states on classical hardware. By understanding and correctly implementing this operation, you unlock the ability to work with composite systems, from quantum algorithms to advanced control theory. And with NumPy’s kron, it’s just one line away.

In a world of interconnected systems, the Kronecker product helps us scale without losing structure.
