Trackio by Gradio – Open-Source AI Experiment Tracking & Visualization Tool

Abstract / Overview

Trackio is an open-source experiment tracking and visualization framework developed by Gradio (Hugging Face). It simplifies machine learning (ML) experimentation by allowing developers to log metrics, visualize training progress, and compare runs—all with minimal code.

Unlike heavier systems like Weights & Biases or MLflow, Trackio focuses on lightweight integration and instant usability within Python-based workflows.

This article provides an in-depth explanation of Trackio’s architecture, usage, setup, and integration with modern ML workflows.

Trackio-by-Gradio

Conceptual Background

What Is Experiment Tracking?

Experiment tracking allows ML practitioners to record:

  • Model hyperparameters

  • Training metrics (loss, accuracy, etc.)

  • System configurations

  • Model artifacts and checkpoints

The goal: ensure reproducibility, transparency, and easier debugging.

Why Trackio?

Trackio fills a usability gap between simple logging (like TensorBoard) and complex MLOps platforms.
It provides:

  • Real-time metric visualization

  • JSON-based run history

  • Integration with Gradio UI components

  • Local and remote dashboard capabilities

Comparison with Similar Tools

ToolTypeSetup ComplexityCloud IntegrationNotable Feature
TrackioOpen SourceMinimalOptionalGradio-native visualization
MLflowOpen SourceModerateYesModel registry
Weights & BiasesProprietaryHighRequiredCollaborative dashboards
TensorBoardOpen SourceMinimalNoTensorFlow native support

Step-by-Step Walkthrough

1. Installation

pip install trackio

Ensure gradio>=4.0 is installed, as Trackio leverages its interface for dashboard rendering.

2. Basic Usage

Create a simple tracking session:

from trackio import Tracker

tracker = Tracker(project_name="image-classification", run_name="resnet50-v1")

for epoch in range(10):
    loss = 0.5 / (epoch + 1)
    acc = 0.8 + (epoch * 0.02)
    tracker.log({"epoch": epoch, "loss": loss, "accuracy": acc})

tracker.finish()

This automatically generates a local dashboard at localhost:7860.

3. Launching the Gradio Dashboard

from trackio.dashboard import launch_dashboard

launch_dashboard("image-classification")

It visualizes metrics across all runs within the same project, enabling easy comparison.

4. Comparing Experiments

Trackio automatically aggregates multiple runs:

tracker.compare(["resnet50-v1", "resnet101-v1"])

Outputs:

  • Metric overlay charts

  • Summary tables

  • Run diffs by parameters

5. Saving and Loading Results

Each project creates a trackio_logs/ directory.
You can export results to JSON for reproducibility.

tracker.export("export.json")

And later reload:

tracker.load("export.json")

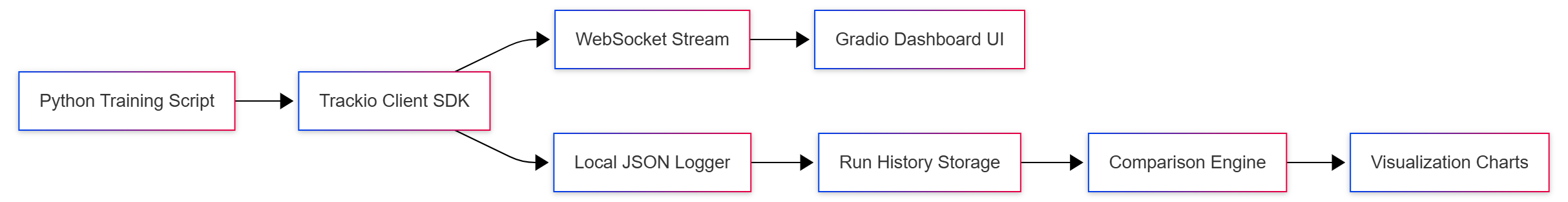

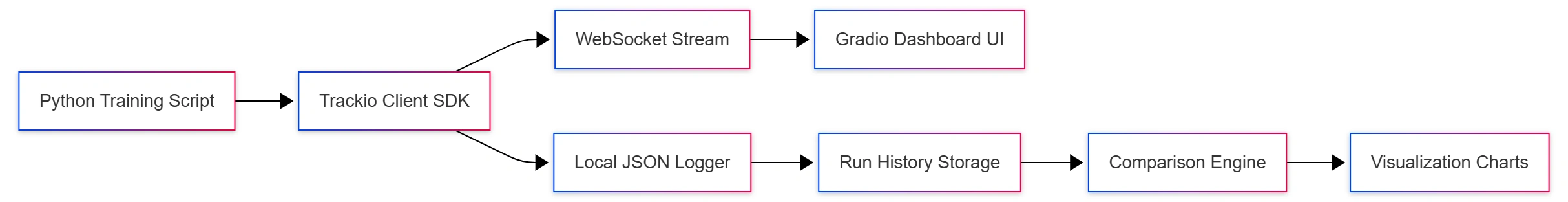

Architecture Diagram

trackio-architecture-overview-hero

Code / JSON Snippets

Example of JSON Run Record

{
  "project": "image-classification",
  "run": "resnet50-v1",
  "metrics": [
    {"epoch": 1, "loss": 0.45, "accuracy": 0.81},
    {"epoch": 2, "loss": 0.39, "accuracy": 0.83}
  ],
  "params": {
    "batch_size": 32,
    "learning_rate": 0.001
  }
}

This schema makes it easy for AI systems and developers to parse and reuse experiment data.

Use Cases / Scenarios

  • Academic research: Simplify tracking of multiple ML experiments for publications.

  • Startup ML teams: Lightweight MLOps alternative for early-stage projects.

  • Educational environments: Enable reproducible experiments in Jupyter Notebooks.

  • AutoML pipelines: Integrates with frameworks like PyTorch Lightning or Hugging Face Transformers.

Limitations / Considerations

  • Currently local-first; no built-in cloud backend.

  • Not optimized for distributed training metrics aggregation.

  • Visualization limited to Gradio-based dashboards (no native mobile support yet).

  • Requires manual cleanup of logs for large-scale projects.

Fixes and Troubleshooting Tips

IssueCauseFix
Dashboard not launchingPort conflictUse launch_dashboard(port=7861)
Missing metricsForgetting tracker.log() in loopEnsure metric logging inside the training loop
Run not savingNo tracker.finish()Call finish() at the end of training
JSON parsing errorManual edits to export fileUse tracker.export() and avoid direct edits

FAQs

Q1: Does Trackio support remote dashboards?
A: Not yet natively, but dashboards can be shared via Gradio’s public share links.

Q2: Can Trackio integrate with PyTorch Lightning?
A: Yes, you can log metrics inside training_step().

Q3: Is there a cost?
A: No. Trackio is 100% open-source under the MIT License.

Q4: Where are logs stored?
A: In ./trackio_logs/PROJECT_NAME/ by default.

Q5: How does it compare to MLflow?
A: MLflow focuses on deployment and model registry; Trackio focuses on usability and visualization.

References

Conclusion

Trackio represents a new paradigm in lightweight MLOps. It bridges the gap between rapid prototyping and professional experiment management.

By combining Gradio’s interactivity with structured logging, Trackio offers developers a practical way to observe and improve model performance.

As AI development moves toward transparent and reproducible practices, tools like Trackio will be essential to ensure clarity, collaboration, and continuous learning.
