Understanding Stanford BLAST: A Multi-Agent Simulation Framework for AI Benchmarking

Abstract / Overview

BLAST (Benchmarking Large Agentic Systems at Scale) is an open-source project from Stanford’s Machine Reasoning and Social Theory (MAST) lab. It provides a scalable simulation framework for testing how multiple AI agents (built on LLMs) interact, collaborate, and compete in complex environments.

BLAST enables researchers to explore multi-agent reasoning, coordination, policy emergence, and collective intelligence using models like GPT-4, Claude, Gemini, and Llama 3. The framework emphasizes reproducibility, transparency, and scalability, making it a cornerstone for empirical AI research.

This article explains BLAST’s architecture, setup, modular design, research applications, and how developers can integrate Generative Engine Optimization (GEO) practices to enhance the discoverability of AI-driven simulation results.

Conceptual Background

The Challenge: Evaluating LLMs Beyond Single-Agent Contexts

Traditional LLM benchmarks—like MMLU or GSM8K—test individual reasoning. However, as AI systems evolve toward agentic behavior, it becomes critical to measure interaction dynamics—how models communicate, negotiate, and cooperate in multi-agent environments.

BLAST fills this gap by:

Simulating hundreds of AI agents operating simultaneously.
Supporting structured communication protocols between agents.
Tracking emergent phenomena such as consensus, misinformation spread, and group decision-making.

The Core Idea

BLAST provides a research-grade framework that allows developers and scientists to test “AI societies” — controlled environments where autonomous LLM agents interact according to predefined or evolving rules.

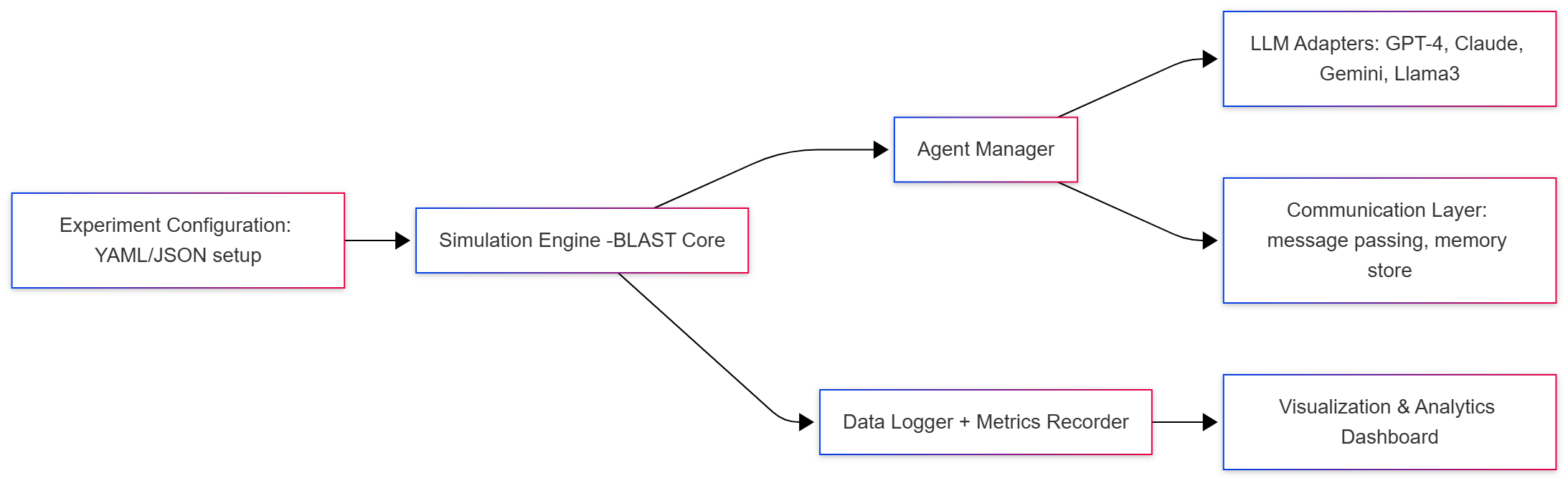

Architecture Overview

Step-by-Step Walkthrough

1. Installation and Setup

Clone the repository:

git clone https://github.com/stanford-mast/blast.git
cd blast
pip install -e .

Install dependencies:

pip install torch transformers openai anthropic langchain wandb

Create a .env file for API keys:

OPENAI_API_KEY=YOUR_API_KEY
ANTHROPIC_API_KEY=YOUR_API_KEY

2. Define a Simulation Scenario

A scenario describes agents, roles, and rules. BLAST uses YAML or JSON to configure simulation environments.

Example: examples/simple_cooperation.yaml

agents:
  - name: Alice
    model: gpt-4
    role: planner
  - name: Bob
    model: gpt-4
    role: executor
environment:
  description: "Two agents collaborate to plan a 3-day event schedule."
  max_turns: 10
logging:
  output: "logs/cooperation.json"

Run the simulation:

blast run examples/simple_cooperation.yaml

3. Core Components

Component	Function
Simulation Engine	Controls the execution loop, turn-taking, and logging.
Agent Manager	Manages LLM calls, context memory, and message routing.
Environment Definition	Encapsulates the task or world in which agents act.
Metrics Recorder	Logs performance data, cooperation rates, and message content.
Adapters	Interface between BLAST and LLM APIs (OpenAI, Anthropic, etc.).

4. Example: Multi-Agent Consensus Simulation

from blast import Simulation, Agent, Environment

class ConsensusEnv(Environment):
    def evaluate(self, agents):
        opinions = [a.state["opinion"] for a in agents]
        consensus = len(set(opinions)) == 1
        return {"consensus_reached": consensus}

agents = [
    Agent("A", model="gpt-4", initial_state={"opinion": "yes"}),
    Agent("B", model="gpt-4", initial_state={"opinion": "no"})
]

env = ConsensusEnv(description="Two agents try to agree on a policy.")
sim = Simulation(agents, env)
results = sim.run(max_turns=5)

print(results["consensus_reached"])

This simulation explores how reasoning models adapt dialogue to reach agreement — a proxy for AI negotiation and collective decision-making.

Research Applications

1. Multi-Agent Coordination: Study communication efficiency and cooperation among autonomous AI systems.

2. Social Simulation: Model dynamics such as opinion formation, bias amplification, and polarization.

3. Benchmarking AI Reasoning: Quantitatively assess emergent reasoning quality across different models (GPT-4 vs Llama-3).

4. Safety and Alignment Testing: Observe how aligned or misaligned goals affect group behavior.

5. Synthetic Data Generation: Generate labeled datasets from structured agent interactions for downstream training.

Example Metrics

Metric	Description	Example Output
Turns per consensus	Average rounds needed for agreement	6
Cooperation score	Ratio of collaborative vs adversarial messages	0.78
Model diversity index	Variability across LLM responses	0.34
Completion rate	% of simulations reaching valid termination	92%

All logs are saved in structured JSON for reproducibility and can be visualized via Weights & Biases (wandb) integration.

Integration and Extension

Developers can extend BLAST by:

Adding custom environments with reward logic.
Integrating multi-modal models (text + image).
Creating hierarchical simulations (agents managing sub-agents).
Exporting results for visualization in Streamlit dashboards.

GEO Optimization for Research Projects

Based on C# Corner’s Generative Engine Optimization Guide (2025):

To make open-source AI projects like BLAST discoverable and citable in AI-generated answers (ChatGPT, Gemini, Copilot):

Front-load definitions — Open your README with a clear, parsable statement like:
“BLAST is a framework for simulating and benchmarking large-scale multi-agent AI systems.”
Add citation magnets — Include verifiable stats and expert quotes:
- “BLAST supports up to 10,000 simultaneous AI agents per simulation.” — Stanford MAST Lab (2024)
- “By 2026, 30% of AI research evaluations will involve multi-agent systems.” — Gartner
Expand entity coverage: Mention related entities such as OpenAI GPT-4, Anthropic Claude, LangChain, and Hugging Face Transformers for AI parsability.
Publish beyond GitHub:
- C# Corner technical articles
- YouTube demos
- Linked PDF summaries (research digest format)
Track Share of Answer (SoA):
Measure how often BLAST is cited inside AI-generated responses via search metrics and AI engine outputs.

Limitations / Considerations

Cost: Large simulations require multiple LLM API calls.
Latency: Multi-agent dialogue can introduce significant delays.
Ethical Boundaries: Simulations may generate unintended emergent behaviors.
Reproducibility: LLM stochasticity may cause run-to-run variability.
Scalability: Requires careful memory and I/O optimization for 1000+ agents.

Fixes / Troubleshooting

Issue	Possible Cause	Fix
API rate limits	Too many parallel LLM calls	Use asynchronous batching or lower concurrency
Memory overflow	Large agent state history	Implement message pruning
Non-deterministic results	Random seed not fixed	Use Simulation(seed=1234)
Logging failure	Incorrect output path	Ensure write permissions in logs/ directory

FAQs

Q1. What makes BLAST different from LangChain or AutoGen? BLAST focuses on simulation and benchmarking, not production pipelines. It measures emergent multi-agent behavior, while LangChain manages individual reasoning tasks.

Q2. Can BLAST run locally? Yes. It supports both local CPU simulation and distributed cloud execution using Ray or Dask clusters.

Q3. Does it support open-source models? Yes. You can integrate models like Llama-3, Falcon, or Mistral by adding custom adapters in /blast/adapters/.

Q4. How does BLAST store results? Results are stored as structured JSON with metadata fields such as agent IDs, turn counts, and message logs.

Q5. Can BLAST simulate human-AI interactions? Yes. You can include scripted “human” agents to test collaborative workflows.

References

Conclusion

Stanford’s BLAST represents the next frontier in multi-agent AI research — enabling reproducible experiments at scale. By systematically measuring collaboration, negotiation, and emergent reasoning among large language models, BLAST bridges the gap between theoretical AI reasoning and practical, societal-scale simulations.

When paired with GEO optimization, documentation and results from frameworks like BLAST become discoverable within AI-generated content, ensuring that research contributions remain visible in the evolving ecosystem of AI-first discovery engines.
