Unit Testing With xUnit And Moq In ASP.NET Core

In this article, we will explore unit testing with the Moq library in the ASP.NET Core application. First, we will create an ASP.NET Core application and there we will implement xUnit.net to test a simple calculator operation service and after that, we will try to use Moq for mocking dependency in any layer of the application and try to implement unit testing there.

So let's get started,

Unit Test is a type of software testing that involves rigorous testing of small independent units or components in isolation. Here unit refers to the smallest possible component of software that can be tested. Unit testing improves code quality and helps to identify all kinds of issues at a very early stage of development.

Here we will use xUnit.net a free, open-source, community-focused unit testing tool for the .NET framework. There are several testing tools for the .NET framework among them xUnit.net has gained a lot of popularity.

xUnit provides a set of attributes or decorators for testing methods and using those we can write testing code to test components and units. Available attributes are,

  1. [Fact]: If we want to method to be part of unit testing and execute it during the test run it should be decorated with this attribute.
  2. [Theory]: If we want to send some parameters to the test method then we need to use this attribute. It will execute the method and also provides parameters to the test data.
  3. [InlineData]:  Used along with [Theory] attribute. This attribute is a way to provide parameters to the test method.

Any method that we want to be part of test runner must be public and the xUnit.net attribute should be used on the method. Test methods naming is as important for teams on long-term projects as any other code convention. The names should be self-describing there are several naming conventions. But here I would like to follow this,

MethodName_ExpectedBehavior_StateUnderTest

example: isVoter_False_AgetLessThan18

Create ASP.NET Core Application

For implementation purposes, we will create an ASP.NET Core Web API project.

Add interface and concrete class

Let's add an interface "ICalculatorService" for calculator operations and a concrete class "CalculatorService" in the "Services" folder.

ICalculatorService.cs

public interface ICalculatorService
{
    double Add(double x1, double x2);
    double Subtract(double x1, double x2);
    double Multiply(double x1, double x2);
    double Divide(double x1, double x2);
}

CalculatorService.cs

public class CalculatorService : ICalculatorService
{
    public double Add(double x1, double x2)
    {
        return (x1 + x2);
    }

    public double Divide(double x1, double x2)
    {
        if (x2 == 0)
        {
            throw new DivideByZeroException("x2 cannot be zero");
        }
        return (x1 / x2);
    }

    public double Multiply(double x1, double x2)
    {
        return (x1 * x2);
    }

    public double Subtract(double x1, double x2)
    {
        return (x1 - x2);
    }
}

Now we will register our ICalculatorService in the startup.cs file inside the "ConfigureServices()" method.

public void ConfigureServices(IServiceCollection services)
{
    //remaining code
    services.AddTransient<ICalculatorService, CalculatorService>();
}

Now we will create a controller named "CalculatorController".

CalculatorController.cs

[Route("api/[controller]")]
[ApiController]
public class CalculatorController : ControllerBase
{
    private ICalculatorService _calculatorService = null;

    public CalculatorController(ICalculatorService calculatorServices)
    {
        _calculatorService = calculatorServices;
    }

    [HttpPost]
    [Route("Add")]
    public double Add(double x1, double x2)
    {
        return _calculatorService.Add(x1, x2);
    }
    [HttpPost]
    [Route("Divide")]
    public double Divide(double x1, double x2)
    {
        return _calculatorService.Divide(x1, x2);
    }
    [HttpPost]
    [Route("Multiply")]
    public double Multiply(double x1, double x2)
    {
        return _calculatorService.Multiply(x1, x2);
    }
    [HttpPost]
    [Route("Subtract")]
    public double Subtract(double x1, double x2)
    {
        return _calculatorService.Subtract(x1, x2);
    }
}

That's a simple setup for the API project now we will try to apply a unit test on this.

Create xUnit Project

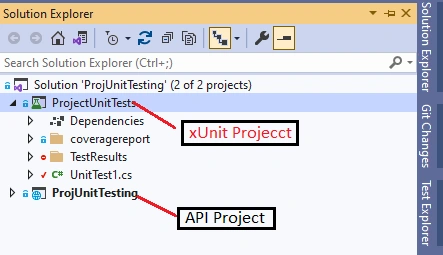

Inside the same solution, let's create a xUnit Project. So now the project structure will look like this.

Inside the xUnit Project lets create a new class named 'CalculatorControllerTest.cs". And here we will write our test method.

Each test method normally consists of 3 logical parts,

  1. Arrange - prepare the data which will be required for testing. For example, data used for testing scenarios along with the expected result.
  2. Act - call the method which is being tested making use of the data prepared in the Arrange. Here it will return us the actual result.
  3. Assert - Compare expected results with actual results to decide if the test passed or failed.

Keeping this in mind let's write some tests.

CalculatorControllerTest.cs

public class CalculatorControllerTest
{
    private CalculatorService _unitTesting = null;

    public CalculatorControllerTest()
    {
        if(_unitTesting == null)
        {
            _unitTesting = new CalculatorService();
        }
    }

    [Fact]
    public void Add()
    {
        //arrange
        double a = 5;
        double b = 3;
        double expected = 8;

        //act
        var actual = _unitTesting.Add(a, b);

        //Assert
        Assert.Equal(expected, actual, 0);
    }
}

Explanation

Line 14 - Declared a method "Add()" with [Fact] attribute to make it part of the test runner.

Line 25 - Assert.Equal is used to compare the expected results with actual results to verify if the test succeeded or not.

So like this let's add methods for other operations,

[Fact]
public void Substract()
{
    //arrange
    double x1 = 10;
    double x2 = 8;
    double expected = 2;

    //act
    var actual = _unitTesting.Subtract(x1, x2);

    //assert
    Assert.Equal(expected, actual, 0);
}
[Theory(DisplayName = "Maths- Divided with parameters")]
[InlineData(40, 8, 5)]
public void Divide(double value1, double value2, double value3)
{
    //arrange
    double x1 = value1;
    double x2 = value2;
    double expected = value3;

    //act
    var actual = _unitTesting.Divide(x1, x2);

    //assert
    Assert.Equal(expected, actual, 0);
}
[Fact(Skip = "Do not run now")]
public void Multiply()
{
    //arrange
    double x1 = 5;
    double x2 = 8;
    double expected = 40;

    //act
    var actual = _unitTesting.Multiply(x1, x2);

    //assert
    Assert.Equal(expected, actual, 0);
}
[Fact(DisplayName = "Maths - Divide by Zero Exception")]
public void DivideByZeroException()
{
    //arrange
    double a = 100;
    double b = 0;

    //act
    Action act = () => _unitTesting.Divide(a, b);

    //assert
    Assert.Throws<DivideByZeroException>(act);
}

Explanation

Line 17 - We created a method divide with [Theory] attribute as we want to pass parameters to this method and test it against the passed parameters. And with the [InlineData] parameter we passed the parameters to the method. We can have multiple [InlineData] attributes here. N.B. With [Theory(DisplayName="<name>")] we can change display name of this method in the test explorer.

Line 31 - We created "Multiply()" with [Fact(Skip="")] attribute because we want to skip this test method from running. So the test runner will skip this method while running the tests.

Run Tests

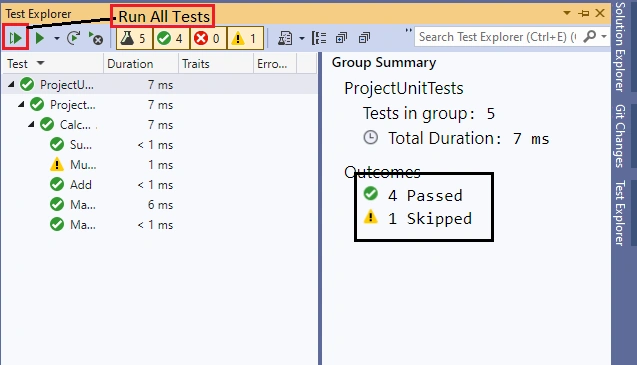

Now let's go to the "Test Explorer" of the Visual Studio and run the tests.

Here we can see that 4 tests have been passed and 1 skipped as we intentionally skipped on the test.

Unit Testing with Moq

Let's go a little further by using Moq for unit testing.

Mock objects allow us to mimic the behavior of classes and interfaces, letting the code in the test interact with them like real. This isolates the code we are testing and ensures that it works on its own and no other code will make the tests fail. With mocks, we can set up objects, provide params and return values.

It's really very important for our real-life project architecture because in our project there are several layers and each layer is tightly or loosely coupled with each other. So when we plan to test any layer we need to provide the dependency for that layer. But thanks to dependency injection that ensures the loose coupling in our application and we can easily Mock the interface/class that any testing layer needed and provide the dependency in the runtime and complete our tests.

Here we will use moq as our Mocking library.

To implement this we will create two different .NET Core projects

  1. A webapi project(ASP.NET Core Web API)
  2. A Test project(xUnit)

In the web API project let's add a file "EmployeeController.cs" [Have attached the project here.]

[Route("api/[controller]")]
[ApiController]
public class EmployeeController : ControllerBase
{
    private IGenericRepository<Employee> repo = null;

    public EmployeeController(IGenericRepository<Employee> repo)
    {
        this.repo = repo;
    }

    [HttpGet]
    [Route("GetEmployee")]
    public ActionResult<IEnumerable<Employee>> GetEmployee()
    {
        var model = repo.GetAll();
        return Ok(model);
    }

    [HttpGet("GetEmployeeById/{id}")]
    public  ActionResult<Employee> GetEmployeeById(long id)
    {
        Employee employee = repo.GetById(id);
        if(employee == null)
        {
            return NotFound("The Employee record couldn't be found.");
        }
        return Ok(employee);
    }

    [HttpPost("CreateEmployee")]
    public ActionResult<Employee> CreateEmployee(Employee employee)
    {
        if(employee == null)
        {
            return BadRequest("Employee is null");
        }
        repo.Insert(employee);
        return CreatedAtRoute("GetEmployeeById", new { Id = employee.EmployeeId}, employee);
    }

    [HttpPut]
    public IActionResult Put(Employee employee)
    {
        if(employee == null)
        {
            return BadRequest("Employee is null");
        }
        repo.Update(employee);
        return NoContent();
    }

    public bool checkIfUserCanBeVoter(int age)
    {
        return (age >= 18) ? true : false;
    }
}

We will also add an interface "IGenericRepository" and its concrete class "GenericRepository".

IGenericRepository.cs

public interface IGenericRepository<T> where T : class
{
    IEnumerable<T> GetAll();
    T GetById(object id);
    void Insert(T obj);
    void Update(T obj);
    void Delete(object id);
    void save();
}

GenericRepository.cs

public class GenericRepository<T> : IGenericRepository<T> where T : class
{
    private readonly ApplicationContext _context = null;

    /// <summary>
    /// as the class here is Generic so we can't access the model directly
    /// so creating a DbSet depending on the T generic class
    /// </summary>
    private DbSet<T> table = null;

    public GenericRepository(ApplicationContext context)
    {
        _context = context;
        table = _context.Set<T>();
    }
    public void Delete(object id)
    {
        throw new NotImplementedException();
    }

    public IEnumerable<T> GetAll()
    {
        return table.ToList();
    }

    public T GetById(object id)
    {
        return table.Find(id);
    }

    public void Insert(T obj)
    {
        table.Add(obj);
        _context.SaveChanges();
    }

    public void save()
    {
        throw new NotImplementedException();
    }

    public void Update(T obj)
    {
        table.Attach(obj);
        _context.Entry(obj).State = EntityState.Modified;
        _context.SaveChanges();
    }
}

and Employee Model class.

Employee.cs

public class Employee
{
    [Key]
    [DatabaseGenerated(DatabaseGeneratedOption.Identity)]
    public long EmployeeId { get; set; }
    public string FirstName { get; set; }
    public string LastName { get; set; }
    public DateTime DateOfBirth { get; set; }
    public string PhoneNumber { get; set; }
    public string Email { get; set; }
}

Creating tests on the test project

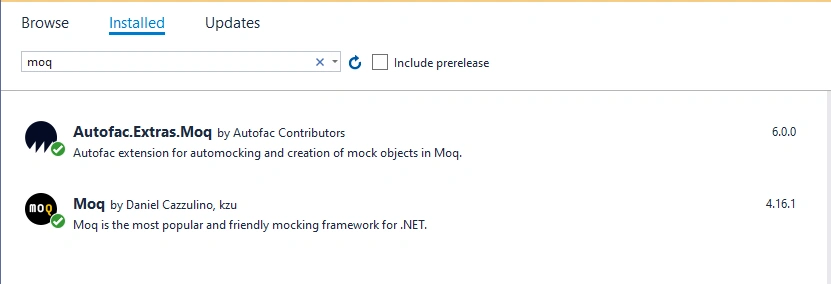

Now let's write some tests for our EmployeeController class. For this first install moq library in our xUnit project using the Nuget packager Manager.

Add a new class in the xUnit project named "EmployeeControllerTest.cs".

public class EmployeeControllerTests
{
    private readonly Mock<IGenericRepository<Employee>> service;
    public EmployeeControllerTests()
    {
        service = new Mock<IGenericRepository<Employee>>();
    }
    [Fact]
    //naming convention MethodName_expectedBehavior_StateUnderTest
    public void GetEmployee_ListOfEmployee_EmployeeExistsInRepo()
    {
        //arrange
        var employee = GetSampleEmployee();
        service.Setup(x => x.GetAll())
            .Returns(GetSampleEmployee);
        var controller = new EmployeeController(service.Object);

        //act
        var actionResult = controller.GetEmployee();
        var result = actionResult.Result as OkObjectResult;
        var actual = result.Value as IEnumerable<Employee>;

        //assert
        Assert.IsType<OkObjectResult>(result);
        Assert.Equal(GetSampleEmployee().Count(), actual.Count());
    }

    private List<Employee> GetSampleEmployee()
    {
        List<Employee> output = new List<Employee>
        {
            new Employee
            {
                FirstName = "Jhon",
                LastName = "Doe",
                PhoneNumber = "01682616789",
                DateOfBirth = DateTime.Now,
                Email = "jhon@gmail.com",
                EmployeeId = 1
            },
            new Employee
            {
                FirstName = "Jhon1",
                LastName = "Doe1",
                PhoneNumber = "01682616787",
                DateOfBirth = DateTime.Now,
                Email = "jhon@gmail.com",
                EmployeeId = 4
            },
            new Employee
            {
                FirstName = "Jhon2",
                LastName = "Doe2",
                PhoneNumber = "01682616787",
                DateOfBirth = DateTime.Now,
                Email = "jhon2@gmail.com",
                EmployeeId = 5
            }
        };
        return output;
    }
}

Explanation

Line 6 - If you look into our EmployeeController you can see that this Controller has a dependency in the "IGenericRepository<Employee>" so in the constructor we tried to Mock this IGenericRepository<Employee> class so that we can test the controller in isolation. So we created a mocking object by "Mock<IGenericRepository<Employee>>" and make it global to use for testing through the test class.

Line 10 - we are trying to test our "GetEmployee()" method and decorate it with the [Fact] attribute to make it a part of the test runner

Line 13 - Created some sample Employees.

Line 14 - Instructing a mock object that if a certain method is called then it can answer with a certain response. Herewith "Setup()" which method can be called and by the "Returns()" we define certain responses for that specific call. For example: we use "service.Setup(x => x.GetAll()).Returns(GetSampleEmployee);" we define if GetAll() method it called then provide them with the "GetSampleEmployee()" which basically returns a list of dummy employee.

Line 16 - Creating an instance of the Controller class providing its a dependency to the IGenericRepository<Employee>.

Line 19 - calling the GetEmployee() method.

Line 24 - Checking whether the method returns us the Status 200 OK.

Line 25 - Comparing the number of employee count between the actual and the expected list of employees.

Let's create some other tests for this EmployeeController,

public class EmployeeControllerTests
{
    private readonly Mock<IGenericRepository<Employee>> service;
    public EmployeeControllerTests()
    {
        service = new Mock<IGenericRepository<Employee>>();
    }
    [Fact]
    //naming convention MethodName_expectedBehavior_StateUnderTest
    public void GetEmployee_ListOfEmployee_EmployeeExistsInRepo()
    {
        //arrange
        var employee = GetSampleEmployee();
        service.Setup(x => x.GetAll())
            .Returns(GetSampleEmployee);
        var controller = new EmployeeController(service.Object);

        //act
        var actionResult = controller.GetEmployee();
        var result = actionResult.Result as OkObjectResult;
        var actual = result.Value as IEnumerable<Employee>;

        //assert
        Assert.IsType<OkObjectResult>(result);
        Assert.Equal(GetSampleEmployee().Count(), actual.Count());
    }

    [Fact]
    public void GetEmployeeById_EmployeeObject_EmployeewithSpecificeIdExists()
    {
        //arrange
        var employees = GetSampleEmployee();
        var firstEmployee = employees[0];
        service.Setup(x => x.GetById((long)1))
            .Returns(firstEmployee);
        var controller = new EmployeeController(service.Object);

        //act
        var actionResult = controller.GetEmployeeById((long)1);
        var result = actionResult.Result as OkObjectResult;

        //Assert
        Assert.IsType<OkObjectResult>(result);

        result.Value.Should().BeEquivalentTo (firstEmployee);
    }

    [Fact]
    public void GetEmployeeById_shouldReturnBadRequest_EmployeeWithIDNotExists()
    {
        //arrange
        var employees = GetSampleEmployee();
        var firstEmployee = employees[0];
        service.Setup(x => x.GetById((long)1))
            .Returns(firstEmployee);
        var controller = new EmployeeController(service.Object);

        //act
        var actionResult = controller.GetEmployeeById((long)2);

        //assert
        var result = actionResult.Result;
        Assert.IsType<NotFoundObjectResult>(result);
    }

    [Theory]
    [InlineData(18)]
    [InlineData(20)]
    public void checkIfUserCanBeVoter_true_ageGreaterThan18(int age)
    {
        //arrange
        var controller = new EmployeeController(null);

        //act
        var actual = controller.checkIfUserCanBeVoter(age);

        //Assert
        Assert.True(actual);

    }

    [Theory]
    [InlineData(17)]
    [InlineData(15)]
    public void checkIfUserCanBeVoter_true_ageLessThan18(int age)
    {
        //arrange
        var controller = new EmployeeController(null);

        //act
        var actual = controller.checkIfUserCanBeVoter(age);

        //Assert
        Assert.False(actual);

    }

    [Fact]
    public void CreateEmployee_CreatedStatus_PassingEmployeeObjectToCreate()
    {
        var employees = GetSampleEmployee();
        var newEmployee = employees[0];
        var controller = new EmployeeController(service.Object);
        var actionResult = controller.CreateEmployee(newEmployee);
        var result = actionResult.Result;
        Assert.IsType<CreatedAtRouteResult>(result);

    }

    private List<Employee> GetSampleEmployee()
    {
        List<Employee> output = new List<Employee>
        {
            new Employee
            {
                FirstName = "Jhon",
                LastName = "Doe",
                PhoneNumber = "01682616789",
                DateOfBirth = DateTime.Now,
                Email = "jhon@gmail.com",
                EmployeeId = 1
            },
            new Employee
            {
                FirstName = "Jhon1",
                LastName = "Doe1",
                PhoneNumber = "01682616787",
                DateOfBirth = DateTime.Now,
                Email = "jhon@gmail.com",
                EmployeeId = 4
            },
            new Employee
            {
                FirstName = "Jhon2",
                LastName = "Doe2",
                PhoneNumber = "01682616787",
                DateOfBirth = DateTime.Now,
                Email = "jhon2@gmail.com",
                EmployeeId = 5
            }
        };
        return output;
    }
}

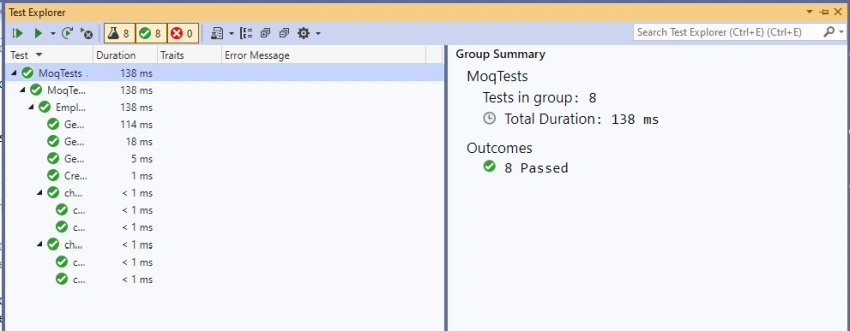

Now let's go to the "Test Explorer" and run our tests.

Unit Testing with xUnit and Moq in ASP.NET Core

So, this way we can use moq in our unit tests. And with this, the introduction to the unit testing journey ends here.

Happy coding!!!
