Unleashing the Power of Charts in Power Apps


In the realm of data visualization, charts play a pivotal role in transforming raw information into insightful visual representations. With Power Apps, Microsoft offers a robust platform for creating custom applications, enriched with dynamic charts that empower users to analyze and interpret data effortlessly. In this article, we delve into the world of charts in Power Apps, exploring their benefits, features, and limitations, and providing a step-by-step guide to creating a Pie Chart using SharePoint list data.

Benefits of charts in Power Apps

  1. Data visualization: Charts provide a visually appealing way to represent complex data sets, facilitating quick understanding and analysis.
  2. Decision-making: By presenting data in a graphical format, charts aid decision-making processes by highlighting trends, patterns, and outliers.
  3. Enhanced user experience: Interactive charts in Power Apps offer a dynamic user experience, allowing users to explore data intuitively and gain insights effortlessly.
  4. Customization: Power Apps charts are highly customizable, enabling users to tailor their appearance, colors, labels, and other visual elements to match specific requirements.

Features of charts in Power Apps

  1. Versatile chart types: Power Apps supports a variety of chart types, including Pie Charts, Bar Charts, Line Charts, and more, catering to diverse data visualization needs.
  2. Dynamic data binding: Charts seamlessly bind to data sources, automatically updating as data changes, ensuring real-time representation of information.
  3. Interactive controls: Users can incorporate interactive features into charts, such as drill-down functionality, tooltips, and legends, enhancing user engagement and exploration.
  4. Integration Capabilities: Charts in Power Apps seamlessly integrate with SharePoint lists, SQL databases, Excel files, and other data sources, providing flexibility and scalability.

Limitations of charts in Power Apps

  1. Limited customization options: While Power Apps charts offer considerable customization capabilities, some advanced customization options may be limited compared to dedicated visualization tools.
  2. Performance issues with large datasets: Charts may experience performance issues when dealing with large datasets, leading to slower load times and decreased responsiveness.
  3. Dependency on data source: The functionality of charts in Power Apps relies heavily on the underlying data source, and any changes or limitations in the data source may affect their performance.

Creating a Pie Chart with a SharePoint List of Data

  1. Open power apps: Launch Power Apps from your preferred platform.
    Open power apps
  2. Click on the "Create" button: Start a new project by clicking on the "Create" button in the Power Apps dashboard.

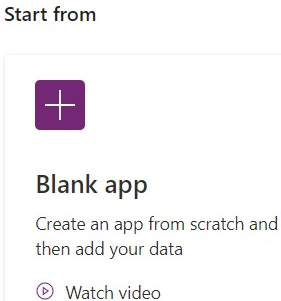

    Start from

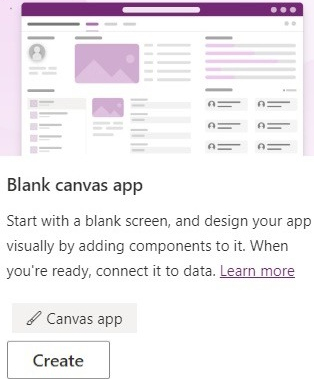

  3. Click on "Blank app": Choose the "Blank app" option to create a new blank canvas app.
    Click on create

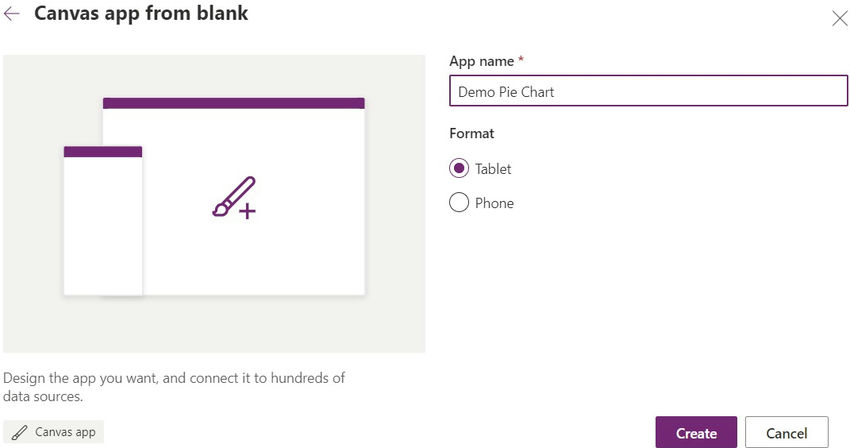

  4. Select "Blank tablet app": Opt for the "Blank tablet app" template, suitable for tablet device layouts.Canvas app from blank
  5. Provide a name for your app: Enter a descriptive name for your app to distinguish it from others.
  6. Select "Create" to proceed: Click on the "Create" button to initiate the app creation process.

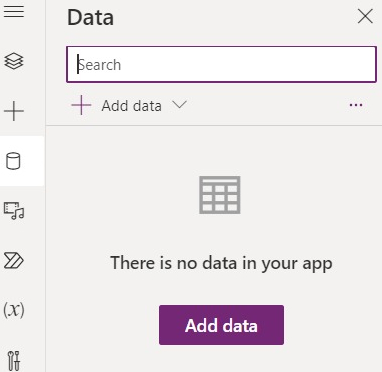

    Add data
  7. Navigate to the "Data" tab: Once the app is created, navigate to the "Data" tab located in the ribbon menu.
  8. Select "Connect to data": Click on the "Connect to data" button to add a new data source to your app.

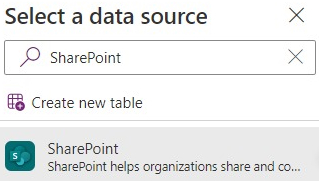

    Select data source
  9. Choose "SharePoint" from the list of data sources: From the list of available data sources, select "SharePoint" to establish a connection.
    Choose a list
  10. Enter the URL of your SharePoint site and click "Go": Input the URL of your SharePoint site in the provided field and click "Go" to proceed.
    Click on connect

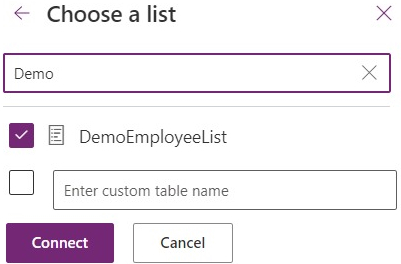

  11. Select the SharePoint list you want to connect to and click "Connect": Choose the desired SharePoint list from the available options and click "Connect" to establish the connection.

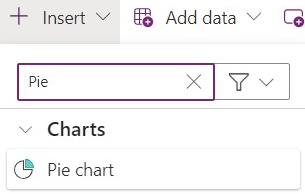

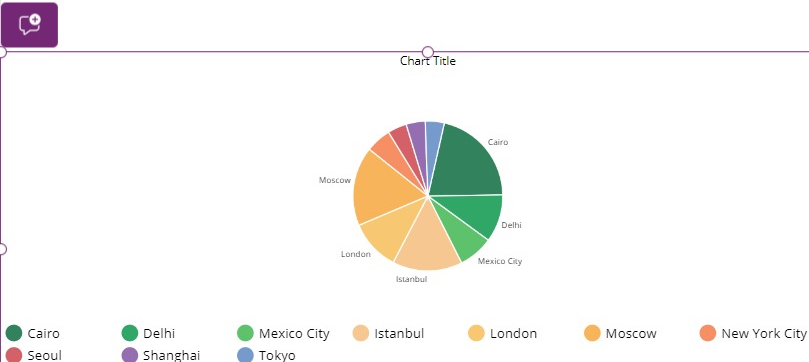

  12. Insert pie chart: Drag and drop the Pie Chart control onto your canvas from the left-hand side menu.

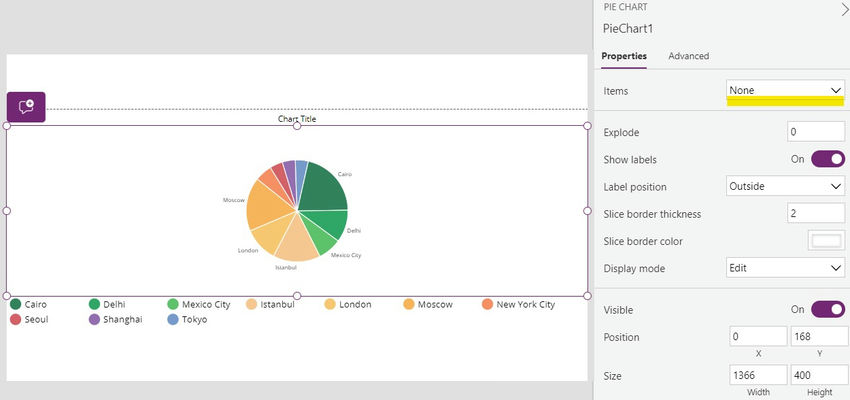

    Chart titlePie chartPie chart

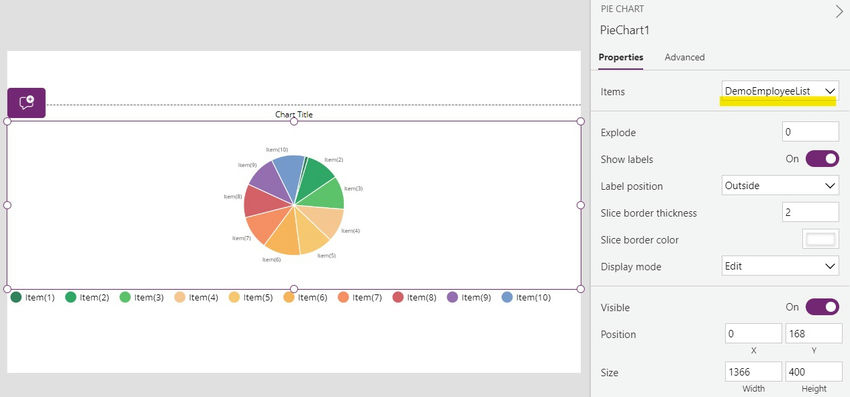

  13. Configure pie chart data: Select the Pie Chart, navigate to the properties pane, and set its "Items" property to the SharePoint list data source you've connected.

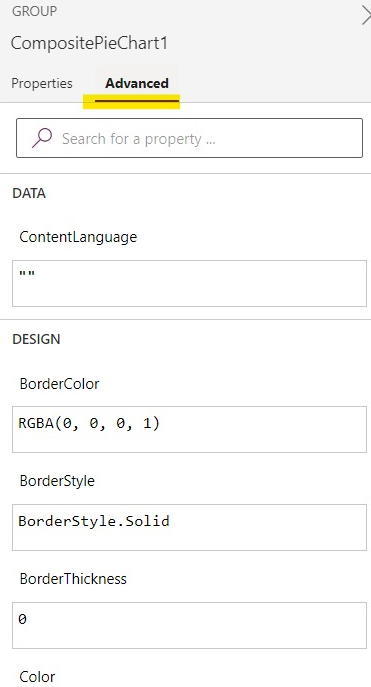

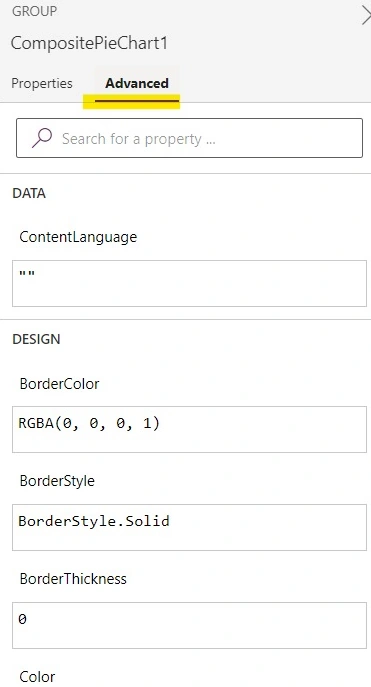

  14. Select data field: Go to the "Advance" tab in the properties pane and locate the "Data" section.

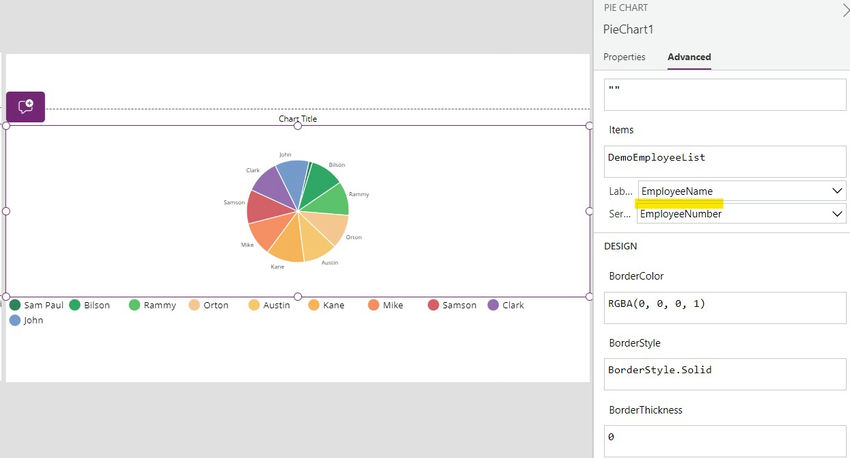

    Employee nameEmployee Distribution by name

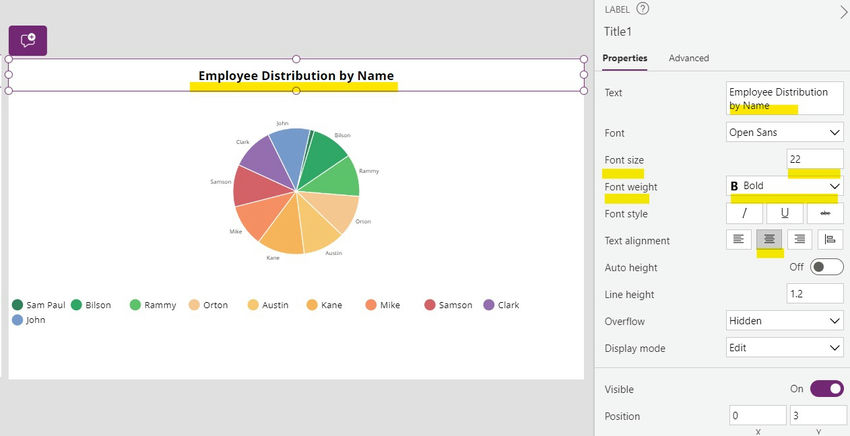

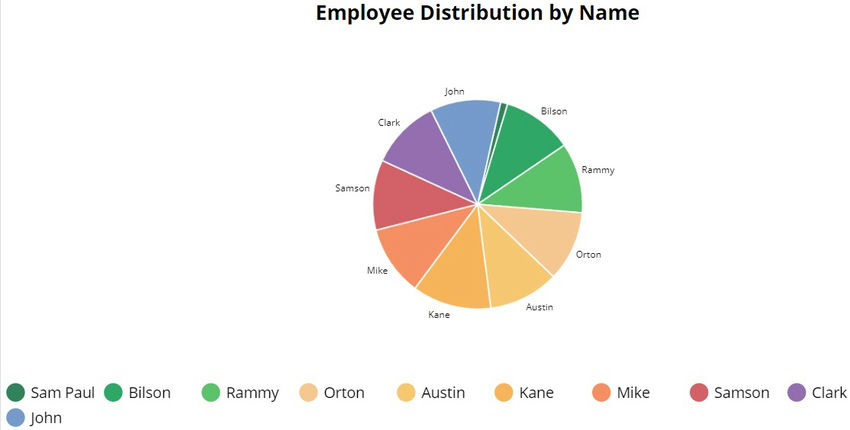

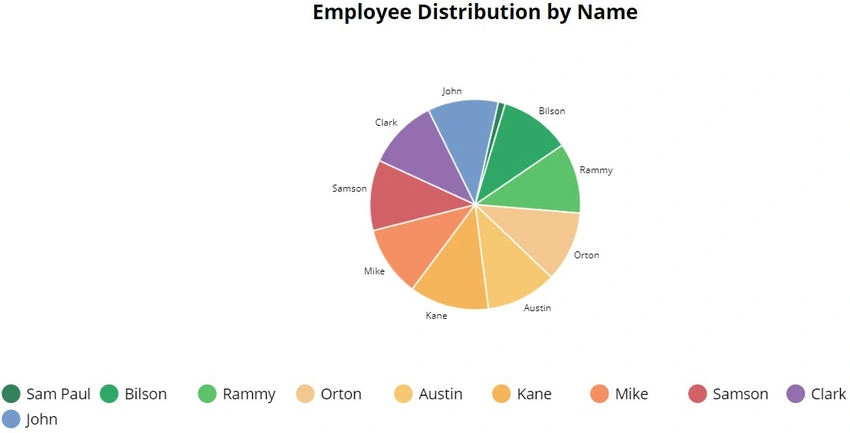

  15. Choose data field: Under the "Values" dropdown, select the field from your SharePoint list that contains the data you want to visualize in the Pie Chart.Employee Distribution by name
  16. Test the app: Preview and test your app to ensure that the Pie Chart displays the SharePoint list data accurately and as expected.
  17. Customize appearance: Optionally, customize the appearance of the Pie Chart by adjusting colors, labels, and other visual elements to enhance its presentation.
  18. Publish the app: Once satisfied with the functionality and appearance of your app, publish it for end-users to access and utilize.Employee Distribution by name


Charts in Power Apps serve as indispensable tools for data visualization, enabling users to gain insights and make informed decisions with ease. By leveraging their benefits, features, and integration capabilities, users can create compelling applications enriched with dynamic visualizations. However, it's crucial to be mindful of their limitations and design considerations to maximize their effectiveness. With this guide, you're equipped to harness the power of charts in your Power Apps projects, transforming raw data into actionable insights and enhancing user engagement.
