UpdateProgress Control With UpdatePanel in AJAX

Introduction

Ajax (Asynchronous JavaScript and XML) is a new web development technique for interactive websites. With the help of AJAX, we can develop web applications and retrieve small amounts of data from a web server. AJAX consists of a different type of technology.

JavaScript
XML
Asynchronous Call to the server

UpdateProgress

The UpdateProgress control provides status information about partial-page updates in UpdatePanel controls. You can customize the default content and the layout of the UpdateProgress control. To prevent flashing when a partial-page update is very fast, you can specify a delay before the UpdateProgress control is displayed.

Step 1. Open Visual Studio 2010.

Go to File->New->WebSite
Select ASP.NET Empty WebSite

Step 2. Go to Solution Explorer and right-click.

Select Add->New Item
Select WebForm
Default.aspx page open

Step 3. Go to Default.aspx page click on the [Design] option and drag the control from Toolbox.

Drag Panel, ScriptManager, TextBox, Label, UpdatePanel, RequireFieldValidator

Step 4. Now we define ContentTemplate for the UpdatePanel.

ContentTemplate

Code

<asp:UpdatePanel ID="UpdatePanel1" runat="server" UpdateMode="Conditional">
    <ContentTemplate>
        <asp:Label ID="lblMessage" runat="server" EnableViewState="false" ForeColor="blue"></asp:Label>
        <table border="1">
            <tr>
                <td>Name</td>
                <td><asp:TextBox ID="TextBox1" runat="Server"></asp:TextBox>
                    <asp:RequiredFieldValidator ID="Req1" runat="server" ControlToValidate="TextBox1" Text=" * Required"></asp:RequiredFieldValidator>
                </td>
            </tr>
            <tr>
                <td>Address</td>
                <td><asp:TextBox ID="TextBox2" runat="Server"></asp:TextBox>
                    <asp:RequiredFieldValidator ID="RequiredFieldValidator1" runat="server" ControlToValidate="TextBox2" Text=" * Required"></asp:RequiredFieldValidator>
                </td>
            </tr>
            <tr>
                <td>Phone</td>
                <td><asp:TextBox ID="TextBox3" runat="Server"></asp:TextBox>
                    <asp:RequiredFieldValidator ID="RequiredFieldValidator2" runat="server" ControlToValidate="TextBox3" Text=" * Required"></asp:RequiredFieldValidator>
                </td>
            </tr>
            <tr>
                <td>City</td>
                <td><asp:TextBox ID="TextBox4" runat="Server"></asp:TextBox>
                    <asp:RequiredFieldValidator ID="RequiredFieldValidator3" runat="server" ControlToValidate="TextBox4" Text=" * Required"></asp:RequiredFieldValidator>
                </td>
            </tr>
            <tr>
                <td><b>Notice "Please wait" message below after clicking button.</b></td>
                <td>
                    <asp:Button ID="btnSave" runat="Server" Text="Add Records" onclick="btnSave_Click" />
                </td>
            </tr>
        </table>
    </ContentTemplate>
</asp:UpdatePanel>

Step 5. Now go to the Default.aspx[design] page and drag an UpdateProgress control from the Toolbox.

Step 6. Now the following code is given below.

Code

<asp:UpdateProgress ID="Up1" runat="Server" AssociatedUpdatePanelID="UpdatePanel1">
    <ProgressTemplate>
        <span style="background-color:#66997A;"> <img src="img/images.jpg" alt="Please wait" width="100px"/> Please wait ...</span>
    </ProgressTemplate>
</asp:UpdateProgress>

Step 7. Now click on the button control and write some code.

Code

System.Threading.Thread.Sleep(3000);
lblMessage.Text = "Processing completed";

Step 8. Go to the default.aspx.cs option and write some code.

Code

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using System.Threading;

public partial class _Default : System.Web.UI.Page
{
    protected void Page_Load(object sender, EventArgs e)
    {
    }

    protected void btnSave_Click(object sender, EventArgs e)
    {
        System.Threading.Thread.Sleep(3000);
        lblMessage.Text = "Processing completed";
    }
}

Step 9. Now the complete code is in Default.aspx[source] page is.

Code

<title></title>
</head>
<body>
    <form id="form1" runat="server">
        <asp:ScriptManager ID="ScriptManager1" runat="server"></asp:ScriptManager>
        <div style="background-color: #BBC6DD">
            <asp:UpdatePanel ID="UpdatePanel1" runat="server" UpdateMode="Conditional">
                <ContentTemplate>
                    <asp:Label ID="lblMessage" runat="server" EnableViewState="false" ForeColor="blue"></asp:Label>
                    <table border="1">
                        <tr>
                            <td>Name</td>
                            <td>
                                <asp:TextBox ID="TextBox1" runat="Server"></asp:TextBox>
                                <asp:RequiredFieldValidator ID="Req1" runat="server" ControlToValidate="TextBox1" Text=" * Required"></asp:RequiredFieldValidator>
                            </td>
                        </tr>
                        <tr>
                            <td>Address</td>
                            <td>
                                <asp:TextBox ID="TextBox2" runat="Server"></asp:TextBox>
                                <asp:RequiredFieldValidator ID="RequiredFieldValidator1" runat="server" ControlToValidate="TextBox2" Text=" * Required"></asp:RequiredFieldValidator>
                            </td>
                        </tr>
                        <tr>
                            <td>Phone</td>
                            <td>
                                <asp:TextBox ID="TextBox3" runat="Server"></asp:TextBox>
                                <asp:RequiredFieldValidator ID="RequiredFieldValidator2" runat="server" ControlToValidate="TextBox3" Text=" * Required"></asp:RequiredFieldValidator>
                            </td>
                        </tr>
                        <tr>
                            <td>City</td>
                            <td>
                                <asp:TextBox ID="TextBox4" runat="Server"></asp:TextBox>
                                <asp:RequiredFieldValidator ID="RequiredFieldValidator3" runat="server" ControlToValidate="TextBox4" Text=" * Required"></asp:RequiredFieldValidator>
                            </td>
                        </tr>
                        <tr>
                            <td><b>Notice "Please wait" message below after clicking button.</b></td>
                            <td>
                                <asp:Button ID="btnSave" runat="Server" Text="Add Records" onclick="btnSave_Click" />
                            </td>
                        </tr>
                    </table>
                </ContentTemplate>
            </asp:UpdatePanel>
            <!-- UpdateProgress control -->
            <asp:UpdateProgress ID="Up1" runat="Server" AssociatedUpdatePanelID="UpdatePanel1">
                <ProgressTemplate>
                    <span style="background-color:#66997A;"> <img src="img/images.jpg" alt="Please wait" width="100px"/> Please wait ...</span>
                </ProgressTemplate>
            </asp:UpdateProgress>
        </div>
    </form>
</body>

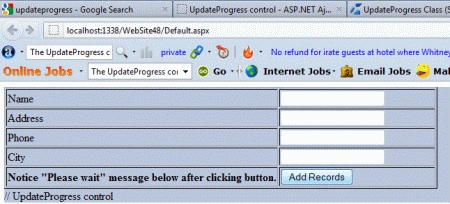

Step 10. Now run the application by Pressing F5.

Run application

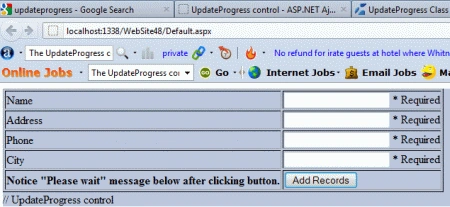

Step 11. When we click on the Add Record button then the following message is shown.

Record button

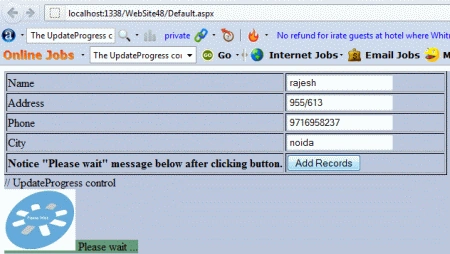

Step 12. Now we define all required fields and click on the add record button.

Required fields
