Upload Images to SharePoint Document Library Using Media Control in Power Apps and Power Automate

Introduction

In this article, we will see how to upload images to a SharePoint Document Library using the Media Control in Power Apps. This is useful when users need to capture or select photos, such as inspection images, profile pictures, or documents, and store them securely in SharePoint.

What is Media Control in Power Apps?

Media Control in Power Apps is a control that allows users to capture, upload, and display images, audio, or video files directly within an app.

Prerequisite

Before following the steps in this article, you should have basic knowledge of creating and connecting Power Automate flows with Power Apps.

Below are the steps to upload images directly from the Media Control in Power Apps to a SharePoint Document Library using Power Automate:

Step 1: Create a SharePoint Document Library

First, create a Document Library in SharePoint to store all uploaded images.

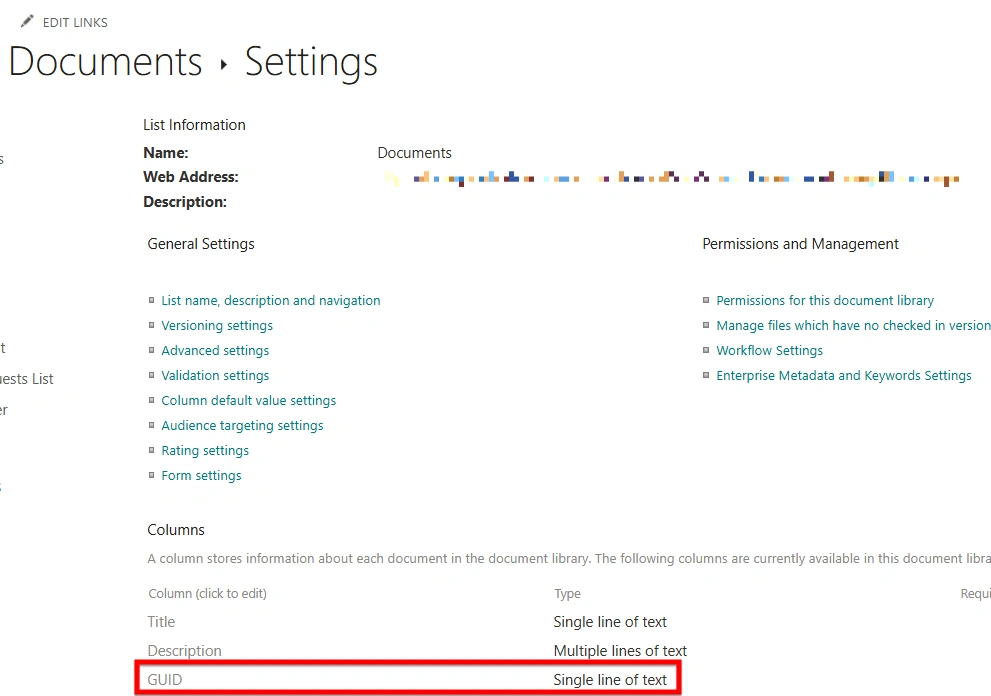

Then, add a single-line of text column named GUID in the document library.

This column will store a unique GUID for each image, enabling easy linking and identification in Power Apps or Power Automate.

Step 2: Create a Power Automate Flow

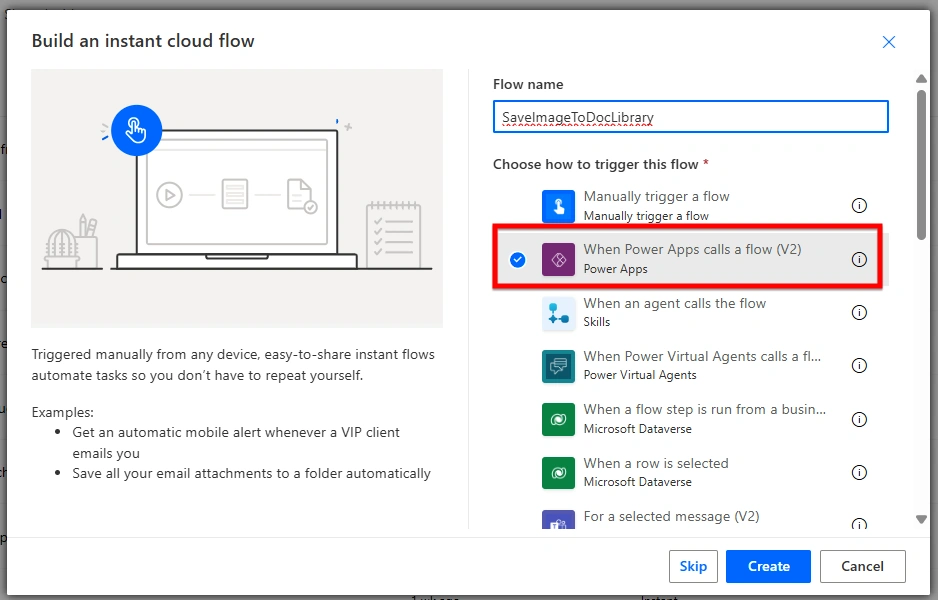

Create a new Instant Cloud Flow and select Power Apps as the trigger.

Give the flow a name: SaveImageToDocLibrary.

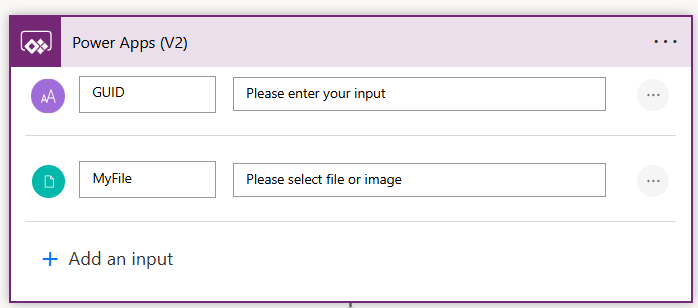

This flow will receive two parameters from Power Apps:

• GUID - Text type

• MyFile - File type

The GUID will be used to store the unique ID in SharePoint, and MyFile will contain the image file coming from the Media Control in Power Apps.

Step 3: Add SharePoint – Create File Action

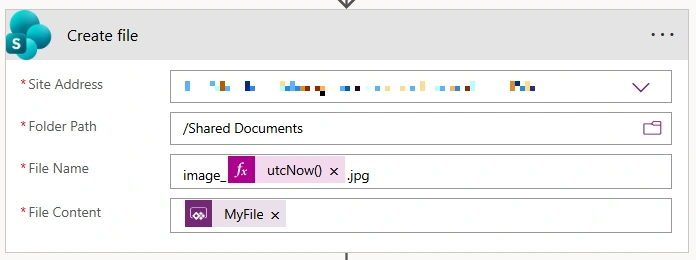

In the SaveImageToDocLibrary flow, add the SharePoint – Create file action.

Configure it as follows:

• Site Address – Select your SharePoint site

• Folder Path – Select the Document Library folder where images will be stored

• File Name – Provide a file name and make sure it ends with .jpg

• File Content – Select MyFile from the Power Apps trigger

Step 4: Get File Properties

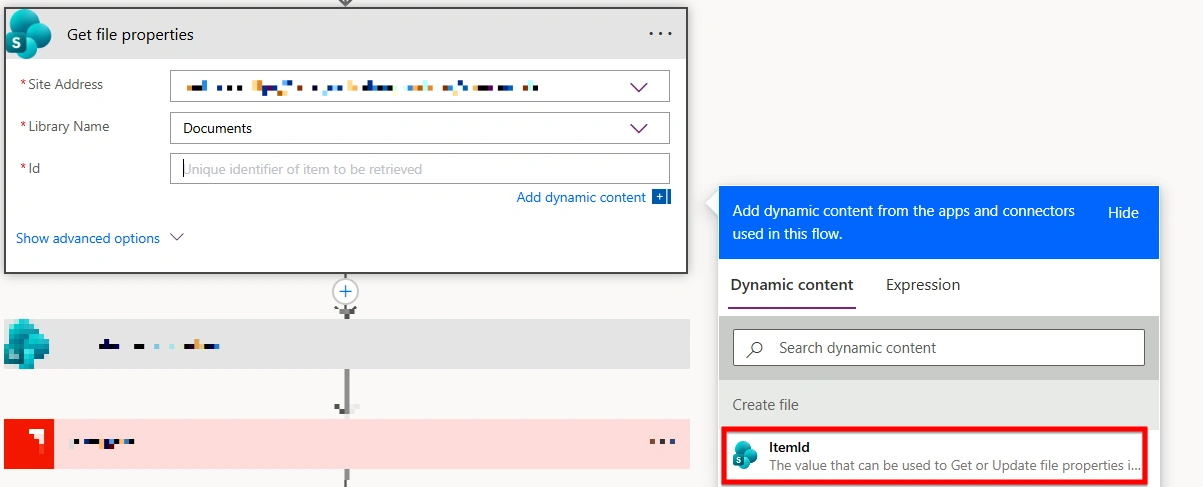

After the file is created, add the SharePoint – Get file properties action.

Configure it as follows:

• Site Address – Select your SharePoint site

• Library Name – Select the Document Library

• Id – Use the ItemId from the Create file action

Step 5: Update File Properties

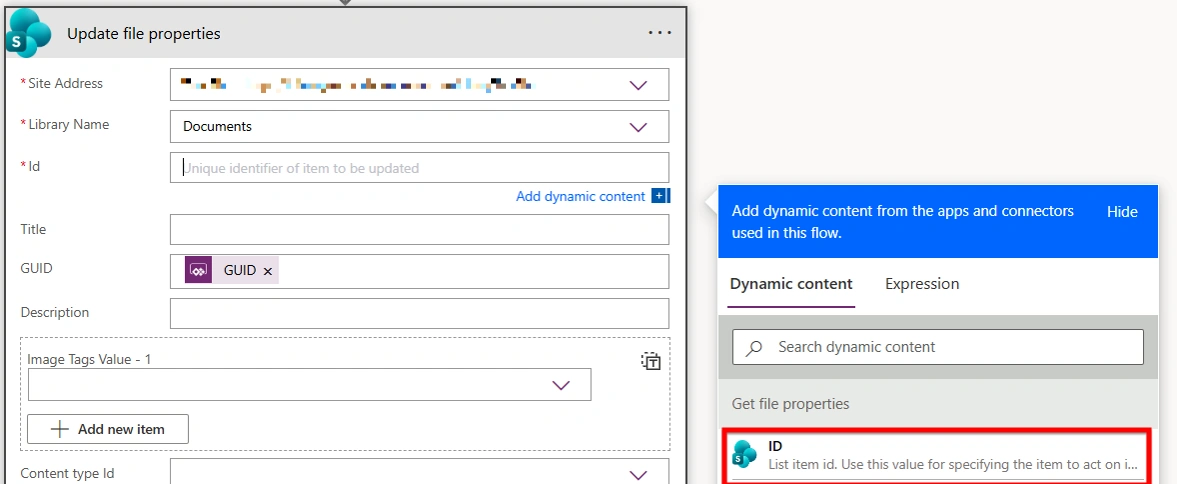

Now add the SharePoint – Update file properties action.

Configure it as follows:

• Site Address – Select your SharePoint site

• Library Name – Select the same Document Library

• Id – Use the Id from the Get file properties action

• GUID – Select the GUID parameter coming from the Power Apps trigger

This step stores the unique GUID value against the uploaded image in the SharePoint Document Library.

Step 6: Connect the flow in Power Apps

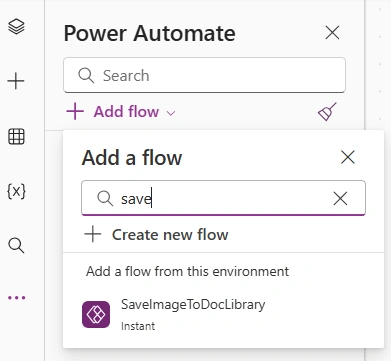

Now go to your Power Apps and connect the SaveImageToDocLibrary flow that you created.

Step 7: Add Picture Control in Power Apps

Now go to your Power Apps and add a Picture / Add Picture (Media) control to the screen.

This control will allow users to capture or upload an image that will be sent to Power Automate and stored in the SharePoint Document Library.

Step 8: Add button Control

Add a Button in your Power Apps screen and set its Text property to "Upload".

In the OnSelect property of the button, add the following formula:

SaveImageToDocLibrary.Run(
    GUID(),
    {
        file: {
            contentBytes: UploadedImage1.Image,
            name: Text(
                Now(),
                "yyMMddhhmmss"
            )
        }
    }
)

Explanation:

This formula generates a unique GUID, sends the selected image from the Media Control, and calls the SaveImageToDocLibrary flow to store the image in the SharePoint Document Library.

Make sure that in contentBytes, you use the Image property of your Media Control.

In this example, the Media Control name is UploadedImage1, so UploadedImage1.Image is used.

Output

Now add an image using the Media Control and click the Upload button.

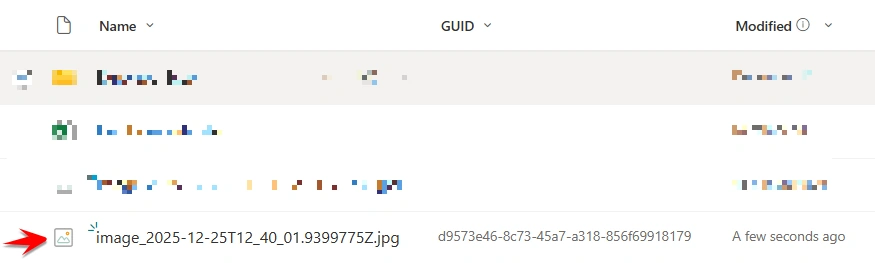

Your image will be saved automatically in the SharePoint Document Library with the generated GUID.

Conclusion

In this article, we learned how to quickly upload images from Power Apps to a SharePoint Document Library using Media Control and Power Automate. Just capture, send, and save the image - easy and straightforward.
