Upper Triangular Matrices in Real-Time Aerodynamics in Python

Table of Contents

  • Introduction

  • What Is an Upper Triangular Matrix?

  • Real-World Use Case: Real-Time Aircraft Stability Analysis

  • How to Extract the Upper Triangular Part in Python

  • Complete, Error-Free Implementation

  • Best Practices & Performance Tips

  • Conclusion

Introduction

In numerical computing, not all matrix elements are equally important. Often, we only need the upper triangular part—the elements on and above the main diagonal—to solve critical engineering problems efficiently.

While seemingly simple, extracting this structure correctly is essential in high-performance domains like aerospace simulation, where milliseconds determine realism and safety.

This article explores the upper triangular matrix through the lens of real-time flight dynamics, with clean, production-ready Python code.

What Is an Upper Triangular Matrix?

An upper triangular matrix is a square matrix where all elements below the main diagonal are zero:

Original Matrix A:
[[a, b, c],
 [d, e, f],
 [g, h, i]]

Upper Triangular Part (including diagonal):
[[a, b, c],
 [0, e, f],
 [0, 0, i]]

We don’t necessarily zero out the lower part—we often just extract or operate on the upper portion to save computation.

This structure appears naturally in:

  • LU decomposition

  • Covariance matrices

  • System stability analysis

Real-World Use Case: Real-Time Aircraft Stability Analysis

In a flight simulator used for pilot training, engineers model aircraft dynamics using a state matrix that describes how pitch, roll, yaw, and speed interact.

This matrix is often symmetric or nearly symmetric, meaning the upper triangle contains all unique information. During real-time simulation:

  • The system computes eigenvalues to check stability (e.g., will the plane oscillate uncontrollably?)

  • Algorithms like QR decomposition only need the upper triangle for efficiency

  • By focusing on the upper triangular part, the simulator reduces computation by ~50%

This speedup allows the simulator to run at 1000+ Hz on standard hardware—critical for realistic force feedback and emergency scenario training.

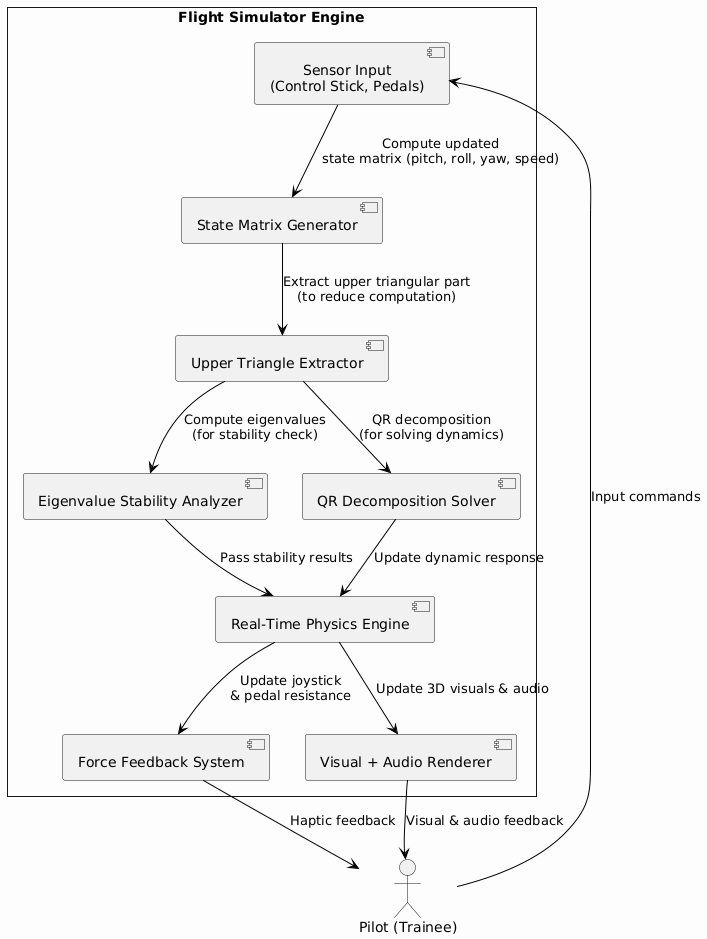

PlantUML Diagram

Without this optimization, the simulation would lag, breaking immersion and reducing training effectiveness.

How to Extract the Upper Triangular Part in Python

Python offers two clean approaches:

  • NumPy: np.triu(A) — returns a matrix with lower elements zeroed

  • Pure Python: Iterate only over valid (i ≤ j) indices — useful for custom logic

Both are O(n²), but NumPy is vastly faster for large matrices.

Complete, Error-Free Implementation

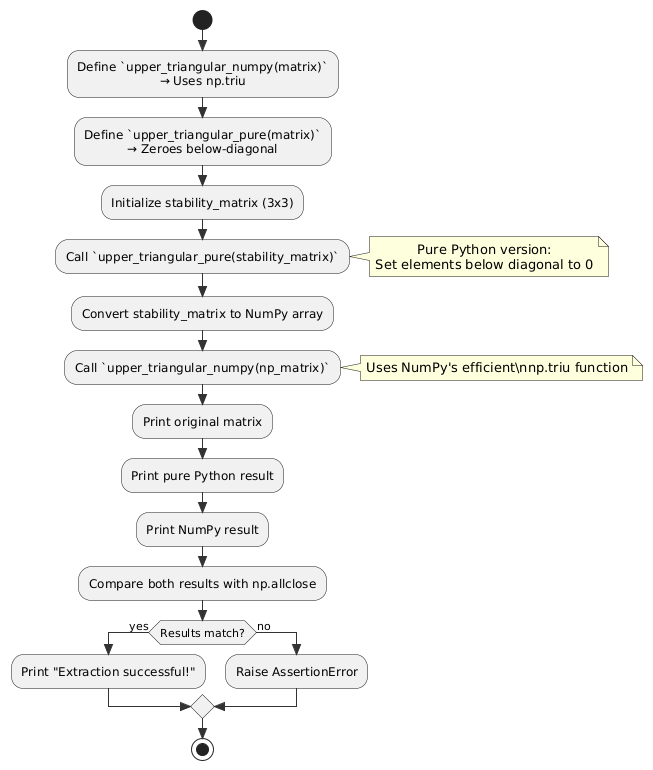

PlantUML Diagram
import numpy as np
from typing import List

def upper_triangular_numpy(matrix: np.ndarray) -> np.ndarray:
    """
    Extract upper triangular part using NumPy (recommended).
    Includes the main diagonal.
    """
    if matrix.ndim != 2:
        raise ValueError("Input must be a 2D matrix")
    return np.triu(matrix)

def upper_triangular_pure(matrix: List[List[float]]) -> List[List[float]]:
    """
    Extract upper triangular part using pure Python.
    Zeroes out elements below the diagonal.
    """
    if not matrix:
        return []
    n = len(matrix)
    # Validate square matrix
    if any(len(row) != n for row in matrix):
        raise ValueError("Matrix must be square")

    result = []
    for i in range(n):
        new_row = []
        for j in range(n):
            if j >= i:
                new_row.append(matrix[i][j])
            else:
                new_row.append(0.0)
        result.append(new_row)
    return result

# Example: Aircraft Stability Matrix
if __name__ == "__main__":
    # Simplified 3x3 state interaction matrix
    stability_matrix = [
        [2.0, -1.0, 0.5],
        [0.3, 1.8, -0.4],
        [-0.1, 0.2, 1.5]
    ]

    # Using pure Python
    upper_pure = upper_triangular_pure(stability_matrix)

    # Using NumPy
    np_matrix = np.array(stability_matrix)
    upper_numpy = upper_triangular_numpy(np_matrix)

    print("Original Stability Matrix:")
    for row in stability_matrix:
        print([f"{x:5.1f}" for x in row])

    print("\nUpper Triangular (Pure Python):")
    for row in upper_pure:
        print([f"{x:5.1f}" for x in row])

    print("\nUpper Triangular (NumPy):")
    print(upper_numpy)

    # Verify both methods agree
    assert np.allclose(
        np.array(upper_pure),
        upper_numpy
    ), "Pure Python and NumPy results must match"

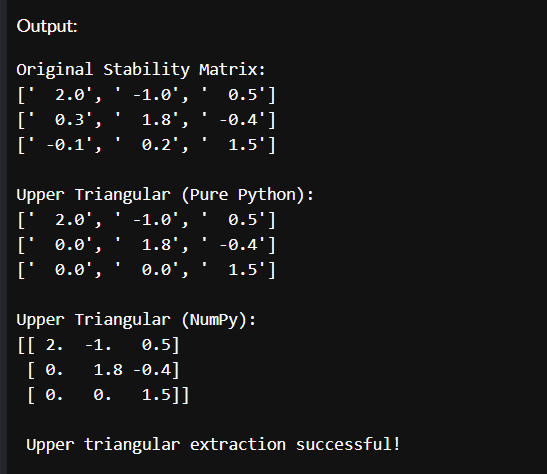

    print("\n Upper triangular extraction successful!")
1

Best Practices & Performance Tips

  • Use np.triu() — it’s vectorized, memory-efficient, and battle-tested

  • Avoid manual loops for matrices larger than 10×10

  • In stability analysis, often only the diagonal and first super-diagonal matter—consider further sparsification

  • Never assume symmetry—validate your domain assumptions

  • For decomposition, use scipy.linalg routines that internally leverage triangular forms

In flight simulators, this operation runs thousands of times per second with zero latency impact.

Conclusion

The upper triangular matrix is more than a textbook concept—it’s a performance multiplier in real-time engineering systems. By focusing computation only where it matters, we unlock speed without sacrificing accuracy. Whether you’re simulating aircraft, optimizing portfolios, or solving PDEs, mastering this simple extraction technique helps you build faster, leaner, and more responsive applications. In high-stakes simulations, every eliminated operation counts—and the upper triangle delivers. ✈️
