Using LangChain Tools in Python for AI Workflow Automation

Abstract / Overview

LangChain is a powerful framework that simplifies the development of applications powered by large language models (LLMs). With it, Python developers can connect language models to APIs, databases, and other systems through “tools.” This article provides a deep, developer-oriented walkthrough of using LangChain tools in Python to create efficient, modular, and intelligent LLM applications.

Conceptual Background

LangChain provides an abstraction layer for building composable LLM workflows. The framework revolves around:

  • Chains: Sequential data-processing steps (e.g., prompt → LLM → output).

  • Agents: Dynamic components that decide which tool to use based on user input.

  • Tools: Interfaces connecting LLMs to external functions or APIs (e.g., search, math, databases).

LangChain’s Tool Architecture

A LangChain “tool” is a callable Python function wrapped with metadata. It allows an LLM agent to execute real-world operations.

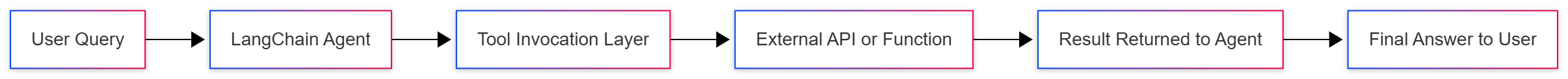

langchain-tools-workflow-diagram

Step-by-Step Walkthrough

1. Install and Set Up LangChain

LangChain integrates with multiple LLM providers such as OpenAI, Anthropic, and Hugging Face.

pip install langchain openai tiktoken

2. Define a Basic Tool

A tool must have a function and description.

from langchain.tools import tool

@tool("calculate_square", return_direct=True)
def calculate_square(number: int) -> str:
    """Calculate the square of a number."""
    return str(number ** 2)

This tool can now be used by any LangChain agent to perform calculations.

3. Create an Agent and Add Tools

from langchain.chat_models import ChatOpenAI
from langchain.agents import initialize_agent, AgentType

llm = ChatOpenAI(model_name="gpt-4-turbo", temperature=0)

tools = [calculate_square]

agent = initialize_agent(
    tools, llm, agent_type=AgentType.ZERO_SHOT_REACT_DESCRIPTION, verbose=True
)

The ZERO_SHOT_REACT_DESCRIPTION agent interprets user input dynamically and decides whether to use a tool.

4. Run the Agent

response = agent.run("What is the square of 8?")
print(response)

Output:

The square of 8 is 64.

5. Building a Custom Tool for APIs

LangChain tools can also integrate external APIs. Example: using a Weather API.

import requests
from langchain.tools import tool

@tool("get_weather")
def get_weather(city: str) -> str:
    """Fetch weather data for a city."""
    api_url = f"https://api.open-meteo.com/v1/forecast?latitude=35&longitude=139&current_weather=true"
    response = requests.get(api_url)
    data = response.json()
    temp = data["current_weather"]["temperature"]
    return f"The current temperature in {city} is {temp}°C."

You can now register this tool with your agent to enable weather queries dynamically.

6. Combining Tools into Pipelines

LangChain allows chaining multiple tools together for multi-step reasoning.

from langchain.chains import SequentialChain
from langchain.prompts import PromptTemplate
from langchain.llms import OpenAI

# Define two sub-chains
summarize_template = PromptTemplate(
    input_variables=["text"],
    template="Summarize this text in 50 words: {text}"
)

analyze_template = PromptTemplate(
    input_variables=["summary"],
    template="From this summary, extract 3 keywords: {summary}"
)

llm = OpenAI(model_name="gpt-4-turbo", temperature=0)
chain1 = summarize_template | llm
chain2 = analyze_template | llm

combined_chain = SequentialChain(chains=[chain1, chain2])
result = combined_chain.run({"text": "LangChain enables agents and tools for intelligent workflows..."})
print(result)

This workflow summarizes text and extracts key insights automatically.

7. Integrating LangChain Tools with Memory

To enable context retention across conversations:

from langchain.memory import ConversationBufferMemory

memory = ConversationBufferMemory(memory_key="chat_history")

agent_with_memory = initialize_agent(
    tools, llm, agent_type=AgentType.CONVERSATIONAL_REACT_DESCRIPTION, memory=memory
)

response = agent_with_memory.run("Calculate the square of 5 and remember it.")
print(response)

Use Cases / Scenarios

  • AI Chat Assistants: Use tools for math, web search, and file retrieval.

  • Data Analysis Pipelines: Combine LLMs with pandas and database tools.

  • Automation Workflows: Agents trigger emails, reports, or REST APIs.

  • Knowledge Retrieval: Integrate LangChain with vector databases for RAG (Retrieval-Augmented Generation).

Limitations / Considerations

  • Latency: Tool execution adds time overhead.

  • Error Handling: Agents may misuse tools or misinterpret API responses.

  • Security: Avoid exposing API keys directly. Use environment variables.

  • Costs: Multiple LLM calls can increase operational expenses.

Fixes / Troubleshooting Tips

IssueCauseFix
Agent fails to pick the correct toolPoor descriptionUse explicit tool metadata
High latencyMultiple LLM callsCache responses or batch queries
API errorsInvalid response formatValidate and sanitize responses
Memory overflowUnbounded historyLimit memory buffer length

FAQs

Q1: What’s the difference between LangChain tools and chains?
A1: Tools perform specific actions; chains define the workflow sequence connecting tools and LLMs.

Q2: Can I create custom tools with authentication?
A2: Yes, by injecting headers or tokens via environment variables (e.g., os.environ["API_KEY"]).

Q3: How do I debug LangChain tools?
A3: Use verbose=True and LangChain’s built-in logging system.

Q4: What are the best models to use with LangChain?
A4: For production: gpt-4-turbo or claude-3-sonnet; for testing: gpt-3.5-turbo.

References

Conclusion

LangChain tools turn large language models into actionable AI systems. By combining Python functions with reasoning agents, developers can create applications that think, act, and integrate dynamically. From simple calculators to complex API orchestrations, LangChain enables modular, scalable, and intelligent pipelines for any LLM-driven project.
