Azure

Using Managed Identity with Azure Functions to Connect to Azure SQL Database

Table of Contents

  • Introduction

  • Why Managed Identity Matters in Modern Cloud Architecture

  • Real-World Scenario: Healthcare Claims Processing System

  • Connecting Azure Functions to Azure SQL Database Using Managed Identity

  • Implementation: End-to-End Secure Code

  • Best Practices and Operational Insights

  • Conclusion

Introduction

In enterprise cloud environments, managing secrets—like database connection strings with embedded credentials—is a major security and operational burden. Azure Managed Identity eliminates this risk by allowing Azure services to authenticate to other Azure services without storing credentials in code or configuration. When combined with Azure Functions and Azure SQL Database, it enables a zero-secret, zero-maintenance, and highly secure integration pattern.

This article walks through a real-world scenario in the healthcare domain and demonstrates how to securely connect an Azure Function to Azure SQL Database using Managed Identity—without a single password in sight.

Why Managed Identity Matters in Modern Cloud Architecture

Managed Identity provides:

  • No secrets in code or configuration: Eliminates credential leakage risks.

  • Automatic lifecycle management: Azure handles credential rotation.

  • Least-privilege access: Granular permissions via Azure RBAC or SQL roles.

  • Auditability: All access is tied to a known identity in Azure AD logs.

For regulated industries like healthcare or finance, this isn’t just convenient—it’s often a compliance requirement.

Real-World Scenario: Healthcare Claims Processing System

Imagine a national health insurer processing thousands of provider claims per hour. Each claim arrives as a JSON payload via an HTTP-triggered Azure Function. The function must:

  1. Validate the claim

  2. Enrich it with patient and provider data from Azure SQL Database

  3. Store the processed result for downstream analytics

Security is non-negotiable: PHI (Protected Health Information) is involved, and credentials must never appear in logs, source control, or app settings. Managed Identity is the only acceptable authentication method.

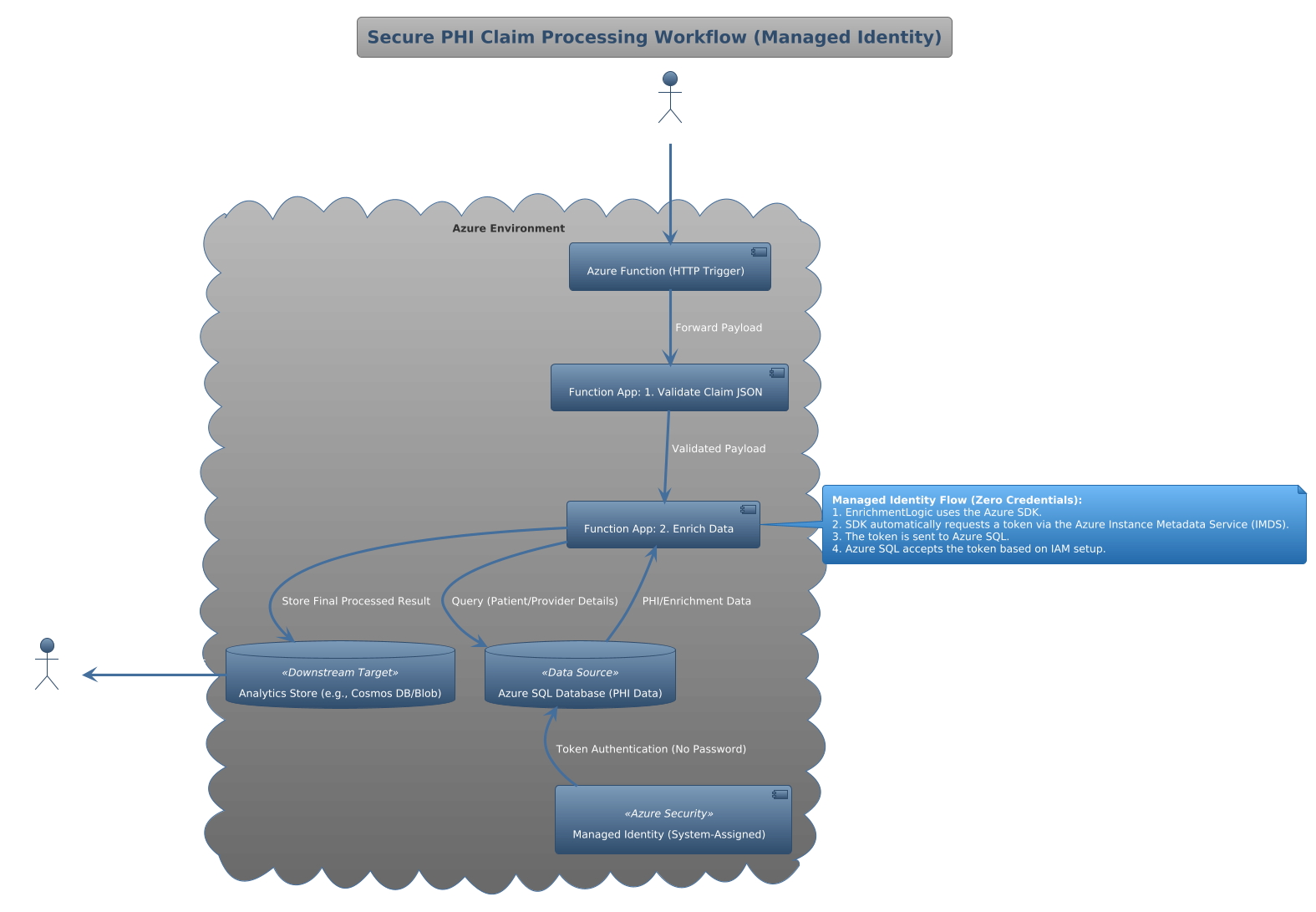

PlantUML Diagram

Connecting Azure Functions to Azure SQL Database Using Managed Identity

Prerequisites

  1. Azure Function App (Python, .NET, or Node.js—this example uses Python)

  2. Azure SQL Database with Azure AD authentication enabled

  3. System-assigned Managed Identity enabled on the Function App

  4. Database user mapped to the Function App’s identity

Step 1. Enable Managed Identity on the Function App

In the Azure Portal or via Azure CLI:

 az functionapp identity assign --name <FUNCTION_APP_NAME> --resource-group <RESOURCE_GROUP>

This returns the principal ID—note it for the next step.

Step 2. Create a Database User for the Managed Identity

Connect to your Azure SQL Database as an Azure AD admin and run:

CREATE USER [<FUNCTION_APP_NAME>] FROM EXTERNAL PROVIDER;
ALTER ROLE db_datareader ADD MEMBER [<FUNCTION_APP_NAME>];
ALTER ROLE db_datawriter ADD MEMBER [<FUNCTION_APP_NAME>];

Replace <FUNCTION_APP_NAME> with your actual Function App name (e.g., claims-processor-prod).

The user name must exactly match the Function App name.

Step 3. Use pyodbc with Azure AD Authentication in Python

Install required packages in requirements.txt:

pyodbc>=4.0.35
azure-identity>=1.12.0

Now, the function code:

import logging
import pyodbc
import azure.functions as func
from azure.identity import DefaultAzureCredential

def get_sql_connection():
    server = 'your-server.database.windows.net'
    database = 'claimsdb'

    # Use ODBC with ActiveDirectoryMsi
    conn_str = (
        f"DRIVER={{ODBC Driver 18 for SQL Server}};"
        f"SERVER={server};"
        f"DATABASE={database};"
        f"Authentication=ActiveDirectoryMsi;"
    )
    return pyodbc.connect(conn_str)

def main(req: func.HttpRequest) -> func.HttpResponse:
    logging.info('Processing healthcare claim.')

    try:
        conn = get_sql_connection()
        cursor = conn.cursor()

        # Example: enrich claim with patient data
        claim_id = req.params.get('claimId')
        cursor.execute("SELECT patient_name, policy_id FROM Patients WHERE claim_id = ?", claim_id)
        row = cursor.fetchone()

        if row:
            response = f"Claim {claim_id} enriched: {row.patient_name}"
        else:
            response = f"Claim {claim_id} not found."

        conn.close()
        return func.HttpResponse(response, status_code=200)

    except Exception as e:
        logging.error(f"Database error: {e}")
        return func.HttpResponse("Internal error", status_code=500)

No passwords. No connection strings with secrets. No Key Vault calls.
The ActiveDirectoryMsi authentication mode tells the ODBC driver to use the system-assigned Managed Identity automatically.

1

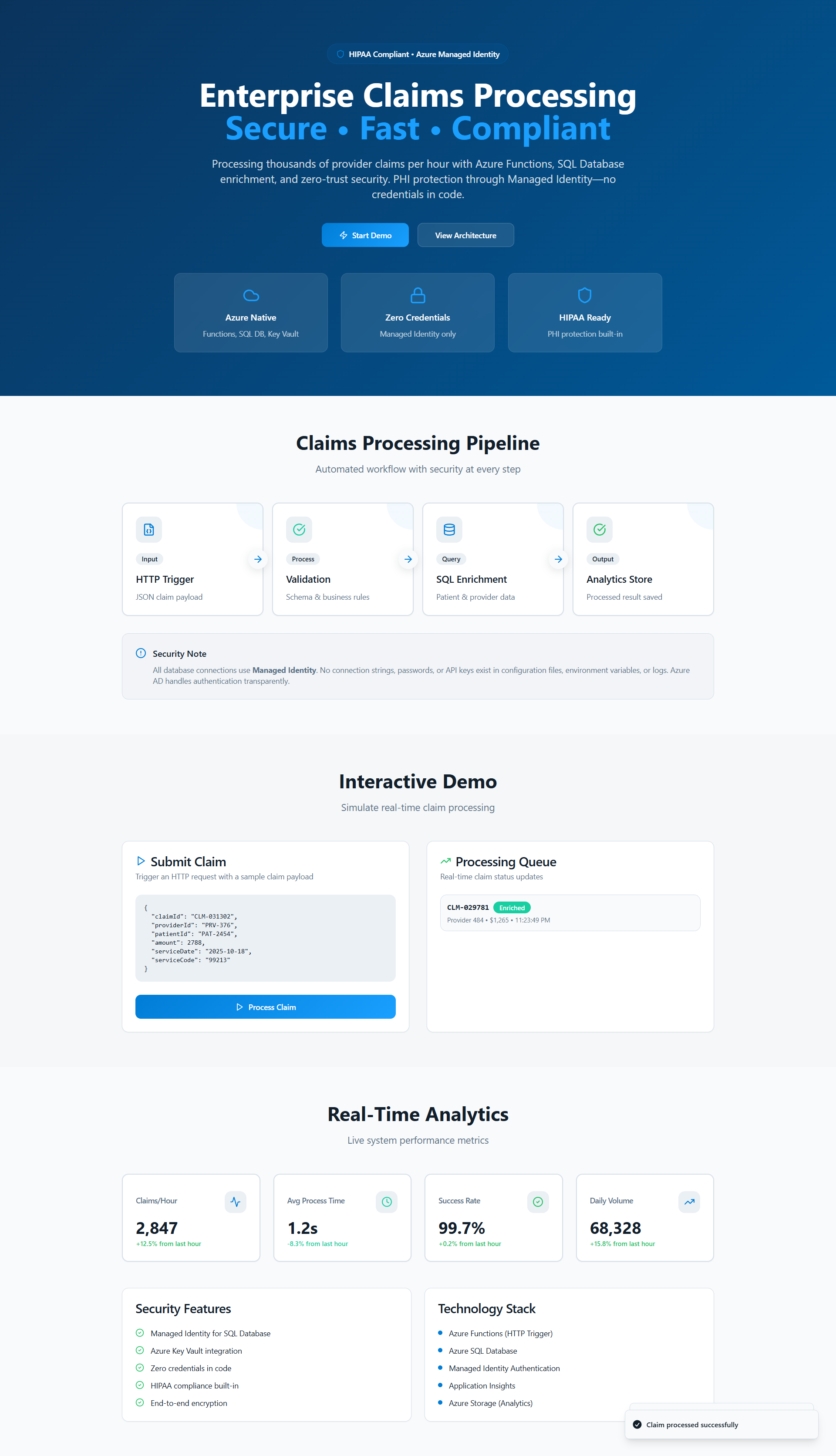

2

Best Practices and Operational Insights

  • Use System-Assigned Identity for simplicity unless you need to share identity across resources (then use User-Assigned).

  • Grant minimal SQL permissions—avoid db_owner. Use custom roles if needed.

  • Enable Azure AD-only authentication on SQL Server to block SQL logins entirely.

  • Monitor with Azure Monitor: Track SignInLogs and AzureDiagnostics for anomalous access.

  • Test locally using DefaultAzureCredential() with Azure CLI login during development (it falls back gracefully).

Conclusion

In high-stakes environments like healthcare, finance, or government, eliminating secrets isn’t optional—it’s foundational. By using Managed Identity, your Azure Functions authenticate to Azure SQL Database as first-class Azure AD principals, with zero credential management overhead and full auditability. The result? Faster deployments, stronger security, and compliance-ready architectures—all with less code and fewer moving parts. As a senior cloud architect, this is the standard I enforce across all enterprise serverless workloads.
