Integration Of GitHub In RPA UIPath And Version Control

In this article I have explained how to work with GitHub and integration with UiPath.


What is a Version Control and Git

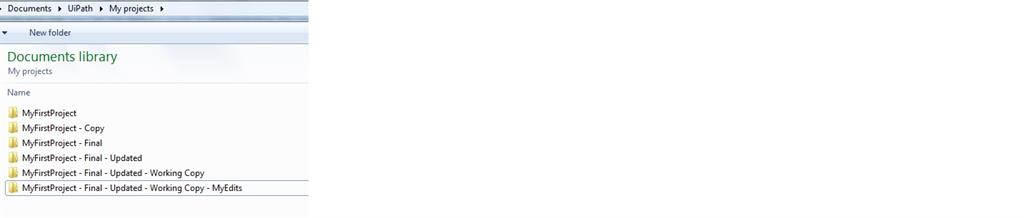

Old style Multiple folder names

If you are old enough remember working on  projects in a group/team , you know that many people trying to edit the project leads to multiple copies of an original project. The result is many duplicate project folders. If two people made some changes at the same time then someone has to combine those edits together manually.

Git solves this problem.

The core functionality of Git is to create save points, or you could say checkpoints,  in your files. Even if you forget or screw up after some point, you can always come back and try again without having to start over.

After each major step you can commit your code/project to git. It will save it with its respective comments and who added /modified it. You can always take the project up to this date or the full committed final project.

I'm not going into detail about Git, as this article is not on Git but is about using Git /GitHub in UiPath.


GitHub


GitHub is a third party online web service that allows you to back up the code you are saving with Git to the cloud.
  • Git is local
  • GitHub is a cloud-based application
Common actions are,
  • Commit: Commits current changes to local git repository.
  • Push: Pushes the current version to remote repository.
  • Commit and push: committing to local and then pushing the current version to remote repository like GitHub Cloud.

GitHub Integration in UiPath


First open UiPath studio and create one simple Hello World project:

Integration Of GitHub In RPA UIPath And Version Control

Click on create.

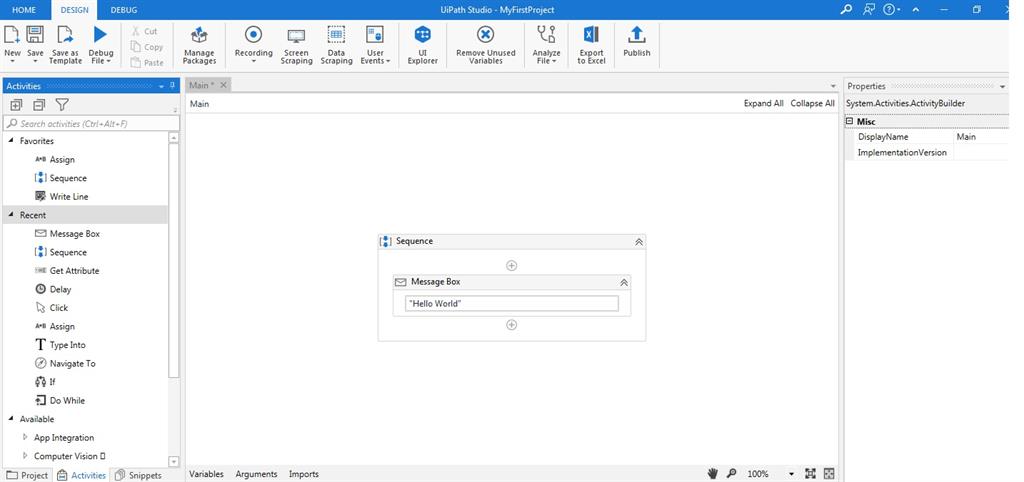

Take one sequence activity and within that one message box activity to display the message “Hello World”.

Integration Of GitHub In RPA UIPath And Version Control

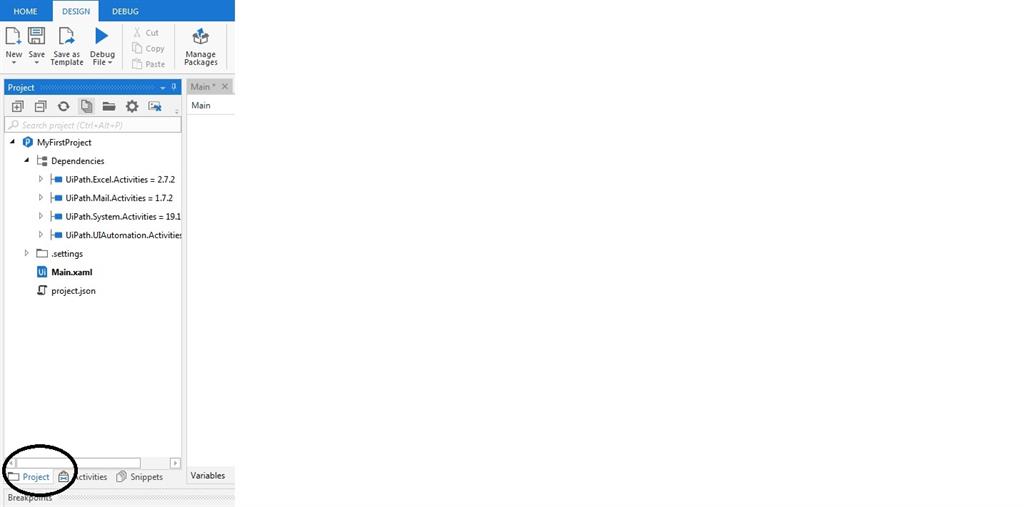

Now select Project in Project Explorer window.

select Project in Project Explorer

Now right click on project and goto Add To Source Control.

Goto Add To Source Control

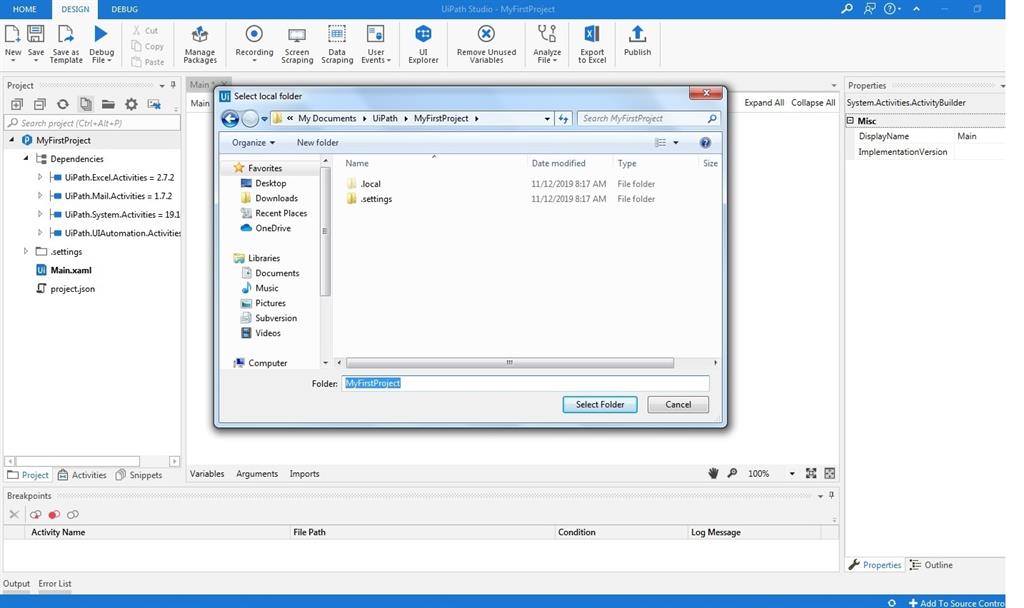

Then select or browse to parent folder of your project.

Browse to Parent Folder

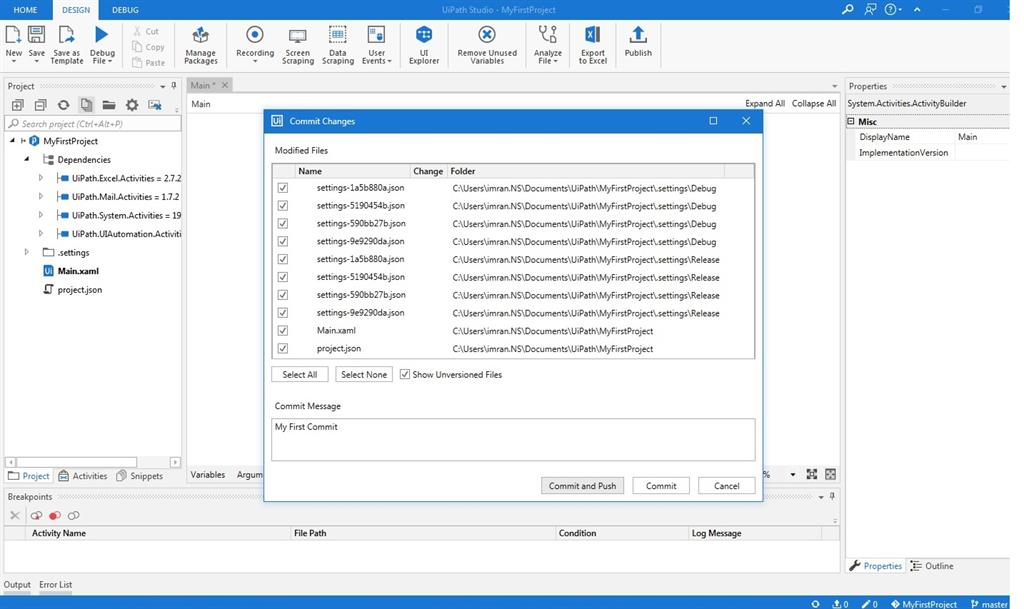

It will ask for Commit Comment -- write your own comment for current commit.

write commit comment

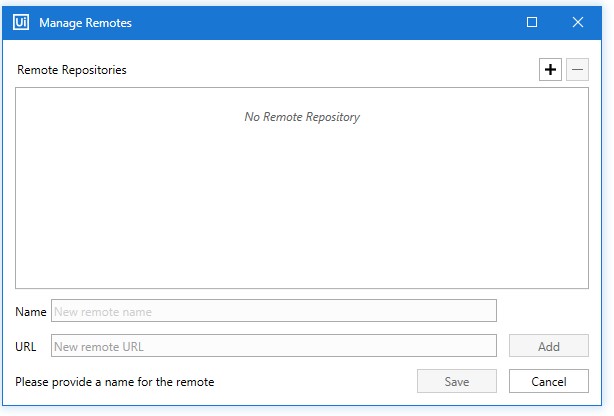

Now it will ask for Remote Repository Path and Name etc.

give repository Path

Now goto Github.com and  if don’t have an account then create one.

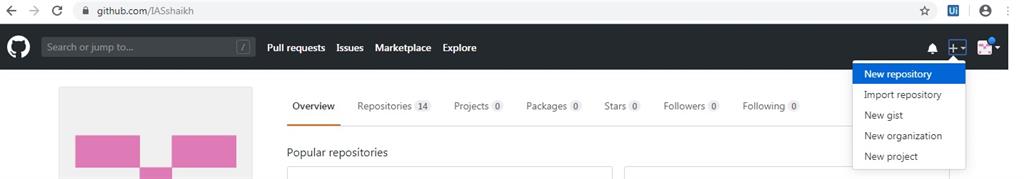

Then click on + sign at the extreme right for New Repository.

Create New Repository

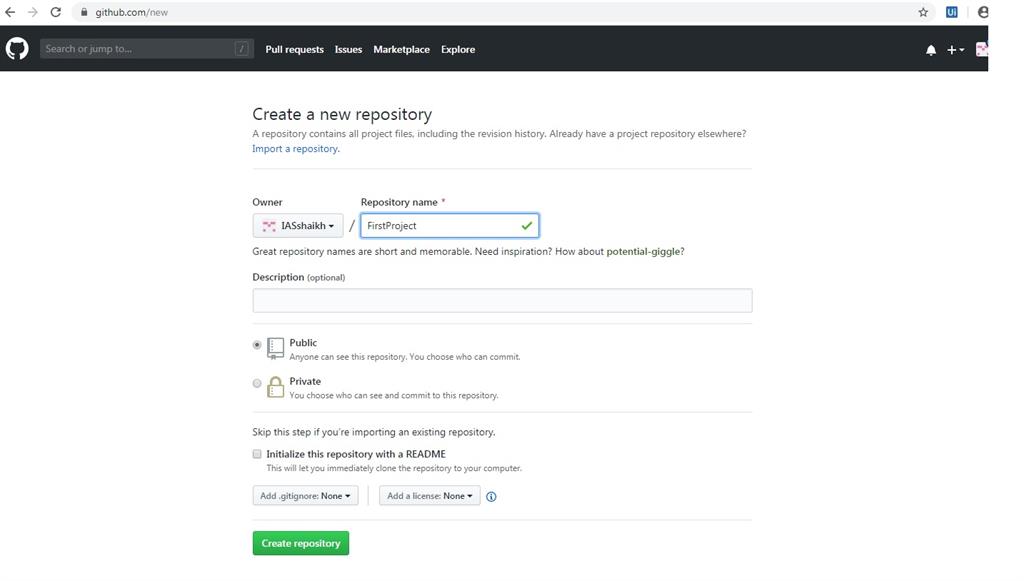

Enter the Respective fields.

Give Remote Repository Path

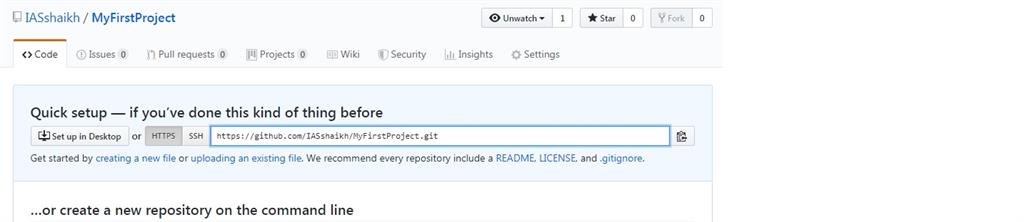

It will give you a repository path like this.

Repository Path

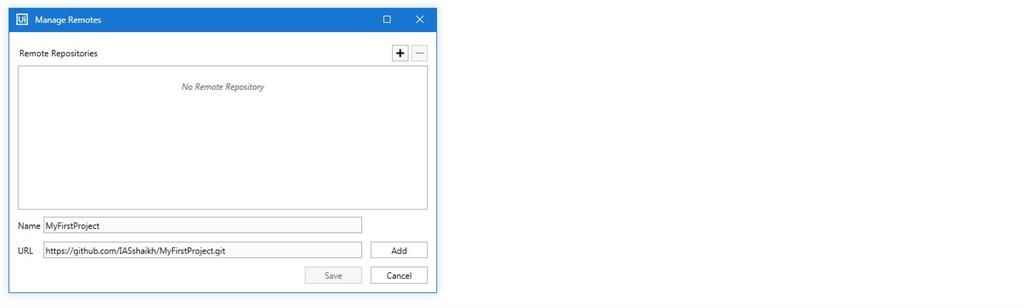

Copy this and fill in here.

Repository URL

Click on Add and then Save.

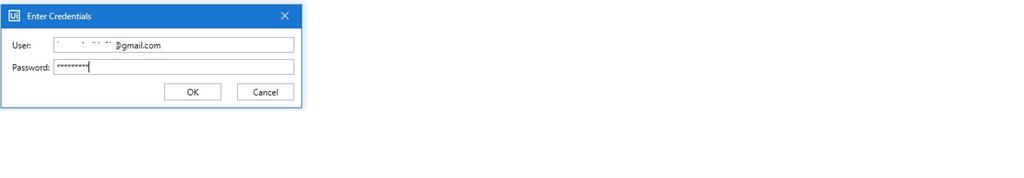

It may ask for user credentials for your GitHub account.

enter Credential
Enter the details and click on OK.

Now go to your GitHub Account and you can find the commited project files there.

commited Projects in GitHub

Now commiting a project to GitHub Cloud is done.

Second Scenario

Now suppose you have a repository by someone else or a remote repository of your own,  and you want to clone the project from that repository to your local then follow the steps:

First Open UiPath

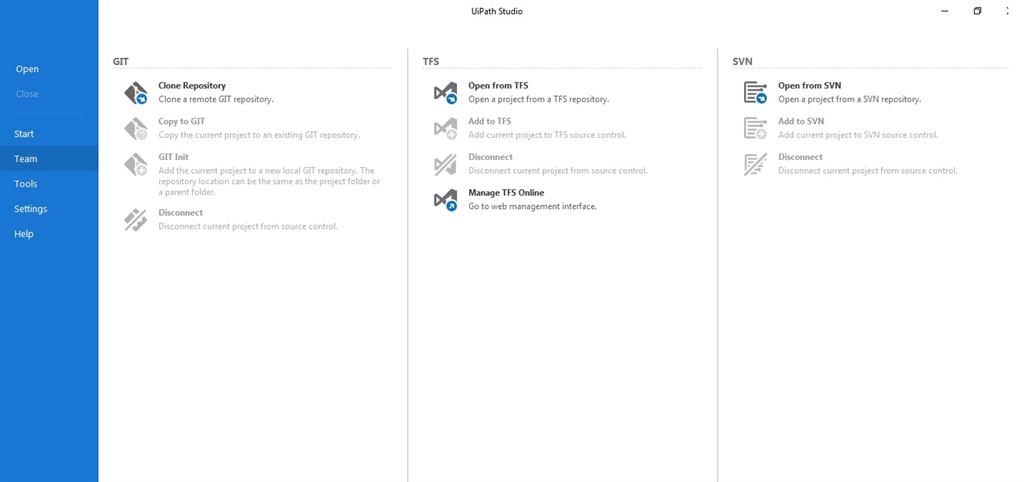

Go to Team and Click on Clone Repository.

Connecting Git For Clone

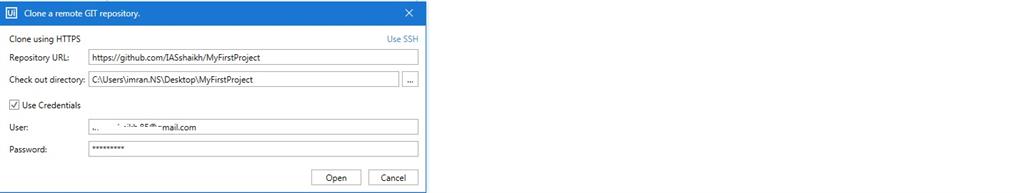

Fill in the info.

Your Project GiT/GitHub URL

CheckOut Folder Path which you want to clone.

User Credentials.

Clone a remote git

And click open with Clone the Project from GitHub and open it  in your studio.


Conclusion


Here we have seen how to Integerate GitHub with RPA UiPath Studio, now you can easily version control your work in UiPath.
