What is a Virtual Private Cloud (VPC) in Alibaba Cloud ?


The realm of cloud computing offers unparalleled scalability and flexibility for businesses. However, maintaining security and control over your critical resources within a shared public cloud environment can be a concern. Alibaba Cloud's Virtual Private Cloud (VPC) service addresses this very need by providing a dedicated, virtual network environment within the Alibaba Cloud infrastructure.

Think of a VPC as your own private enclave within Alibaba Cloud. You have complete control over its configuration, including the IP address range, network segmentation, security measures, and connectivity options. This empowers you to deploy your cloud resources, such as Elastic Compute Service (ECS) instances, databases, and load balancers, in a secure and isolated manner.

This article delves into the intricacies of Alibaba Cloud VPC, exploring its core functionalities, configuration options, and the benefits it offers for businesses seeking a robust and secure cloud experience.

Related Image: © Alibaba Cloud

Key Functionalities of Alibaba Cloud VPC

  • Network Isolation: VPC creates a logically isolated network segment within Alibaba Cloud. Resources deployed within your VPC cannot be directly accessed from the public internet or other VPCs unless you configure specific rules. This isolation enhances security by preventing unauthorized access to your sensitive data and applications.

  • Customizable IP Addressing: You have the freedom to define the IP address range for your VPC. This enables you to maintain consistency with your on-premises network addressing scheme, simplifying migration and management of resources between your cloud and on-premise environments.

  • Subnet Creation: A VPC can be further segmented into virtual subnets. These subnets act as logical partitions within your VPC, allowing you to group resources based on security requirements, functionality, or application tiers. You can implement granular access control policies at the subnet level for enhanced security.

  • Route Tables: Route tables dictate how traffic flows within your VPC and to external networks. You can configure routes to direct traffic to specific gateways, ensuring optimal network performance and security.

  • Security Groups: Security groups act as virtual firewalls, controlling inbound and outbound traffic to resources within your VPC. You can define rules that specify which ports and protocols are accessible, further safeguarding your sensitive data and applications.

  • Gateways: Gateways serve as connection points between your VPC and other networks. Alibaba Cloud VPC offers various gateway types, including:

    • Internet Gateway (IGW): Provides internet access to resources within your VPC.

    • Virtual Private Gateway (VGW): Enables secure communication between your VPC and a Virtual Private Network (VPN) on your premises.

    • Nat Gateway (NAT): Allows resources within your private subnet to access the internet without exposing them directly, enhancing security.

  • Hybrid Cloud Connectivity: VPC facilitates the creation of hybrid cloud environments by enabling secure connections between your Alibaba Cloud resources and your on-premises network. This can be achieved through VPN connections, dedicated leased lines (Express Connect), or Cloud Enterprise Network (CEN).

Benefits of Using Alibaba Cloud VPC

  • Enhanced Security: Isolation, customizable security groups, and controlled network access through gateways significantly bolster the security posture of your cloud resources.

  • Improved Control: VPC empowers you to manage your cloud network environment with granular control. You can define IP address ranges, configure route tables, and implement security policies tailored to your specific needs.

  • Flexibility and Scalability: VPC readily adapts to your evolving business requirements. You can easily create additional subnets, scale resources within your VPC, and leverage hybrid cloud connectivity options as your needs dictate.

  • Cost Optimization: VPC offers pay-as-you-go pricing, allowing you to optimize costs by only paying for the resources you utilize. Additionally, features like NAT Gateways help minimize internet egress charges.

  • Simplified Management: Alibaba Cloud's intuitive VPC console streamlines network management tasks. You can easily create, configure, and monitor your VPC resources from a centralized platform.

Essential Components of Alibaba Cloud VPC

Alibaba Cloud VPC is comprised of several key components that work together to deliver a secure and customizable cloud network environment. Let's delve deeper into these elements:

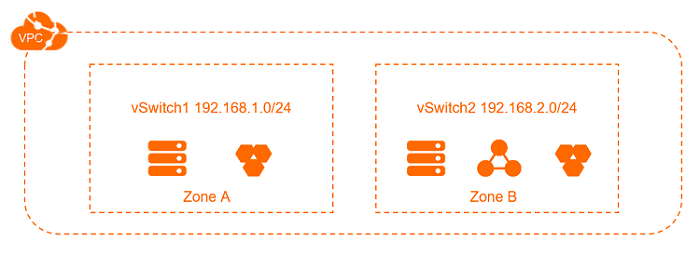

Related Image: © Alibaba Cloud

  • VPC itself: The foundation of your private cloud network within Alibaba Cloud. You define the CIDR block (IP address range) for your VPC and have complete control over its configuration.

  • Virtual Switches (vSwitches): Function as subnets within your VPC, allowing you to segment your network based on security requirements, functionality, or application tiers. Each vSwitch is associated with a specific Availability Zone for redundancy and performance optimization.

  • Route Tables: Control how network traffic flows within your VPC and to external networks. You can define routes to direct traffic to specific gateways, ensuring optimal network performance and security. Each vSwitch can be associated with a custom route table for granular control.

  • Security Groups: Act as virtual firewalls, enforcing security policies by controlling inbound and outbound traffic to resources within your VPC. You define rules that specify which ports and protocols are accessible for each security group attached to your resources.

  • Internet Gateway (IGW): Provides internet access to resources within your VPC. Traffic destined for the internet is routed through the IGW, enabling communication with external services.

  • Virtual Private Gateway (VGW): Facilitates secure communication between your VPC and a VPN on your on-premises network. This enables the creation of hybrid cloud environments where resources in your VPC can securely communicate with resources in your data center.

  • NAT Gateway (NAT): Allows resources within a private subnet to access the internet without exposing them directly. The NAT Gateway acts as an intermediary, translating private IP addresses to a public IP address for outbound traffic, enhancing security, and potentially reducing internet egress costs.

  • Network Access Control Lists (ACLs) (Optional): An additional layer of security that can be implemented at the vSwitch level. ACLs define rules that permit or deny specific types of traffic based on source and destination IP addresses, port numbers, and protocols.

Understanding these core components empowers you to effectively configure and manage your Alibaba Cloud VPC environment to meet your specific security and networking requirements.

Advanced VPC Configurations and Use Cases

  • Advanced Routing: VPC supports Border Gateway Protocol (BGP) routing, enabling complex network configurations and connections to multiple internet service providers (ISPs) for enhanced redundancy and fault tolerance.

  • Service Endpoint: Streamline communication between your VPC resources and Alibaba Cloud services like Object Storage Service (OSS) or Apsara Database RDS without traversing the public internet. This optimizes performance and further strengthens security.

  • VPC Peering: Establish secure, private connections between VPCs within the same Alibaba Cloud region. This facilitates resource sharing and collaboration across different projects or departments without compromising security.

  • High Availability: Design resilient cloud architectures within your VPC. Utilize redundant resources like ECS instances across multiple Availability Zones and leverage features like Auto Scaling to ensure uninterrupted application operation during unforeseen events.

  • Compliance: VPC plays a vital role in achieving compliance with industry regulations and data privacy standards. By isolating your resources and implementing granular access controls, you can demonstrate a strong security posture for sensitive data.

Real-World Use Cases

  • E-commerce Platform: Deploy your e-commerce application within a VPC to isolate customer data and payment processing systems. Utilize security groups to restrict access and leverage VPC peering for secure communication with internal inventory management systems.

  • Healthcare Provider: Establish a secure VPC environment for storing and managing patient health information. Implement robust access controls and leverage VPC endpoints for secure communication with healthcare data analytics services offered by Alibaba Cloud.

  • Financial Institution: Utilize VPC to create a highly secure network for core banking applications. Integrate VPC with dedicated leased lines (Express Connect) for secure, private connectivity to on-premises data centers.


Alibaba Cloud VPC transcends a simple virtual network solution. It empowers businesses to craft secure, customizable, and scalable cloud network environments that perfectly align with their evolving needs. From enhanced security and granular control to seamless hybrid cloud integration, VPC unlocks the true potential of Alibaba Cloud for businesses of all sizes.
