Workflow Patterns in Azure Durable Functions: Fan-out/Fan-in, Chaining, and the Orchestrator’s Role

Table of Contents

  • Introduction

  • Real-World Scenario: Global E-Commerce Order Fulfillment

  • The Orchestrator Function: The Brain of the Workflow

  • Chaining Pattern: Sequential Task Execution

  • Fan-out/Fan-in Pattern: Parallel Processing at Scale

  • Complete Implementation with Resilience

  • Best Practices for Enterprise Workflows

  • Conclusion

Introduction

In modern cloud-native architectures, business processes rarely fit into a single synchronous request-response cycle. Whether it’s processing insurance claims, onboarding users, or fulfilling global orders, workflows are multi-step, long-running, and often require coordination across systems.

Azure Durable Functions—Microsoft’s extension to Azure Functions—solves this by enabling stateful orchestration in a serverless environment. At its core lie three critical concepts: the Orchestrator function, the Chaining pattern, and the Fan-out/Fan-in pattern.

In this article, we’ll explore these patterns through the lens of a real-time global e-commerce order fulfillment system, with production-grade C# code and enterprise-grade design principles.

Real-World Scenario: Global E-Commerce Order Fulfillment

Imagine a multinational retailer processing 10,000 orders per minute. Each order must:

  1. Validate inventory across regional warehouses

  2. Charge the customer’s payment method

  3. Notify logistics partners in parallel (carrier, customs, warehouse)

  4. Confirm shipment and send tracking

This requires sequential validation (chaining) followed by parallel coordination (fan-out/fan-in)—all while being resilient to failures, retries, and timeouts.

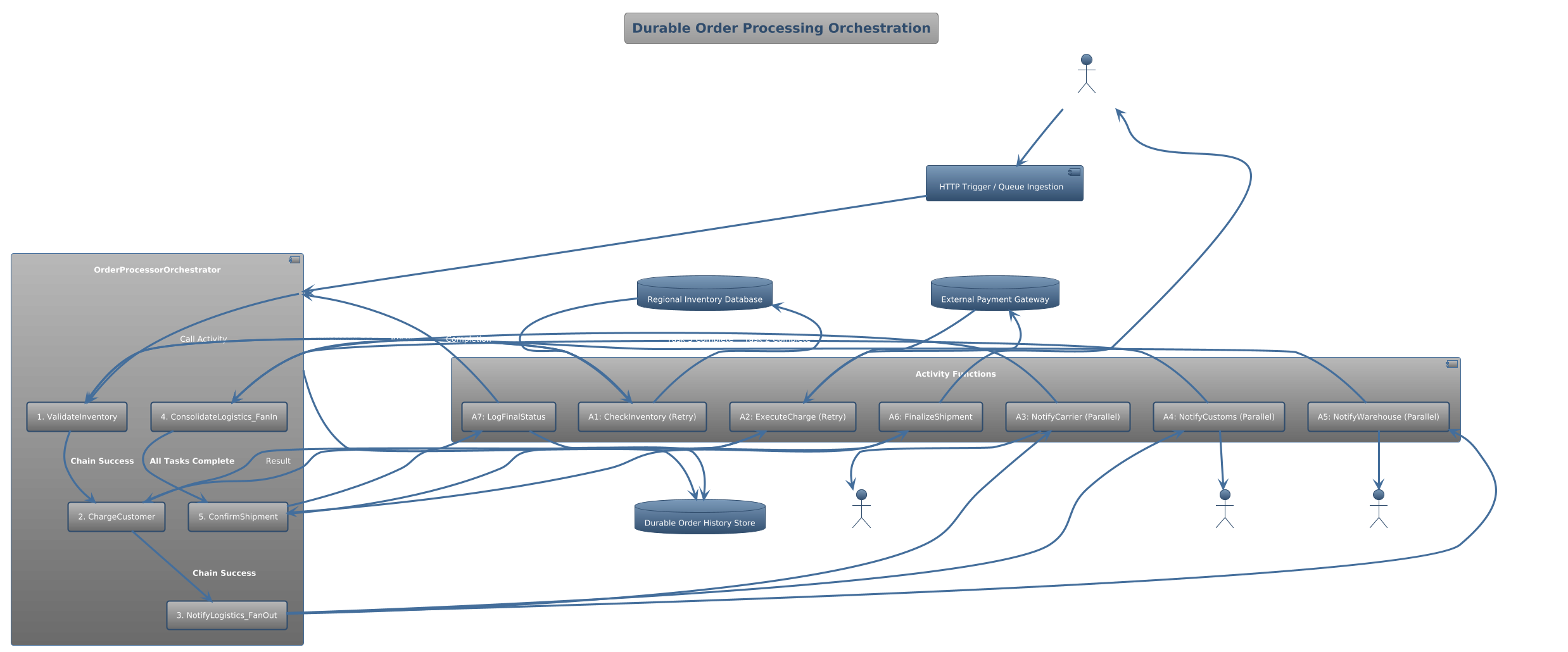

PlantUML Diagram

The Orchestrator Function: The Brain of the Workflow

The Orchestrator function is the central coordinator of your workflow. It defines the control flow but must never perform I/O, generate random values, or call non-deterministic code. Why? Because Azure replays the orchestrator after every checkpoint to reconstruct state, non-determinism breaks replay consistency.

Instead, the orchestrator:

  • Schedules activity functions (which do the real work)

  • Handles errors, timeouts, and human approvals

  • Maintains durability across VM reboots or scale events

Think of the orchestrator as a conductor: it doesn’t play instruments (I/O), but it ensures every musician (activity) plays at the right time.

Chaining Pattern: Sequential Task Execution

The chaining pattern executes functions one after another, where each step depends on the output of the previous.

In our order system

  • Step 1: Validate inventory → returns available warehouse

  • Step 2: Process payment → uses warehouse info for tax calculation

  • Step 3: Reserve shipment slot

[FunctionName(nameof(ProcessOrderChaining))]
public static async Task<OrderResult> ProcessOrderChaining(
    [OrchestrationTrigger] IDurableOrchestrationContext context)
{
    var order = context.GetInput<OrderRequest>();

    // Step 1: Validate inventory
    var inventory = await context.CallActivityAsync<InventoryResponse>(
        nameof(ValidateInventory), order);

    if (!inventory.InStock)
        return new OrderResult { Status = "Failed", Reason = "Out of stock" };

    // Step 2: Process payment
    var payment = await context.CallActivityAsync<PaymentResponse>(
        nameof(ProcessPayment), new { order, inventory.WarehouseId });

    if (!payment.Success)
        return new OrderResult { Status = "Failed", Reason = "Payment declined" };

    // Step 3: Reserve logistics
    await context.CallActivityAsync(nameof(ReserveShipment),
        new { order.OrderId, inventory.WarehouseId });

    return new OrderResult { Status = "Confirmed", TrackingId = payment.TrackingId };
}

This is chaining: linear, deterministic, and auditable.

Fan-out/Fan-in Pattern: Parallel Processing at Scale

After order confirmation, we must notify three independent systems:

  • Regional warehouse (to pack)

  • Shipping carrier (to schedule pickup)

  • Customs broker (for international orders)

Doing this sequentially would add latency. Instead, we fan out to all three in parallel, then fan in once all are complete.

[FunctionName(nameof(NotifyFulfillmentPartners))]
public static async Task FulfillmentFanOutIn(
    [OrchestrationTrigger] IDurableOrchestrationContext context)
{
    var order = context.GetInput<OrderRequest>();

    var tasks = new List<Task>
    {
        context.CallActivityAsync(nameof(NotifyWarehouse), order),
        context.CallActivityAsync(nameof(NotifyCarrier), order)
    };

    // Only notify customs for international orders
    if (order.IsInternational)
        tasks.Add(context.CallActivityAsync(nameof(NotifyCustoms), order));

    // Fan-in: wait for all to complete
    await Task.WhenAll(tasks);

    // Finalize order status
    await context.CallActivityAsync(nameof(UpdateOrderStatus),
        new { order.OrderId, Status = "Shipped" });
}

This pattern reduces end-to-end latency from the sum of durations to the max of durations—critical at scale.

In production, add timeouts and retry policies:

using var cts = new CancellationTokenSource(TimeSpan.FromMinutes(5));
await Task.WhenAll(tasks).WaitAsync(cts.Token);

Complete Implementation with Resilience

Activity Functions (stateless, idempotent):

[FunctionName(nameof(ValidateInventory))]
public static async Task<InventoryResponse> ValidateInventory(
    [ActivityTrigger] OrderRequest order)
{
    // Call inventory microservice
    var client = new HttpClient();
    var res = await client.PostAsJsonAsync("https://inventory-api/check", order);
    return await res.Content.ReadFromJsonAsync<InventoryResponse>();
}

[FunctionName(nameof(ProcessPayment))]
public static async Task<PaymentResponse> ProcessPayment(
    [ActivityTrigger] (OrderRequest order, string warehouseId) input)
{
    // Idempotent payment processing (use order ID as idempotency key)
    var svc = new PaymentService();
    return await svc.ChargeAsync(input.order, input.warehouseId);
}

// Similar for NotifyWarehouse, NotifyCarrier, etc.

HTTP Starter (Client Function)

[FunctionName("StartOrderFulfillment")]
public static async Task<HttpResponseData> StartOrderFulfillment(
    [HttpTrigger(AuthorizationLevel.Function, "post")] HttpRequestData req,
    [DurableClient] IDurableClient client)
{
    var order = await req.ReadFromJsonAsync<OrderRequest>();
    var instanceId = await client.StartNewAsync(nameof(ProcessOrderChaining), order);

    return req.CreateResponse(HttpStatusCode.Accepted, new { instanceId });
}

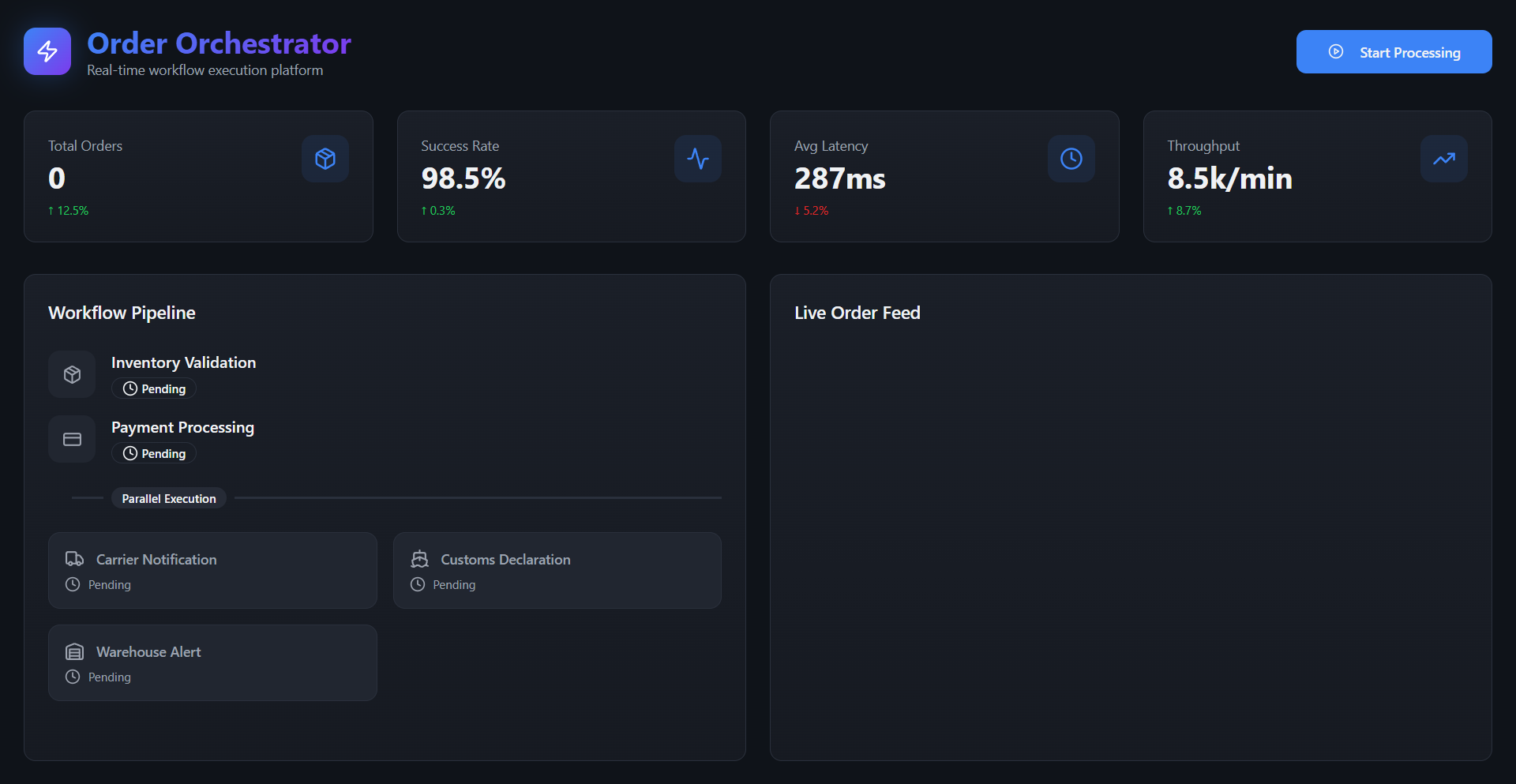

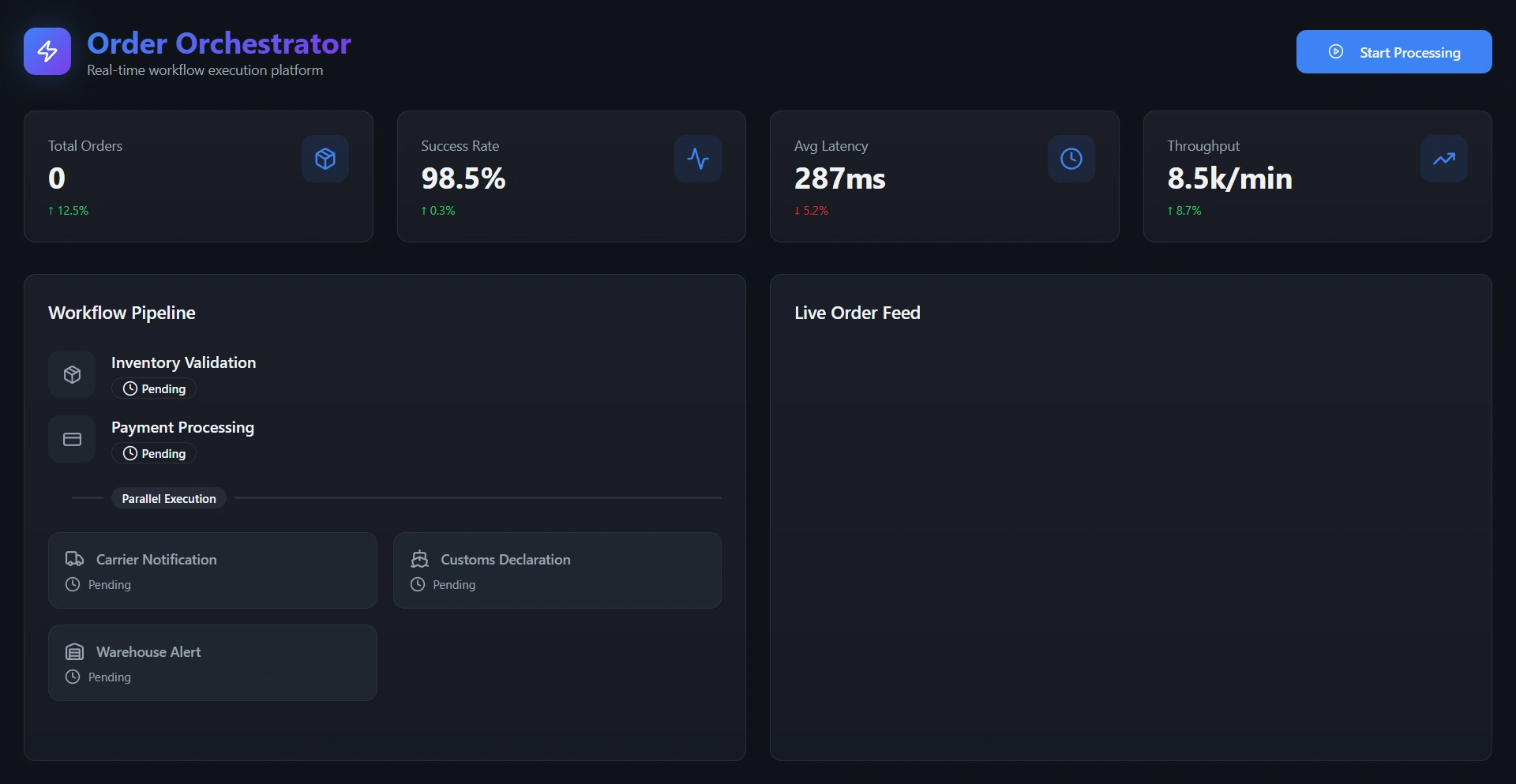

1

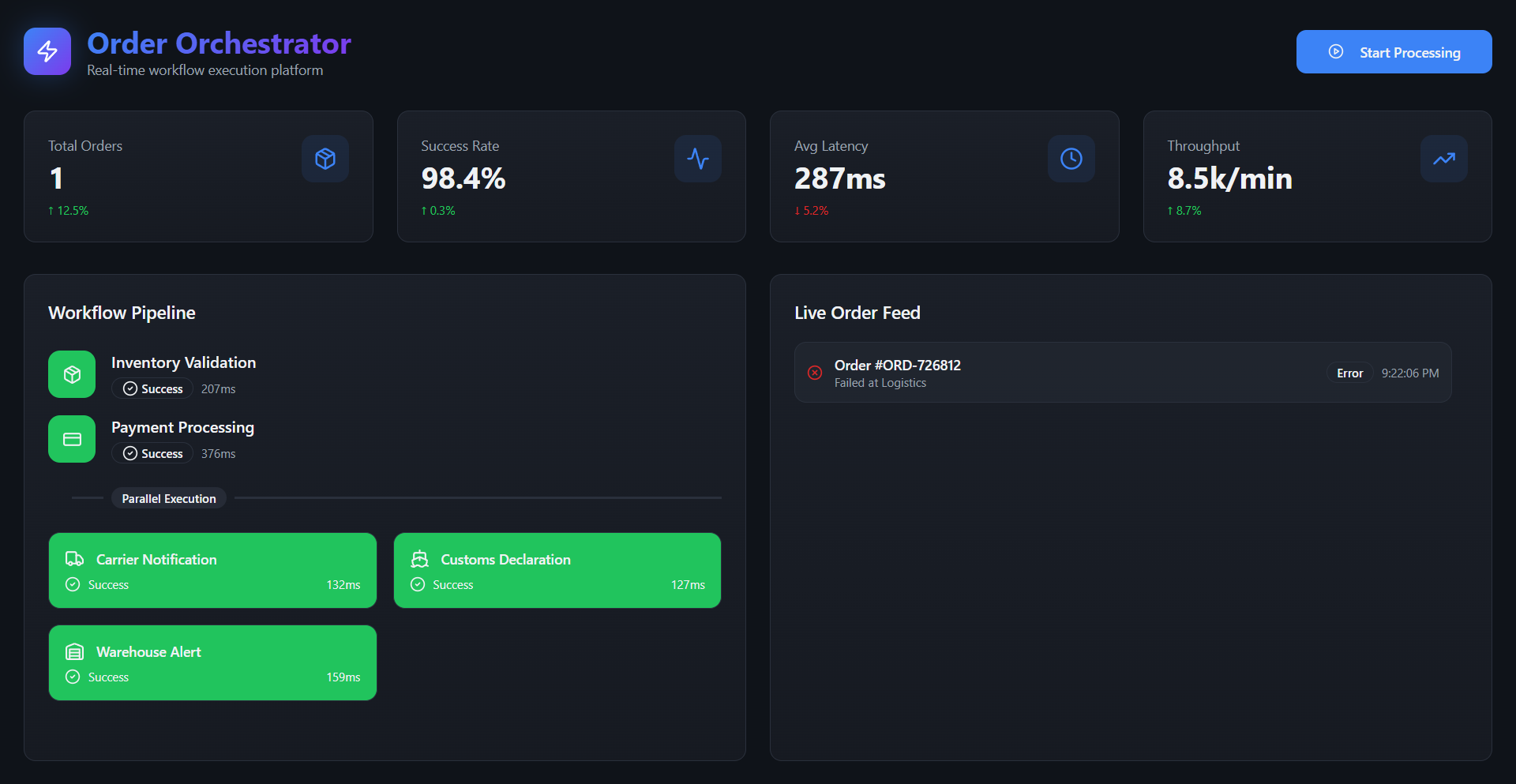

3

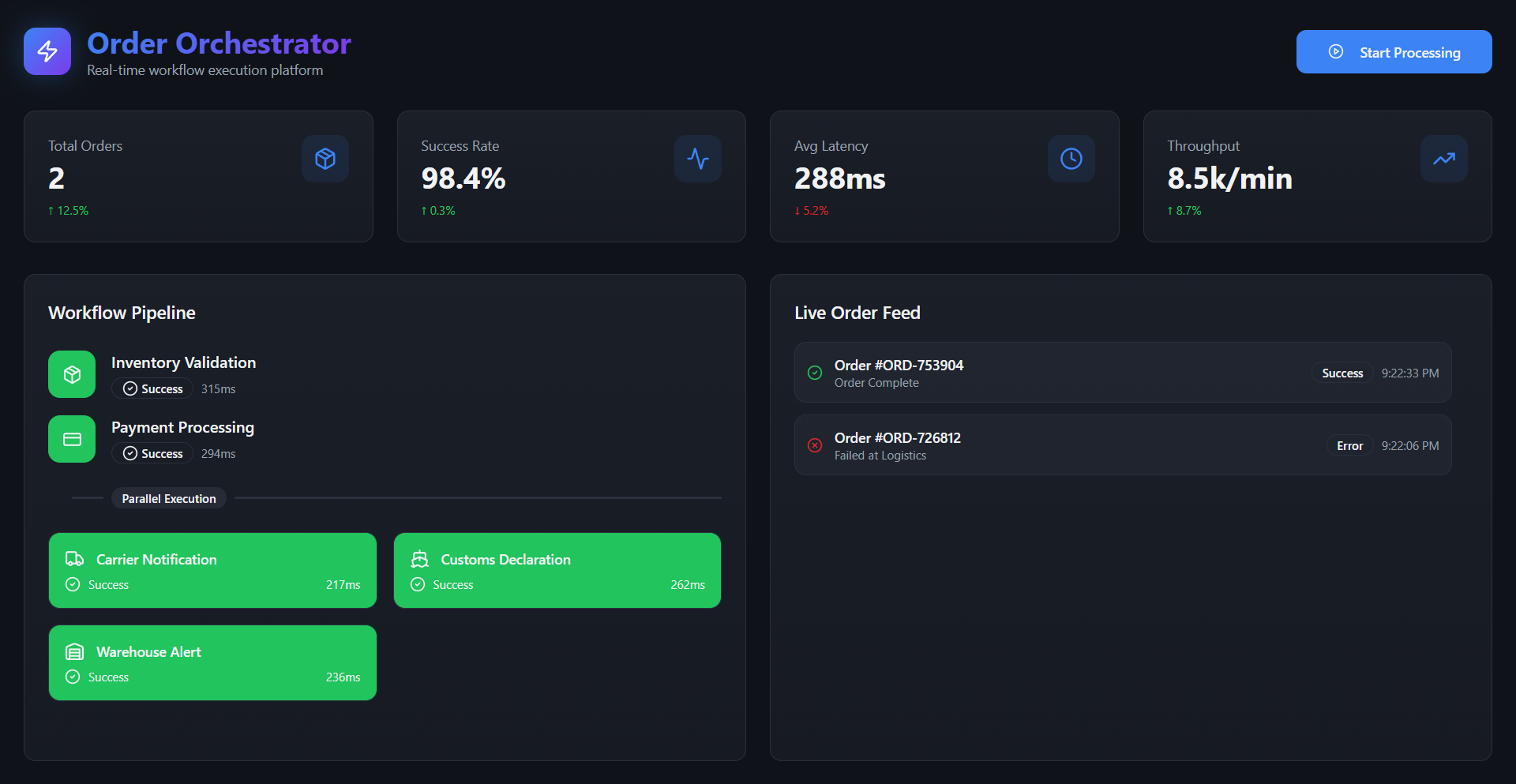

4

Best Practices for Enterprise Workflows

  1. Keep orchestrators deterministic: no DateTime.Now, Guid.NewGuid(), or direct I/O.

  2. Make activity functions idempotent: use business keys for deduplication.

  3. Use durable timers for SLAs: auto-cancel if warehouse doesn’t respond in 30s.

  4. Monitor with Application Insights: Durable Functions emit orchestration traces automatically.

  5. Version orchestrators carefully: use deployment slots and instance migration strategies.

  6. Prefer fan-out/fan-in over loops: avoid long orchestrator replays.

Conclusion

In enterprise serverless systems, workflow patterns are as important as the functions themselves. The Orchestrator provides stateful coordination, Chaining ensures sequential integrity, and Fan-out/Fan-in unlocks parallelism without complexity. Using these patterns in Azure Durable Functions, you can build resilient, observable, and scalable business processes—like global order fulfillment—that meet the demands of modern digital enterprises.
