Zip Folder And Its Content In Windows Runtime Apps

Here are the steps,

Step 1:

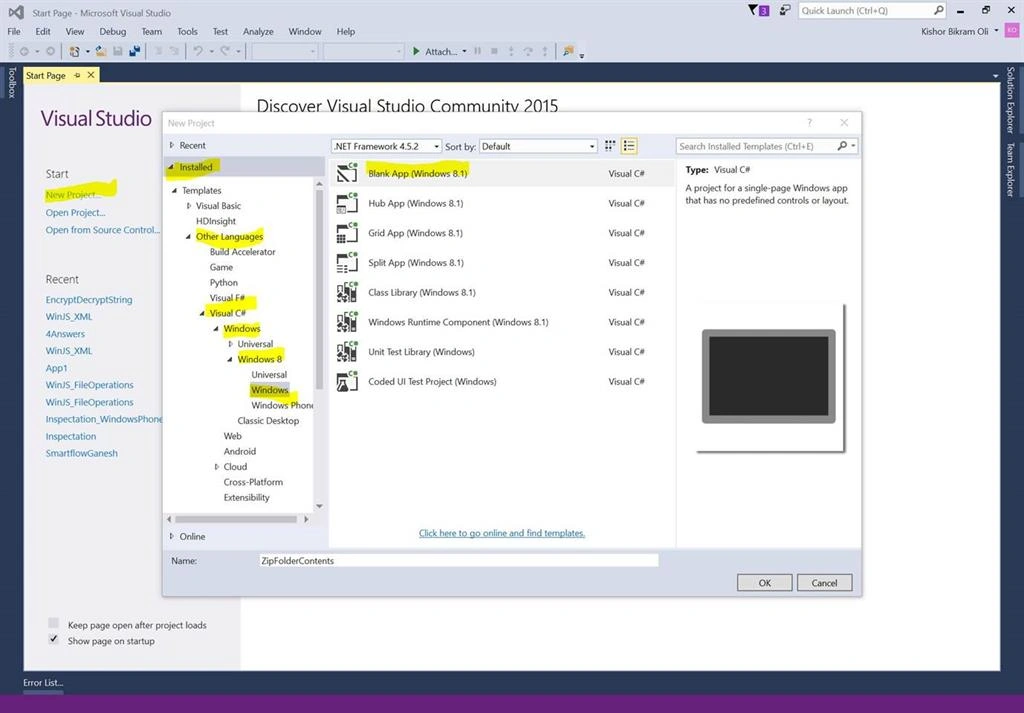

Create a simple Windows Project. New Project, Visual C#, Windows 8, Windows, then click Blank App (Windows 8.1).

new

Step 2:

Let's add a button in MainPage.xaml :
  • A button with the Click event.

Complete MainPage.xaml code snippet is:

  1. <Page
  2.     x:Class="ZipFolderContents.MainPage"
  3.     xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  4.     xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
  5.     xmlns:local="using:ZipFolderContents"
  6.     xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
  7.     xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
  8.     mc:Ignorable="d">
  9.
  10.     <Grid Background="#FF5D3FE4">
  11.         <Button x:Name="btn_ZipContents" Content="Zip Folder" HorizontalAlignment="Left" Margin="451,144,0,0" VerticalAlignment="Top" Click="btn_ZipContents_Click" Height="60" Width="204"/>
  12.     </Grid>
  13. </Page>
Step 3:

For testing purposes, we will read a folder from Documents Library, zip its content and save it in our application local folder.

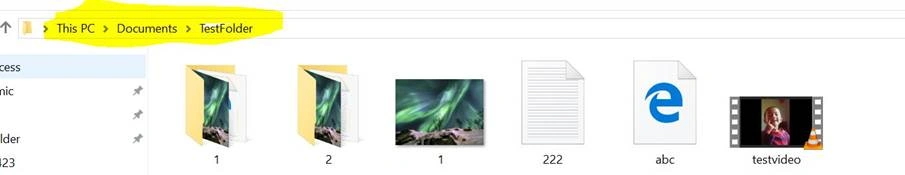

So lets create a folder named ‘TestFolder’ in Documents Library. Inside the ‘TestFolder’, add some folders, text files, images, videos, etc.

file

folder

testfolder

Step 4:

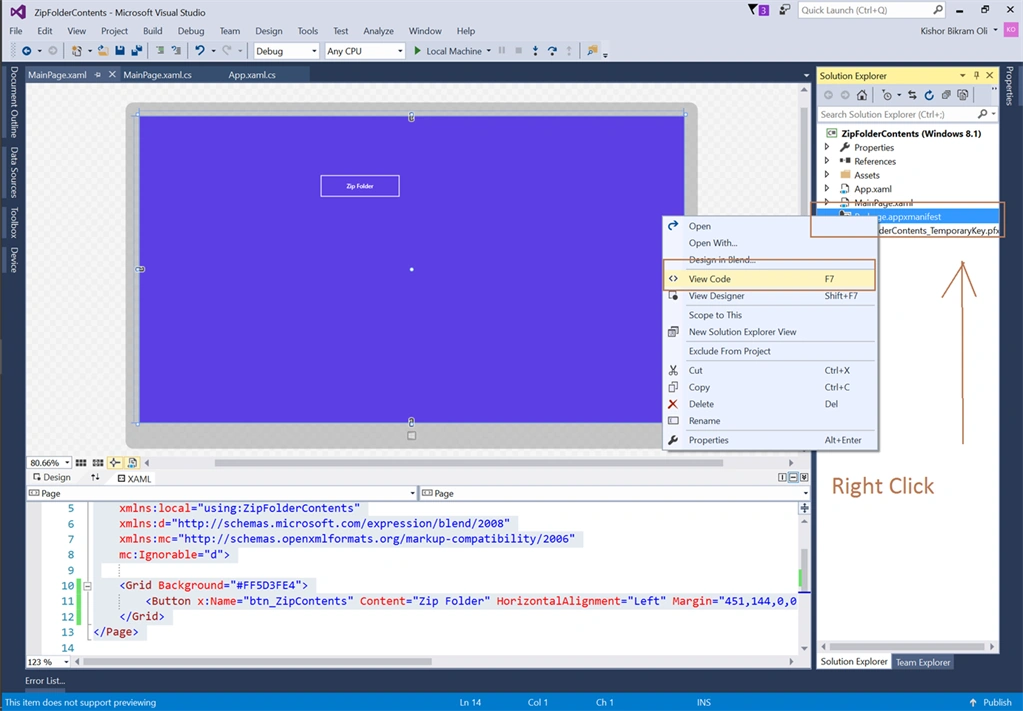

For accessing Documents Library, we have to declar it in app capabilities. Right click on Package.appmanifest > View Code

View Code

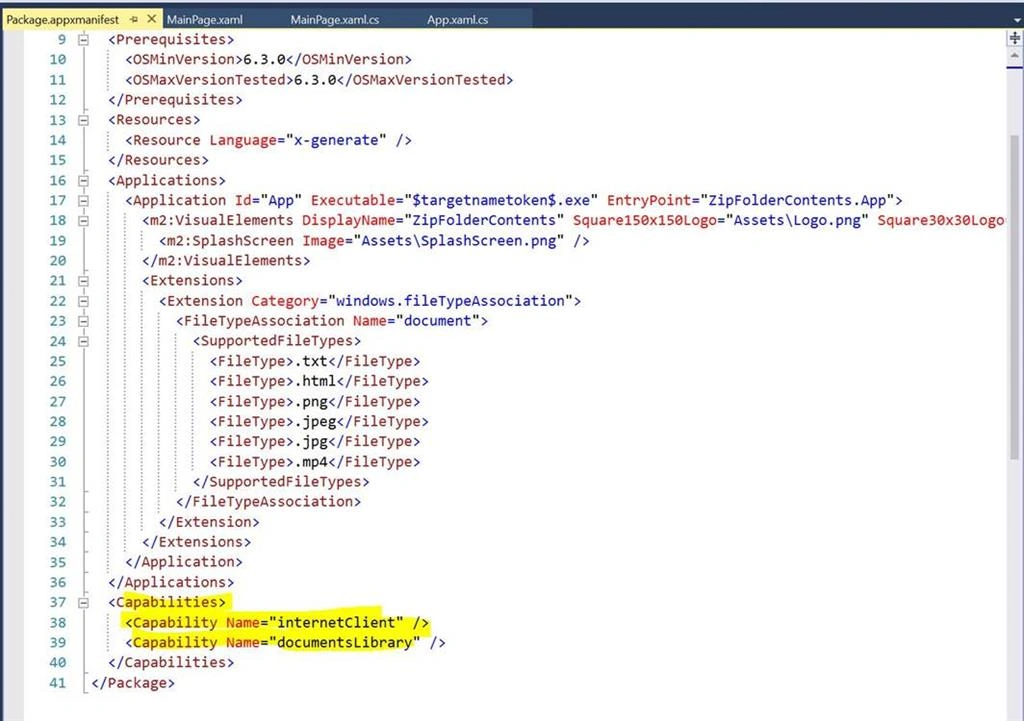

In Package.appmanifest XML, update the Capabilities node with:
  1. <Capabilities>
  2.     <Capability Name="internetClient" />
  3.     <Capability Name="documentsLibrary" />
  4.   </Capabilities>
code

Step 5:

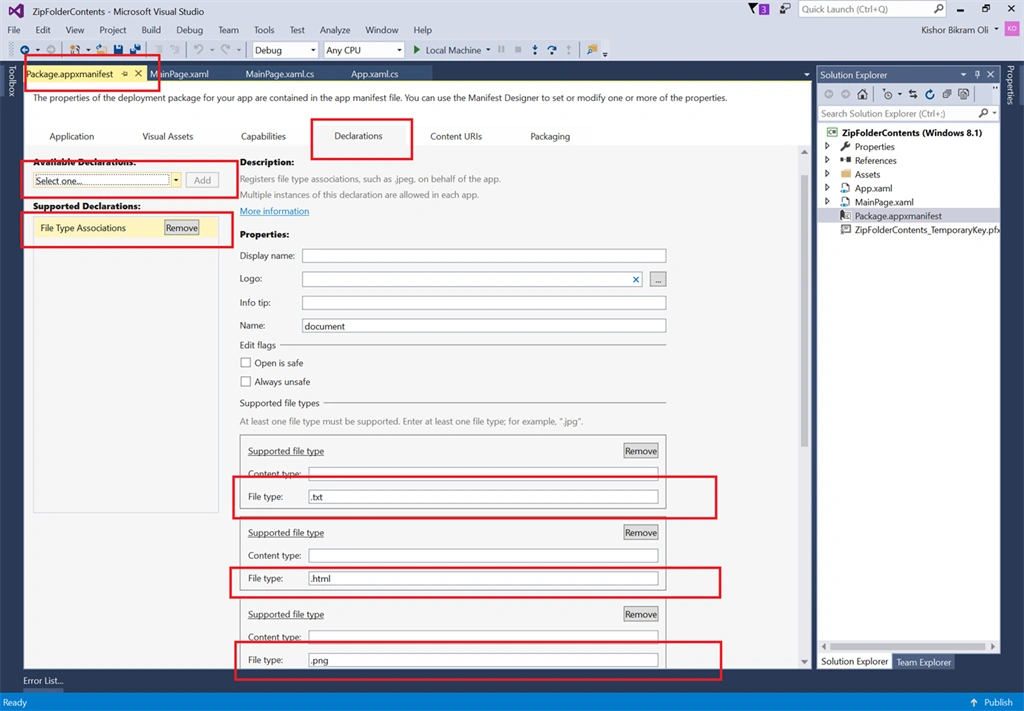

Now again in the Package.appmanifest designer view, we have to add File Type Association declarations as discussed here:

Package

Step 6:

In the code behind: MainPage.xaml.cs

Update your code with this:
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Diagnostics;
  4. using System.IO;
  5. using System.IO.Compression;
  6. using System.Linq;
  7. using System.Runtime.InteropServices.WindowsRuntime;
  8. using System.Threading.Tasks;
  9. using Windows.Foundation;
  10. using Windows.Foundation.Collections;
  11. using Windows.Storage;
  12. using Windows.UI.Popups;
  13. using Windows.UI.Xaml;
  14. using Windows.UI.Xaml.Controls;
  15. using Windows.UI.Xaml.Controls.Primitives;
  16. using Windows.UI.Xaml.Data;
  17. using Windows.UI.Xaml.Input;
  18. using Windows.UI.Xaml.Media;
  19. using Windows.UI.Xaml.Navigation;
  20.
  21. // The Blank Page item template is documented at http://go.microsoft.com/fwlink/?LinkId=234238
  22.
  23. namespace ZipFolderContents
  24. {
  25.     /// <summary>
  26.     /// An empty page that can be used on its own or navigated to within a Frame.
  27.     /// </summary>
  28.     public sealed partial class MainPage : Page
  29.     {
  30.         public MainPage()
  31.         {
  32.             this.InitializeComponent();
  33.         }
  34.
  35.         private async void btn_ZipContents_Click(object sender, RoutedEventArgs e)
  36.         {
  37.             try
  38.             {
  39.                 string appFolderPath = ApplicationData.Current.LocalFolder.Path;
  40.                 StorageFolder destinationFolder = await StorageFolder.GetFolderFromPathAsync(appFolderPath);
  41.
  42.                 //Gets the folder named TestFolder from Documents Library Folder
  43.                 StorageFolder sourceFolder = await KnownFolders.DocumentsLibrary.GetFolderAsync("TestFolder");
  44.
  45.                 //Creates a zip file named TestFolder.zip in Local Folder
  46.                 StorageFile zipFile = await destinationFolder.CreateFileAsync("TestFolder.zip", CreationCollisionOption.ReplaceExisting);
  47.                 Stream zipToCreate = await zipFile.OpenStreamForWriteAsync();
  48.                 ZipArchive archive = new ZipArchive(zipToCreate, ZipArchiveMode.Update);
  49.
  50.                 await ZipFolderContentsHelper(sourceFolder, archive, sourceFolder.Path);
  51.                 archive.Dispose();
  52.                 MessageDialog msg = new MessageDialog("Success");
  53.                 await msg.ShowAsync();
  54.             }
  55.             catch (Exception ex)
  56.             {
  57.                 Debug.WriteLine(ex.ToString());
  58.             }
  59.         }
  60.
  61.         private async Task ZipFolderContentsHelper(StorageFolder sourceFolder, ZipArchive archive, string sourceFolderPath)
  62.         {
  63.             IReadOnlyList<StorageFile> files = await sourceFolder.GetFilesAsync();
  64.
  65.             foreach (StorageFile file in files)
  66.             {
  67.                 ZipArchiveEntry readmeEntry = archive.CreateEntry(file.Path.Remove(0, sourceFolderPath.Length));
  68.                 byte[] buffer = WindowsRuntimeBufferExtensions.ToArray(await FileIO.ReadBufferAsync(file));
  69.                 using (Stream entryStream = readmeEntry.Open())
  70.                 {
  71.                     await entryStream.WriteAsync(buffer, 0, buffer.Length);
  72.                 }
  73.             }
  74.
  75.             IReadOnlyList<StorageFolder> subFolders = await sourceFolder.GetFoldersAsync();
  76.
  77.             if (subFolders.Count() == 0)
  78.             {
  79.                 return;
  80.             }
  81.
  82.             foreach (StorageFolder subfolder in subFolders)
  83.             {
  84.                 await ZipFolderContentsHelper(subfolder, archive, sourceFolderPath);
  85.             }
  86.         }
  87.     }
  88. }

Step 7:

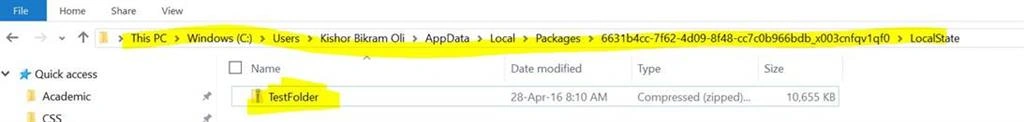

Run the application and click on Zip Folder button, you will get a success message if everything is OK. And ‘TestFolder.zip’ is created in: This PC, C , Users > [Your User Name] > AppData, Local, Packages, [App package name] > LocalState

LocalState

That’s it.
Thanks, Happy Coding!
