Add, Update And Remove Web Part Using CSOM

Introduction


Web parts are the building blocks of the pages by which you can modify the content, appearance and behavior of pages of a SharePoint site.

In this blog we are going to discuss how to Add, Update and Remove the web part using csom. Here I have used Content Editor Web Part in Wiki page.


Adding the web part in a wikipage


Step 1

First set the credentials by providing the user credentials.

Step 2

Using the client context, load the web.

Step 3

Get the object of the file using server relative url of the wiki page in which you want to add the web part. Example (/sites/Team Site/Site Pages/wikiPage.aspx).

Step 4

Get the 'limitedWebPartManager' by using object file.

Step 5

Design the Xml string for importing the web part as definition of web part in 'limitedWebPartManager'. In xml I have added the Title of web part as 'My Web Part'.

Step 6

Then add the web part order and left zone of the page.

Follow the below code snippet,
  1. using System;
  2. using Microsoft.SharePoint.Client;
  3. using Microsoft.SharePoint.Client.WebParts;
  4. using System.Security;
  5. namespace webpartadd {
  6.     class Program {
  7.         static void Main(string[] args) {
  8.             string userName = "userName@tenantName.onmicrosoft.com";
  9.             string password = "PassWord";
  10.             string siteUrl = "https://tenantName.sharepoint.com/sites/TeamSite";
  11.             SecureString securePassword = new SecureString();
  12.             foreach(char c in password) {
  13.                 securePassword.AppendChar(c);
  14.             }
  15.             var credentials = new SharePointOnlineCredentials(userName, securePassword);
  16.             using(ClientContext clientContext = new ClientContext(siteUrl)) {
  17.                 try {
  18.                     clientContext.Credentials = credentials;
  19.                     clientContext.Load(clientContext.Web);
  20.                     clientContext.ExecuteQuery();
  21.                     File oFile = clientContext.Web.GetFileByServerRelativeUrl("/sites/TeamSite/SitePages/wikiPage.aspx");
  22.                     LimitedWebPartManager limitedWebPartManager = oFile.GetLimitedWebPartManager(PersonalizationScope.Shared);
  23.                     string xmlWebPart = "<?xml version=\"1.0\" encoding=\"utf-8\"?>" + "<WebPart xmlns:xsi=\"http://www.w3.org/2001/XMLSchema-instance\"" + " xmlns:xsd=\"http://www.w3.org/2001/XMLSchema\"" + " xmlns=\"http://schemas.microsoft.com/WebPart/v2\">" + "<Title>My Web Part</Title><FrameType>Default</FrameType>" + "<Description>Use for formatted text, tables, and images.</Description>" + "<IsIncluded>true</IsIncluded><ZoneID></ZoneID><PartOrder>0</PartOrder>" + "<FrameState>Normal</FrameState><Height /><Width /><AllowRemove>true</AllowRemove>" + "<AllowZoneChange>true</AllowZoneChange><AllowMinimize>true</AllowMinimize>" + "<AllowConnect>true</AllowConnect><AllowEdit>true</AllowEdit>" + "<AllowHide>true</AllowHide><IsVisible>true</IsVisible><DetailLink /><HelpLink />" + "<HelpMode>Modeless</HelpMode><Dir>Default</Dir><PartImageSmall />" + "<MissingAssembly>Cannot import this Web Part.</MissingAssembly>" + "<PartImageLarge>/_layouts/images/mscontl.gif</PartImageLarge><IsIncludedFilter />" + "<Assembly>Microsoft.SharePoint, Version=13.0.0.0, Culture=neutral, " + "PublicKeyToken=94de0004b6e3fcc5</Assembly>" + "<TypeName>Microsoft.SharePoint.WebPartPages.ContentEditorWebPart</TypeName>" + "<ContentLink xmlns=\"http://schemas.microsoft.com/WebPart/v2/ContentEditor\" />" + "<Content xmlns=\"http://schemas.microsoft.com/WebPart/v2/ContentEditor\">" + "<![CDATA[This is a first paragraph!<DIV> </DIV>And this is a second paragraph.]]></Content>" + "<PartStorage xmlns=\"http://schemas.microsoft.com/WebPart/v2/ContentEditor\" /></WebPart>";
  24.                     WebPartDefinition oWebPartDefinition = limitedWebPartManager.ImportWebPart(xmlWebPart);
  25.                     limitedWebPartManager.AddWebPart(oWebPartDefinition.WebPart, "Left", 1);
  26.                     clientContext.ExecuteQuery();
  27.                 } catch (Exception e) {
  28.                     Console.WriteLine(e);
  29.                 }
  30.             }
  31.             Console.WriteLine("Succcesfully added webpart");
  32.         }
  33.     }
  34. }

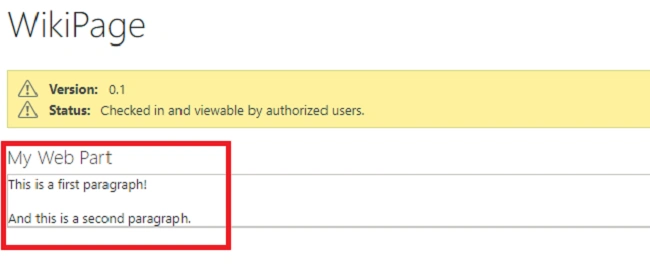

In the below image webpat is added in a wikipage,

Add, Update And Remove Web Part Using CSOM


Updating the web part in a wikipage


Step 1

First set the credentials by providing the user credentials.

Step 2

Using the client context, load the web.

Step 3

Get the object of the file using the server relative URL of the wiki page in which you want to add the web part. Example (/sites/team Site/Site Pages/wikiPage.aspx).

Step 4

Get the 'limitedWebPartManager' by using object file.

Step 5

Load the web part using LINQ query expression to return only the title of each Web Part.

Step 6

Check the page having at least one web part for updating.

Step 7

Get the web part definition by using the order value.

Step 8

Change the web part Title then save the web part by calling 'SaveWebPartChanges()'.

Follow the below code snippet,
  1. using System;
  2. using Microsoft.SharePoint.Client;
  3. using Microsoft.SharePoint.Client.WebParts;
  4. using System.Security;
  5. namespace UpdateWebpart {
  6.     class Program {
  7.         static void Main(string[] args) {
  8.             string userName = "userName@tenantName.onmicrosoft.com";
  9.             string password = "PassWord";
  10.             string siteUrl = "https://tenantName.sharepoint.com/sites/TeamSite";
  11.             SecureString securePassword = new SecureString();
  12.             foreach(char c in password) {
  13.                 securePassword.AppendChar(c);
  14.             }
  15.             var cred = new SharePointOnlineCredentials(userName, securePassword);
  16.             using(ClientContext clientContext = new ClientContext(siteUrl)) {
  17.                 try {
  18.                     clientContext.Credentials = cred;
  19.                     clientContext.Load(clientContext.Web);
  20.                     clientContext.ExecuteQuery();
  21.                     File oFile = clientContext.Web.GetFileByServerRelativeUrl("/sites/TeamSite/SitePages/wikiPage.aspx");
  22.                     LimitedWebPartManager limitedWebPartManager = oFile.GetLimitedWebPartManager(PersonalizationScope.Shared);
  23.                     clientContext.Load(limitedWebPartManager.WebParts, wps => wps.Include(wp => wp.WebPart.Title));
  24.                     clientContext.ExecuteQuery();
  25.                     if (limitedWebPartManager.WebParts.Count == 0) {
  26.                         throw new Exception("No Web Parts on this page.");
  27.                     }
  28.                     WebPartDefinition oWebPartDef = limitedWebPartManager.WebParts[0];
  29.                     WebPart oWebPart = oWebPartDef.WebPart;
  30.                     oWebPart.Title = "New WebPart Title";
  31.                     oWebPartDef.SaveWebPartChanges();
  32.                     clientContext.ExecuteQuery();
  33.                 } catch (Exception e) {
  34.                     Console.WriteLine(e);
  35.                 }
  36.             }
  37.             Console.WriteLine("Succcesfully updated webpart");
  38.         }
  39.     }
  40. }

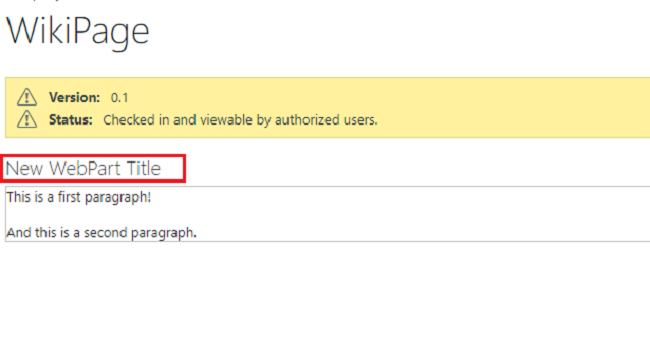

In the below image web pat title is update in a wikipage,

Add, Update And Remove Web Part Using CSOM


Removing the web part from a wikipage


Step 1

First set the credentials by providing the user credentials.

Step 2

Using the client context and, load the web.

Step 3

Get the object of the file using server relative URL of the wiki page in which you want to add the web part. Example (/sites/team Site/Site Pages/wikiPage.aspx).

Step 4

Get the 'limitedWebPartManager' by using object file.

Step 5

Load the web part.

Step 6

Check the page having at least one web part for deleting.

Step 7

Get the web part definition by using the order value.

Step 8

Delete the web part by calling ‘DeleteWebPart ()'.

Follow the below code snippet,
  1. using System;
  2. using Microsoft.SharePoint.Client;
  3. using Microsoft.SharePoint.Client.WebParts;
  4. using System.Security;
  5. namespace RemoveWebpart {
  6.     class Program {
  7.         static void Main(string[] args) {
  8.             string userName = "userName@tenantName.onmicrosoft.com";
  9.             string password = "PassWord";
  10.             string siteUrl = "https://tenantName.sharepoint.com/sites/TeamSite";
  11.             SecureString securePassword = new SecureString();
  12.             foreach(char c in password) {
  13.                 securePassword.AppendChar(c);
  14.             }
  15.             var cred = new SharePointOnlineCredentials(userName, securePassword);
  16.             using(ClientContext clientContext = new ClientContext(siteUrl)) {
  17.                 try {
  18.                     clientContext.Credentials = cred;
  19.                     clientContext.Load(clientContext.Web);
  20.                     clientContext.ExecuteQuery();
  21.                     File oFile = clientContext.Web.GetFileByServerRelativeUrl("/sites/TeamSite/SitePages/wikiPage.aspx");
  22.                     LimitedWebPartManager ltdWebPartManager = oFile.GetLimitedWebPartManager(PersonalizationScope.Shared);
  23.                     clientContext.Load(ltdWebPartManager.WebParts);
  24.                     clientContext.ExecuteQuery();
  25.                     if (ltdWebPartManager.WebParts.Count == 0) {
  26.                         throw new Exception("No Web Parts to delete.");
  27.                     }
  28.                     WebPartDefinition webPartDef = ltdWebPartManager.WebParts[0];
  29.                     webPartDef.DeleteWebPart();
  30.                     clientContext.ExecuteQuery();
  31.                 } catch (Exception e) {
  32.                     Console.WriteLine(e);
  33.                 }
  34.                 Console.WriteLine("Succcesfully deleted webpart");
  35.             }
  36.         }
  37.     }
  38. }
In the below image web pat is deleted from the wikipage,

Add, Update And Remove Web Part Using CSOM
