Azure Blob Storage

Today, I will explain how to create Azure Blob Storage and upload and download files from Azure Blob Storage using C#.

Step 1 - Create Azure Blob Storage

Link - Portal.Azure.com.

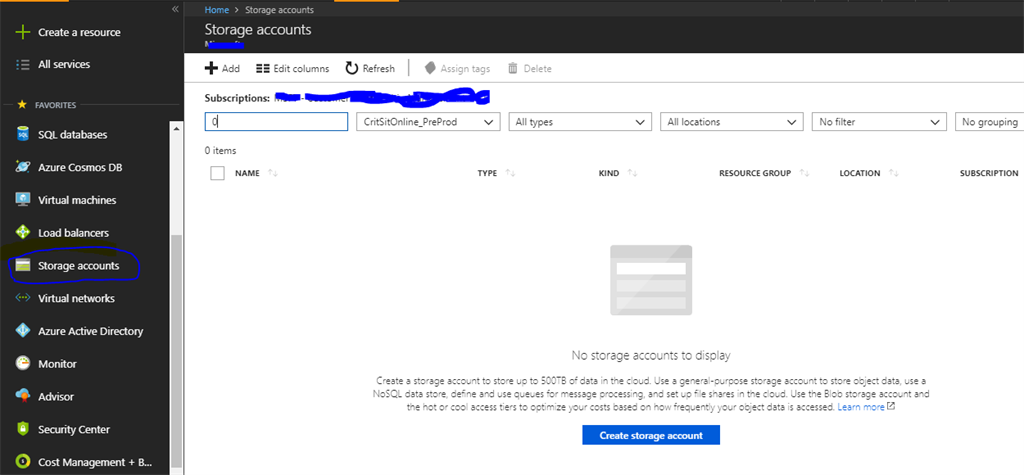

In the left menu, click on Storage. It will take you to the Microsoft Storage account.



Step 2

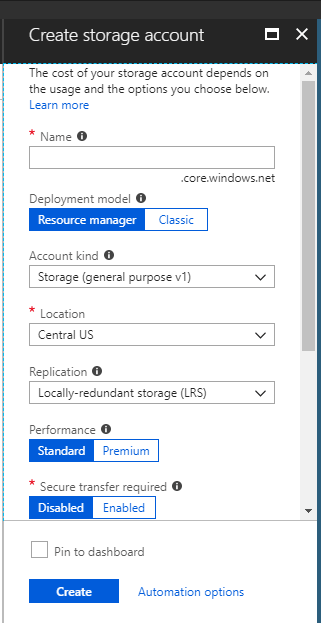

Add a new Storage Account by clicking the Add button.

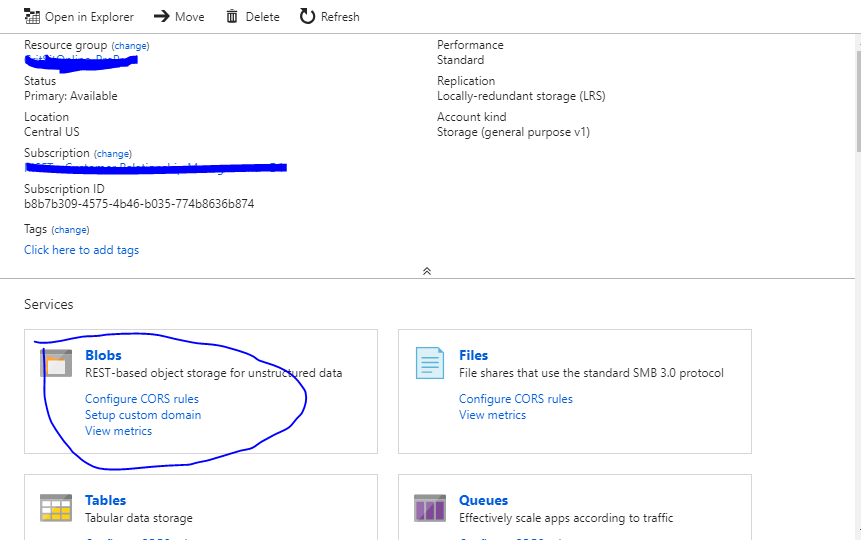

Navigate to the Blob Service section, as shown below.

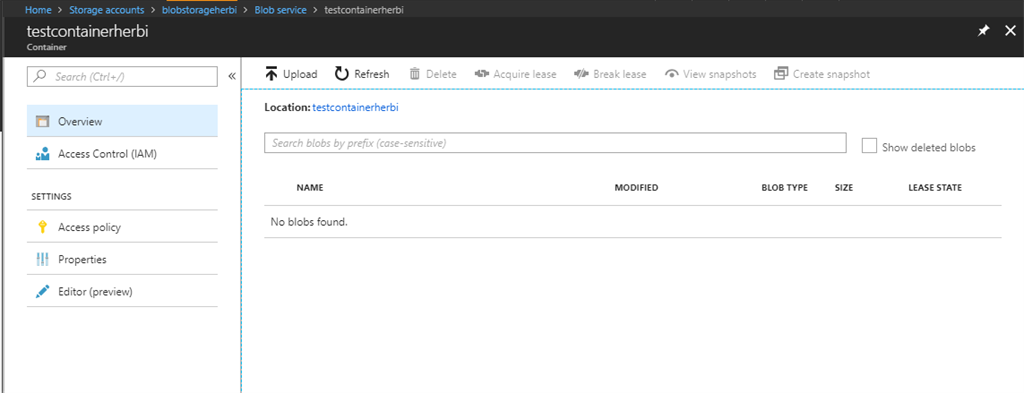

Next, create a container for the Blob to add files into the container using the Upload button, as shown below.

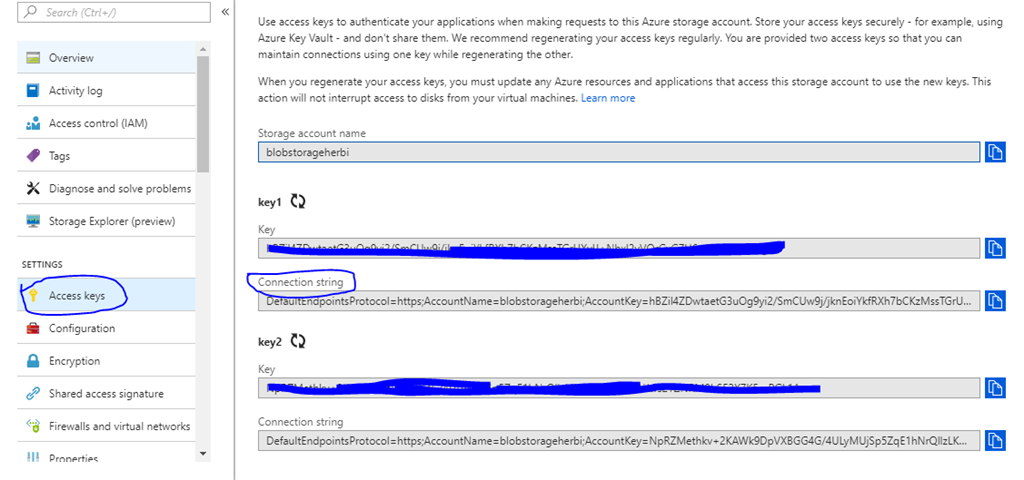

Navigate to the Storage Account (which you created) -> AccessKey, copy connection string which is used to connect to the Blob from C# code.



Step 3 - Programming part

Add the required reference using NuGet.

  1. using Microsoft.Azure;
  2. using Microsoft.WindowsAzure.Storage;
  3. using Microsoft.WindowsAzure.Storage.Blob;

NuGet Package Manager is,

Install-Package WindowsAzure.Storage -Version 9.3.2

Add the Azure Storage Account Connection String in App.config which I explained in the previous screenshot. Copy the below code and reference the file which is to be uploaded. The code will work like a charm.

  1. string storageConnection = CloudConfigurationManager.GetSetting("BlobStorageConnectionString");
  2. CloudStorageAccount cloudStorageAccount = CloudStorageAccount.Parse(storageConnection);
  3. //create a block blob CloudBlobClient cloudBlobClient = cloudStorageAccount.CreateCloudBlobClient();
  4. //create a container CloudBlobContainer cloudBlobContainer = cloudBlobClient.GetContainerReference("appcontainer");
  5. //create a container if it is not already exists
  6. if (await cloudBlobContainer.CreateIfNotExistsAsync()) {
  7.     await cloudBlobContainer.SetPermissionsAsync(new BlobContainerPermissions {
  8.         PublicAccess = BlobContainerPublicAccessType.Blob
  9.     });
  10. }
  11. string imageName = "Test-" + Path.GetExtension(imageToUpload.FileName);
  12. //get Blob reference
  13. CloudBlockBlob cloudBlockBlob = cloudBlobContainer.GetBlockBlobReference(imageName);
  14. cloudBlockBlob.Properties.ContentType = imageToUpload.ContentType;
  15. await cloudBlockBlob.UploadFromStreamAsync(imageToUpload.InputStream);

Step 3.1

Download file from Azure Blob using C#.

  1. var containerName = "testcontainerherbi";
  2.
  3. string storageConnection = CloudConfigurationManager.GetSetting("BlobStorageConnectionString"); CloudStorageAccount cloudStorageAccount = CloudStorageAccount.Parse(storageConnection); CloudBlobClient blobClient = cloudStorageAccount.CreateCloudBlobClient();
  4.
  5. CloudBlobContainer cloudBlobContainer = blobClient.GetContainerReference(containerName); CloudBlockBlob blockBlob = cloudBlobContainer.GetBlockBlobReference("uploadedfilename.ext");
  6.
  7. MemoryStream memStream = new MemoryStream();
  8.
  9. blockBlob.DownloadToStream(memStream);
  10.
  11. HttpContext.Current.Response.ContentType = blockBlob.Properties.ContentType.ToString(); HttpContext.Current.Response.AddHeader("Content-Disposition", "Attachment; filename=" + blockBlob.ToString());
  12.
  13. HttpContext.Current.Response.AddHeader("Content-Length", blockBlob.Properties.Length.ToString()); HttpContext.Current.Response.BinaryWrite(memStream.ToArray()); HttpContext.Current.Response.Flush(); HttpContext.Current.Response.Close();
Please download the attached file.

I hope it's helpful. Eat-> Code->Sleep->Repeat.
