Child Flows In Power Automate

Introduction

Power Automate is a wonderful tool for modern and end-users, but it can quickly become huge and we end up writing a similar piece of code at multiple places, though copy to clipboard is a quick savior, if there is a change in a single place, for it to propagate to multiple places is a time-consuming thing. The best bet to us in these cases would be child flows.

Prerequisite

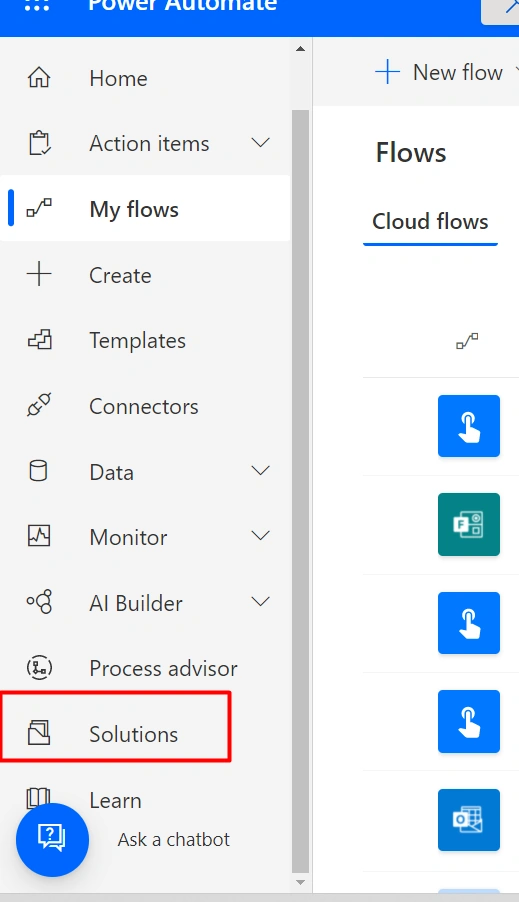

The child workflows are currently available as part of solutions. The solutions are accessible through the left navigation in the Power automate center.

Solutions

The solution is a logical container/group of Power Apps, Automates, tables, parameters, and connections. These help to ease the application life cycle maintenance of the Power Platform.

The solution can be:

Child Flow

The child flow is like any other flow except that you chose to invoke another flow manually. The child flow helps us to create a reusable flow that can be invoked from multiple places and also help to break the large flows which eases the maintainability.

Steps to Create a child Flow

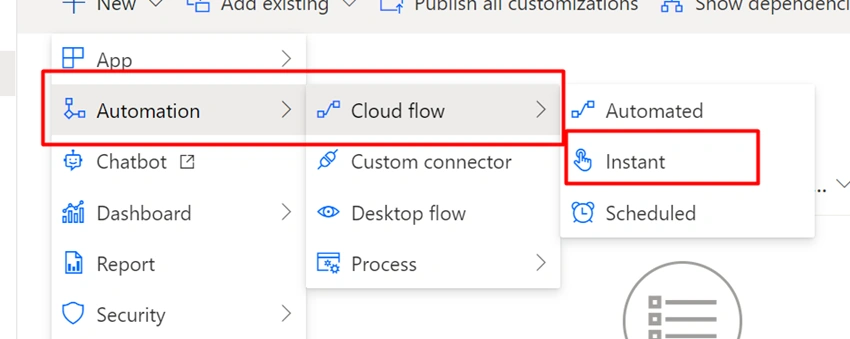

Navigate to any solution use the New -> Cloud Flow -> Choose Instant

Child Flows in Power Automate

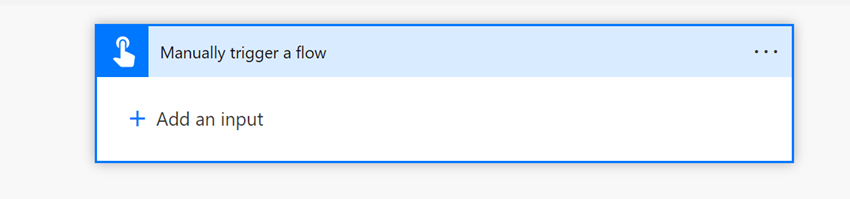

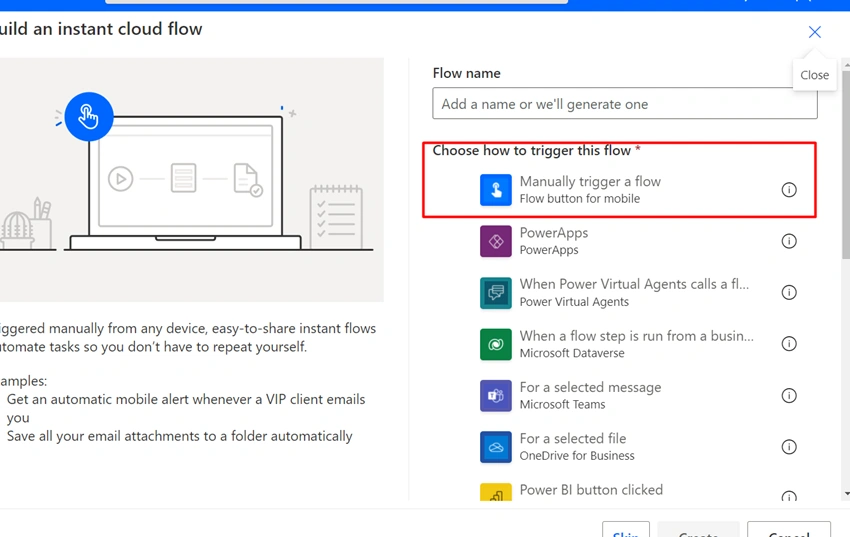

Ensure that the trigger is ‘Manually trigger a flow’

Child Flows in Power Automate

Artifacts of Flow

Every flow can have the following components

Input Parameters
Processing Body
Output

Artifact	Purpose	Mandatory	Count
Input Parameters	Defines the initial values for the flow to run with	No	Zero or more
Processing Body/Actions	The actual actions that define the flow	NA	One or more
Output Values	Defines the response that needs to be sent to the parent flow, though saving current flow does not mandate it, Invocation of the child flow from parent flow mandates it	Yes	One or more

Input Parameter

As the name says it helps to pass any parameters of the specific types can be passed. Below are the types of input parameters. The parameters can be

Text
Boolean
File
Email
Number
Date

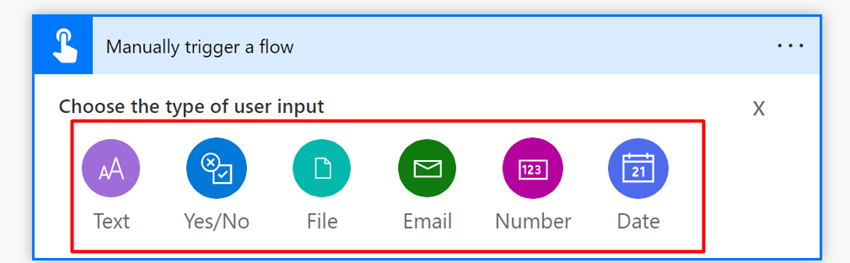

Navigate to the flow, click on ‘Add an input’

Child Flows in Power Automate

Output Parameter

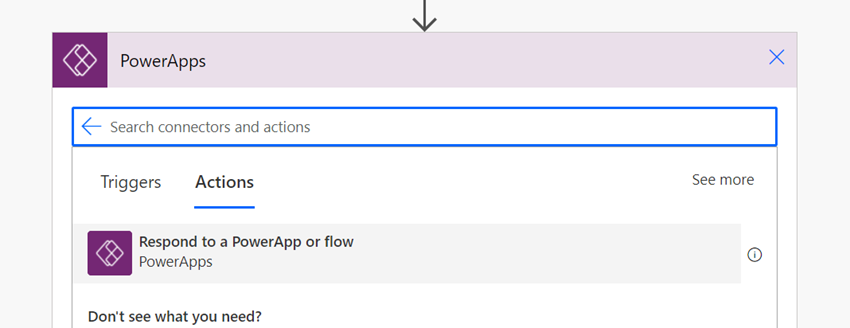

For the flow to be used in another flow It needs to send a definitive response and is actually invoked using the below action

Child Flows in Power Automate

The output of the flow also should define its type and follows the same types of input parameters have.

Invoking the flow from another flow

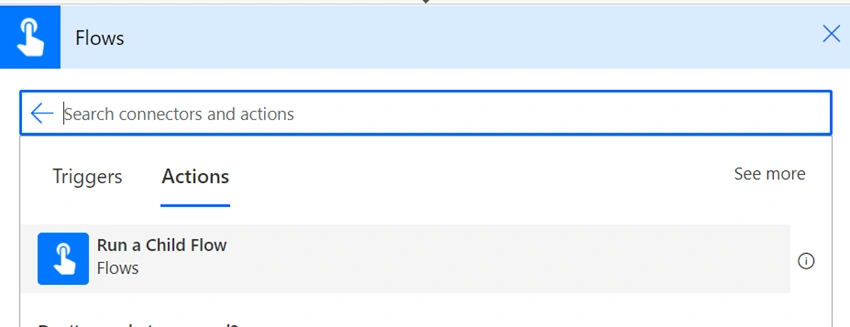

Use the action Run a child flow and you could choose from the list of flows available

Child Flows in Power Automate

Common Issues

The below error would trigger if the child flow or sub-flow does not return a response, navigate to the child flow and return at least one parameter as shown in the outputs section

Run a Child Flow action is missing: Check if your power automate is not part of the solution, if yes, please move it

Citations

Solutions: https://docs.microsoft.com/en-us/power-automate/overview-solution-flows
Flow Issues: https://docs.microsoft.com/en-us/power-automate/triggers-troubleshoot

Conclusion

This article helps us to understand how to create reusable actions with the help of child flows.
