Creating Dynamic Menu From Database By Using MVC AngularJS

Step 1

Create a database and a table, as shown below.

  1. create table MainMenu(ID int primary key identity(1,1), Name varchar(50),Url varchar(50))
  2. create table SubMenu(Mid int primary key identity(1,1), SubName varchar(50),SubUrl varchar(50),ID int references MainMenu(ID))

Step 2

Add a few records into the tables.

MainMenu Table

  1. insert into MainMenu values('Electronics','/Electronics'),('Men','/Men'),('Women','/Women'),('Baby & Kids','/BabyKids')

Electronics

  1. insert into SubMenu values('Moto G4 Mobiles''/MotoG4Mobiles', 1), ('Moto G5 Plus Mobiles''/MotoG5PlusMobiles ', 1), ('Lenevo Mobiles''/LenevoMobiles', 1), ('Samsung Mobiles''/SamsungMobiles', 1), ('Apple Mobiles''/AppleMobiles', 1)
  2. insert into SubMenu values('Lenevo Laptop''/LenevoLaptop', 1), ('LG Laptop''/LGLaptop', 1), ('HP Laptop''/HPLaptop', 1), ('Dell Laptop''/Dell Laptop', 1), ('Micromax Laptop''/MicromaxLaptop', 1), ('Sony Laptop''/SonyLaptop', 1)
  3. insert into SubMenu values('Mobile Cases''/MobileCases', 1), ('Head Phones''/HeadPhones', 1), ('Power Banks''/Power Banks', 1), ('Screenguards''/Screenguards', 1), ('Micromax Laptop''/MicromaxLaptop', 1), ('Memory Cards''/MemoryCards', 1), ('Chargers''/Chargers', 1)

Mens

  1. insert into SubMenu values('Sport Shoes''/SportShoes', 3), ('Casual Shoes''/CasualShoes', 3), ('Formal Shoes''/FormalShoes', 3), ('Sandels & Floaters''/Sandels', 3)
  2. insert into SubMenu values('Fasttrack Watch''/FasttrackWatch', 3), ('Sony Watch''/SonyWatch', 3), ('Timex Watch''/TimexWatch', 3), ('Sonata Watch''/SonataWatch', 3)

Step 3

Create New Project

Go to File > New > Project > ASP.NET Web Application (under Web) > Entry Application Name > Click OK > select Empty template > Checked MVC > OK.

Step 4

Add Entity Data Model

Right click on Model Folder > Add > New item > Select ADO.NET Entity Data Model under Data > Enter model name > Add.

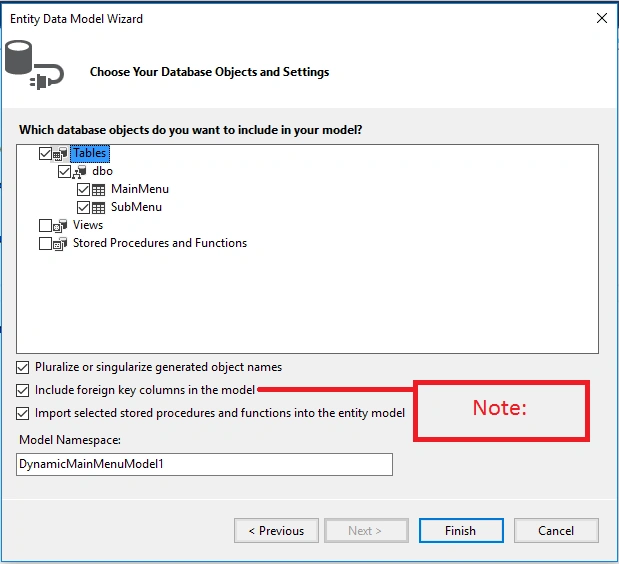

A popup Window will come (Entity Data Model Wizard) > select Generate from database > Next.

Choose your data connection > select your database > Next > select tables > Finish.

Note

Include foreign keys column in the model. This option should be checked before you click Finish button. See the snapshot given below.

Step 5

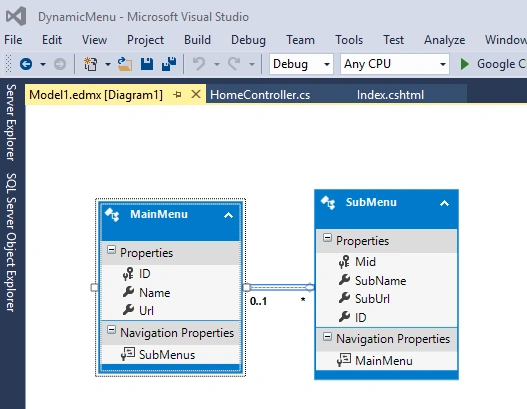

Model entity will appear, as shown below.

Step 6

Create MyApp.js File in Script Folder

Add the script given below.
  1. var app = angular.module('MyApp', []);
  2. app.controller('menuController', ['$scope''$http'function($scope, $http) {
  3.     $scope.SiteMenu = [];
  4.     $http.get('/Home/GetMainMenu').then(function(data) {
  5.         $scope.SiteMenu = data.data;
  6.     }, function(error) {
  7.         alert('Error');
  8.     })
  9. }])

Step 7

Create a Controller called HomeContoller in Controllers folder.

Add the code given below.

  1. using System.Web.Mvc;
  2. using DynamicMenu.Models;
  3. namespace DynamicMenu.Controllers {
  4.     public class HomeController: Controller {
  5.         // GET: Home
  6.         public ActionResult Index() {
  7.             return View();
  8.         }
  9.         public JsonResult GetMainMenu() {
  10.             DynamicMainMenuEntities dc = new DynamicMainMenuEntities(); {
  11.                 var menu = dc.MainMenus.Select(c => new {
  12.                     c.Name,
  13.                         c.Url,
  14.                         SubMenu = c.SubMenus.Select(s => new {
  15.                             s.SubName,
  16.                                 s.SubUrl
  17.                         })
  18.                 });
  19.                 return new JsonResult {
  20.                     Data = menu, JsonRequestBehavior = JsonRequestBehavior.AllowGet
  21.                 };
  22.             }
  23.         }
  24.     }
  25. }

Step 8

Add Bootstrap CSS and create navMenu.css for Customized styles.

navMenu.css

  1. body {
  2.     font - family: 'Open Sans''sans-serif';
  3. }#custom - bootstrap - menu.navbar -
  4.     default.navbar - brand {
  5.         color: rgba(255, 255, 255, 1);
  6.     }#custom - bootstrap - menu.navbar -
  7.     default {
  8.         font - size: 14 px;
  9.         background - color: rgba(240, 17, 132, 1);
  10.         border - width: 1 px;
  11.         border - radius: 4 px;
  12.     }#custom - bootstrap - menu.navbar -
  13.     default.navbar - nav > li > a {
  14.         color: rgba(255, 255, 255, 1);
  15.         background - color: rgba(248, 248, 248, 0);
  16.     }#custom - bootstrap - menu.navbar -
  17.     default.navbar - nav > li > a: hover, #custom - bootstrap - menu.navbar -
  18.     default.navbar - nav > li > a: focus {
  19.         color: rgba(51, 51, 51, 1);
  20.         background - color: rgba(248, 248, 248, 0);
  21.     }#custom - bootstrap - menu.navbar -
  22.     default.navbar - nav > .active > a, #custom - bootstrap - menu.navbar -
  23.     default.navbar - nav > .active > a: hover, #custom - bootstrap - menu.navbar -
  24.     default.navbar - nav > .active > a: focus {
  25.         color: rgba(85, 85, 85, 1);
  26.         background - color: rgba(231, 231, 231, 1);
  27.     }#custom - bootstrap - menu.navbar -
  28.     default.navbar - toggle {
  29.         border - color: #ddd;
  30.     }#custom - bootstrap - menu.navbar -
  31.     default.navbar - toggle: hover, #custom - bootstrap - menu.navbar -
  32.     default.navbar - toggle: focus {
  33.         background - color: #ddd;
  34.     }#custom - bootstrap - menu.navbar -
  35.     default.navbar - toggle.icon - bar {
  36.         background - color: #888;
  37.
  38. }
  39.
  40. # custom - bootstrap - menu.navbar -
  41.             default.navbar - toggle: hover.icon - bar, #custom - bootstrap - menu.navbar -
  42.             default.navbar - toggle: focus.icon - bar {
  43.                 background - color: #f01184;
  44.             }.mega - dropdown {
  45.                 position: static!important;
  46.             }.mega - dropdown - menu {
  47.                 padding: 20 px 0 px;
  48.                 width: 100 % ;
  49.                 box - shadow: none; - webkit - box - shadow: none;
  50.             }.mega - dropdown - menu > li > ul {
  51.                 padding: 0;
  52.                 margin: 0;
  53.             }.mega - dropdown - menu > li > ul > li {
  54.                 list - style: none;
  55.             }.mega - dropdown - menu > li > ul > li > a {
  56.                 display: block;
  57.                 color: #222;
  58.
  59. padding: 3px 5px;
  60.
  61. }
  62.
  63. .mega-dropdown-menu > li ul > li > a:hover,
  64.
  65. .mega-dropdown-menu > li ul > li > a:focus {
  66.
  67. text-decoration: none;
  68.
  69. }
  70.
  71. .mega-dropdown-menu .dropdown-header {
  72.
  73. font-size: 18px;
  74.
  75. color: # ff3546;
  76.                 padding: 5 px 60 px 5 px 5 px;
  77.                 line - height: 30 px;
  78.             }

Step 9

Create a View like Index.cshtml.

  1. <html>
  2.
  3. <head>
  4.     <title></title>
  5.     <link href="~/Content/bootstrap.min.css" rel="stylesheet" />
  6.     <script src="~/Scripts/jquery-1.10.2.min.js"></script>
  7.     <script src="~/Scripts/bootstrap.min.js"></script>
  8.     <script src="~/Scripts/navMenu.js"></script>
  9.     <link href="~/Content/navMenu.css" rel="stylesheet" /> </head>
  10.
  11. <body>
  12.     <div class="container">
  13.         <nav id="custom-bootstrap-menu" class="navbar navbar-default">
  14.             <div class="navbar-header"> <button class="navbar-toggle" type="button" data-toggle="collapse" data-target=".js-navbar-collapse">
  15.
  16. <span class="sr-only">Toggle navigation</span>
  17.
  18. <span class="icon-bar"></span>
  19.
  20. <span class="icon-bar"></span>
  21.
  22. <span class="icon-bar"></span>
  23.
  24. </button> <a class="navbar-brand" href="#">My Store</a> </div>
  25.             <div class="collapse navbar-collapse js-navbar-collapse" ng-app="MyApp" ng-controller="menuController">
  26.                 <ul class="nav navbar-nav">
  27.                     <li class="dropdown mega-dropdown" ng-repeat="menu in SiteMenu track by $index"> <a href="{{menu.ID}}" class="dropdown-toggle" data-toggle="dropdown">{{menu.Name}} <span class="caret"></span></a>
  28.                         <ul class="dropdown-menu mega-dropdown-menu">
  29.                             <li class="dropdown-header">{{menu.Name}}</li>
  30.                             <li class="col-sm-3" ng-repeat="item in menu.SubMenu track by $index">
  31.                                 <ul>
  32.                                     <li><a href="{{item.SubUrl}}">{{item.SubName}}</a></li>
  33.                                 </ul>
  34.                             </li>
  35.                         </ul>
  36.                     </li>
  37.                 </ul>
  38.                 <ul class="nav navbar-nav navbar-right">
  39.                     <li><a href="#">My cart (0) items</a></li>
  40.                 </ul>
  41.             </div>
  42.             <!-- /.nav-collapse -->
  43.         </nav>
  44.     </div>
  45.     <script src="https://ajax.googleapis.com/ajax/libs/angularjs/1.4.5/angular.min.js"></script>
  46.     <script src="~/Scripts/MyApp.js"></script>
  47. </body>
  48.
  49. </html>

Step 10

Run the Application.

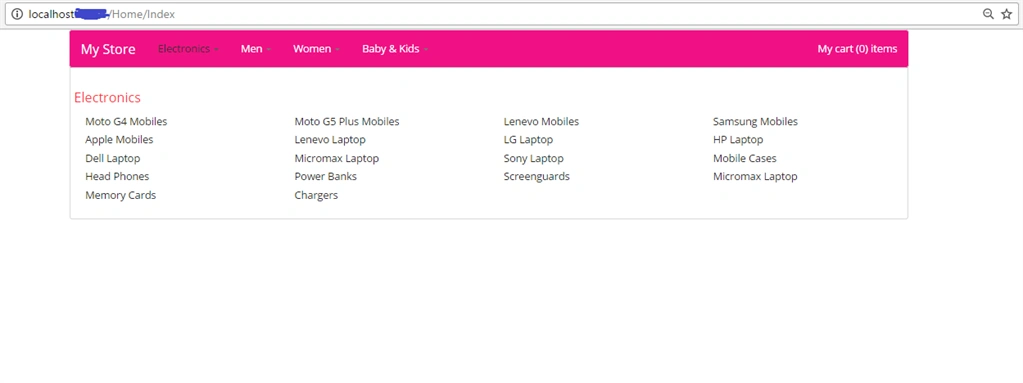

Click Electronics tab and you will see the screenshot.
