Crystal Report Using Stored Procedure

Step 1: Create 2 tables Department and Employee using below script.
  1. /****** Object: Table [dbo].[Department] Script Date: 02-12-2015 21:50:00 ******/
  2. SET
  3. ANSI_NULLS ON GO
  4. SET
  5. QUOTED_IDENTIFIER ON GO CREATE TABLE [dbo].[Department](
  6. [DeptId] [int] IDENTITY(1, 1) NOT NULL,
  7. [DeptName] [nvarchar](50) NULL,
  8. CONSTRAINT [PK_Department] PRIMARY KEY CLUSTERED ([DeptId] ASC) WITH (
  9. PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF,
  10. IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON,
  11. ALLOW_PAGE_LOCKS = ON
  12. ) ON [PRIMARY]
  13. ) ON [PRIMARY] GO
  14. /****** Object: Table [dbo].[Employee] Script Date: 02-12-2015 21:50:24 ******/
  15. SET
  16. ANSI_NULLS ON GO
  17. SET
  18. QUOTED_IDENTIFIER ON GO CREATE TABLE [dbo].[Employee](
  19. [EmpId] [int] IDENTITY(1, 1) NOT NULL,
  20. [EmpFirstName] [nvarchar](50) NULL,
  21. [EmpLastName] [nvarchar](50) NULL,
  22. [DeptId] [int] NULL,
  23. CONSTRAINT [PK_Employee] PRIMARY KEY CLUSTERED ([EmpId] ASC) WITH (
  24. PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF,
  25. IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON,
  26. ALLOW_PAGE_LOCKS = ON
  27. ) ON [PRIMARY]
  28. ) ON [PRIMARY] GO
Step 2: Run below script to create sample stored procedure using that we will create crystal report.
  1. SET ANSI_NULLS ON
  2. GO
  3. SET QUOTED_IDENTIFIER ON
  4. GO
  5. -- =============================================
  6. -- Author:  <Author,,Ankur>
  7. -- Create date: <Create Date,02-12-2015,>
  8. -- Description: <Description,,>
  9. -- =============================================
  10. CREATE PROCEDURE EmpDetails
  11. AS
  12. BEGIN
  13. -- SET NOCOUNT ON added to prevent extra result sets from
  14. -- interfering with SELECT statements.
  15. SET NOCOUNT ON;
  16. -- Insert statements for procedure here
  17. SELECT e.EmpFirstName, e.EmpLastName, d.DeptName
  18. FROM Department d INNER JOIN
  19. Employee e ON d.DeptId = e.DeptId
  20. END
  21. GO

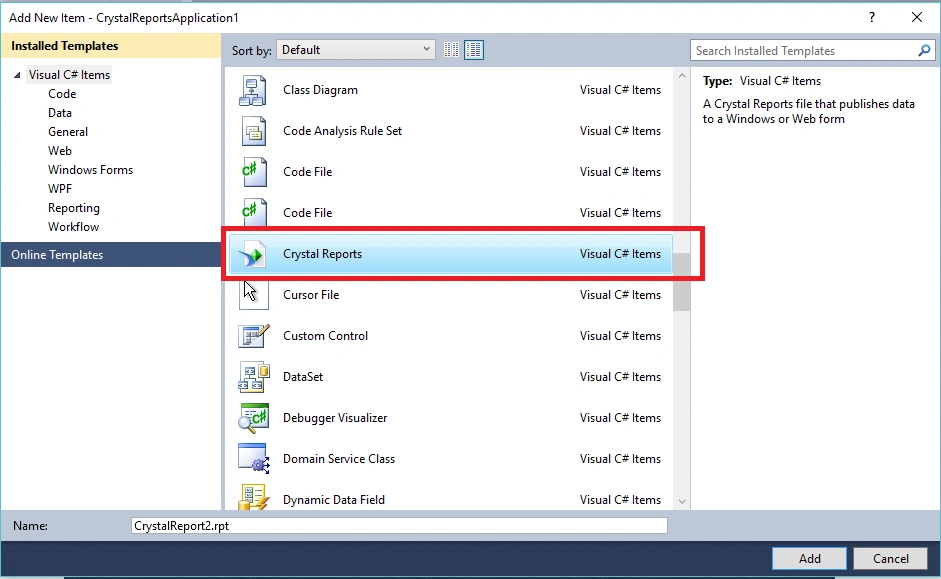

Step 3: Add new Crystal Report in your project,

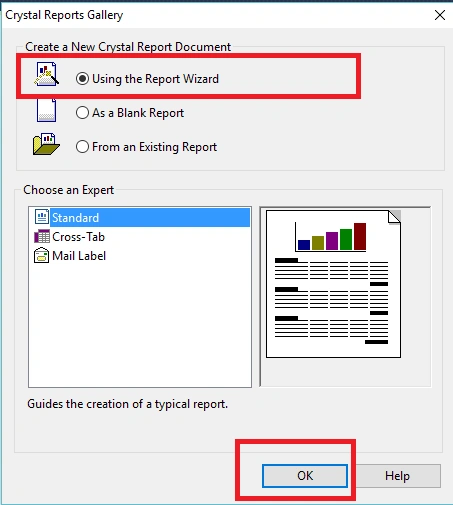

Step 4: Next step, select 'using the report' wizard and click 'Ok',

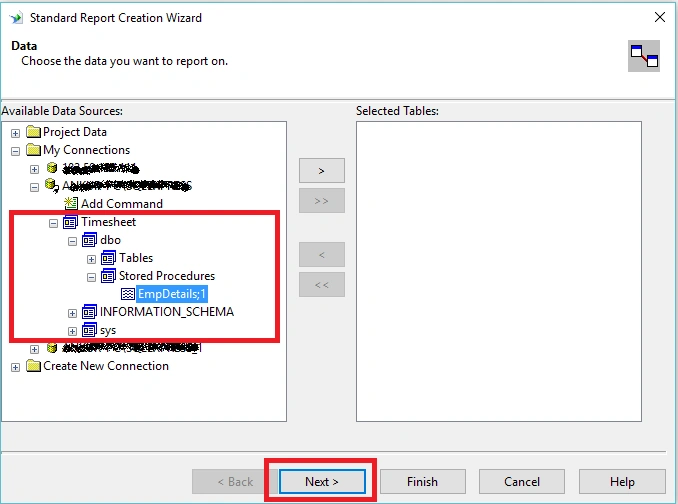

Step 5: Connect to SQL database and Select your Stored Procedure 'EmployeeDetails, and click 'Next'.

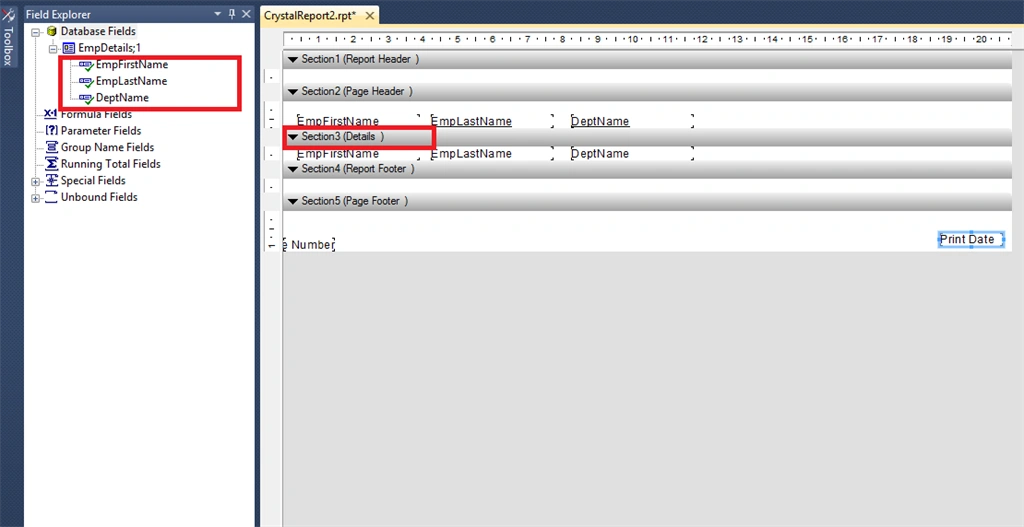

Step 6: Drag and drop Fields from Field Explorer to Report Details Section as shown in below screen.

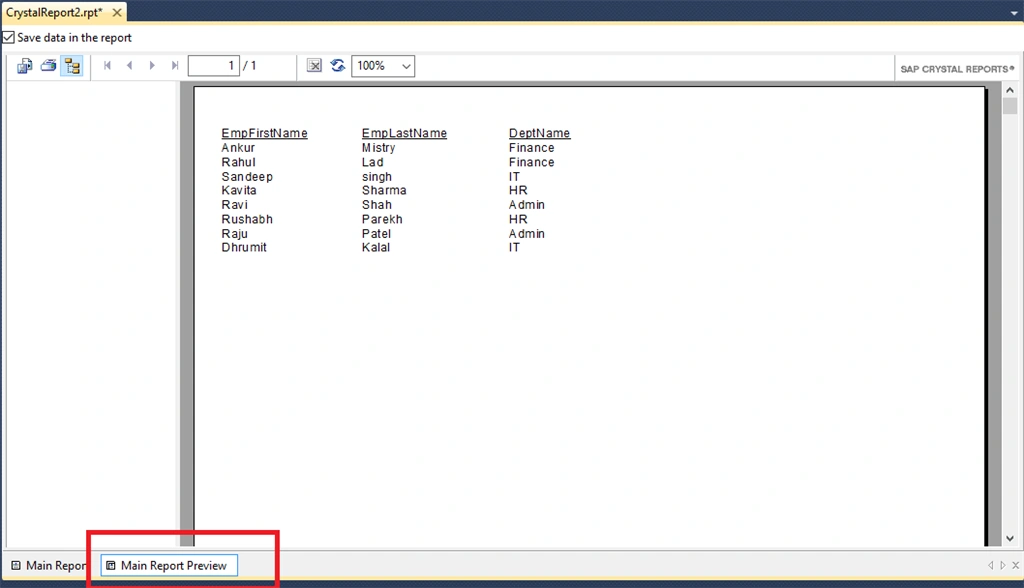

Step 7: Now save and check report by clicking main report preview.


Hope you like the simple steps to create crystal report using Stored Procedure.
