How To Create A Table In An Excel Worksheet & Insert Data Into The Excel Table Cells Using Epplus .net Library (C#) - Part Fourteen

Video Tutorials - Click here

How to create a table in an Excel

We need to attach one more namespace OfficeOpenXml.Table, because ExcelTable class belongs to this namespace.

There are two ways to create a table in Excel worksheet.

First, Indirectly access ExcelTableCollection class object by using Tables property of ExcelWorksheet class.

Second, Directly access ExcelTableCollection class object.

The ExcelTable class is responsible for creating a table within the Excel worksheet. In this code, Tables is the property of ExcelWorksheet class. The type of this property is ExcelTableCollection class. This class has an Add() method & it indirectly involved by the property Tables of ExcelWorksheet class & this Add() method return a specific excel table.

By the direct process, we are creating an object of ExcelTableCollection class & the Add() the method of the ExcelTableCollection class returns an object of the ExcelTable class.

The ExcelTable class has Columns[index] property. By using this property, we can assign column with name & index position of excel table.

Here, I used ShowHeader, ShowFilter, ShowTotal, the three boolean properties of the ExcelTable class.

ShowHeader: Responsible for excel table header.
ShowFilter: Responsible for auto filter each & every column of excel table.
ShowTotal: Responsible for excel table footer operations.

Please see the below code.
  1. using(ExcelRange Rng = wsSheet1.Cells["B4:F12"]) {
  2.     //Indirectly access ExcelTableCollection class
  3.     ExcelTable table = wsSheet1.Tables.Add(Rng, "tblSalesman");
  4.     //table.Name = "tblSalesman";
  5.     //Directly access ExcelTableCollection class
  6.     ExcelTableCollection tblcollection = wsSheet1.Tables;
  7.     ExcelTable table1 = tblcollection.Add(Rng, "tblSalesman");
  8.     //Set Columns position & name
  9.     table.Columns[0].Name = "Id";
  10.     table.Columns[1].Name = "Salesman Name";
  11.     table.Columns[2].Name = "Sales Amount";
  12.     table.Columns[3].Name = "Country";
  13.     table.Columns[4].Name = "Date";
  14.     //table.ShowHeader = false;
  15.     table.ShowFilter = true;
  16.     //table.ShowTotal = true;
  17. }
How to insert data into the Excel Table Cells?

Here, I used the Value property of ExcelRange class object & assigned a specific data type value as per column name.

Please see the below code.
  1. //[Id] Column
  2. using(ExcelRange Rng = wsSheet1.Cells["B5"]) {
  3.     Rng.Value = Convert.ToInt32("1001");
  4. }
  5. //[Salesman Name] Columm
  6. using(ExcelRange Rng = wsSheet1.Cells["C5"]) {
  7.     Rng.Value = "John";
  8. }
  9. //[Sales Amount] Column
  10. using(ExcelRange Rng = wsSheet1.Cells["D5"]) {
  11.     Rng.Value = Convert.ToDecimal("700.00");
  12. }
  13. //[Country] Columm
  14. using(ExcelRange Rng = wsSheet1.Cells["E5"]) {
  15.     Rng.Value = "UK";
  16. }
  17. //[Date] Columm
  18. using(ExcelRange Rng = wsSheet1.Cells["F5"]) {
  19.     Rng.Style.Numberformat.Format = "mm/dd/yy";
  20.     Rng.Value = Convert.ToDateTime("08/26/2017");

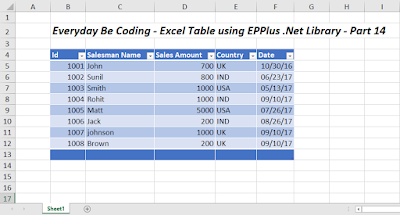

The output of the code.



Full Source Code
  1. using OfficeOpenXml;
  2. using System.IO;
  3. using OfficeOpenXml.Table;
  4. using System;
  5. namespace EpplusDemo {
  6.     class Program {
  7.         static void Main(string[] args) {
  8.             ExcelPackage ExcelPkg = new ExcelPackage();
  9.             ExcelWorksheet wsSheet1 = ExcelPkg.Workbook.Worksheets.Add("Sheet1");
  10.             using(ExcelRange Rng = wsSheet1.Cells["B4:F12"]) {
  11.                 //Indirectly access ExcelTableCollection class
  12.                 ExcelTable table = wsSheet1.Tables.Add(Rng, "tblSalesman");
  13.                 //table.Name = "tblSalesman";
  14.                 //Directly access ExcelTableCollection class
  15.                 //ExcelTableCollection tblcollection = wsSheet1.Tables;
  16.                 //ExcelTable table1 = tblcollection.Add(Rng, "tblSalesman");
  17.                 //Set Columns position & name
  18.                 table.Columns[0].Name = "ID";
  19.                 table.Columns[1].Name = "Salesman Name";
  20.                 table.Columns[2].Name = "Sales Amount";
  21.                 table.Columns[3].Name = "Country";
  22.                 table.Columns[4].Name = "Date";
  23.                 //table.ShowHeader = false;
  24.                 table.ShowFilter = true;
  25.                 //table.ShowTotal = true;
  26.             }
  27.             //Insert data into the Excel Table Cells
  28.             //[ID] Columm
  29.             using(ExcelRange Rng = wsSheet1.Cells["B5"]) {
  30.                 Rng.Value = Convert.ToInt32("1001");
  31.             }
  32.             using(ExcelRange Rng = wsSheet1.Cells["B6"]) {
  33.                 Rng.Value = Convert.ToInt32("1002");
  34.             }
  35.             using(ExcelRange Rng = wsSheet1.Cells["B7"]) {
  36.                 Rng.Value = Convert.ToInt32("1003");
  37.             }
  38.             using(ExcelRange Rng = wsSheet1.Cells["B8"]) {
  39.                 Rng.Value = Convert.ToInt32("1004");
  40.             }
  41.             using(ExcelRange Rng = wsSheet1.Cells["B9"]) {
  42.                 Rng.Value = Convert.ToInt32("1005");
  43.             }
  44.             using(ExcelRange Rng = wsSheet1.Cells["B10"]) {
  45.                 Rng.Value = Convert.ToInt32("1006");
  46.             }
  47.             using(ExcelRange Rng = wsSheet1.Cells["B11"]) {
  48.                 Rng.Value = Convert.ToInt32("1007");
  49.             }
  50.             using(ExcelRange Rng = wsSheet1.Cells["B12"]) {
  51.                 Rng.Value = Convert.ToInt32("1008");
  52.             }
  53.             //[SALESMAN NAME] Columm
  54.             using(ExcelRange Rng = wsSheet1.Cells["C5"]) {
  55.                 Rng.Value = "John";
  56.             }
  57.             using(ExcelRange Rng = wsSheet1.Cells["C6"]) {
  58.                 Rng.Value = "Sunil";
  59.             }
  60.             using(ExcelRange Rng = wsSheet1.Cells["C7"]) {
  61.                 Rng.Value = "Smith";
  62.             }
  63.             using(ExcelRange Rng = wsSheet1.Cells["C8"]) {
  64.                 Rng.Value = "Rohit";
  65.             }
  66.             using(ExcelRange Rng = wsSheet1.Cells["C9"]) {
  67.                 Rng.Value = "Matt";
  68.             }
  69.             using(ExcelRange Rng = wsSheet1.Cells["C10"]) {
  70.                 Rng.Value = "Jack";
  71.             }
  72.             using(ExcelRange Rng = wsSheet1.Cells["C11"]) {
  73.                 Rng.Value = "johnson";
  74.             }
  75.             using(ExcelRange Rng = wsSheet1.Cells["C12"]) {
  76.                 Rng.Value = "Brown";
  77.             }
  78.             //[Sales Amount] Column
  79.             using(ExcelRange Rng = wsSheet1.Cells["D5"]) {
  80.                 Rng.Value = Convert.ToDecimal("700.00");
  81.             }
  82.             using(ExcelRange Rng = wsSheet1.Cells["D6"]) {
  83.                 Rng.Value = Convert.ToDecimal("800.00");
  84.             }
  85.             using(ExcelRange Rng = wsSheet1.Cells["D7"]) {
  86.                 Rng.Value = Convert.ToDecimal("1000.00");
  87.             }
  88.             using(ExcelRange Rng = wsSheet1.Cells["D8"]) {
  89.                 Rng.Value = Convert.ToDecimal("1100.00");
  90.             }
  91.             using(ExcelRange Rng = wsSheet1.Cells["D9"]) {
  92.                 Rng.Value = Convert.ToDecimal("5000.00");
  93.             }
  94.             using(ExcelRange Rng = wsSheet1.Cells["D10"]) {
  95.                 Rng.Value = Convert.ToDecimal("200.00");
  96.             }
  97.             using(ExcelRange Rng = wsSheet1.Cells["D11"]) {
  98.                 Rng.Value = Convert.ToDecimal("100.00");
  99.             }
  100.             using(ExcelRange Rng = wsSheet1.Cells["D12"]) {
  101.                 Rng.Value = Convert.ToDecimal("200.00");
  102.             }
  103.             //[Country] Columm
  104.             using(ExcelRange Rng = wsSheet1.Cells["E5"]) {
  105.                 Rng.Value = "UK";
  106.             }
  107.             using(ExcelRange Rng = wsSheet1.Cells["E6"]) {
  108.                 Rng.Value = "IND";
  109.             }
  110.             using(ExcelRange Rng = wsSheet1.Cells["E7"]) {
  111.                 Rng.Value = "USA";
  112.             }
  113.             using(ExcelRange Rng = wsSheet1.Cells["E8"]) {
  114.                 Rng.Value = "IND";
  115.             }
  116.             using(ExcelRange Rng = wsSheet1.Cells["E9"]) {
  117.                 Rng.Value = "USA";
  118.             }
  119.             using(ExcelRange Rng = wsSheet1.Cells["E10"]) {
  120.                 Rng.Value = "IND";
  121.             }
  122.             using(ExcelRange Rng = wsSheet1.Cells["E11"]) {
  123.                 Rng.Value = "UK";
  124.             }
  125.             using(ExcelRange Rng = wsSheet1.Cells["E12"]) {
  126.                 Rng.Value = "UK";
  127.             }
  128.             //[Date] Columm
  129.             using(ExcelRange Rng = wsSheet1.Cells["F5"]) {
  130.                 Rng.Style.Numberformat.Format = "mm/dd/yy";
  131.                 Rng.Value = Convert.ToDateTime("10/30/2016");
  132.             }
  133.             using(ExcelRange Rng = wsSheet1.Cells["F6"]) {
  134.                 Rng.Style.Numberformat.Format = "mm/dd/yy";
  135.                 Rng.Value = Convert.ToDateTime("06/23/2017");
  136.             }
  137.             using(ExcelRange Rng = wsSheet1.Cells["F7"]) {
  138.                 Rng.Style.Numberformat.Format = "mm/dd/yy";
  139.                 Rng.Value = Convert.ToDateTime("05/13/2017");
  140.             }
  141.             using(ExcelRange Rng = wsSheet1.Cells["F8"]) {
  142.                 Rng.Style.Numberformat.Format = "mm/dd/yy";
  143.                 Rng.Value = Convert.ToDateTime("09/10/2017");
  144.             }
  145.             using(ExcelRange Rng = wsSheet1.Cells["F9"]) {
  146.                 Rng.Style.Numberformat.Format = "mm/dd/yy";
  147.                 Rng.Value = Convert.ToDateTime("07/26/2017");
  148.             }
  149.             using(ExcelRange Rng = wsSheet1.Cells["F10"]) {
  150.                 Rng.Style.Numberformat.Format = "mm/dd/yy";
  151.                 Rng.Value = Convert.ToDateTime("08/26/2017");
  152.             }
  153.             using(ExcelRange Rng = wsSheet1.Cells["F11"]) {
  154.                 Rng.Style.Numberformat.Format = "mm/dd/yy";
  155.                 Rng.Value = Convert.ToDateTime("09/10/2017");
  156.             }
  157.             using(ExcelRange Rng = wsSheet1.Cells["F12"]) {
  158.                 Rng.Style.Numberformat.Format = "mm/dd/yy";
  159.                 Rng.Value = Convert.ToDateTime("09/10/2017");
  160.             }
  161.             wsSheet1.Cells[wsSheet1.Dimension.Address].AutoFitColumns();
  162.             ExcelPkg.SaveAs(new FileInfo(@ "D:\ExcelTable.xlsx"));
  163.         }
  164.     }
Now, build & execute this code. The file is (ExcelTable.xlsx) stored on D: drive of the computer.
Thank you for reading this blog.
