How To Use Multi-Threading in C#

In C#, the System.Threading.Thread class is utilized for working with the thread. It permits making and getting to the individual thread in a multi-threaded application. The principal thread to be executed in a procedure is known as the principle thread. At the point when a C# program begins execution, the fundamental thread is consequently made.

Example with image shown below,
Step 1: Create a Window form with three buttons (image given below).



Step 2: Write the code on the button click and Form1_Load like the example, given below:
  1. using System;
  2. using System.Collections.Generic;
  3. using System.ComponentModel;
  4. using System.Data;
  5. using System.Drawing;
  6. using System.Linq;
  7. using System.Text;
  8. using System.Windows.Forms;
  9. using System.Threading;
  10.
  11. namespace ThreadApplication
  12. {
  13.     public partial class Form1 : Form
  14.     {
  15.         public Form1()
  16.         {
  17.             InitializeComponent();
  18.         }
  19.
  20.         private void btnTh1_Click(object sender, EventArgs e)
  21.         {
  22.
  23.
  24.             Thread th = new Thread(t =>
  25.             {
  26.
  27.                 for (int i = 0; i <= 100; i++)
  28.                 {
  29.                     int Width = rd.Next(0, this.Width);
  30.                     int Height = rd.Next(50, this.Height);
  31.                     this.CreateGraphics().DrawEllipse(new Pen(Brushes.Red, 1), new Rectangle(Width, Height, 100, 100));
  32.                     Thread.Sleep(100);
  33.                 }
  34.
  35.
  36.             }) { IsBackground = true };
  37.             th.Start();
  38.         }
  39.         Random rd;
  40.         private void Form1_Load(object sender, EventArgs e)
  41.         {
  42.             rd = new Random();
  43.
  44.         }
  45.
  46.         private void btnTh2_Click(object sender, EventArgs e)
  47.         {
  48.
  49.             Thread th = new Thread(t =>
  50.             {
  51.
  52.                 for (int i = 0; i <= 100; i++)
  53.                 {
  54.                     int Width = rd.Next(0, this.Width);
  55.                     int Height = rd.Next(50, this.Height);
  56.                     this.CreateGraphics().DrawEllipse(new Pen(Brushes.Blue, 1), new Rectangle(Width, Height, 100, 100));
  57.                     Thread.Sleep(100);
  58.                 }
  59.
  60.
  61.             }) { IsBackground = true };
  62.             th.Start();
  63.         }
  64.
  65.         private void btnTh3_Click(object sender, EventArgs e)
  66.         {
  67.
  68.             Thread th = new Thread(t =>
  69.             {
  70.
  71.                 for (int i = 0; i <= 100; i++)
  72.                 {
  73.                     int Width = rd.Next(0, this.Width);
  74.                     int Height = rd.Next(50, this.Height);
  75.                     this.CreateGraphics().DrawEllipse(new Pen(Brushes.Green, 1), new Rectangle(Width, Height, 100, 100));
  76.                     Thread.Sleep(100);
  77.                 }
  78.
  79.
  80.             }) { IsBackground = true };
  81.             th.Start();
  82.         }
  83.     }
  84.
  85. }

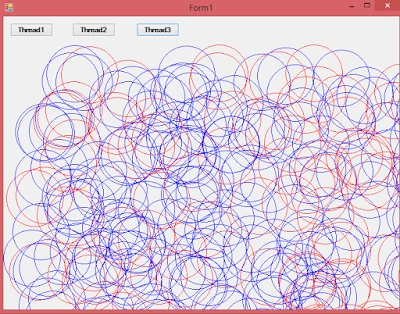

Step 3:- Run the Application and see the output, given below:



Description

In this example, I created three buttons to create and manage new threads with the different color structure, with an example to show an eclipse graph inside the form on the individual thread start.
