Importing JSON File To DataSet Without Using External Libraries

In this blog, we will learn, how to import a JSON file to a dataset without using any external libraries.

I have searched for this feature and only thing, I can found is a code,  which can be used to convert a Simple JSON file to the datatable.

My requirement is little different. I have got a nested JSON file, which cannot be managed with a single datatable, but with a dataset with multiple datatables.

Thus, I made some changes in the code to convert JSON to the datatable and achieved the result.

Our JSON file looks like-
  1. {
  2.     "ClientPersonal": [{
  3.         "ClientID""12001",
  4.         "Name""Ram",
  5.         "DOB""20-Aug-1980",
  6.         "Mobile""9999999999",
  7.         "Email""ram@abcd.com"
  8.     },
  9.     {
  10.         "ClientID""12002",
  11.         "Name""Mohan",
  12.         "DOB""15-Jan-1989",
  13.         "Mobile""9999988888",
  14.         "Email""mohan@abcd.com"
  15.     },
  16.     {
  17.         "ClientID""12003",
  18.         "Name""Sam",
  19.         "DOB""11-Apr-1985",
  20.         "Mobile""8888888888",
  21.         "Email""sam@abcd.com"
  22.     },
  23.     {
  24.         "ClientID""12004",
  25.         "Name""Kevin",
  26.         "DOB""20-Jun-1992",
  27.         "Mobile""7777788888",
  28.         "Email""kevin@abcd.com"
  29.     },
  30.     {
  31.         "ClientID""12005",
  32.         "Name""Ajay",
  33.         "DOB""22-Sep-1978",
  34.         "Mobile""8888877777",
  35.         "Email""ajay@abcd.com"
  36.     }],
  37.     "ClientOfficial": [{
  38.         "ClientID""12001",
  39.         "Name""Ram",
  40.         "Service""Hardware",
  41.         "ServicePeriod""2 years",
  42.         "Status""Active"
  43.     },
  44.     {
  45.         "ClientID""12002",
  46.         "Name""Mohan",
  47.         "Service""Software",
  48.         "ServicePeriod""3 years",
  49.         "Status""Active"
  50.     },
  51.     {
  52.         "ClientID""12003",
  53.         "Name""Sam",
  54.         "Service""Software",
  55.         "ServicePeriod""1 year",
  56.         "Status""Active"
  57.     },
  58.     {
  59.         "ClientID""12004",
  60.         "Name""Kevin",
  61.         "Service""Hardware",
  62.         "ServicePeriod""1 year",
  63.         "Status""InActive"
  64.     },
  65.     {
  66.         "ClientID""12005",
  67.         "Name""Ajay",
  68.         "Service""Software",
  69.         "ServicePeriod""3 years",
  70.         "Status""InActive"
  71.     }]
  72. }
It has two separate details - ClientPersonal & ClientOfficial.

I want to show both the details in separate Grid views.

Thus, the function is given below to convert JSON to dataset.
  1. protected DataSet JSONToDataSet(string jsonString) {
  2.  //Replace new line characters in JSON and also escaping ',' inside JSON data
  3.  jsonString = jsonString.Replace("\r""").Replace("\n""").Replace("\t""").Replace(",""~").Replace("}~{""},{").Replace("\"~\"""\",\"").Replace("]~""],");
  4.  DataSet ds = new DataSet();
  5.
  6.  //Splitting of JSON datas
  7.  string[] maintables = Regex.Split(jsonString, "}],");
  8.
  9.  //Looping through Main tables
  10.  for (int z = 0; z < maintables.Length; z++) {
  11.   string mainspl = maintables[z];
  12.   DataTable dt = new DataTable();
  13.   string[] jsonParts = Regex.Split(mainspl.Replace("[""").Replace("]"""), "},{");
  14.   List < string > dtColumns = new List < string > ();
  15.   foreach(string jp in jsonParts) {
  16.     string[] propData = Regex.Split(jp.Replace("{""").Replace("}"""), ",");
  17.     foreach(string rowData in propData) {
  18.      try {
  19.       string[] spliting = rowData.Split(':');
  20.       int idx = 0;
  21.       string n;
  22.       if (spliting.Length > 2) {
  23.        dt.TableName = spliting[0].Replace("\"""");
  24.        n = spliting[spliting.Length - 2];
  25.       } else {
  26.        idx = rowData.IndexOf(":");
  27.        n = rowData.Substring(0, idx - 1);
  28.       }
  29.       if (!dtColumns.Contains(n)) {
  30.        dtColumns.Add(n.Replace("\""""));
  31.       }
  32.      } catch (Exception ex) {
  33.       throw new Exception(string.Format("Sorry! There were some errors in proccessing the column : {0}", rowData));
  34.      }
  35.     }
  36.     break;
  37.    }
  38.    //Adding Header for Datatables
  39.   foreach(string c in dtColumns) {
  40.    dt.Columns.Add(c);
  41.   }
  42.
  43.   //Binding Column Values
  44.   foreach(string jp in jsonParts) {
  45.    string[] propData = Regex.Split(jp.Replace("{""").Replace("}"""), ",");
  46.    DataRow nr = dt.NewRow();
  47.    int lopcnt = 0;
  48.    foreach(string rowData in propData) {
  49.     try {
  50.      string[] spliting = rowData.Split(':');
  51.      int idx = 0;
  52.      string v;
  53.      if (spliting.Length > 2) {
  54.       v = spliting[spliting.Length - 1].Replace("\"""").Replace("~"",");
  55.      } else {
  56.       idx = rowData.IndexOf(":");
  57.       v = rowData.Substring(idx + 1).Replace("\"""").Replace("~"",");
  58.      }
  59.      nr[lopcnt] = v;
  60.      lopcnt++;
  61.     } catch (Exception ex) {
  62.      continue;
  63.     }
  64.    }
  65.    dt.Rows.Add(nr);
  66.   }
  67.   if (dt.TableName == "") {
  68.    dt.TableName = "Table" + z;
  69.   }
  70.   ds.Tables.Add(dt);
  71.  }
  72.  return ds;
  73. }
Our HTML Markup is given below-
  1. <body>
  2.     <form id="form1" runat="server">
  3.         <div>
  4.             <b>Client Personal</b>
  5.             <br />
  6.             <asp:GridView ID="grdpersonal" runat="server" AutoGenerateColumns="true" OnRowDataBound="grdperrowdatabound" Width="50%">
  7.             </asp:GridView>
  8.             <br /><br />
  9.             <b>Client Official</b>
  10.             <br />
  11.             <asp:GridView ID="grdofficial" runat="server" AutoGenerateColumns="true" OnRowDataBound="grdofcrowdatabound" Width="50%">
  12.             </asp:GridView>
  13.         </div>
  14.     </form>
  15. </body>
Now, we call JSON to the dataset function. Keep the result in a dataset and bind it to Gridviews in Page_Load.
  1. protected void Page_Load(object sender, EventArgs e) {
  2.  if (!IsPostBack) {
  3.   string jsonResult;
  4.
  5.   //Reading JSON data to string
  6.   using(StreamReader r = new StreamReader(Server.MapPath("MyJsondata.json"))) {
  7.    jsonResult = r.ReadToEnd();
  8.   }
  9.   DataSet ds = JSONToDataSet(jsonResult);
  10.   grdpersonal.DataSource = ds.Tables[0];
  11.   grdpersonal.DataBind();
  12.   grdofficial.DataSource = ds.Tables[1];
  13.   grdofficial.DataBind();
  14.  }
  15. }

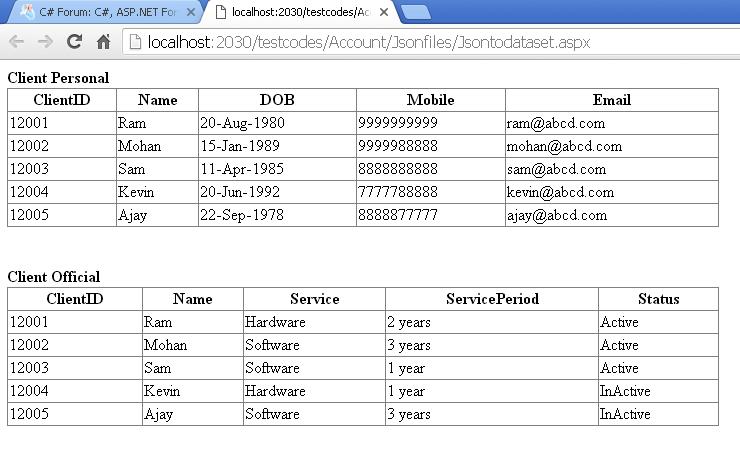

Thus, our result is given below-
