Retrieve Data From MongoDB Using Web API And Angular 6

In this article we will learn how we fetch data from MongoDB using ASP.NET Web API and bind data using Angular 6, first, we are going to create web API for retrieve data.

In this article we will learn how we fetch data from MongoDB using ASP.NET Web API and bind data using Angular 6. First, we are going to create a web API for retrieving data.

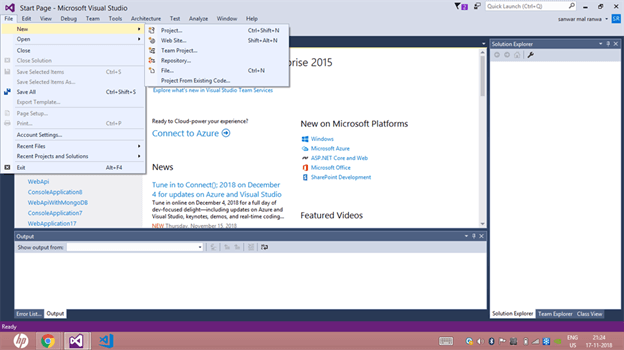

Open Visual Studio and create a new project.

Retrieve Data From MongoDB Using Web API And Angular 6

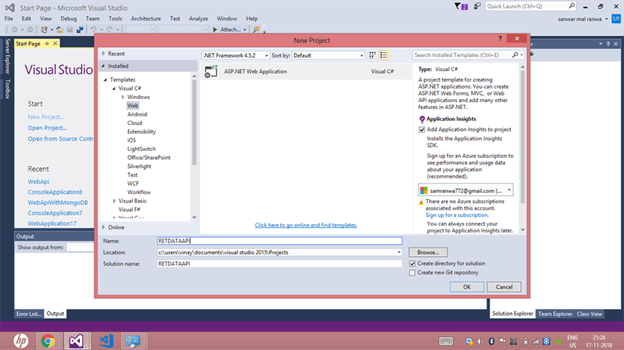

Create a new project and rename it as 'RETDATAAPI'

Retrieve Data From MongoDB Using Web API And Angular 6

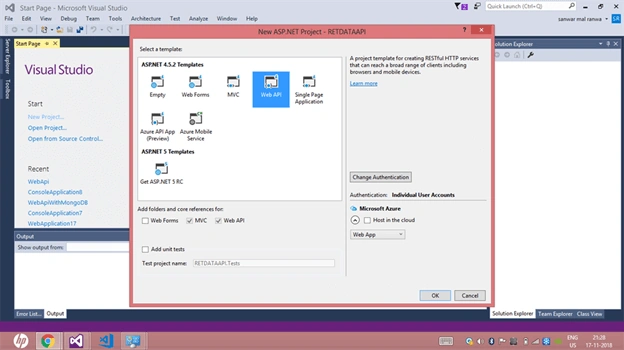

Choose Web API Template

Retrieve Data From MongoDB Using Web API And Angular 6

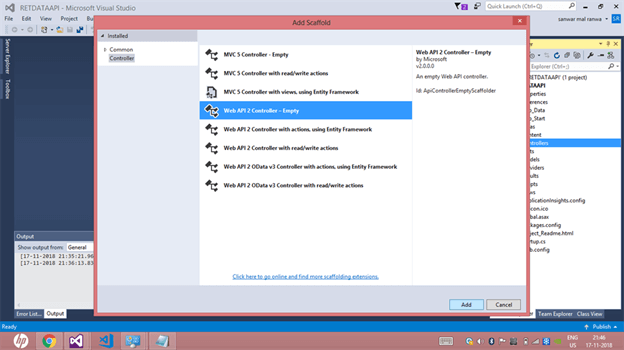

Now, click on the controller folder and select the Web API 2 controller.

Retrieve Data From MongoDB Using Web API And Angular 6

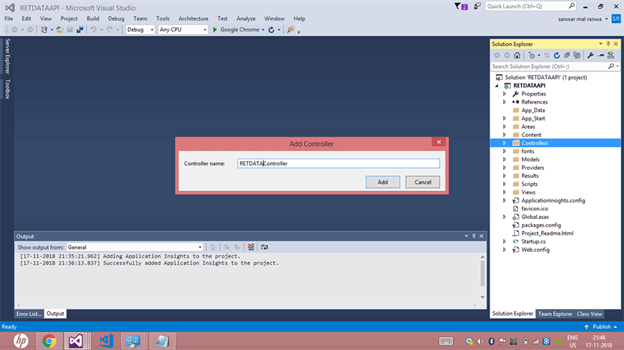

 Rename it as RETDATA

Retrieve Data From MongoDB Using Web API And Angular 6

Step 2

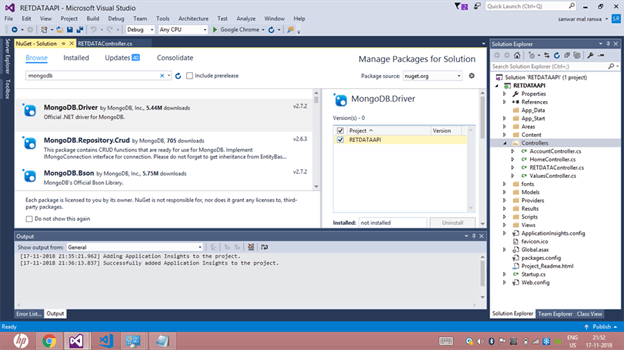

Add MongoDB Drivers for C# using NuGet Package Manager.

Retrieve Data From MongoDB Using Web API And Angular 6

Add the required namespaces for MongoDB.
  1. using MongoDB.Driver;
  2. using MongoDB.Bson;

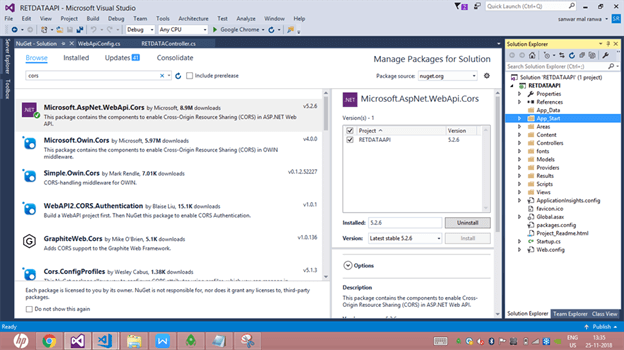

Add CORS from NuGet Package Manager.

Retrieve Data From MongoDB Using Web API And Angular 6

Now, open Web Apiconfig.cs and add the following lines.
  1. EnableCorsAttribute cors = new EnableCorsAttribute("*""*""*");
  2. config.EnableCors(cors);
Complete code
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Net.Http;
  5. using System.Web.Http;
  6. using Microsoft.Owin.Security.OAuth;
  7. using Newtonsoft.Json.Serialization;
  8. using System.Web.Http.Cors;
  9.
  10. namespace RETDATAAPI
  11. {
  12.     public static class WebApiConfig
  13.     {
  14.         public static void Register(HttpConfiguration config)a
  15.         {
  16.             // Web API configuration and services
  17.             // Configure Web API to use only bearer token authentication.
  18.             config.SuppressDefaultHostAuthentication();
  19.             config.Filters.Add(new HostAuthenticationFilter(OAuthDefaults.AuthenticationType));
  20.
  21.             // Web API routes
  22.             config.MapHttpAttributeRoutes();
  23.
  24.             config.Routes.MapHttpRoute(
  25.                 name: "DefaultApi",
  26.                 routeTemplate: "api/{controller}/{id}",
  27.                 defaults: new { id = RouteParameter.Optional }
  28.             );
  29.             EnableCorsAttribute cors = new EnableCorsAttribute("*""*""*");
  30.             config.EnableCors(cors);
  31.         }
  32.     }
  33. }
Now, click on the Model folder and add a new class and rename it as EmployeeDetails and add the following namespace and fields.
  1. using MongoDB.Bson;
  2. using MongoDB.Bson.Serialization.Attributes;
  3. public class EmployeeDetails
  4.    {
  5.        [BsonId]
  6.        public ObjectId Id { get; set; }
  7.        public string Name { get; set; }
  8.        public string Department { get; set; }
  9.        public string Address { get; set; }
  10.        public string City { get; set; }
  11.        public string Country { get; set; }
  12.
  13.    }
Now, add a method in the controller and add the following code.
  1. public object Getemp()
  2.         {
  3.             var Mongodbconnection = "mongodb://localhost";
  4.             var Client = new MongoClient(Mongodbconnection);
  5.             var DB = Client.GetDatabase("Employee");
  6.             var collection = DB.GetCollection<EmployeeDetails>("EmployeeDetails").Find(new BsonDocument()).ToList();
  7.             return Json(collection);
  8.         }
Complete Controller.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Net;
  5. using System.Net.Http;
  6. using System.Web.Http;
  7. using MongoDB.Driver;
  8. using MongoDB.Bson;
  9. using RETDATAAPI.Models;
  10.
  11. namespace RETDATAAPI.Controllers
  12. {
  13.     public class RETDATAController : ApiController
  14.     {
  15.         public object Getemp()
  16.         {
  17.             var Mongodbconnection = "mongodb://localhost";
  18.             var Client = new MongoClient(Mongodbconnection);
  19.             var DB = Client.GetDatabase("Employee");
  20.             var collection = DB.GetCollection<EmployeeDetails>("EmployeeDetails").Find(new BsonDocument()).ToList();
  21.             return Json(collection);
  22.         }
  23.     }
  24. }
Run the Project and check the result of API.

Retrieve Data From MongoDB Using Web API And Angular 6

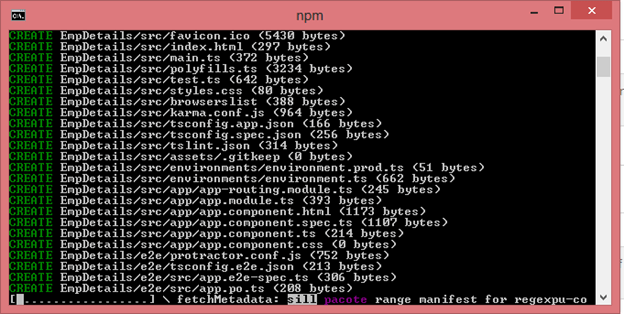

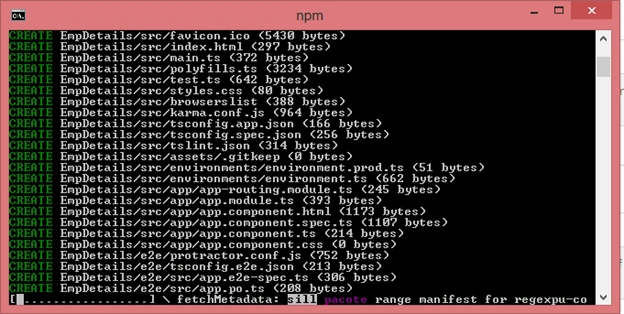

Now, we want to display this data using Angular 6 into a HTML Table, for this first create a new Angular Project by using Cmd using the command,

ng new EmpDetails

Retrieve Data From MongoDB Using Web API And Angular 6

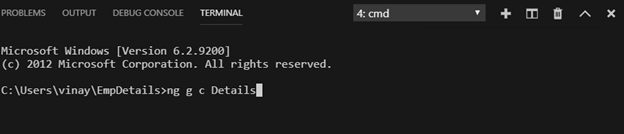

Open the project in Vs code and add a component by using the command,

ng new c Details

Retrieve Data From MongoDB Using Web API And Angular 6

Add bootstarp in the project to add some styles.

Now open app.module.ts file and import these modules.

  1. import {HttpClientModule, HttpClient} from '@angular/common/http';
Complete app.module.ts
  1. import { BrowserModule } from '@angular/platform-browser';
  2. import { NgModule } from '@angular/core';
  3. import {HttpClientModule, HttpClient} from '@angular/common/http';
  4. import { AppRoutingModule } from './app-routing.module';
  5. import { AppComponent } from './app.component';
  6. import { DetailsComponent } from './details/details.component';
  7.
  8. @NgModule({
  9.   declarations: [
  10.     AppComponent,
  11.     DetailsComponent
  12.   ],
  13.   imports: [
  14.     BrowserModule,
  15.     AppRoutingModule,HttpClientModule
  16.   ],
  17.   providers: [],
  18.   bootstrap: [AppComponent]
  19. })
  20. export class AppModule { }
Now, open Details.component.ts and add the following lines,
  1. import { Component, OnInit } from '@angular/core';
  2. import {HttpClientModule,HttpClient} from '@angular/common/http';
  3. @Component({
  4.   selector: 'app-details',
  5.   templateUrl: './details.component.html',
  6.   styleUrls: ['./details.component.css']
  7. })
  8. export class DetailsComponent implements OnInit {
  9.
  10.   constructor(private httpservice:HttpClient) { }
  11.   Emp:string[];
  12.   ngOnInit() {
  13.     this.httpservice.get('http://localhost:2338/api/RETDATA/Getemp').subscribe(data=>
  14.       {
  15.         this.Emp = data as string [];
  16.       });
  17.   }
  18. }
 Now, open details.component.Html and add the following lines,
  1. <div class="container">
  2.   <table class="table table-bordered  thead-dark ">
  3.       <thead class="thead-dark">
  4.           <tr class="text-center text-uppercase">
  5.
  6.               <th>Name</th>
  7.               <th>Department</th>
  8.               <th>Address</th>
  9.               <th>City</th>
  10.               <th>Country</th>
  11.
  12.             </tr>
  13.       </thead>
  14.       <tbody>
  15.         <tr class="text-center" *ngFor="let Emp of Emp">
  16.
  17.           <td>{{Emp.Name}}</td>
  18.           <td>{{Emp.Department}}</td>
  19.           <td>{{Emp.Address}}</td>
  20.           <td>{{Emp.City}}</td>
  21.           <td>{{Emp.Country}}</td>
  22.
  23.         </tr>
  24.       </tbody>
  25.     </table>
  26. </div>

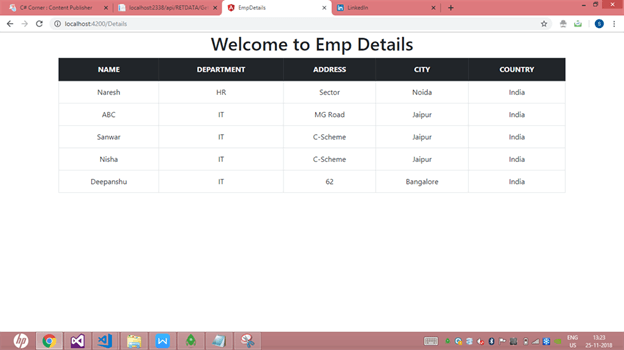

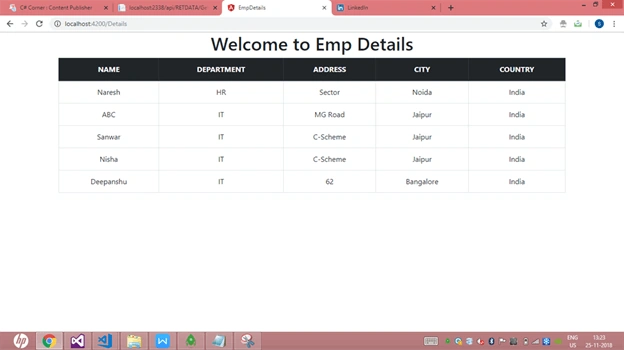

Now, run the project by using this command,

ng serve -o

Retrieve Data From MongoDB Using Web API And Angular 6

Summary

In this article, we learned how we fetch data from the database using Web API and display it using Angular 6.
