Setup Remote Content Type HUB In SharePoint

Introduction

In SharePoint, most developers must be aware of Content-Type HUB. Some of them also might know how to Create Content Type HUB in the Same Web Application. But here, I have explained how to create a content type HUB on one server and consume it in another sever.

Note

Publishing Farm (DEFRAVMDFUSWK83) Consuming Farm (Local Server)

Check the following before starting Consuming CTH

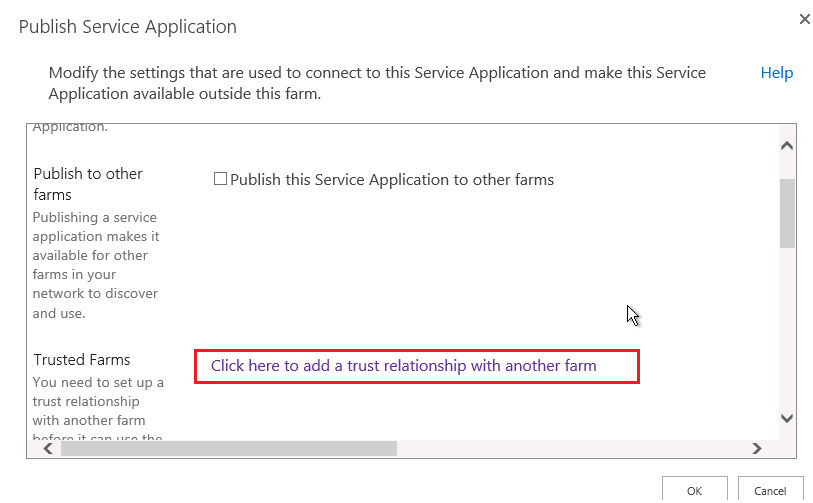

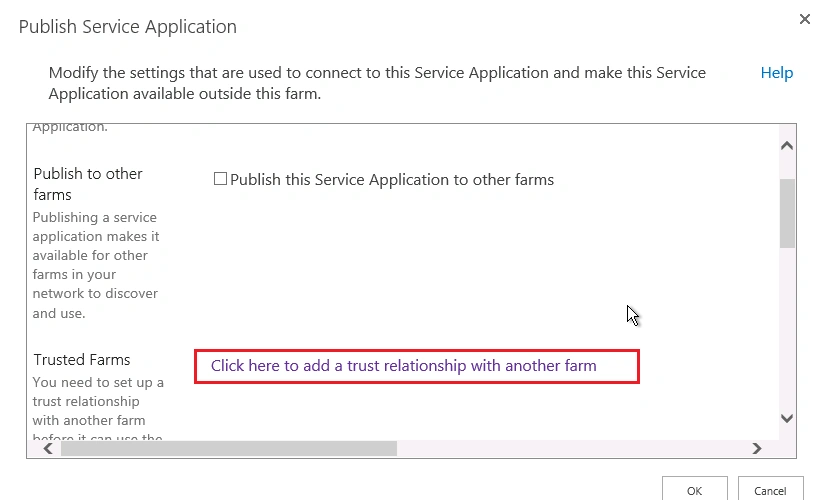

On Consuming Farm - Central Admin - Application Management - Service Application - Managed Service Application - Select Managed Metadata Service - Publish (in Ribbon) - Click on the link (Click here to add a relationship with another Farm)

Note

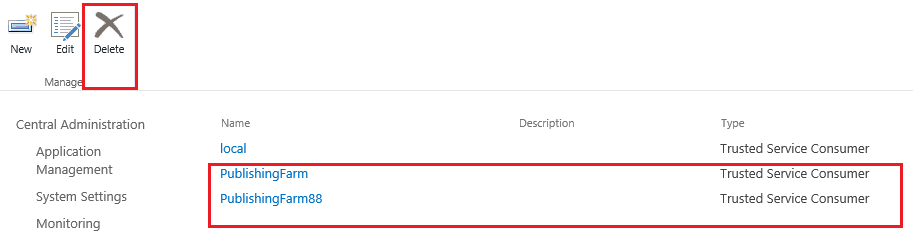

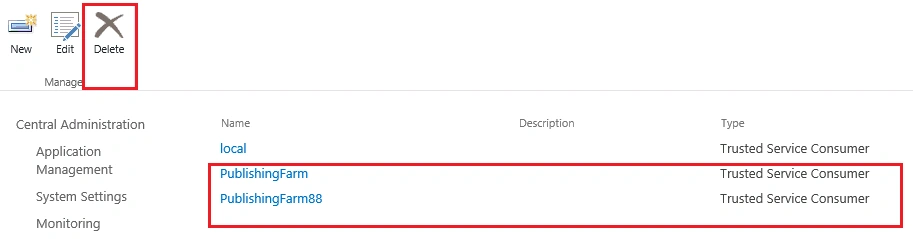

If any publishing trust presents over there, delete it.

Setup Remote Content Type HUB in SharePoint

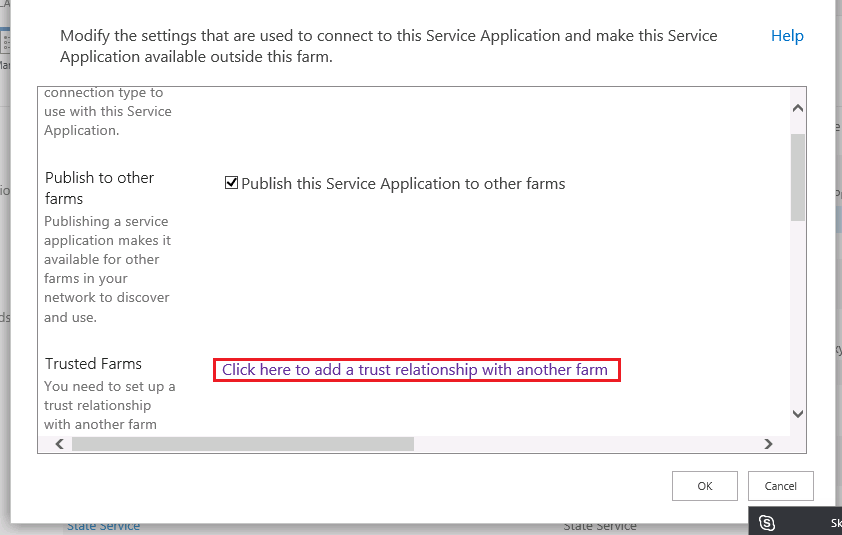

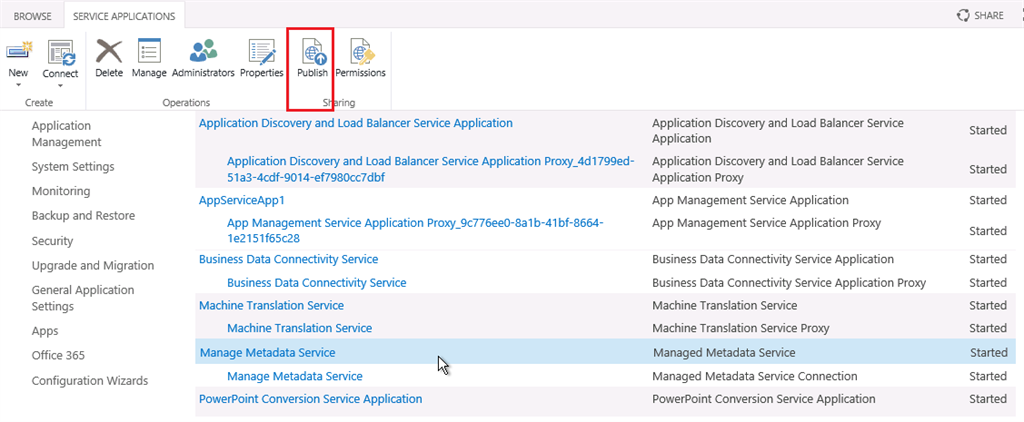

On Publishing Farm - Central Admin - Application Management - Service Application - Managed Service Application - Select Managed Metadata Service - Publish (in Ribbon) - Click on the link (Click here to add a relationship with another farm)

Steps To Consuming CTH

Creation of Root and STS Certificates on Consuming Farm

In the consuming farm go to the Start menu.
Go to SharePoint2013 Management Shell and select Run as Administrator.
In the command prompt, type each of the following commands.
In the following script put the exact path where you want to store your certificates With proper Certificate Name within Double coats.
Here 022 is added at the end of certificate only for the identity of a specific Certificate on publishing Farm.
1. $rootCert = (Get-SPCertificateAuthority).RootCertificate
2. $rootCert.Export("Cert") | Set-Content "C:\ConsumingFarmRootOS022.cer" -Encoding byte

To export the STS certificate from the consuming farm:

In the Command Prompt, type each of the following commands
1. $stsCert = (Get-SPSecurityTokenServiceConfig).LocalLoginProvider.SigningCertificate
2. $stsCert.Export("Cert") | Set-Content "C:\ConsumingFarmSTSOS022.cer" -Encoding byte

Creation of Root Certificate on Publishing Farm

Kindly check if the publishing certificate already exists or not on the publishing farm.

If it exists, copy that and past it on your local (Consuming Farm) where consuming certificates are already stored.

If not, then follow the below steps:

In the Command Prompt, type each of the following commands.
In the following script put the exact path where you want to store your certificate With proper Certificate Name within Double coats.
Here 022 is not added at the end of the certificate because the identity of the Publishing Certificate on Every Consuming Farm is the same.
1. $rootCert = (Get-SPCertificateAuthority).RootCertificate
2. $rootCert.Export("Cert") | Set-Content "C:\PublishingFarmRootOS.cer" -Encoding byte

Exchange of Certificates within Publishing Farm and Consuming Farm,

Copy the Root and STS Certificates from your local Farm to Publishing Farm on the same path where you stored a publishing Certificate.
Copy the Root Certificate from your Publishing Farm to local Farm on the same path where you stored Consuming Certificate.

Creating Trust Between Consuming and Publishing Certificates

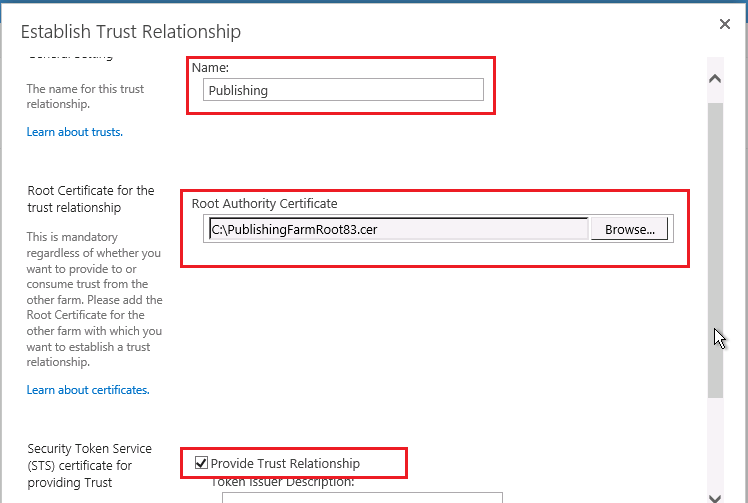

On Consuming Farm - Central Admin -Application Management - Service Application - Managed Service Application -

Select Managed Metadata Service - Publish (in Ribbon) - Click on Link(Click here to add a relationship with another Farm) - New(in Ribbon) -

Name - ( e.g. Publishing)

Root Authority Certificate -- (Browse the publishing Certificate)

Provide Trust Relationship—(Tick the Checkbox) - - ok

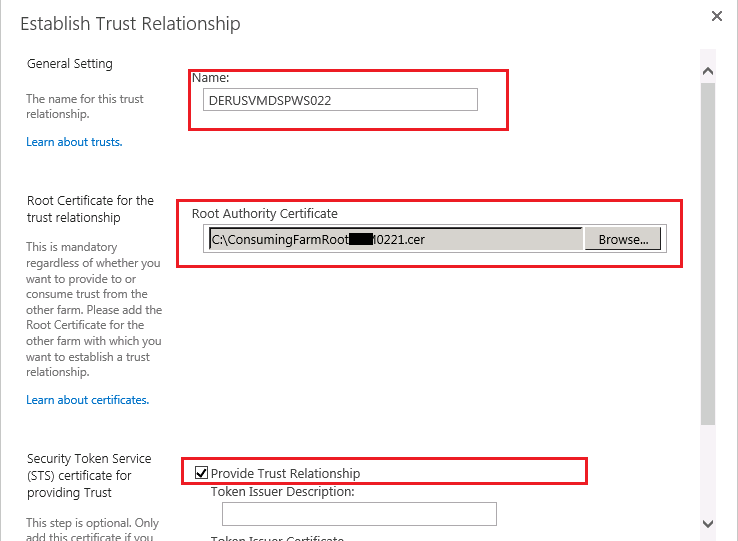

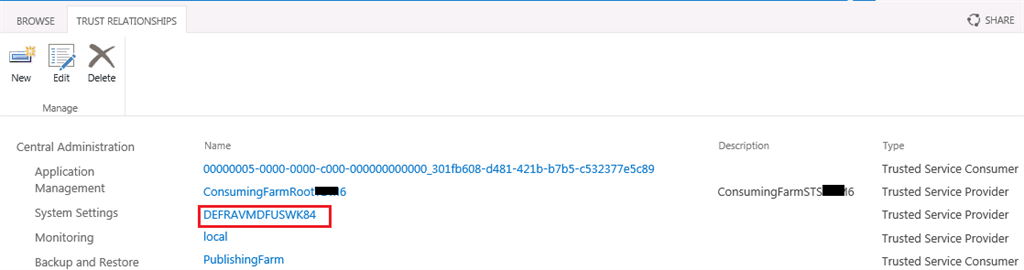

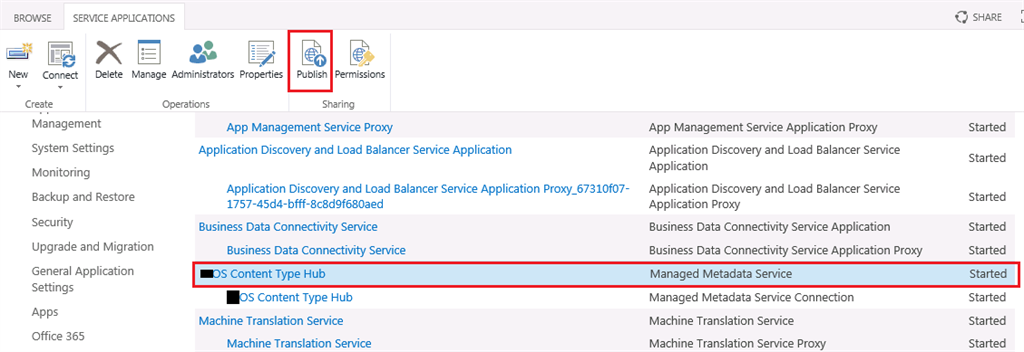

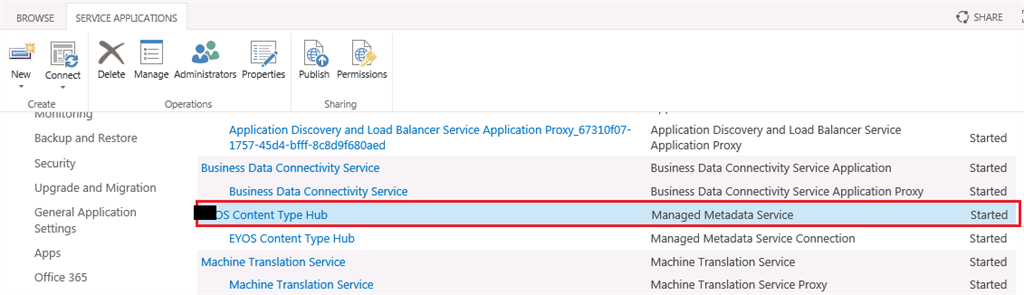

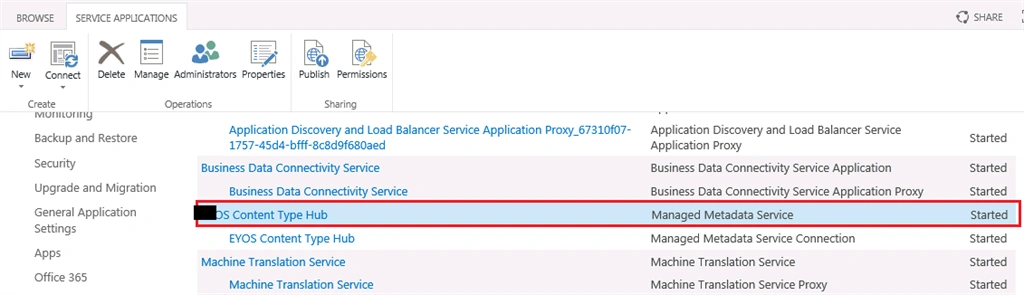

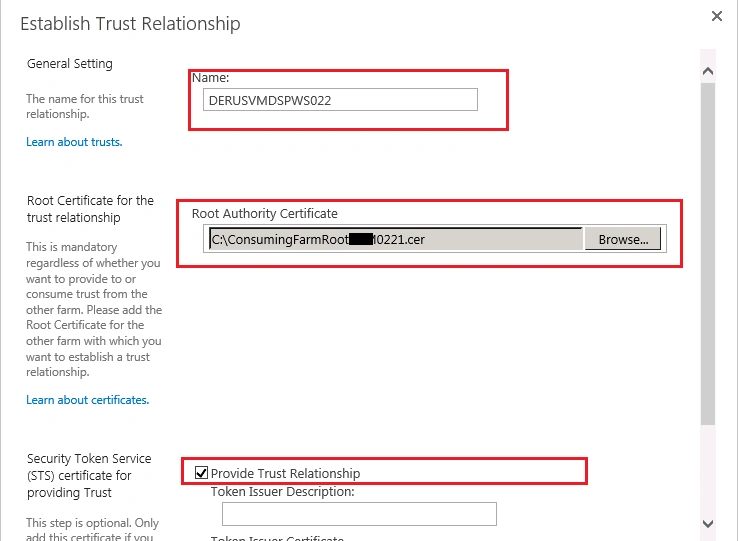

On Publishing Farm - Central Admin -Application Management - Service Application - Managed Service Application - Select Managed Metadata Service (OS Content-Type Hub) - Publish (in ribbon) - Click on the link (Click here to add a relationship with another)

Farm - New (in Ribbon)

Name - ( e.g. DERUSVMDSPWS022)

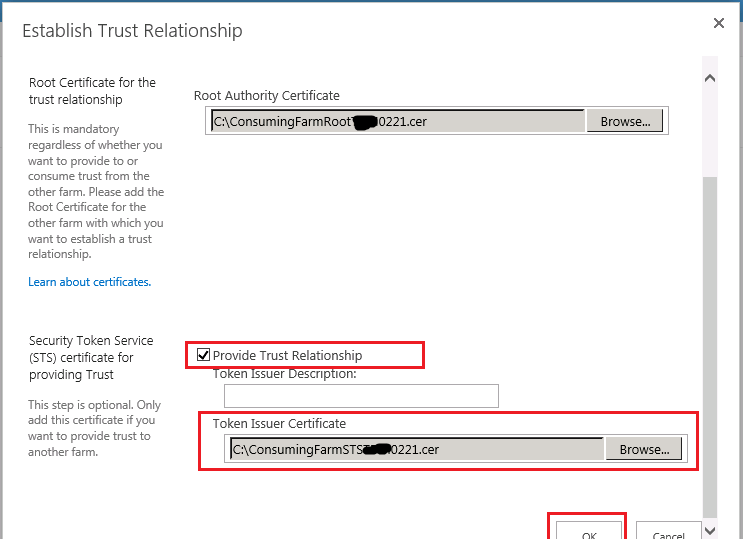

Root Authority Certificate - (Browse the Consuming Root Certificate)

Provide Trust Relationship - (Tick the Checkbox)

Token Issuer Description - (Keep it Blank)

Token Issuer Certificate - Ok

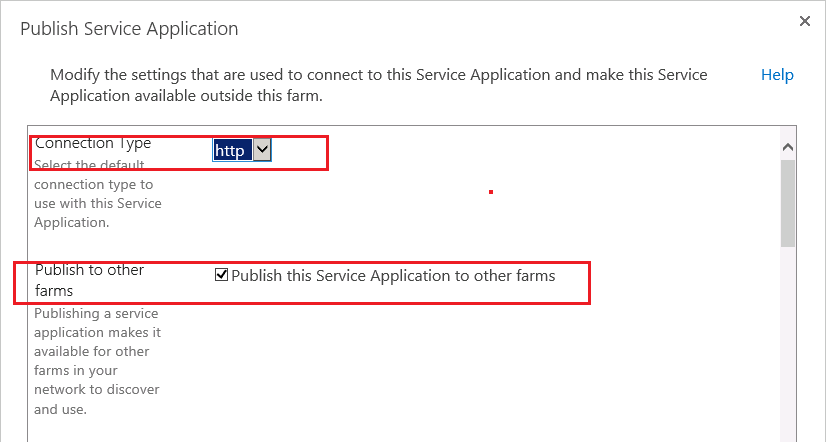

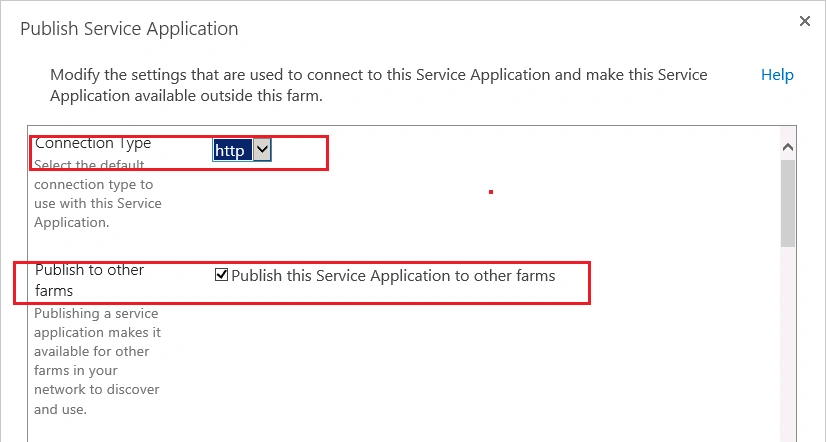

Again go to Select Managed Metadata Service -Publish (in Ribbon) -

Content-Type – (HTTP)

Publish to other Farm – (Tick the checkbox)

OK.

Set permissions to published service applications

On Consuming Farm run the following script

Copy the ID that you get after this command.

Get-SPFarm | Select Id

On Publishing Farm Run the Following script

Paste the ID that you copied in the previous step where you see the blue text in the script within Double coats.

$security = Get-SPTopologyServiceApplication | Get-SPServiceApplicationSecurity

$claimProvider = (Get-SPClaimProvider System).ClaimProvider

$principal = New-SPClaimsPrincipal -ClaimType "http://schemas.microsoft.com/sharepoint/2009/08/claims/farmid" -ClaimProvider $claimProvider -ClaimValue <ID Copied from Step 1 Above>

Grant-SPObjectSecurity -Identity $security -Principal $principal -Rights "Full Control"

Get-SPTopologyServiceApplication | Set-SPServiceApplicationSecurity -ObjectSecurity $security

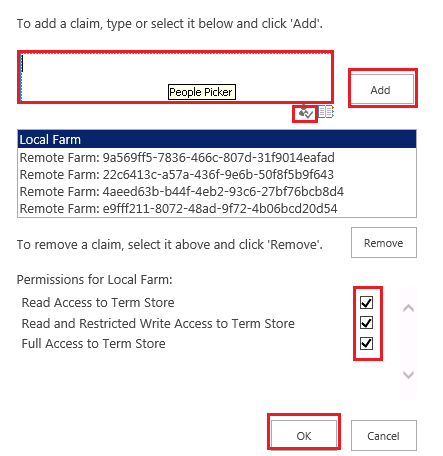

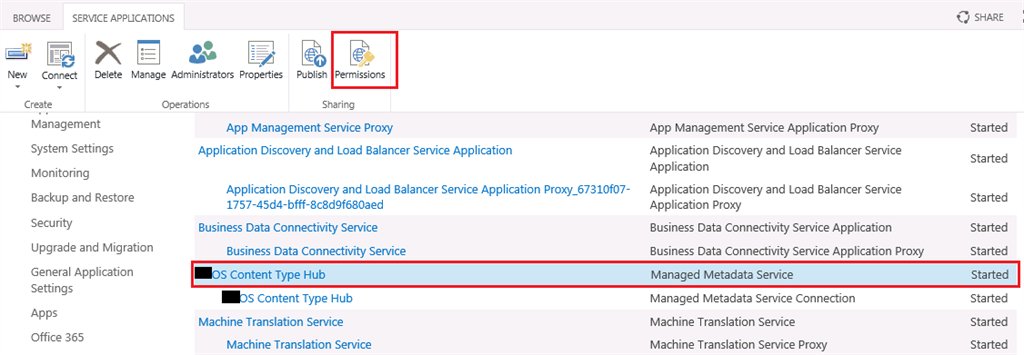

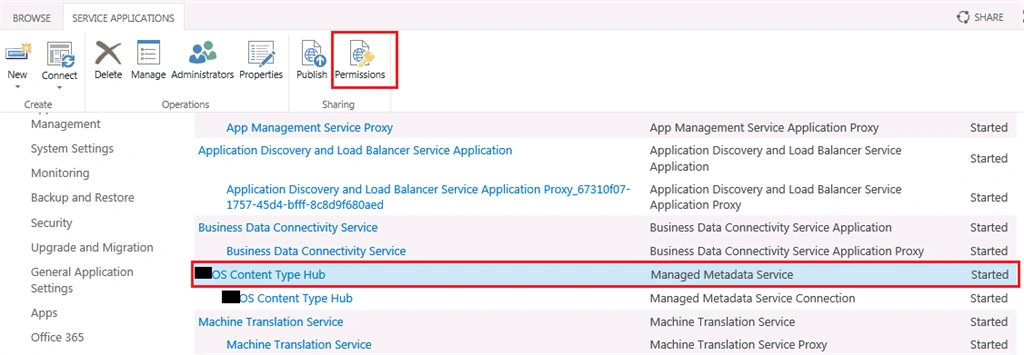

On Publishing Farm - Central Admin - Application Management - Service Application - Managed Service Application - Select Managed Metadata Service (OS Content Type Hub) - Permission (in Ribbon) - Enter that Farm ID in the textbox that got in the previous step -Check Names - Add - Tick All the checkboxes under permission for Local Farm - ok.

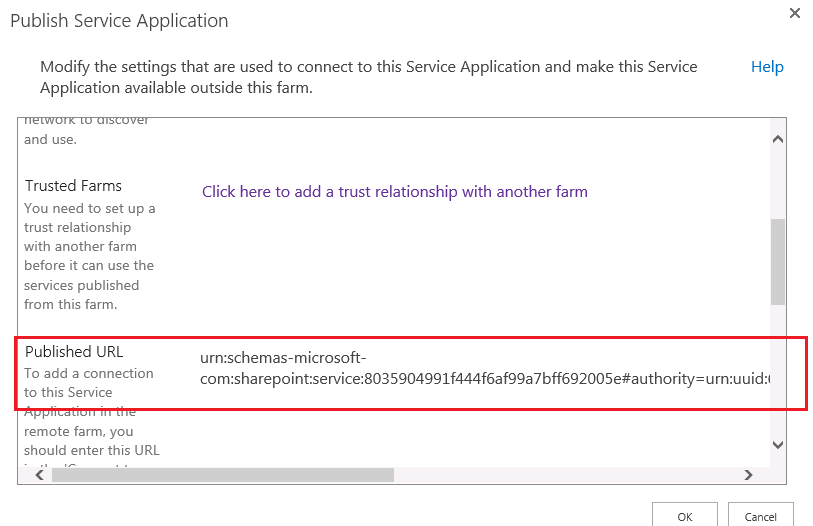

Again Go to the Managed Metadata Service -Publish (in Ribbon) -Copy the Publish URL.

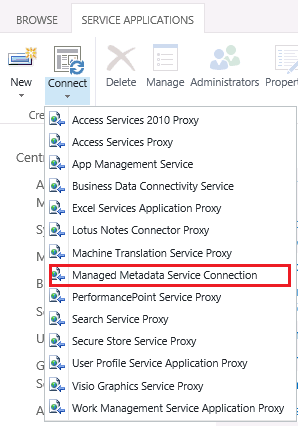

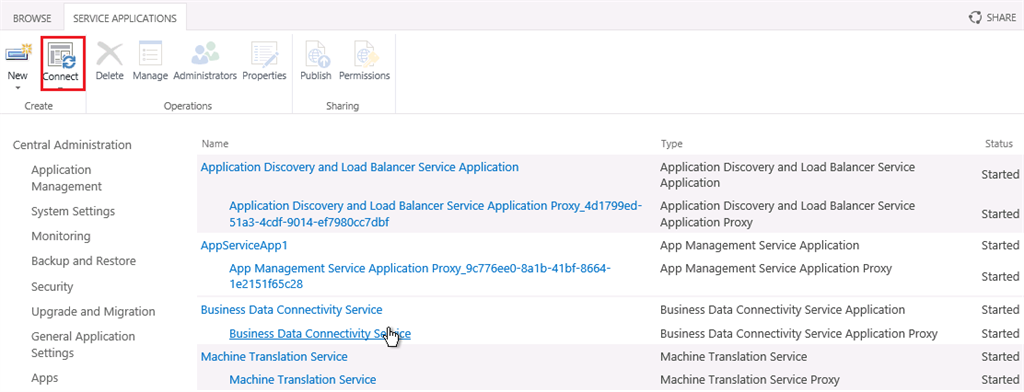

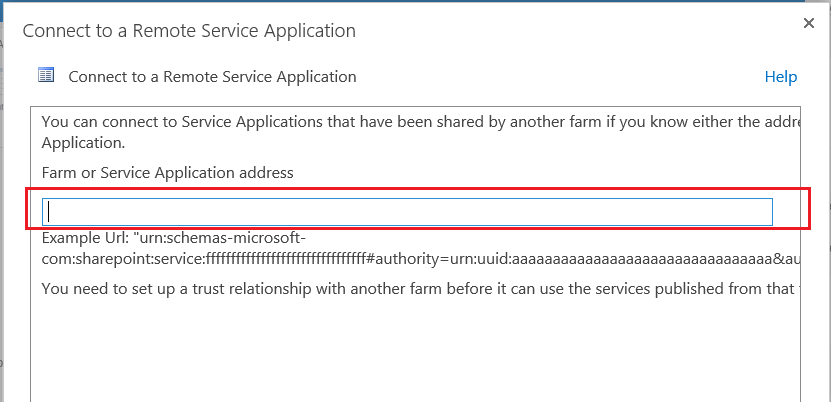

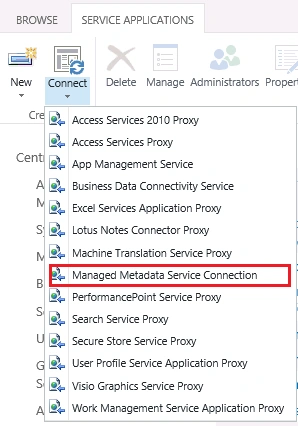

On Consuming Farm------------------ -Central Admin -Application Management - Service Application - Managed Service Application -Connect(I Ribbon) -Managed Metadata Service Connection -Past the publishing URL that you copied in the previous Step -Ok -OK -OK.

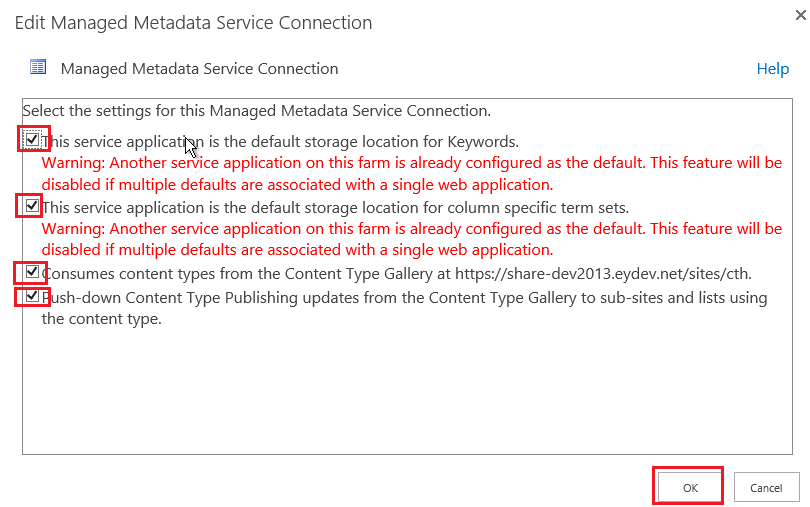

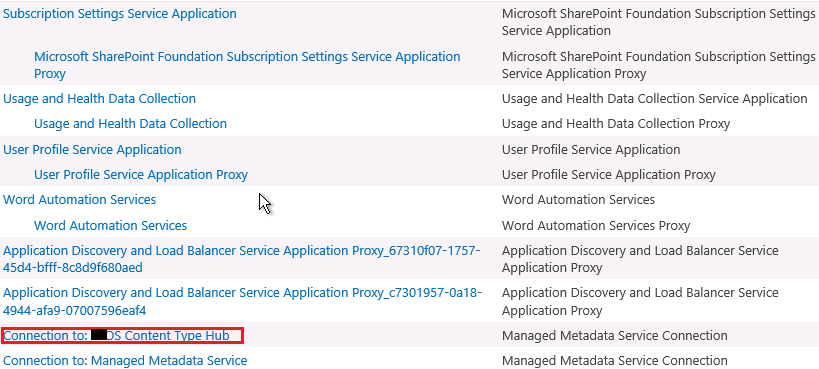

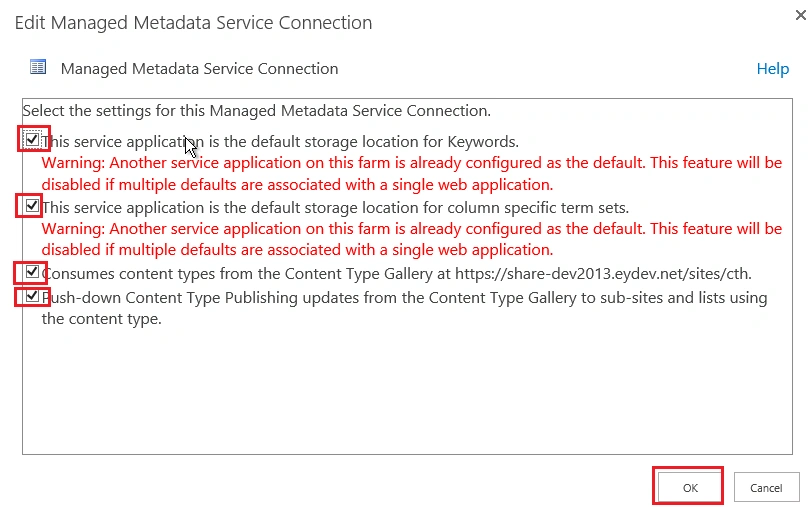

Now you can see the Connect to OS Content Type Hub in Managed Service Application. Select it - Property (in Ribbon) - Tick All Checkboxes - Ok

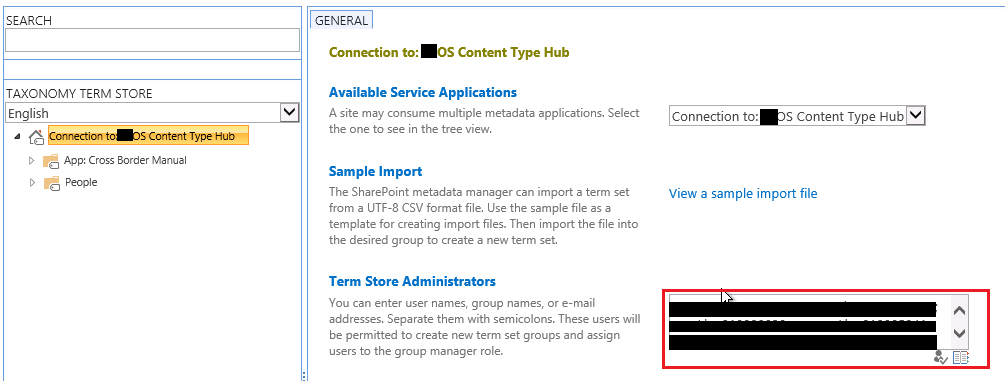

Again, click to Connect to: OS Content Type Hub - Add yourself in Term Store Administrators - Save.

Step to Check Default Content Type Hub

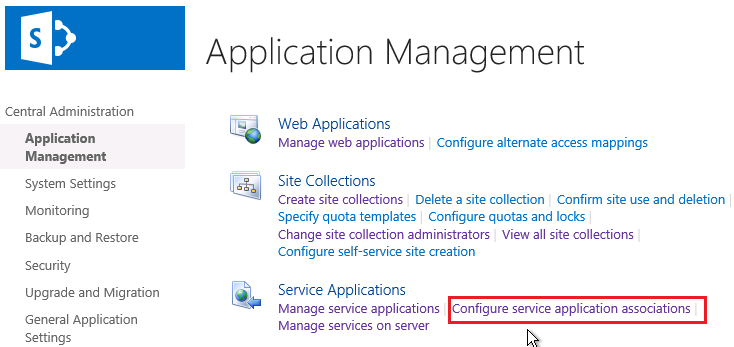

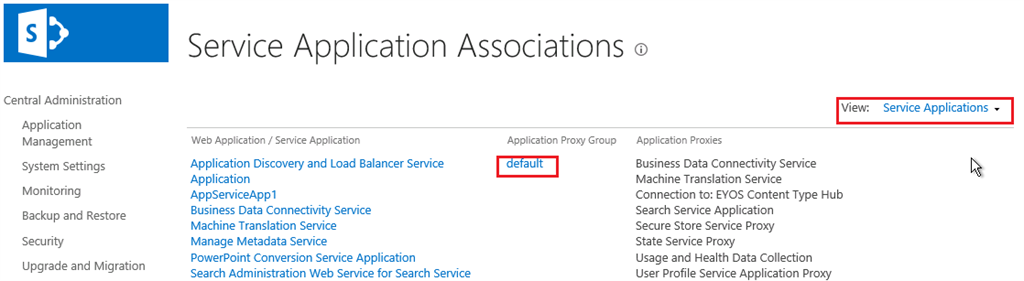

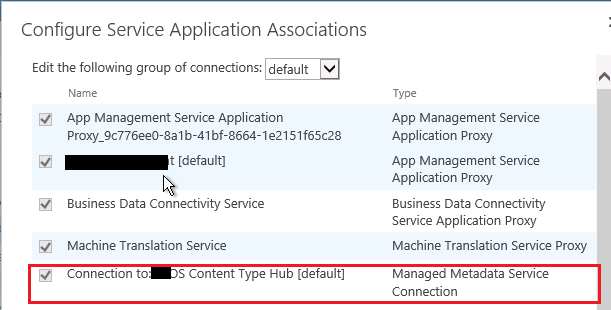

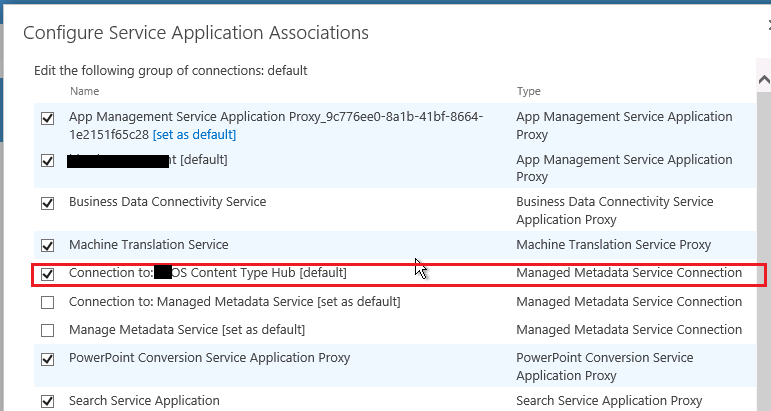

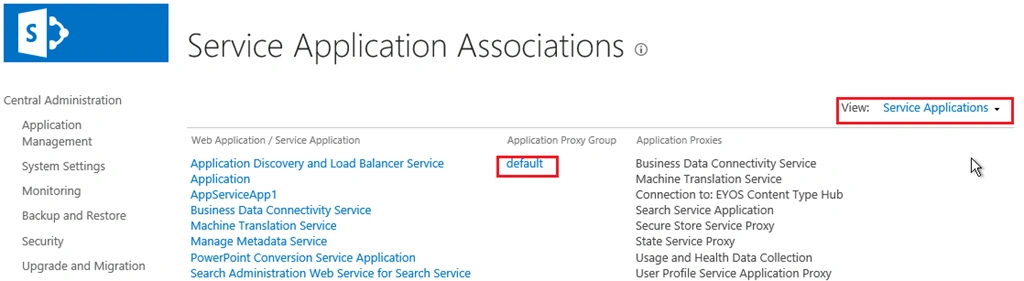

Central Admin - Application Management - service Application - Configure Service Application Associations - View(Service Application) - Click on Default under Application proxy Group - Now select which metadata service connection you want to set as default and tick the checkbox in front of it.

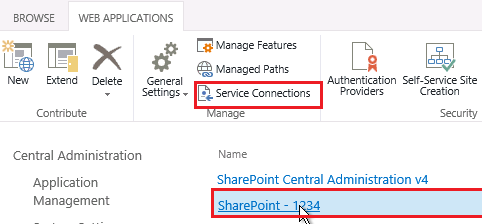

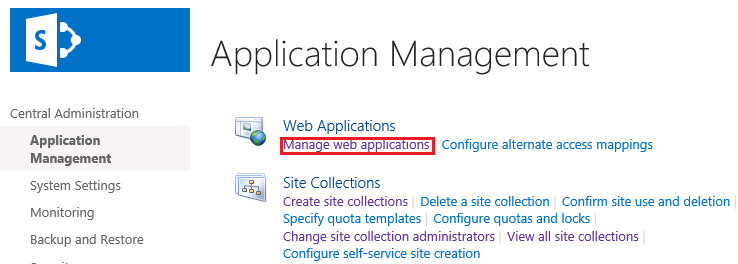

Central Admin -Application Management - Web Application -Managed Web Application -Select your Web Application -Service connections (in Ribbon) -Tick the checkbox in front of your Managed metadata Connections Wants to be Default.

Running Timer Job Service – (Subscriber Job)

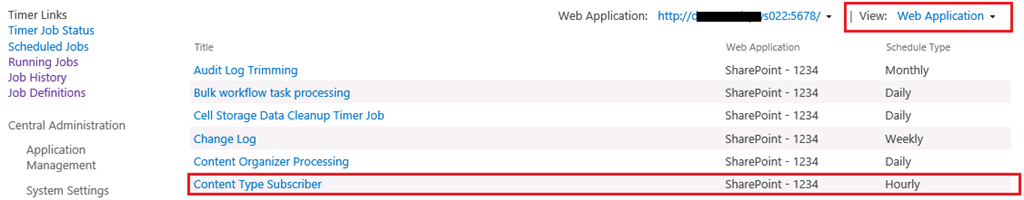

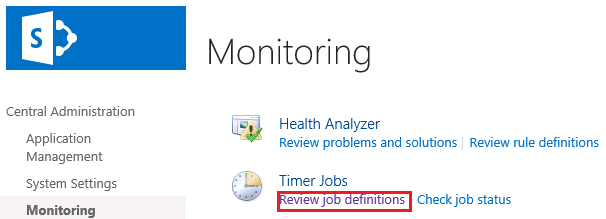

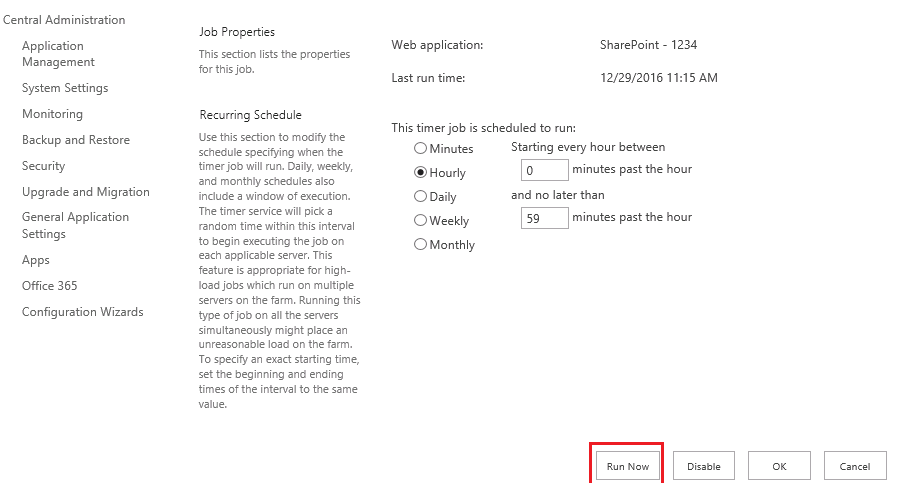

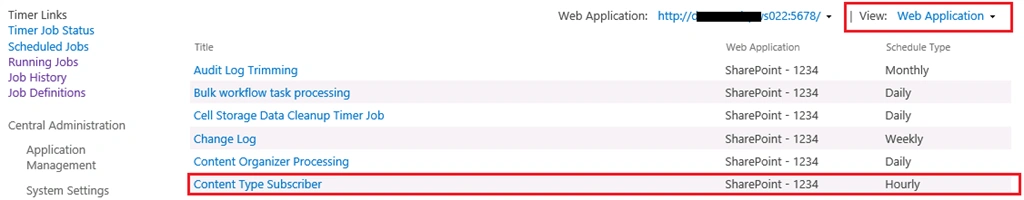

CentralAdmin - Monitoring - Timmer Job -Review Job Definitions - View(Web Application) - Click on Content-Type Subscriber - Run Now.

We have gone through all the steps and their use/importance in order to set up the Content-Type HUB in a separate server. The steps mentioned here were performed on SharePoint 2013 on-premise environment.
