Simple and Multicast Delegate in C#

A useful property of delegate objects is that multiple objects can be assigned to one delegate instance by using the + operator. The multicast delegate contains a list of the assigned delegates. When the multicast delegate is called, it invokes the delegates in the list, in order. Only delegates of the same type can be combined.

The "-" operator can be used to remove a component delegate from a multicast delegate.

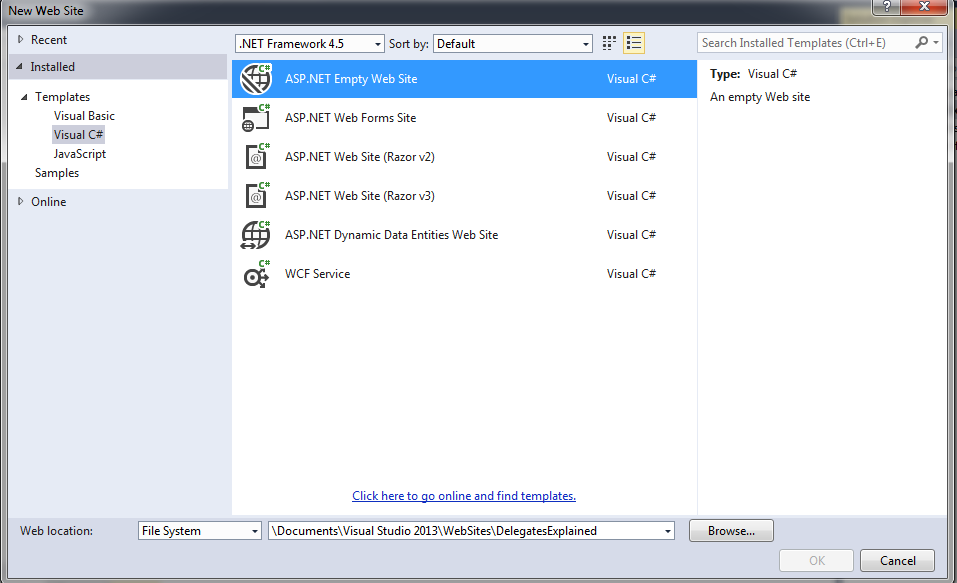

1. Open Visual Studio go to>>File>>New>>Website>>Asp.net Empty Website and name anything but named DelegatesExplained:


2. Add New WebForm to your Project and Name DelegateExplained.aspx,you can name anything:

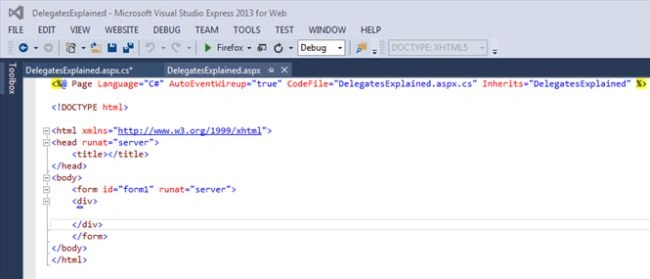

code

3. Add the following under the body tag of Desing page of DelegatesExplained.aspx:
  1. <form id="form1" runat="server">
  2.     <div>
  3.
  4.     <asp:Label ID="Label1" runat="server"></asp:Label>
  5.     <asp:Label ID="Label2" runat="server"></asp:Label>
  6.     <asp:Label ID="Label3" runat="server"></asp:Label>
  7.
  8.     </div>
  9.     </form>
4. Now open .DelegatedExplained.cs and define the delegate name Delegates:
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7.
  8.
  9. public delegate void Delegates();
5. Create three functions name First,Second and Third outside the pageload() function:
  1. protected void Page_Load(object sender, EventArgs e)
  2. {
  3.
  4. }
  5. public void First()
  6. {
  7.     Label1.Text = "First";
  8. }
  9.
  10. public void Second()
  11. {
  12.     Label2.Text = "Second";
  13. }
  14.
  15. public void Third()
  16. {
  17.     Label3.Text = "Third";
  18. }
6. Create Objects Of Delegate under pageload() method:
  1. protected void Page_Load(object sender, EventArgs e)
  2. {
  3.     MultipleDelegate m1,m2,m3;
  4. }
  5. public void First()
  6. {
  7.     Label1.Text = "First";
  8. }
  9.
  10. public void Second()
  11. {
  12.     Label2.Text = "Second";
  13. }
  14.
  15. public void Third()
  16. {
  17.     Label3.Text = "Third";
  18. }
 7. Now add refrence of Function name First() to m1 and calling the function by calling m1():
  1. protected void Page_Load(object sender, EventArgs e)
  2. {
  3.     MultipleDelegate m1;
  4.
  5.     m1 = First;  //adding reference to the First Function
  6.     m2=Second;   //adding reference to the SecondFunction
  7.     m3=Third;  //adding reference to the Third Function
  8.     m1();
  9.     m2();
  10.     m3();
  11. }
  12. public void First()
  13. {
  14.     Label1.Text = "First";
  15. }
  16.
  17. public void Second()
  18. {
  19.     Label2.Text = "Second";
  20. }
  21.
  22. public void Third()
  23. {
  24.     Label3.Text = "Third";
  25. }
Now run by pressing ctrl+f5;

 Now see output will be:



Now Multicast Delegates by using + operator  rather then calling each object separately create a new object m4 and add all the delegates objects in it.

 Only delegates of the same type can be combined.
  1.    protected void Page_Load(object sender, EventArgs e)
  2.    {
  3.        MultipleDelegate m1, m2, m3,m4;
  4.
  5.        m1 = First;  //adding reference to the First Function
  6.
  7.        m2 = Second;   //adding reference to the SecondFunction
  8.
  9.        m3 = Third;  //adding reference to the Third Function
  10.
  11.        m4 = m1 + m2 + m3;   //casting all three objects of MuticastDelegate to one object;
  12.
  13.        m4();
  14.    }
  15.    public void First()
  16.    {
  17.        Label1.Text = "First";
  18.    }
  19.
  20.    public void Second()
  21.    {
  22.        Label2.Text = "Second";
  23.    }
  24.
  25.    public void Third()
  26.    {
  27.        Label3.Text = "Third";
  28.    }
 Now see output will be the same:


You Can also use the "-" operator to remove any object as given below:
Create new object m5:
  1.    protected void Page_Load(object sender, EventArgs e)
  2.    {
  3.        MultipleDelegate m1, m2, m3,m4,m5;
  4.
  5.        m1 = First;  //adding reference to the First Function
  6.
  7.        m2 = Second;   //adding reference to the SecondFunction
  8.
  9.        m3 = Third;  //adding reference to the Third Function
  10.
  11.        m4 = m1 + m2 + m3;   //casting all three objects of MuticastDelegate to one object;
  12.
  13.        m5 = m4 - m3;
  14.
  15.        m5();
  16.    }
  17.    public void First()
  18.    {
  19.        Label1.Text = "First";
  20.    }
  21.
  22.    public void Second()
  23.    {
  24.        Label2.Text = "Second";
  25.    }
  26.
  27.    public void Third()
  28.    {
  29.        Label3.Text = "Third";
  30.    }

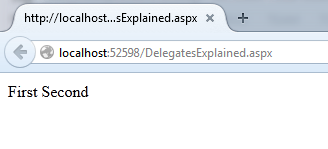

Now output will change and show only two functions: First and Second:


Thanks.
