In modern software development, APIs (Application Programming Interfaces) are the backbone of communication between services and applications. Choosing the right API style can greatly influence performance, scalability, and maintainability. In this blog, we will explore four popular API technologies—REST, GraphQL, and gRPC—and how to implement them in C#.

Full C# Solution: REST, GraphQL, and gRPC

We will create a single solution with multiple projects, each demonstrating a different API style.

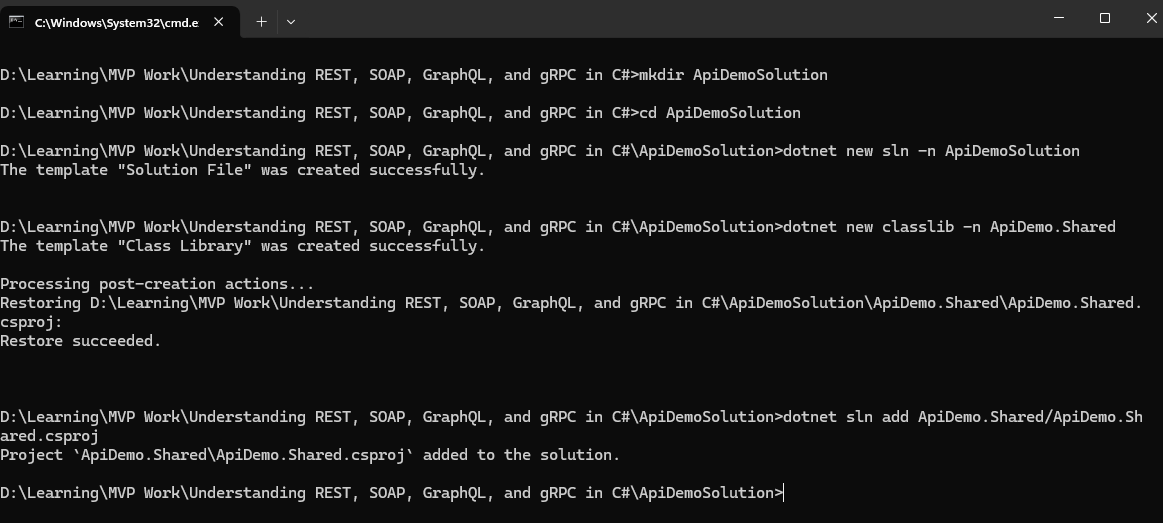

Step 1: Create a Solution

Open Visual Studio or CLI, then create a solution:

mkdir ApiDemoSolution
cd ApiDemoSolution
dotnet new sln -n ApiDemoSolution

This creates a solution called ApiDemoSolution.

Step 2: Create Shared Models Project

All APIs will use a shared project for models and services.

dotnet new classlib -n ApiDemo.Shared

Step 3: Install EF Core for PostgreSQL

For all projects that use IProductRepository (Shared or REST API), install the necessary EF Core packages:

cd ApiDemo.Shared
dotnet add package Npgsql.EntityFrameworkCore.PostgreSQL
dotnet add package Microsoft.EntityFrameworkCore.Design

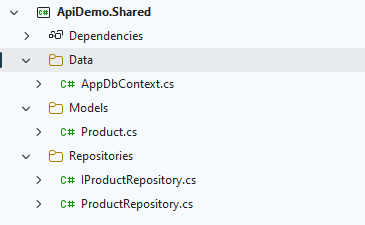

Step 2: Update Shared Project

Models/Product.cs

using System.ComponentModel.DataAnnotations;
using System.ComponentModel.DataAnnotations.Schema;

public class Product
{
    [Key]
    public Guid Id { get; set; } = Guid.NewGuid();

    [Required(ErrorMessage = "Product name is required.")]
    [MaxLength(100, ErrorMessage = "Product name cannot exceed 100 characters.")]
    public string Name { get; set; } = string.Empty;

    [MaxLength(500, ErrorMessage = "Description cannot exceed 500 characters.")]
    public string Description { get; set; } = string.Empty;

    [Range(0, double.MaxValue, ErrorMessage = "Price must be a non-negative value.")]
    [Column(TypeName = "decimal(18,2)")] // Ensures proper precision in database
    public decimal Price { get; set; }

    [Range(0, int.MaxValue, ErrorMessage = "Stock cannot be negative.")]
    public int Stock { get; set; }

    // Domain Logic
    public void ReduceStock(int quantity)
    {
        if (quantity > Stock)
            throw new InvalidOperationException("Insufficient stock.");
        Stock -= quantity;
    }
}

Data/AppDbContext.cs

using Microsoft.EntityFrameworkCore;
using System;
using System.Collections.Generic;
using System.Text;

namespace ApiDemo.Shared.Data;

public class AppDbContext : DbContext
{
    public AppDbContext(DbContextOptions<AppDbContext> options)
        : base(options) { }

    public DbSet<Product> Products { get; set; }
}

Repositories/IProductRepository.cs

namespace ApiDemo.Shared.Repositories;

public interface IProductRepository
{
    Task<Product?> GetByIdAsync(Guid id);
    Task<IEnumerable<Product>> GetAllAsync();
    Task AddAsync(Product product);
    Task UpdateAsync(Product product);
    Task DeleteAsync(Guid id);
}

Repositories/ProductRepository.cs

using ApiDemo.Shared.Data;
using Microsoft.EntityFrameworkCore;

namespace ApiDemo.Shared.Repositories;

public class ProductRepository : IProductRepository
{
    private readonly AppDbContext _db;

    public ProductRepository(AppDbContext db)
    {
        _db = db;
    }

    public async Task AddAsync(Product product)
    {
        product.Id = Guid.NewGuid();
        await _db.Products.AddAsync(product);
        await _db.SaveChangesAsync();
    }

    public async Task DeleteAsync(Guid id)
    {
        var product = await _db.Products.FindAsync(id);
        if (product != null)
        {
            _db.Products.Remove(product);
            await _db.SaveChangesAsync();
        }
    }

    public async Task<IEnumerable<Product>> GetAllAsync() => await _db.Products.ToListAsync();

    public async Task<Product?> GetByIdAsync(Guid id) => await _db.Products.FindAsync(id);

    public async Task UpdateAsync(Product product)
    {
        _db.Products.Update(product);
        await _db.SaveChangesAsync();
    }
}

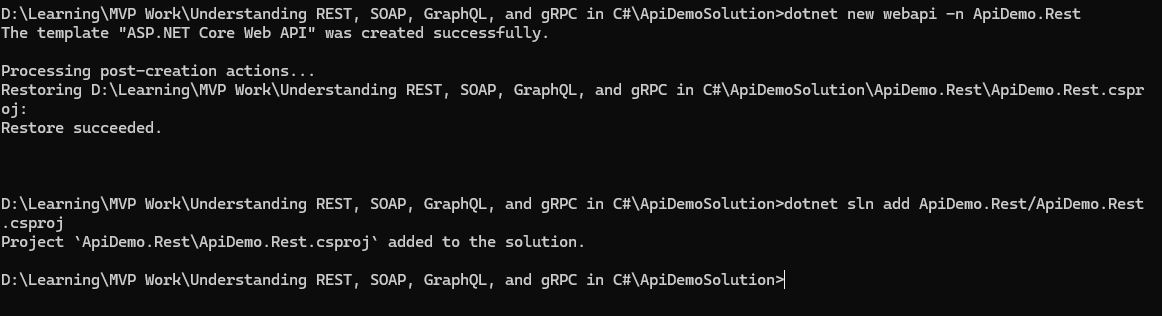

Create REST API Project

dotnet new webapi -n ApiDemo.Rest
dotnet sln add ApiDemo.Rest/ApiDemo.Rest.csproj

Install Swagger

dotnet add ECommerce.API package Swashbuckle.AspNetCore

Update Program.cs

using ApiDemo.Shared.Data;
using ApiDemo.Shared.Repositories;
using Microsoft.EntityFrameworkCore;
using System;

var builder = WebApplication.CreateBuilder(args);

// Configure PostgreSQL
builder.Services.AddDbContext<AppDbContext>(options =>
    options.UseNpgsql(builder.Configuration.GetConnectionString("DefaultConnection"),
        b => b.MigrationsAssembly("ApiDemo.Rest")));

builder.Services.AddScoped<IProductRepository, ProductRepository>();
builder.Services.AddControllers();
builder.Services.AddEndpointsApiExplorer();
builder.Services.AddSwaggerGen();

var app = builder.Build();
app.UseSwagger();
app.UseSwaggerUI();
app.UseHttpsRedirection();
app.MapControllers();
app.Run();

Upgrade All Packages for .net 10

dotnet add "ApiDemo.Shared/ApiDemo.Shared.csproj" package Microsoft.EntityFrameworkCore.Design --version 10.0.1
dotnet add "ApiDemo.Shared/ApiDemo.Shared.csproj" package Npgsql.EntityFrameworkCore.PostgreSQL --version 10.0.1
dotnet add "ApiDemo.Rest/ApiDemo.Rest.csproj" package Npgsql.EntityFrameworkCore.PostgreSQL --version 10.0.1
dotnet add "ApiDemo.Rest/ApiDemo.Rest.csproj" package Microsoft.EntityFrameworkCore.Design --version 10.0.1

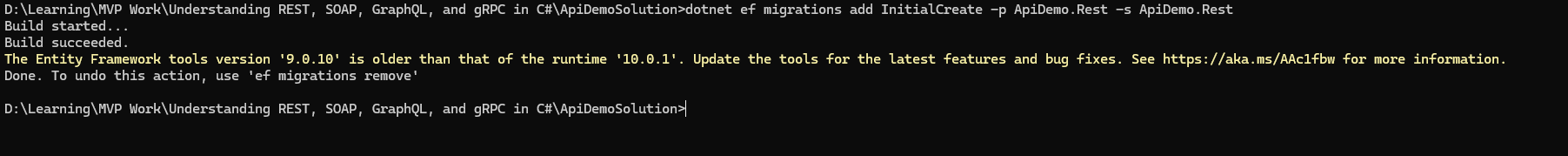

Create Migrrations

dotnet ef migrations add InitialCreate -p ApiDemo.Rest -s ApiDemo.Rest

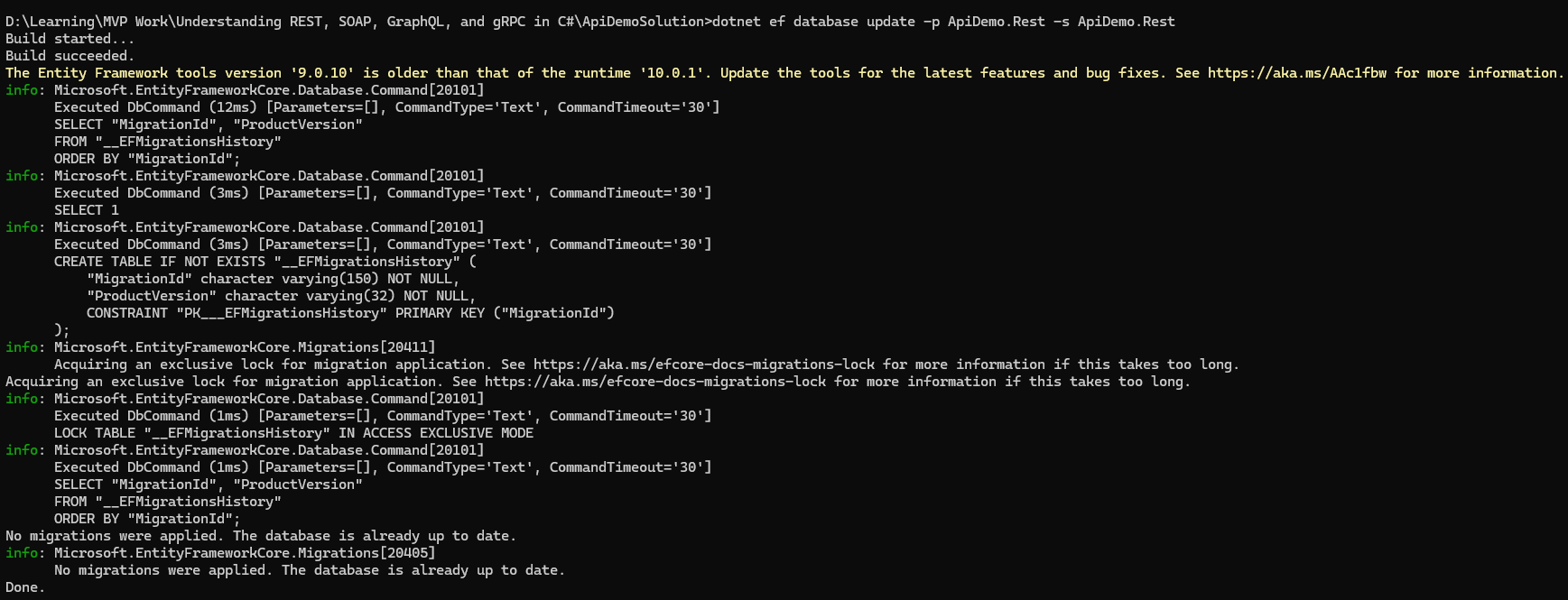

Update Database

Optional: Seed Database (Optional)

You can seed some data in Program.cs:

using var scope = app.Services.CreateScope();
var repo = scope.ServiceProvider.GetRequiredService<IProductRepository>();

if (!(await repo.GetAllAsync()).Any())
{
    await repo.AddAsync(new Product { Name = "Test Product 1", Price = 10.5 });
    await repo.AddAsync(new Product { Name = "Test Product 2", Price = 25.0 });
}

Create Controller for Rest

using ApiDemo.Shared.Repositories;
using Microsoft.AspNetCore.Http;
using Microsoft.AspNetCore.Mvc;

namespace ApiDemo.Rest.Controllers
{
    [Route("api/[controller]")]
    [ApiController]
    public class ProductController : ControllerBase
    {

        private readonly IProductRepository _repository;

        public ProductController(IProductRepository repository)
        {
            _repository = repository;
        }

        // GET: api/product
        [HttpGet]
        public async Task<IActionResult> GetAll()
        {
            var products = await _repository.GetAllAsync();
            return Ok(products);
        }

        // GET: api/product/{id}
        [HttpGet("{id:guid}")]
        public async Task<IActionResult> GetById(Guid id)
        {
            var product = await _repository.GetByIdAsync(id);

            if (product == null)
                return NotFound();

            return Ok(product);
        }

        // POST: api/product
        [HttpPost]
        public async Task<IActionResult> Create([FromBody] Product product)
        {
            if (!ModelState.IsValid)
                return BadRequest(ModelState);

            await _repository.AddAsync(product);

            return CreatedAtAction(nameof(GetById),
                new { id = product.Id }, product);
        }

        // PUT: api/product/{id}
        [HttpPut("{id:guid}")]
        public async Task<IActionResult> Update(Guid id, [FromBody] Product product)
        {
            if (id != product.Id)
                return BadRequest("ID mismatch.");

            var existing = await _repository.GetByIdAsync(id);
            if (existing == null)
                return NotFound();

            await _repository.UpdateAsync(product);
            return NoContent();
        }

        // DELETE: api/product/{id}
        [HttpDelete("{id:guid}")]
        public async Task<IActionResult> Delete(Guid id)
        {
            var existing = await _repository.GetByIdAsync(id);

            if (existing == null)
                return NotFound();

            await _repository.DeleteAsync(id);
            return NoContent();
        }
    }
}

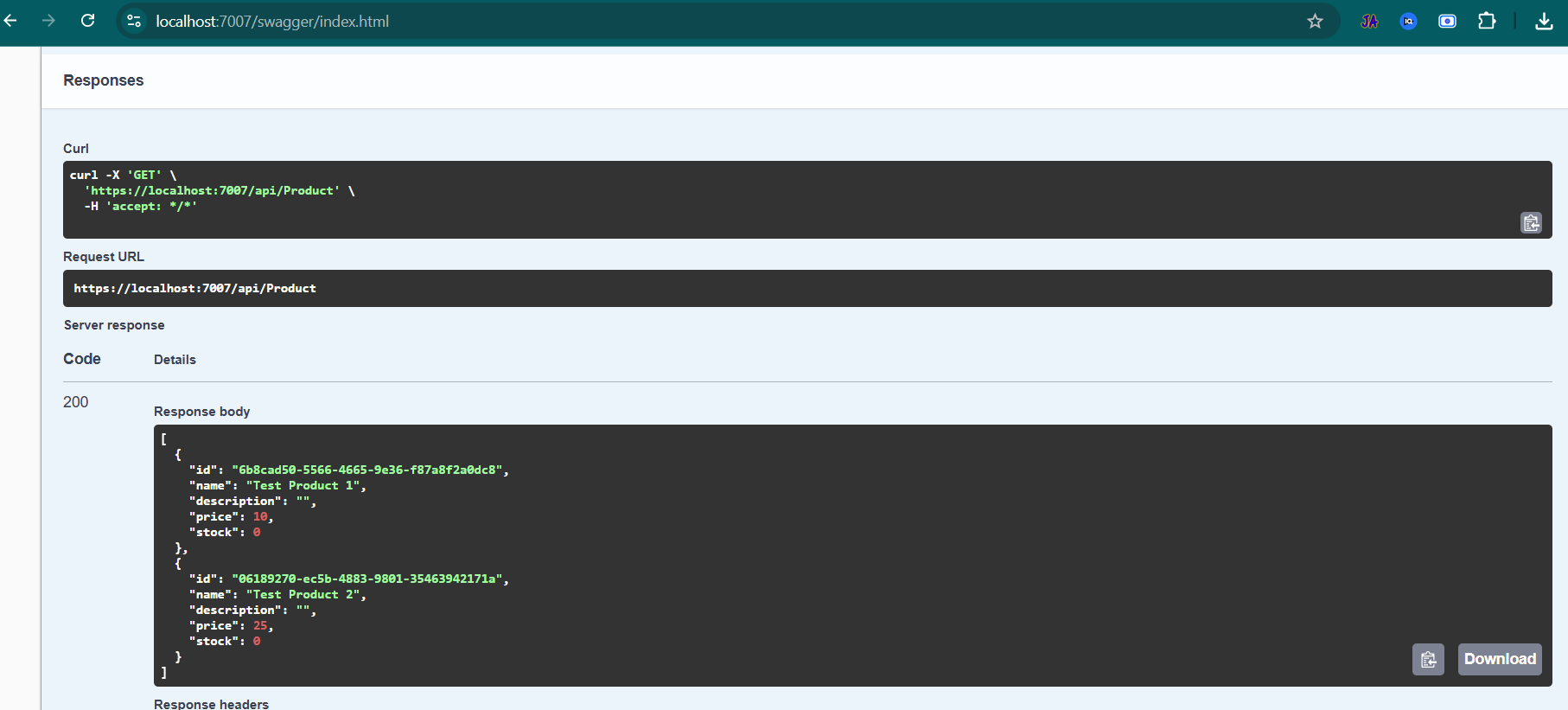

Lets Test Rest API

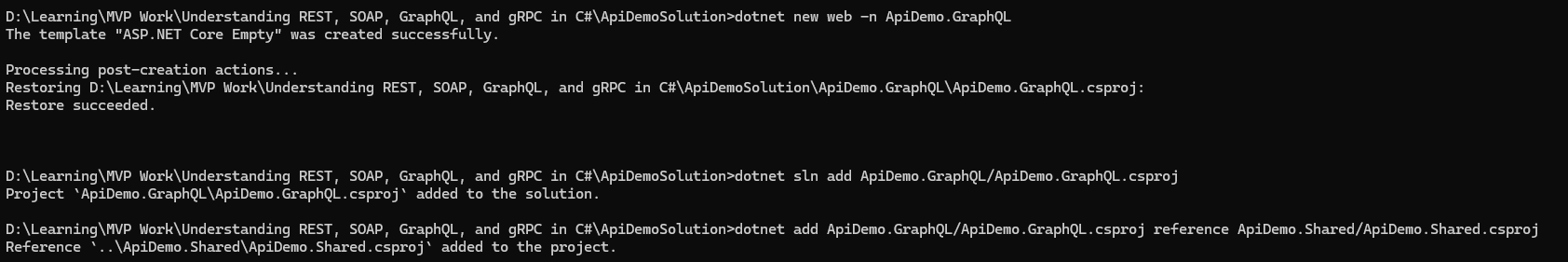

Create GraphQL API Project

dotnet new web -n ApiDemo.GraphQL
dotnet sln add ApiDemo.GraphQL/ApiDemo.GraphQL.csproj
dotnet add ApiDemo.GraphQL/ApiDemo.GraphQL.csproj reference ApiDemo.Shared/ApiDemo.Shared.csproj

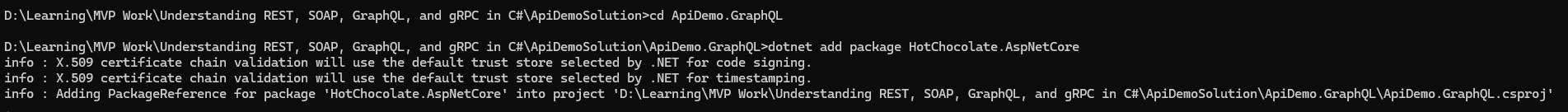

Add Package

dotnet add package HotChocolate.AspNetCore

Create ProductQuery

Path : "/GraphQL/Products/ProductQuery.cs"

using ApiDemo.Shared.Repositories;

namespace ApiDemo.GraphQL.GraphQL.Products;

public class ProductQuery
{
    public async Task<IEnumerable<Product>> GetProducts(
        [Service] IProductRepository productRepository)
    {
        return await productRepository.GetAllAsync();
    }

    public async Task<Product?> GetProduct(
        Guid id,
        [Service] IProductRepository productRepository)
    {
        return await productRepository.GetByIdAsync(id);
    }

}

Create ProductMutation

using ApiDemo.Shared.Repositories;

namespace ApiDemo.GraphQL.GraphQL.Products;

public class ProductMutation
{
    public async Task<Product> CreateProduct(
    Product input,
    [Service] IProductRepository productRepository)
    {
        var product = new Product
        {
            Id = Guid.NewGuid(),
            Name = input.Name,
            Price = input.Price,
            Description = input.Description
        };

        await productRepository.AddAsync(product);

        return product;
    }

    public async Task<Product?> UpdateProduct(
        Guid id,
        Product input,
        [Service] IProductRepository productRepository)
    {
        var existing = await productRepository.GetByIdAsync(id);
        if (existing == null)
            return null;

        existing.Name = input.Name;
        existing.Price = input.Price;
        existing.Description = input.Description;

        await productRepository.UpdateAsync(existing);

        return existing;
    }

    public async Task<bool> DeleteProduct(
        Guid id,
        [Service] IProductRepository productRepository)
    {
        var existing = await productRepository.GetByIdAsync(id);
        if (existing == null)
            return false;

        await productRepository.DeleteAsync(id);
        return true;
    }
}

Update Program File

using ApiDemo.GraphQL.GraphQL;
using ApiDemo.GraphQL.GraphQL.Products;
using ApiDemo.Shared.Data;
using ApiDemo.Shared.Repositories;
using Microsoft.EntityFrameworkCore;

var builder = WebApplication.CreateBuilder(args);

builder.Services.AddDbContext<AppDbContext>(options =>
    options.UseNpgsql(builder.Configuration.GetConnectionString("DefaultConnection")));

// Add Repository (register your concrete implementation)
builder.Services.AddScoped<IProductRepository, ProductRepository>();

// Add GraphQL
builder.Services
    .AddGraphQLServer()
    .AddQueryType<ProductQuery>()
    .AddMutationType<ProductMutation>();

var app = builder.Build();

// Configure GraphQL endpoint
app.MapGraphQL("/graphql");

// Test endpoint

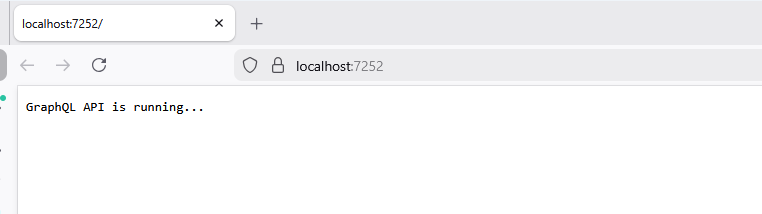

app.MapGet("/", () => "GraphQL API is running...");

app.Run();

Update Appsettings.json

{
  "ConnectionStrings": {
    "DefaultConnection": "Host=localhost;Port=5432;Database=ApiDemoDb;Username=postgres;Password=Admin123!"
  },
  "Logging": {
    "LogLevel": {
      "Default": "Information",
      "Microsoft.AspNetCore": "Warning"
    }
  },
  "AllowedHosts": "*"
}

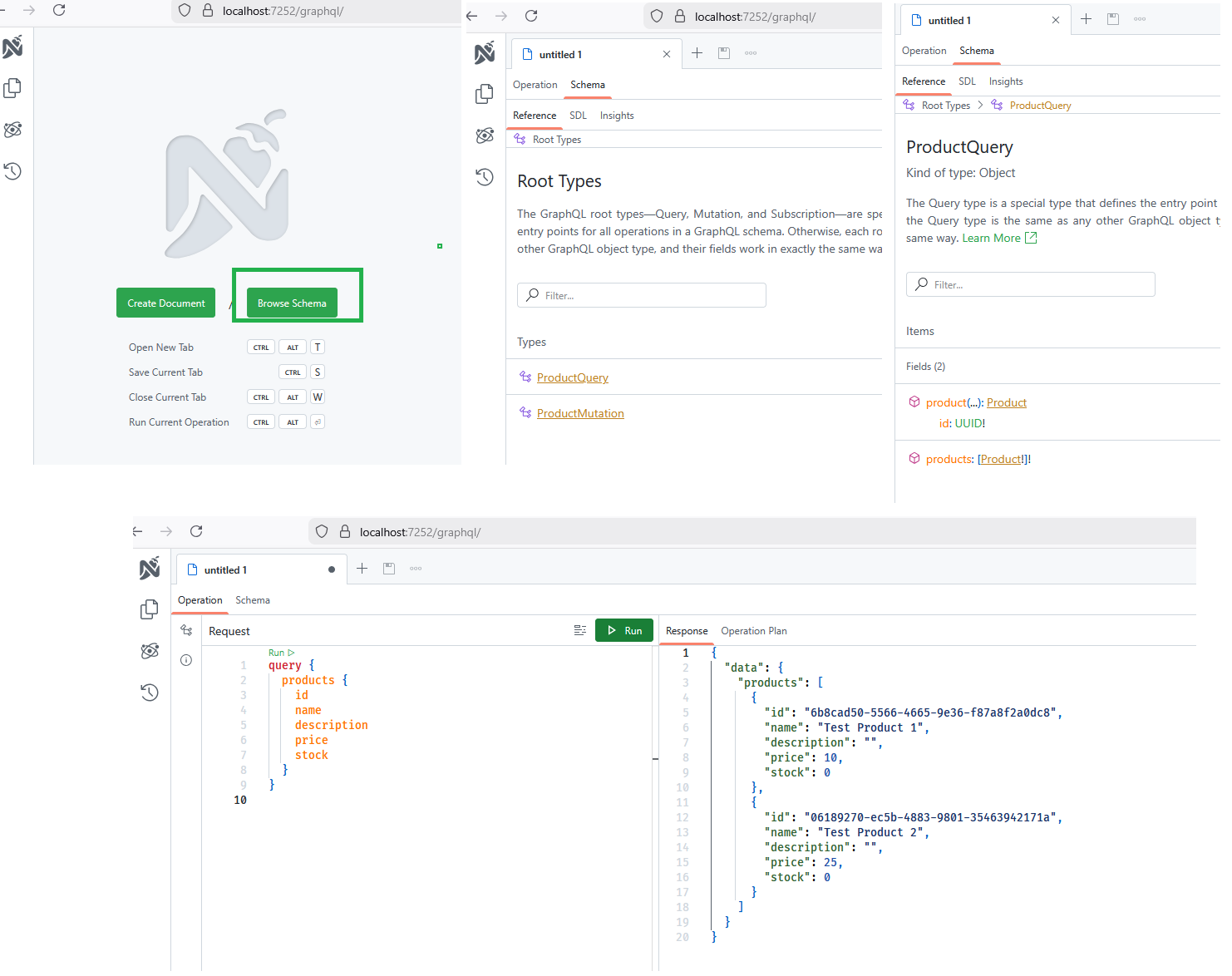

Lets Test

Access for Testing "https://localhost:7252/graphql/"

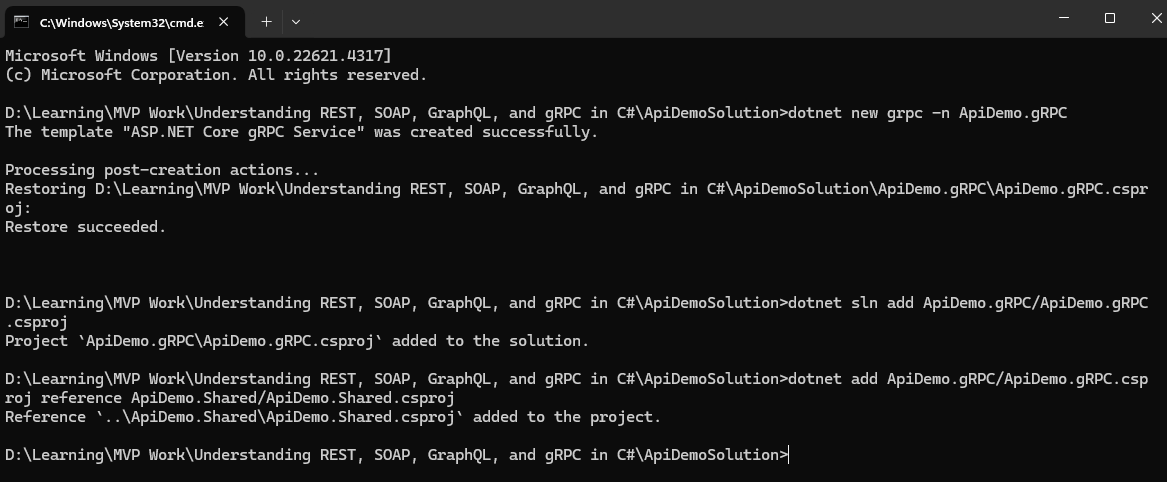

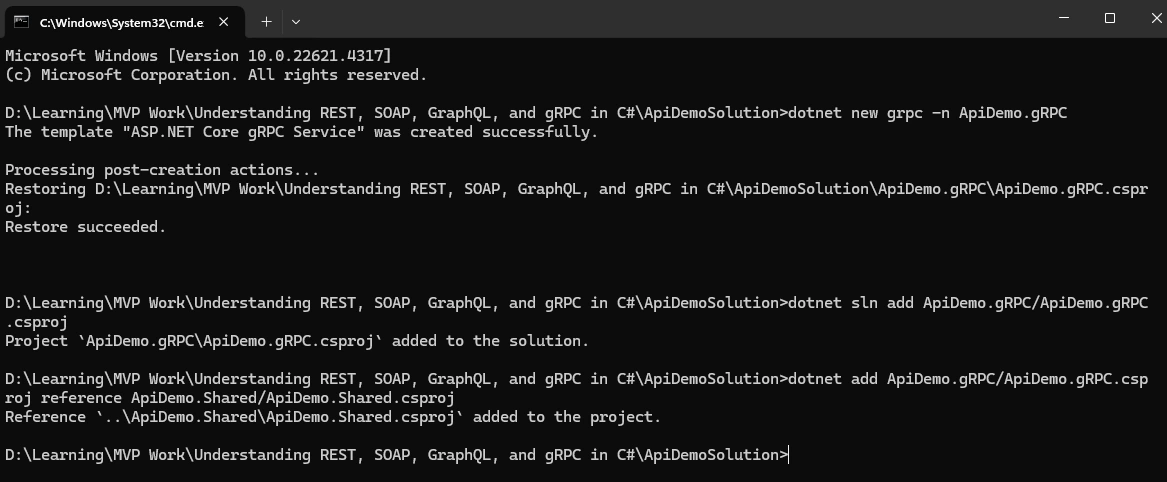

Create gRPC API Project

dotnet new grpc -n ApiDemo.gRPC
dotnet sln add ApiDemo.gRPC/ApiDemo.gRPC.csproj
dotnet add ApiDemo.gRPC/ApiDemo.gRPC.csproj reference ApiDemo.Shared/ApiDemo.Shared.csproj

Lets Create product.proto

product.proto is a Protocol Buffers (protobuf) schema file that defines the structure of data (messages) and the services or RPC methods your gRPC server provides.

syntax = "proto3";

option csharp_namespace = "GrpcProductService.Protos";

import "google/protobuf/empty.proto";
import "google/protobuf/wrappers.proto";

message ProductMessage {
  string id = 1;
  string name = 2;
  string description = 3;
  double price = 4;
  int32 stock = 5;
}

message ProductRequest {
  string id = 1;
}

message ProductList {
  repeated ProductMessage products = 1;
}

message CreateProductRequest {
  string name = 1;
  string description = 2;
  double price = 3;
  int32 stock = 4;
}

message UpdateProductRequest {
  string id = 1;
  string name = 2;
  string description = 3;
  double price = 4;
  int32 stock = 5;
}

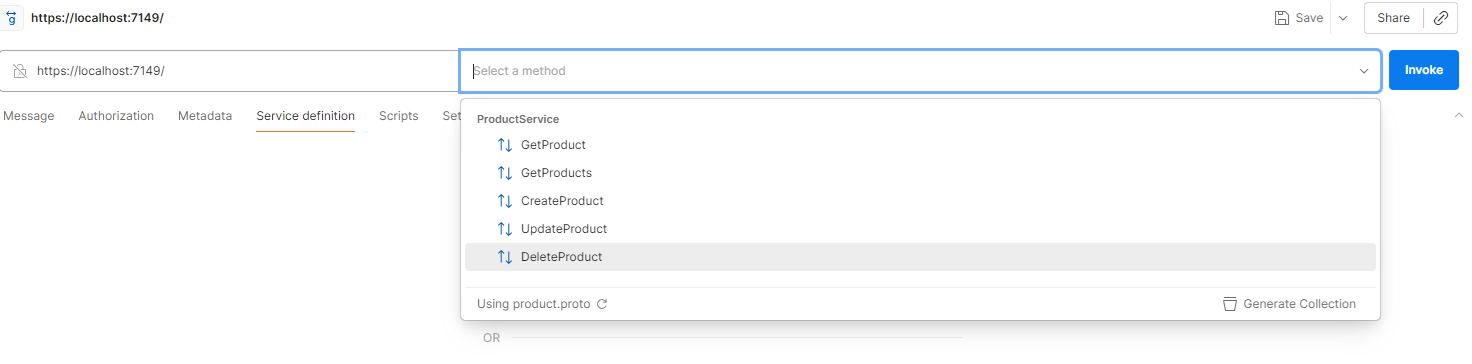

service ProductService {
  rpc GetProduct(ProductRequest) returns (ProductMessage);
  rpc GetProducts(google.protobuf.Empty) returns (ProductList);
  rpc CreateProduct(CreateProductRequest) returns (ProductMessage);
  rpc UpdateProduct(UpdateProductRequest) returns (ProductMessage);
  rpc DeleteProduct(ProductRequest) returns (google.protobuf.BoolValue);
}

Lets Create ProductService

A gRPC service is a collection of remote procedure calls (RPCs) defined in a .proto file that clients can invoke on the server, enabling strongly-typed and efficient communication between client and server.

using ApiDemo.Shared.Repositories;
using Grpc.Core;
using GrpcProductService.Protos;

namespace ApiDemo.gRPC.Services;

public class ProductServiceGrpc : ProductService.ProductServiceBase
{
    private readonly IProductRepository _repository;

    public ProductServiceGrpc(IProductRepository repository)
    {
        _repository = repository;
    }

    public override async Task<ProductMessage> GetProduct(ProductRequest request, ServerCallContext context)
    {
        var product = await _repository.GetByIdAsync(Guid.Parse(request.Id));
        if (product == null) throw new RpcException(new Status(StatusCode.NotFound, "Product not found"));

        return new ProductMessage
        {
            Id = product.Id.ToString(),
            Name = product.Name,
            Description = product.Description,
            Price = (double)product.Price,
            Stock = product.Stock
        };
    }

    public override async Task<ProductList> GetProducts(Google.Protobuf.WellKnownTypes.Empty request, ServerCallContext context)
    {
        var products = await _repository.GetAllAsync();
        var response = new ProductList();
        response.Products.AddRange(products.Select(p => new ProductMessage
        {
            Id = p.Id.ToString(),
            Name = p.Name,
            Description = p.Description,
            Price = (double)p.Price,
            Stock = p.Stock
        }));
        return response;
    }

    public override async Task<ProductMessage> CreateProduct(CreateProductRequest request, ServerCallContext context)
    {
        var product = new Product
        {
            Id = Guid.NewGuid(),
            Name = request.Name,
            Description = request.Description,
            Price = (decimal)request.Price,
            Stock = request.Stock
        };
        await _repository.AddAsync(product);

        return new ProductMessage
        {
            Id = product.Id.ToString(),
            Name = product.Name,
            Description = product.Description,
            Price = (double)product.Price,
            Stock = product.Stock
        };
    }

    public override async Task<ProductMessage> UpdateProduct(UpdateProductRequest request, ServerCallContext context)
    {
        var product = await _repository.GetByIdAsync(Guid.Parse(request.Id));
        if (product == null) throw new RpcException(new Status(StatusCode.NotFound, "Product not found"));

        product.Name = request.Name;
        product.Description = request.Description;
        product.Price = (decimal)request.Price;
        product.Stock = request.Stock;

        await _repository.UpdateAsync(product);

        return new ProductMessage
        {
            Id = product.Id.ToString(),
            Name = product.Name,
            Description = product.Description,
            Price = (double)product.Price,
            Stock = product.Stock
        };
    }

    public override async Task<Google.Protobuf.WellKnownTypes.BoolValue> DeleteProduct(ProductRequest request, ServerCallContext context)
    {
        var product = await _repository.GetByIdAsync(Guid.Parse(request.Id));
        if (product == null) return new Google.Protobuf.WellKnownTypes.BoolValue { Value = false };

        await _repository.DeleteAsync(product.Id);
        return new Google.Protobuf.WellKnownTypes.BoolValue { Value = true };
    }
}

Update Program file

using ApiDemo.gRPC.Services;
using ApiDemo.Shared.Data;
using ApiDemo.Shared.Repositories;
using Microsoft.EntityFrameworkCore;

var builder = WebApplication.CreateBuilder(args);

// Add EF Core DbContext
builder.Services.AddDbContext<AppDbContext>(options =>
    options.UseNpgsql(builder.Configuration.GetConnectionString("DefaultConnection")));

// Add Repository
builder.Services.AddScoped<IProductRepository, ProductRepository>();

// Add gRPC
builder.Services.AddGrpc();

var app = builder.Build();

// Map gRPC service
app.MapGrpcService<ProductServiceGrpc>();

// Optional health endpoint

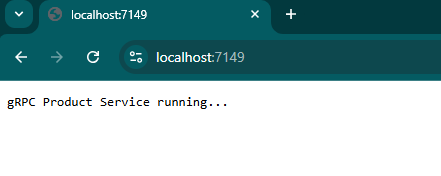

app.MapGet("/", () => "gRPC Product Service running...");

app.Run();

Update Appsettings.json as same we did in Rest,GraphQL

Lets Test

Open Postman and click on New and select gPRC

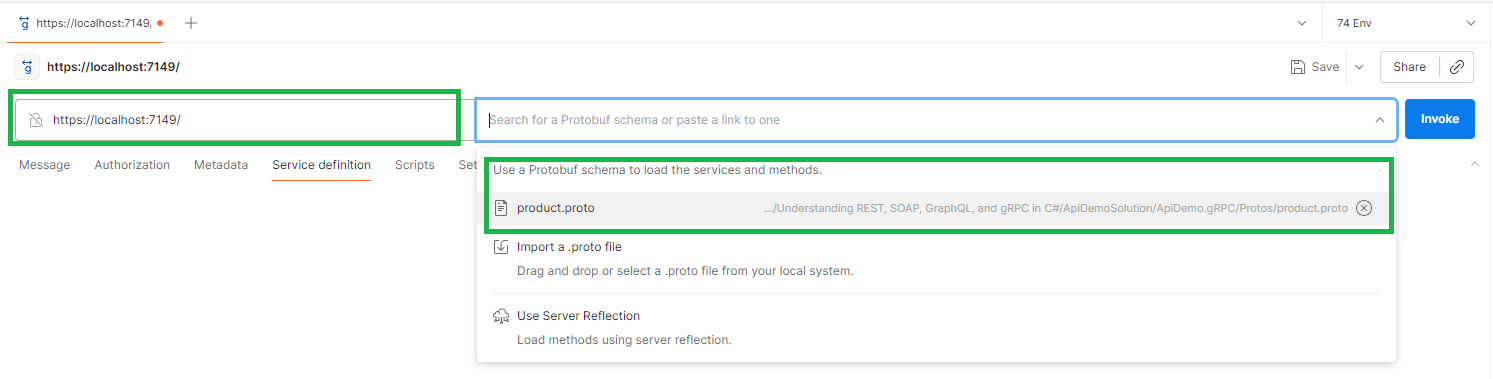

Add Url and Import .proto file

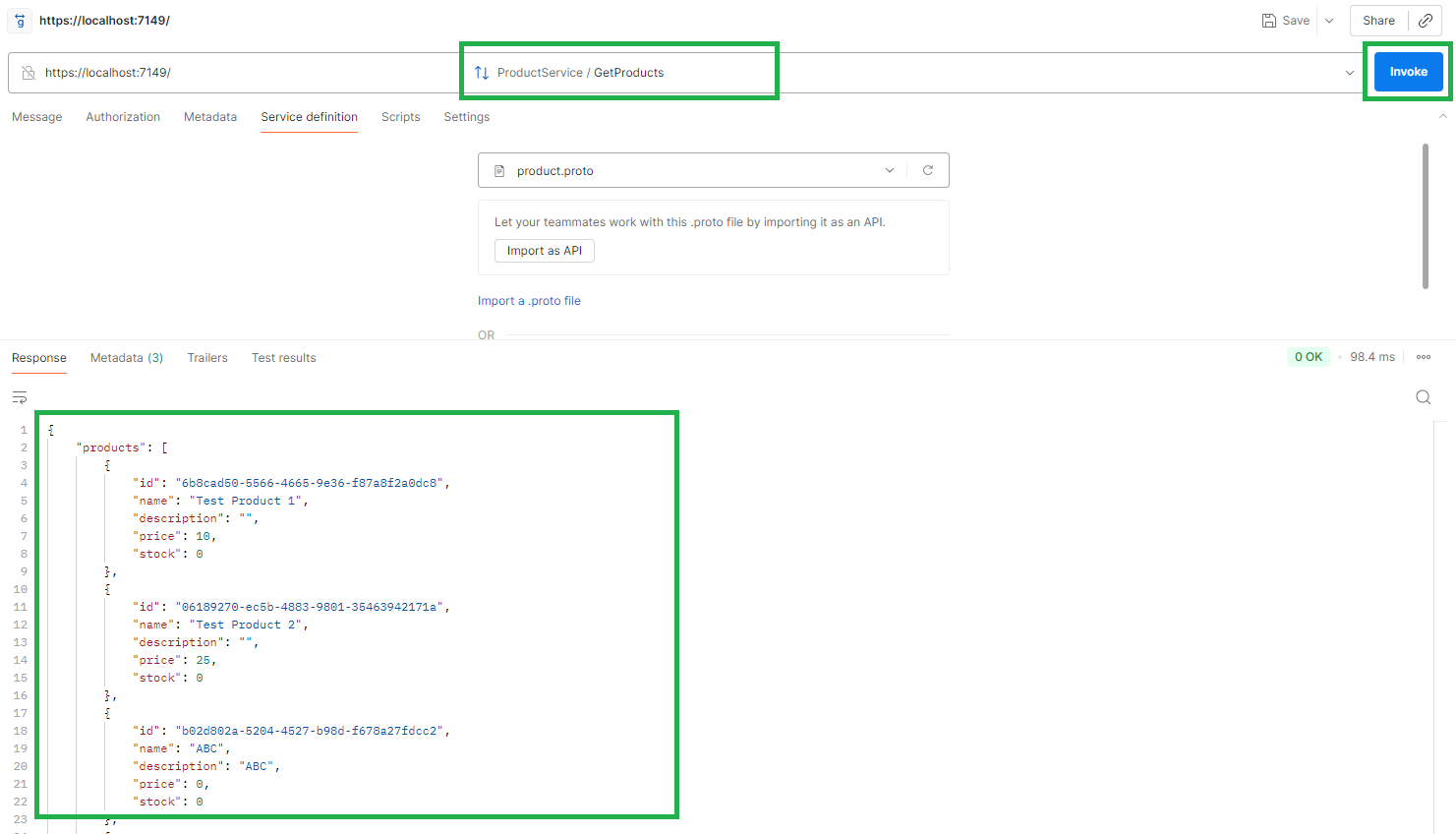

Select Method from List to call

Invoke the Method

Source Code : https://github.com/farrukh1212cs/ApiDemoSolution
