Registration form Using 3 tier architecture in C#

Step 1 : Create User registration form using Master page,
  1. <asp:Content ID="Content1" ContentPlaceHolderID="head" runat="server"></asp:Content>
  2. <asp:Content ID="Content2" ContentPlaceHolderID="ContentPlaceHolder1" runat="server">
  3.     <div>
  4.         <asp:Table ID="Table1" runat="server" >
  5.             <asp:TableRow>
  6.                 <asp:TableCell>Full Name</asp:TableCell>
  7.                 <asp:TableCell>
  8.                     <asp:TextBox ID="txtName" runat="server" ></asp:TextBox>
  9.                 </asp:TableCell>
  10.             </asp:TableRow>
  11.             <asp:TableRow>
  12.                 <asp:TableCell>User Name</asp:TableCell>
  13.                 <asp:TableCell>
  14.                     <asp:TextBox ID="txtUserName" runat="server" ></asp:TextBox>
  15.                 </asp:TableCell>
  16.             </asp:TableRow>
  17.             <asp:TableRow>
  18.                 <asp:TableCell>Password</asp:TableCell>
  19.                 <asp:TableCell>
  20.                     <asp:TextBox ID="txtpassword" runat="server" TextMode="Password" ></asp:TextBox>
  21.                 </asp:TableCell>
  22.             </asp:TableRow>
  23.             <asp:TableRow>
  24.                 <asp:TableCell> Email ID </asp:TableCell>
  25.                 <asp:TableCell>
  26.                     <asp:TextBox ID="txtEmailid" runat="server" ></asp:TextBox>
  27.                 </asp:TableCell>
  28.             </asp:TableRow>
  29.             <asp:TableRow>
  30.                 <asp:TableCell>Contact No</asp:TableCell>
  31.                 <asp:TableCell>
  32.                     <asp:TextBox ID="txtContact" runat="server" ></asp:TextBox>
  33.                 </asp:TableCell>
  34.             </asp:TableRow>
  35.             <asp:TableRow>
  36.                 <asp:TableCell>City</asp:TableCell>
  37.                 <asp:TableCell>
  38.                     <asp:TextBox ID="txtcity" runat="server" ></asp:TextBox>
  39.                 </asp:TableCell>
  40.             </asp:TableRow>
  41.             <asp:TableRow>
  42.                 <asp:TableCell>Area code</asp:TableCell>
  43.                 <asp:TableCell>
  44.                     <asp:TextBox ID="txtAreaCode" runat="server" ></asp:TextBox>
  45.                 </asp:TableCell>
  46.             </asp:TableRow>
  47.             <asp:TableRow>
  48.                 <asp:TableCell>UserRole</asp:TableCell>
  49.                 <asp:TableCell>
  50.                     <asp:DropDownList runat="server" ID="ddlUserRole"></asp:DropDownList>
  51.                 </asp:TableCell>
  52.             </asp:TableRow>
  53.             <asp:TableRow>
  54.                 <asp:TableCell></asp:TableCell>
  55.                 <asp:TableCell>
  56.                     <asp:Button ID="btnSave" runat="server" onclick="btnSave_Click" Text="Submit Data" />
  57.                 </asp:TableCell>
  58.             </asp:TableRow>
  59.         </asp:Table>
  60.     </div>
  61. </asp:Content>
Step 2 : Now Create User registration form DAL Class File.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Data;
  6. using System.Data.Sql;
  7. using System.Data.SqlClient;
  8. using System.Text;
  9. using System.Configuration;
  10.
  11. namespace Real_Estate.DAL
  12. {
  13.     public class DAL_NewUserEntrys
  14.     {
  15.         string connString = ConfigurationManager.ConnectionStrings["connstr"].ConnectionString;
  16.         public int InsertNewUser(string U_FullName, string U_Name, string U_Email, string U_Contact, string U_Password, string U_City, string U_Area_Code, int UR_id, DateTime U_CreateDate)
  17.         {
  18.             var returnData = 0;
  19.             using(SqlConnection con = new SqlConnection(connString))
  20.             {
  21.                 using(SqlCommand cmd = new SqlCommand("sp_NewUser", con))
  22.                 {
  23.                     cmd.CommandType = CommandType.StoredProcedure;
  24.                     SqlParameter[] perm = new SqlParameter[9];
  25.                     perm[0] = new SqlParameter("@U_FullName", SqlDbType.NVarChar, 50);
  26.                     perm[0].Value = U_FullName;
  27.                     perm[1] = new SqlParameter("@U_Name", SqlDbType.NVarChar, 30);
  28.                     perm[1].Value = U_Name;
  29.                     perm[2] = new SqlParameter("@U_Email", SqlDbType.NVarChar, 50);
  30.                     perm[2].Value = U_Email;
  31.                     perm[3] = new SqlParameter("@U_Contact", SqlDbType.NVarChar, 15);
  32.                     perm[3].Value = U_Contact;
  33.                     perm[4] = new SqlParameter("@U_Password", SqlDbType.NVarChar, 20);
  34.                     perm[4].Value = U_Password;
  35.                     perm[5] = new SqlParameter("@U_City", SqlDbType.NVarChar, 25);
  36.                     perm[5].Value = U_City;
  37.                     perm[6] = new SqlParameter("@U_Area_P_Code", SqlDbType.NVarChar, 10);
  38.                     perm[6].Value = U_Area_Code;
  39.                     perm[7] = new SqlParameter("@UR_id", SqlDbType.Int);
  40.                     perm[7].Value = UR_id;
  41.                     perm[8] = new SqlParameter("@U_CreateDate", SqlDbType.DateTime.ToString());
  42.                     perm[8].Value = U_CreateDate;
  43.                     cmd.Parameters.AddRange(perm);
  44.                     con.Open();
  45.                     returnData = cmd.ExecuteNonQuery();
  46.                     con.Close();
  47.                     con.Dispose();
  48.                 }
  49.             }
  50.             return returnData;
  51.         }
  52.     }
  53. }
Step 3 : Now Create User registration form BAL Class File.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Text;
  6. using Real_Estate.DAL;
  7.
  8. namespace Real_Estate.BAL
  9. {
  10.     public class BAL_NewUserEntry
  11.     {
  12.         public int InsertNewUser(string U_FullName, string U_Name, string U_Email, string U_Contact, string U_Password, string U_City, string U_Area_Code, int UR_id, DateTime U_CreateDate) {
  13.             return new DAL_NewUserEntrys().InsertNewUser(U_FullName, U_Name, U_Email, U_Contact, U_Password, U_City, U_Area_Code, UR_id, U_CreateDate);
  14.         }
  15.     }
  16. }
Step 4 : Finally write submit button code on aspx.cs page.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using System.Data;
  8. using System.Data.SqlClient;
  9. using System.Configuration;
  10. using Real_Estate.BAL;
  11.
  12. namespace Real_Estate.Form
  13. {
  14.     public partial class UserRegistration: System.Web.UI.Page
  15.     {
  16.         string connection = ConfigurationManager.ConnectionStrings["connstr"].ConnectionString;
  17.         protected void Page_Load(object sender, EventArgs e)
  18.         {
  19.             if (!IsPostBack)
  20.             {
  21.                 BindUserRole();
  22.             }
  23.         }
  24.         protected void BindUserRole() // Bind Dropdownlist form database
  25.         {
  26.             using(SqlConnection conn = new SqlConnection(connection))
  27.             {
  28.                 conn.Open();
  29.                 SqlCommand cmd = new SqlCommand("sp_UserRole", conn);
  30.                 cmd.CommandType = System.Data.CommandType.StoredProcedure;
  31.                 SqlDataAdapter da = new SqlDataAdapter(cmd);
  32.                 DataSet dt = new DataSet();
  33.                 da.Fill(dt);
  34.                 ddlUserRole.DataSource = dt;
  35.                 ddlUserRole.DataTextField = "UR_Role";
  36.                 ddlUserRole.DataValueField = "UR_id";
  37.                 ddlUserRole.DataBind();
  38.                 conn.Close();
  39.             }
  40.         }
  41.         protected void btnSave_Click(object sender, EventArgs e) {
  42.             var result = 0;
  43.             int UR_id = 0;
  44.             int.TryParse(ddlUserRole.SelectedValue, out UR_id);
  45.             DateTime U_CeateDate = DateTime.Now;
  46.             result = new BAL_NewUserEntry().InsertNewUser(txtName.Text.Trim(), txtUserName.Text.Trim(), txtEmailid.Text.Trim(), txtContact.Text.Trim(), txtpassword.Text.Trim(), txtcity.Text.Trim(), txtAreaCode.Text.Trim(), UR_id, U_CeateDate);
  47.         }
  48.     }
  49. }
Note: Here set connection string in web.config
  1. <configuration>
  2.     <connectionStrings>
  3.         <add name="connstr"
  4. connectionString="Data Source=RAKESH-PC;Initial Catalog=Real_Estate;User ID=sa;Password=****" providerName="System.Data.SqlClient" />
  5.     </connectionStrings>
Also Create stored procedure in your database

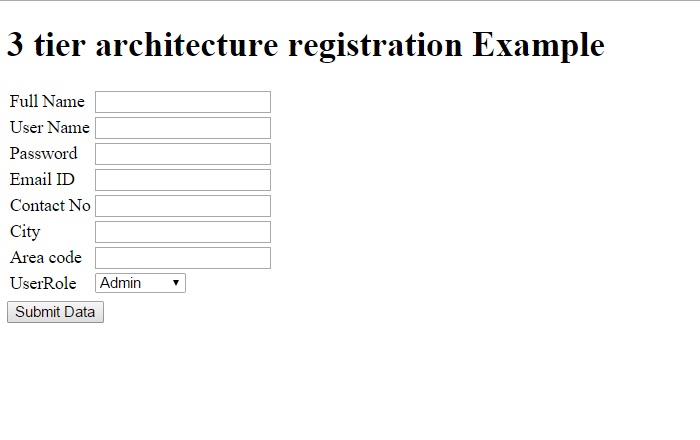

Screen Shoot :
